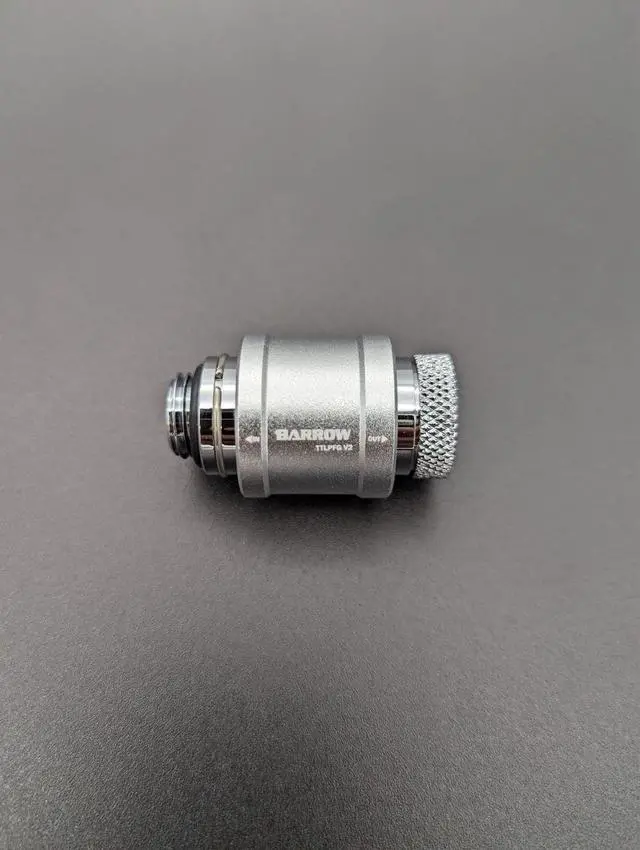

Barrow G1/4" Male to Female Manual Inline Valve - Silver/Silver Fitting (TTLPFG-V2-Silver)

The Barrow TTLPFG V2 is a flat push type inline valve with a G1/4" male thread on the IN end and a G1/4" female thread on the OUT end. Barrow makes it for stopping the flow or draining water from a water cooling loop. It is made of brass and aluminum alloy and finished in shiny silver.

Properties

• Type: Flat push type valve, male to female
• Thread: G1/4" male to G1/4" female
• Ports: 2x G1/4"
• Flow direction: Marked IN and OUT
• Material: Brass and aluminum alloy
• Color: Silver
• Pieces in the pack: 1

Stop or drain the loop

Barrow makes this valve for stopping the flow or draining water from a water cooling system. The body is marked IN and OUT; fit it with the coolant flowing from IN to OUT.

Brass and aluminum

Barrow lists the material as brass and aluminum alloy. It says its brass parts are H59 brass, protected by what it calls a double electroplating process that gives a fine texture that is solid and durable.

Non-slip diamond knurling

The nut on the OUT end has a diamond knurl pattern. Barrow says it gives a sure grip when you screw a connection in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the valve works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

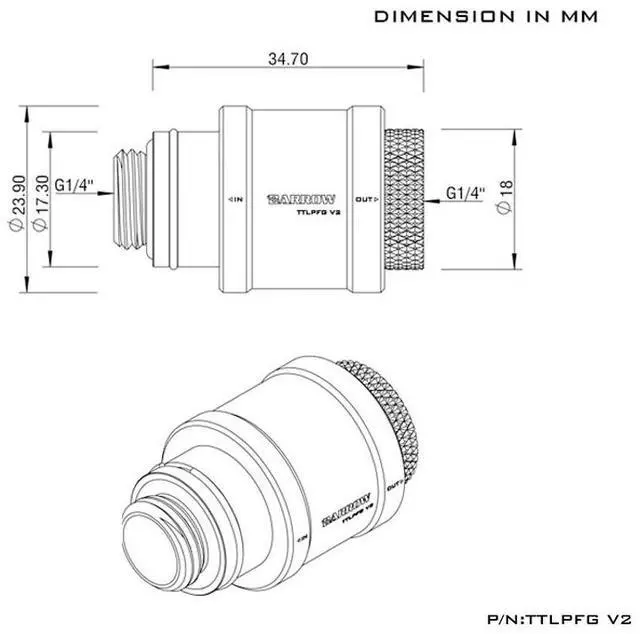

Technical data

• Model: TTLPFG V2
• Type: Flat push type valve
• Threads: G1/4" male | G1/4" female
• Flow direction: IN to OUT, marked on the body
• Length without male thread: 34.7 mm
• Body diameter: 23.9 mm
• IN end diameter: 17.3 mm
• OUT nut diameter: 18 mm
• Material: Brass and aluminum alloy
• Color: Silver

Notes

• Barrow sells the TTLPFG V2 with a black or silver body and a black, silver or red cap. This listing has a shiny silver body and a shiny silver cap.
• Barrow also makes a longer female to female version, the TTLPF.
• Barrow calls this a "check valve" but gives its use as stopping or draining water.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Male to Female Manual Inline Valve - Silver/Silver
