    Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting - Black, Brass (TX360PZ-15-V2)

    • Black
    • Silver
    • 15mm
    • 21mm
    • Introducing the Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting, a versatile solution for customizing your liquid cooling system. This adapter fitting allows you to easily adjust the angle and alignment of your tubing, providing greater
    • With its G1/4" threads and 360° rotary design, this fitting enables effortless rotation, making it ideal for tight spaces and intricate loop configurations. The 15mm offset allows for precise routing of tubing, ensuring efficient coolant flow and
    • Not only does the Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting offer exceptional functionality, but it also adds a touch of style to your liquid cooling setup. The sleek design and durable construction contribute to a visually appealing
    • Introducing the Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting, a versatile solution for customizing your liquid cooling system. This adapter fitting allows you to easily adjust the angle and alignment of your tubing, providing greater flexibil
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    The Barrow TX360PZ-15 V2 is a rotary offset adapter with a G1/4" male thread on the bottom and a G1/4" female thread on top. The female port sits 15 mm off the axis of the male thread, and the body turns through a full 360°, so you can move the port by up to 15 mm in any direction. It is machined from H59 brass and finished in black.

    Properties

    • Type: Rotary offset adapter, male to female
    • Thread: G1/4" male to G1/4" female
    • Offset: 15 mm
    • Rotation: 360°
    • Material: H59 brass, electroplated
    • Color: Black
    • Pieces in the pack: 1

    Line up tube runs that do not quite meet

    An offset adapter moves the port sideways instead of turning it. Screw the male end into a G1/4" port and turn the body: the female port swings around the male thread on a circle with a 15 mm radius, so it can sit anywhere up to 15 mm away from the original port center. That is enough to bring two hard tube runs into a straight line, or to move a fitting clear of a nearby part, without bending the tube. Barrow rates it for correcting a port deviation of up to 15 mm.

    Brass with a double-protected finish

    Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

    Non-slip diamond knurling

    The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

    Standard G1/4" connections

    Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

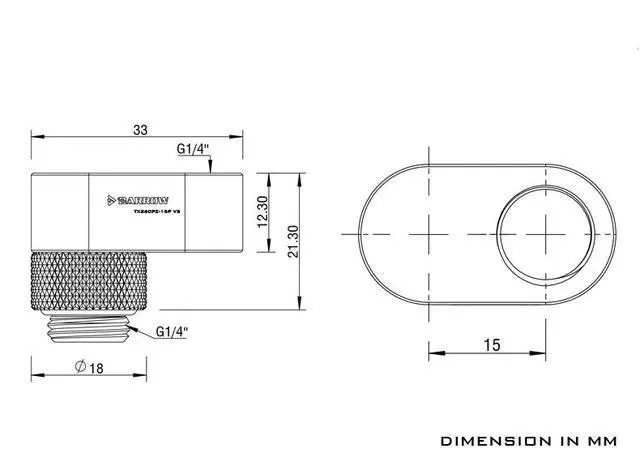

    Technical data

    • Model: TX360PZ-15 V2
    • Type: Rotary offset adapter, male to female
    • Threads: G1/4" male | G1/4" female
    • Offset between port centers: 15 mm
    • Possible rotation: 360°
    • Length: 33 mm
    • Body height: 12.3 mm
    • Rotary collar diameter: 18 mm
    • Height without male thread: 21.3 mm
    • Material: H59 brass
    • Color: Black

    Notes

    • For other offsets, see the Barrow TX360PZ (6 mm) and TX360PX-21 (21 mm).
    • Barrow sells this adapter in black and shiny silver. This listing is the black version.
    • Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

    In the box

    • 1x Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting - Black
