Barrow Universal 360 Distro Plate with DDC Pump - Black Reservoir, G1/4, Acrylic (DC17-SDB-360)

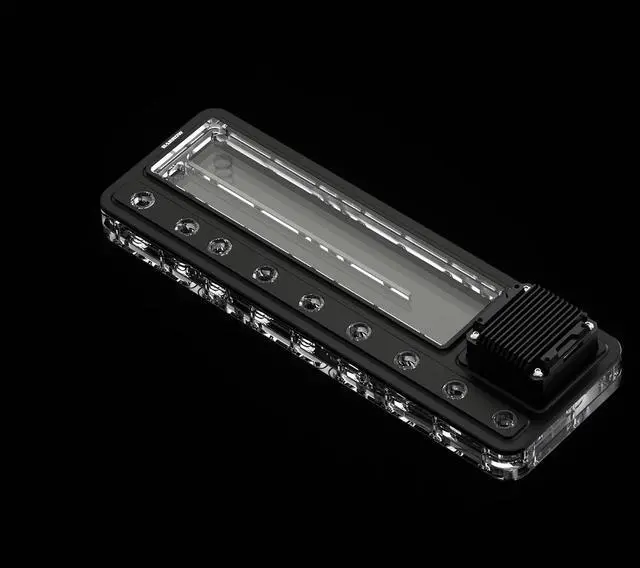

The Barrow Universal 360 Distro Plate DC17-SDB-360 combines a distribution plate, a reservoir and a factory-installed 17 W DDC-type pump in one black unit. It is 120 mm wide and 360 mm long, the same footprint as a 360 mm radiator or three 120 mm fans, and screws into a standard fan or radiator position in the case. A clear acrylic body shows the coolant, and ARGB lighting syncs with your motherboard.

Properties

• Pump: 17 W, installed at the factory
• Size (L x W x H): 360 x 120 x 57.2 mm
• Ports: G1/4", 11 in total (8 on the front panel)
• Mounting: M4 threads on the back, 120 mm fan hole pattern (105 mm)
• Material: CNC-machined aluminum front panel, acrylic body
• Color: Black
• Lighting: 5V ARGB, motherboard sync

A universal plate for any case

Most distro plates are made for one case model. Barrow designed this one as a universal model: it fits wherever a 360 mm radiator or three 120 mm fans would go, so it moves with you to a new case. Barrow says it suits builds with one or two graphics cards and many motherboards.

Pump, reservoir and plate in one

The plate leaves the factory with its 17 W pump installed, and several inlet and outlet connections are already in place. Barrow says this greatly reduces the work of a build: you plan the route of your tubing, connect it and the loop is ready.

Easy installation

The mounting threads sit on the back of the plate in the hole pattern of a 120 mm fan, with M4 threads in steel wire thread inserts. Barrow says the inserts reduce the risk of damage from too much force when you tighten the screws. Barrow recommends screwing the plate in loosely first, building the tubing, and tightening it at the end; that avoids a difficult fit while you route the tubes.

Acrylic and aluminum

The body is thick, clear acrylic, and Barrow enlarged and thickened the chamber to hold more coolant. The front panel is CNC-machined aluminum.

ARGB lighting

The lighting runs on a standard 5V ARGB (3-pin) cable. Plug it into the 5V ARGB header on your motherboard to sync with ASUS Aura Sync, Gigabyte RGB Fusion 2.0, ASRock Polychrome Sync and other 5V ARGB motherboard software, or control it with Barrow's LRC 2.0 lighting controller, which is sold separately.

What the loop needs

Every port takes a standard G1/4" fitting from our fittings, which are not in the box. Barrow says the plate works with all of its Intel, AM5 and AM4 CPU blocks, and with two 360 mm radiators up to 34 mm thick in the same build.

Technical data

• Model: DC17-SDB (360 size)
• Dimensions (L x W x H): 360 x 120 x 57.2 mm
• Pump power: 17 W
• Threads: G1/4"
• G1/4 ports: 11 in total, 8 on the front
• Mounting holes: M4 thread, 105 mm spacing
• Material: Aluminum alloy and acrylic
• Lighting: 5V ARGB (3-pin)
• Lighting control: Motherboard ARGB header or Barrow LRC 2.0
• Color: Black

Notes

• Barrow makes the plate in 120, 240 and 360 sizes, in black or white. This listing is the black 360.
• Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.

In the box

• 1x Barrow Universal 360 Distro Plate with DDC Pump - Black
