Barrowch RAM Active Air Cooler - Black (FBRAMFD)

The Barrowch FBRAMFD is an active air cooling module for desktop memory. Four 8000 RPM PWM fans in a slim black aluminum housing sit on top of Barrowch FBRAMLD-01 memory heatsinks and push fresh air down into them, which Barrow says further lowers the temperature of fast running memory. The FBRAMLD-01 housings are sold separately.

Properties

• Type: RAM fan module, 4 PWM fans
• Fan speed: 8000 RPM (Barrow)
• Fan connection: 4-pin PWM fan header
• Use with: Barrowch FBRAMLD-01 RAM housings (sold separately)
• Size (L x W x H): 138 x 42 x 18 mm
• Material: Aluminum alloy
• Color: Black
• Pieces in the pack: 1 set

Four PWM fans over the memory

Barrow fits the module with four 8000 RPM fans with PWM speed control. Connected to a 4-pin fan header, their speed follows the temperature inside the case, so Barrow says they balance cooling and noise.

Built on the FBRAMLD-01 memory vest

Barrow calls the FBRAMLD-01 housings memory vests. The FBRAMFD screws onto the top of a row of them and blows air into their vents from above. Barrow shows it on a set of four modules, and lists the FBRAMFD without the vests, so order one FBRAMLD-01 for every module.

Installation

• Fit each memory module into its FBRAMLD-01 housing (remove any original heat spreader first) and plug the modules into the motherboard.
• Undo the two screws of the upper shell of the FBRAMFD and lift it off.
• Set the lower part with the fans on the memory housings and fix it with the mounting screws, as Barrow shows.
• Put the upper shell back on and tighten its two screws.
• Connect the cable: the plug on the module end only fits one way; connect the other end to a 4-pin fan header on the motherboard.

Technical data

• Model: FBRAMFD
• Type: Active RAM air cooling module
• Fans: 4, PWM
• Fan speed: 8000 RPM
• Connection: 4-pin PWM fan header

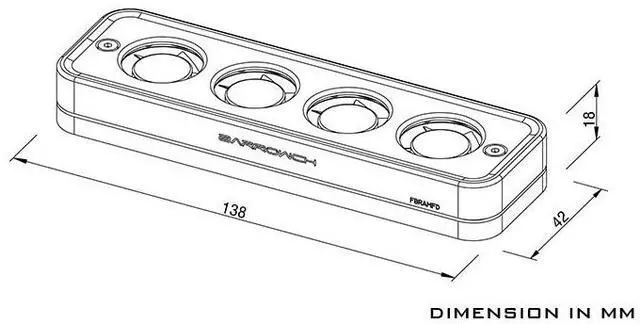

• Dimensions (L x W x H): 138 x 42 x 18 mm
• Fits on: Barrowch FBRAMLD-01 RAM housings
• Material: Aluminum alloy
• Color: Black

Notes

• The RAM heatsink housings (Barrowch FBRAMLD-01) are not included.
• Barrow makes the FBRAMFD in black and white. This listing is the black version.
• Check the clearance under your CPU cooler and side panel: the fan module is 18 mm tall and sits on top of the memory housings.
• Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.

In the box

• 1x Barrowch RAM Active Air Cooler - Black
• 1x PWM cable to control the fans
• 1x Mounting hardware
