be quiet! SILENTWINGS 3 120mm Fluid-dynamic Bearing Fan
- Virtually inaudible operation at max. 16.4dB(A)
- 6-pole fan motor for less power consumption and vibration
- Fluid-dynamic bearing enables super-long life span of 300,000h
- Fan frame with funnel-shaped air inlets for extremely high air pressure
- Seven fan blades offer an optimized airflow
- German product conception, design and quality control
Overview
Specs
Reviews (16)
Any questions? Our AI beta will help you find out quickly.
Try me now
be quiet! Silent Wings 3 120mm stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.
Virtually inaudible operation at max. 16.4dB(A)
6-pole fan motor for less power consumption and vibration
Fluid-dynamic bearing enables super-long life span of 300,000h
Fan frame with funnel-shaped air inlets for extremely high air pressure
Seven fan blades offer an optimized airflow
Three years manufacturer’s warranty
State-of-the-art technology
6-pole fan motor with three phases for very low power consumption, less vibration and therefore quiet operation of max. 16.4dB(A).
Silence optimized operation
Advanced high-quality IC motor controller reduces electrical noise.
For even better cooling
Seven fan blades with an optimized surface structure ensure virtually inaudible operation and excellent airflow.
Virtually inaudible operation
Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case to an absolute minimum.
A design for even greater performance
The rubberized fan frame is equipped with funnel-shaped air inlets for excellent air circulation and extremely high air pressure, which makes the fan the perfect choice for gaming and multimedia PCs, overclocked systems and for use with radiators.
For a super long life span
The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours and greatly reduced operating noise.
Model: Silent Wings 3 | 120mm
Dimensions (mm) 120
Fan speed @ 100% PWM / 12V (rpm) 1,450
Air Flow @ 100% PWM / 12V (CFM / m3/h) 50.5 / 80.47
Air Pressure @ 100% PWM / 12V (mm H2O) 1.79
Noise level @ 100% PWM / 12V (dB(A)) 16.4
IDEAL APPLICATIONS
Very quiet workstations and desktop PCs
High-resolution gaming and multimedia systems
Super silent water-cooled PCs
Extremely overclocked systems
HIGHLIGHTS
Very silent even at high-speed operation
Optimized fan frame and blades
Smooth-running 6-pole fan motor
Noise absorbing anti-vibration concept
3-pin connector
No Compromise Silence and Performance
be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.
Highlights »
- Great performance-to-noise ratio with the perfect balance between cooling and silence
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
- Seven fan blades with optimized surface structures ensure excellent airflow
- The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
- Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
- Advanced high quality IC motor controller reduces electrical noise
- High-speed models are especially recommended for use in powerful water cooling and air cooling set ups
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
SilentWings 3 »
They are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
Features
Innovative 6-pole fan motor
6-pole fan motor with 3 phases for very
low power consumption, less vibrations and
therefore quieter operation.
High-quality motor controller
The high quality motor controller leads to a
minimization of electronic noises.
Airflow-optimized fan blades
Seven fan blades with optimized surface
structure ensure virtually inaudible operation and excellent airflow.
Anti-vibration mountings
Removable anti-vibration mountings on all four edges of the fan reduce the transmission of
vibrations to the PC case to a minimum.
Rubberized fan frame
The rubberized fan frame is equipped with
funnel-shaped air inlets for excellent air
circulation and pressure.
Technical Data »
| Model | 140mm | 120mm | 140mm high-speed | 120mm high-speed |
|---|---|---|---|---|
| Article no. | BL065 | BL064 | BL069 | BL068 |
| EAN Code | 4260052184257 | 4260052184240 | 4260052184745 | 4260052184738 |
| Dimensions, (W x H x D in mm) | 140 x 140 x 25 | 120 x 120 x 25 | 140 x 140 x 25 | 120 x 120 x 25 |
| Fan speed (rpm) @ 100% PWM | 1,000 | 1,450 | 1,600 | 2,200 |
| Noise level (dB(A)) @ 100% PWM | 15.5 | 16.4 | 28.1 | 28.6 |
| Airflow @ 12V (cfm / m3/h) | 59.5 / 101.09 | 50.5 / 80.47 | 77.57 / 131.79 | 73.33 / 124.58 |
| Air pressure (mm / H2O) | 1.08 | 1.79 | 2.16 | 3.37 |
| Voltage range DC (V) | 5-13.2 | 5-13.2 | 5-13.2 | 5-13.2 |
| Input power (W) | 3.6 | 1.44 | 6 | 4.44 |
| Input current (A) | 0.3 | 0.12 | 0.5 | 0.37 |
| Connector | 3-pin | 3-pin | 3-pin | 3-pin |
| Lifetime @ 25°C (h) | up to 300,000 | up to 300,000 | up to 300,000 | up to 300,000 |

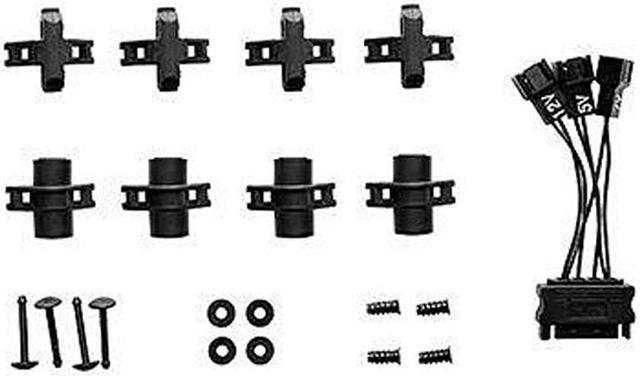

| Accessories | SATA multi-voltage adapter, rubber & hard plastic mountings, fan screws | |||
6-Pole Fan Motor »
6 poles contribute to:
- smoother transition between magnetic poles
- less vibration for quiet operation
- reduced power consumption
- low start-up voltage
