IDEAL APPLICATIONS

Very quiet workstations and desktop PCs
High-resolution gaming and multimedia systems
Super silent water-cooled PCs
Extremely overclocked systems

HIGHLIGHTS

Very silent even at high-speed operation
Optimized fan frame and blades
Smooth-running 6-pole fan motor
Noise absorbing anti-vibration concept
3-pin connector

No Compromise Silence and Performance

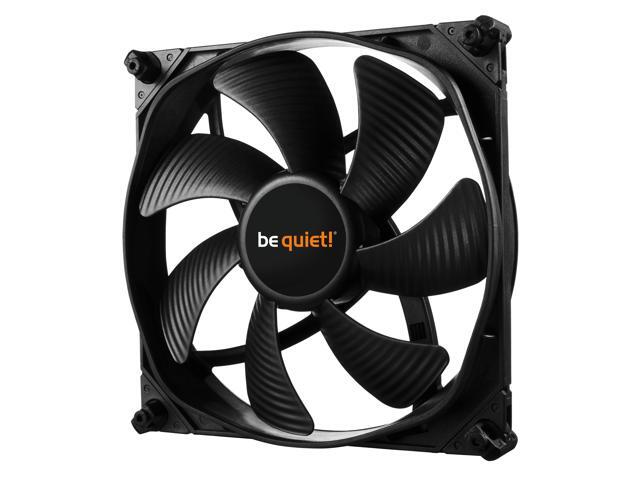

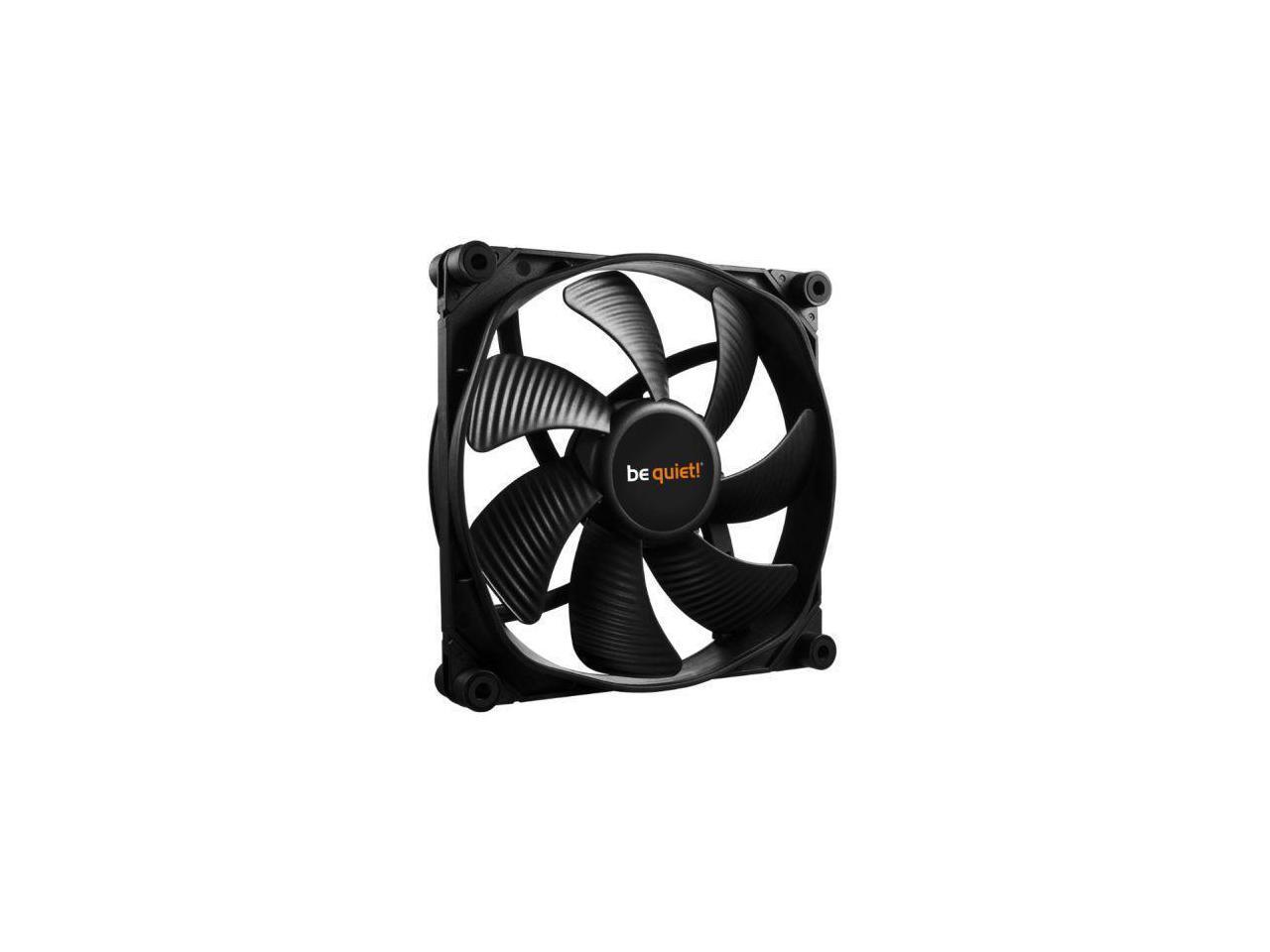

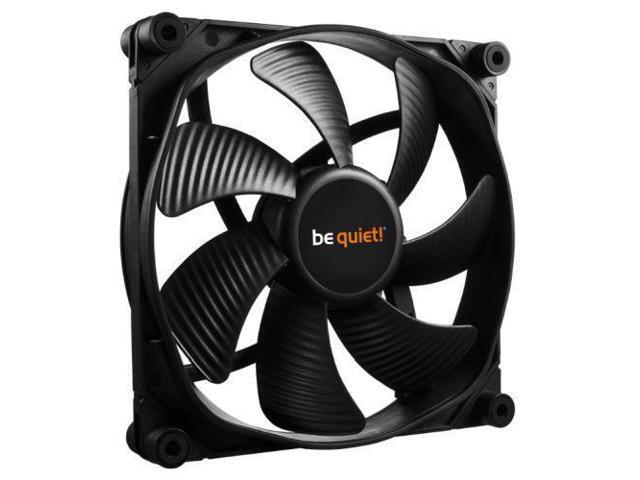

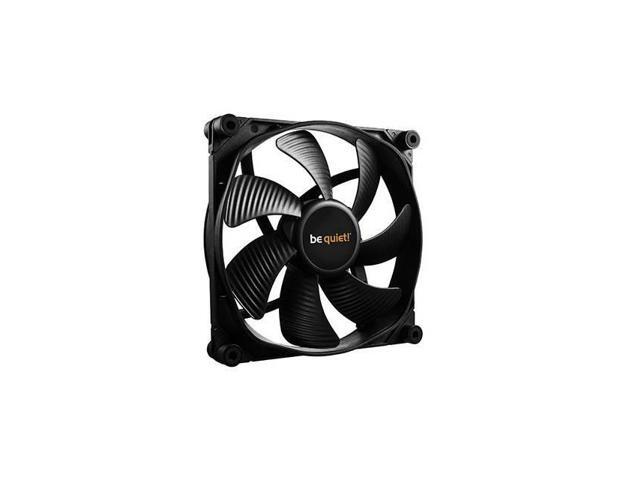

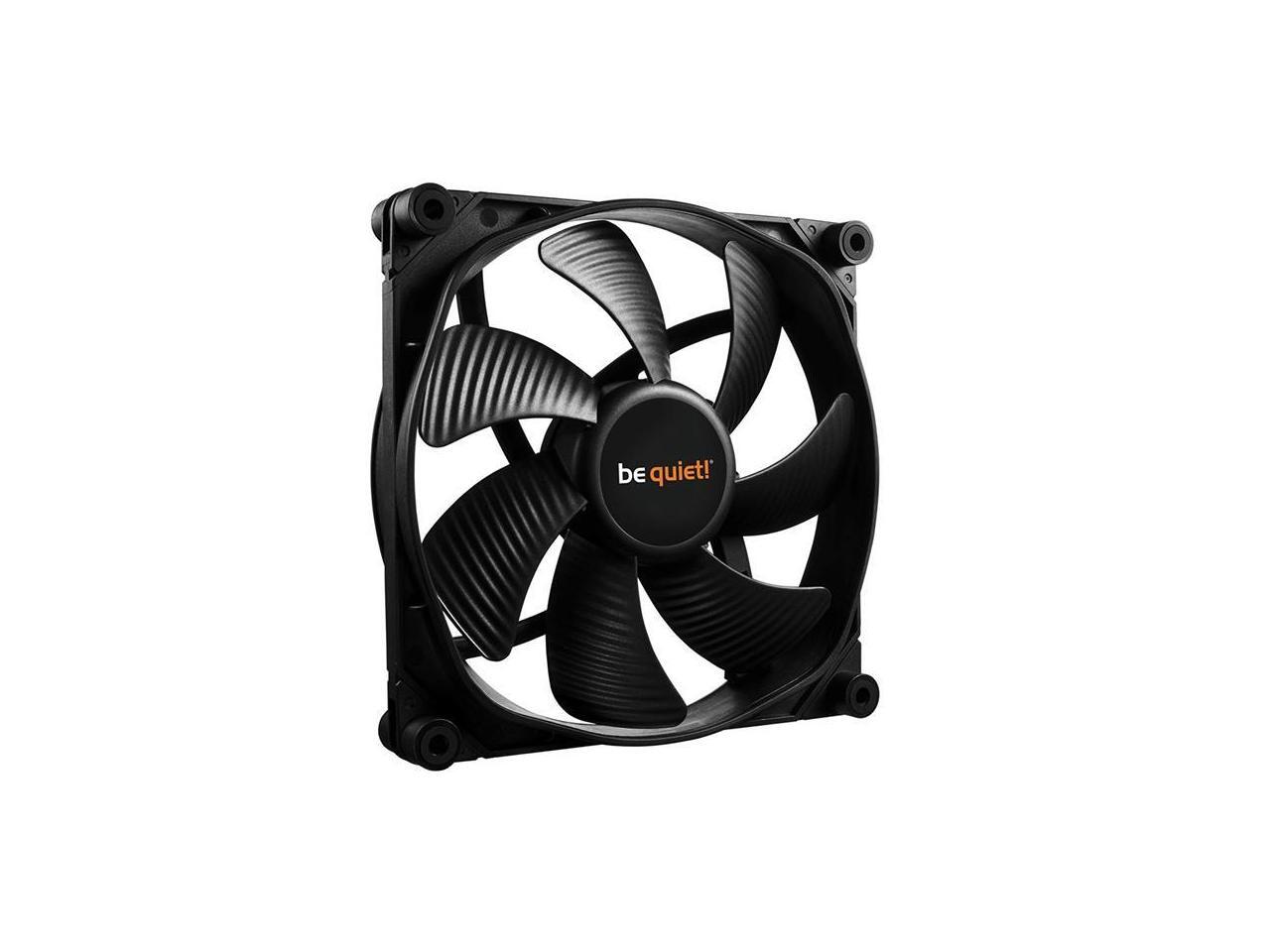

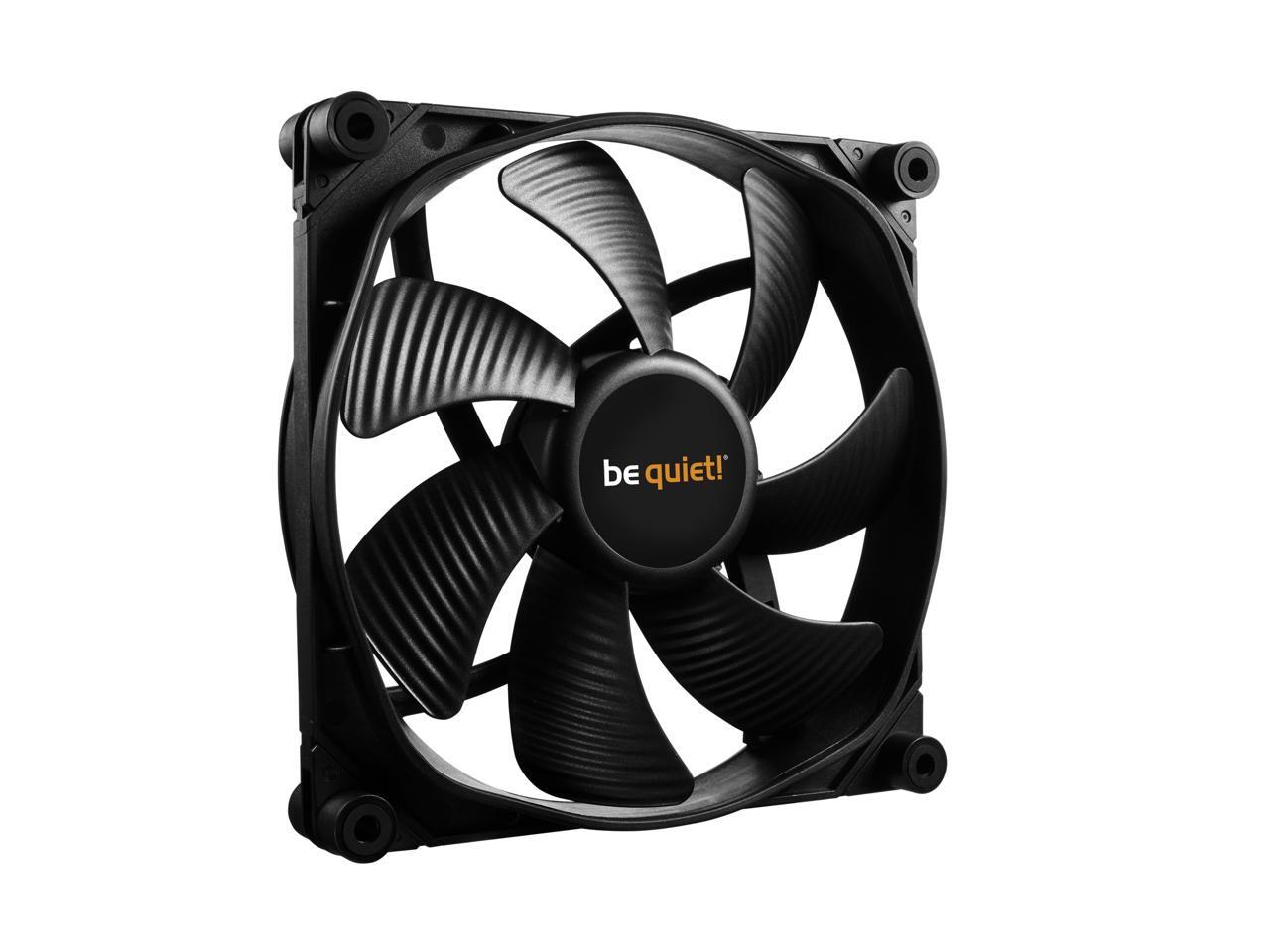

be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.

Highlights »

Great performance-to-noise ratio with the perfect balance between cooling and silence
6-pole fan motor with three phases giving very low power consumption and less vibration
Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
Seven fan blades with optimized surface structures ensure excellent airflow
The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
Advanced high quality IC motor controller reduces electrical noise
High-speed models are especially recommended for use in powerful water cooling and air cooling set ups
3-year manufacturer’s warranty
Product conception, design and quality control in Germany

SilentWings 3 »

They are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.

Features

Innovative 6-pole fan motor
6-pole fan motor with 3 phases for very low power consumption, less vibrations and therefore quieter operation.

High-quality motor controller
The high quality motor controller leads to a minimization of electronic noises.

Airflow-optimized fan blades
Seven fan blades with optimized surface structure ensure virtually inaudible operation and excellent airflow.

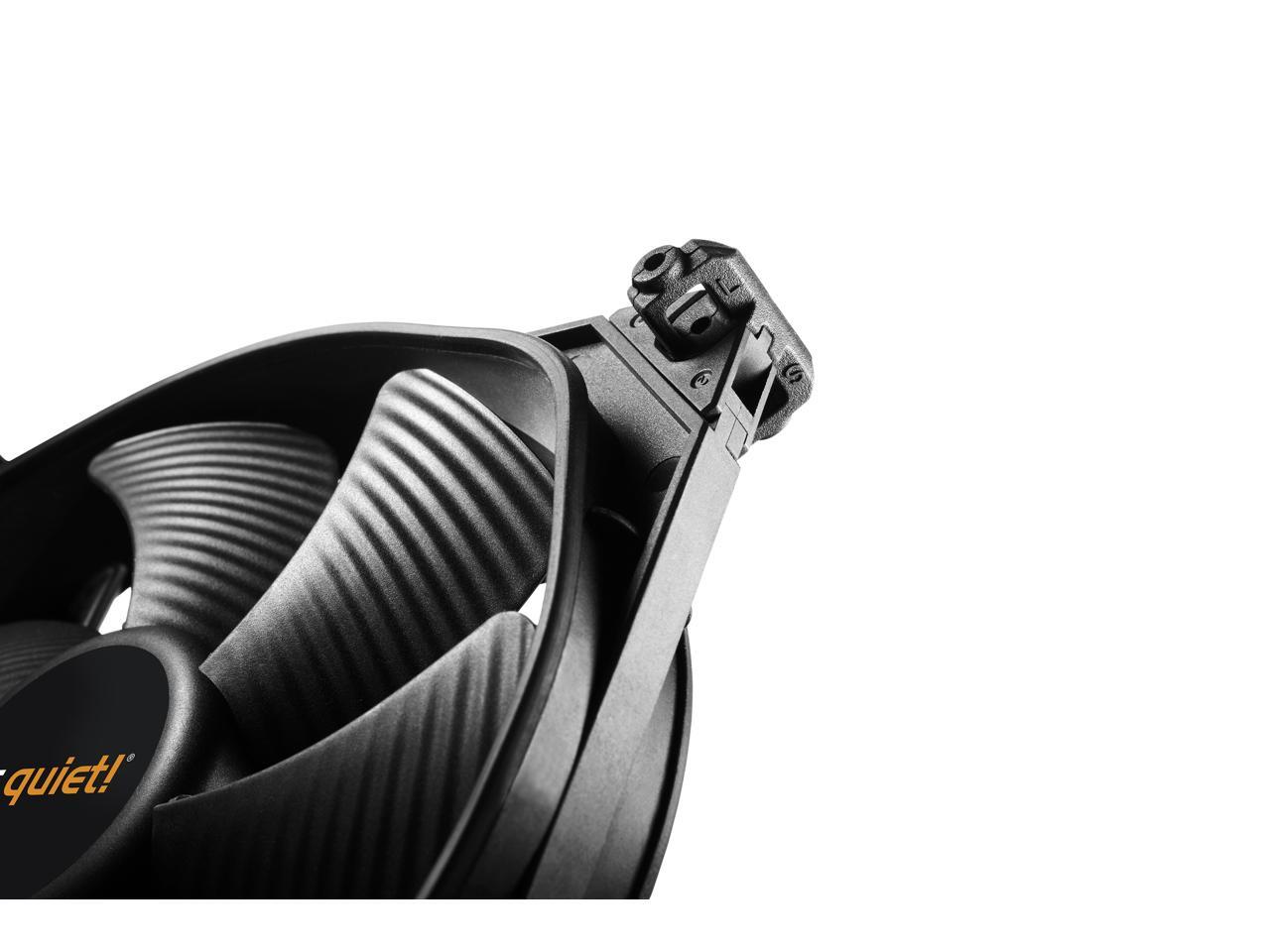

Anti-vibration mountings
Removable anti-vibration mountings on all four edges of the fan reduce the transmission of vibrations to the PC case to a minimum.

Rubberized fan frame
The rubberized fan frame is equipped with funnel-shaped air inlets for excellent air circulation and pressure.

Technical Data »

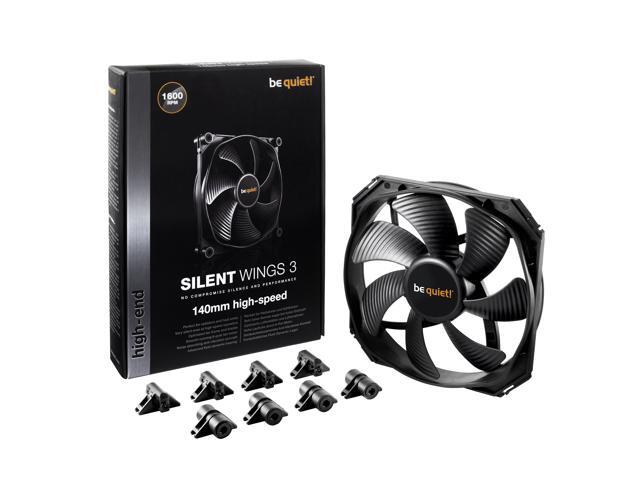

Model	140mm	120mm	140mm high-speed	120mm high-speed
Article no.	BL065	BL064	BL069	BL068
EAN Code	4260052184257	4260052184240	4260052184745	4260052184738
Dimensions, (W x H x D in mm)	140 x 140 x 25	120 x 120 x 25	140 x 140 x 25	120 x 120 x 25
Fan speed (rpm) @ 100% PWM	1,000	1,450	1,600	2,200
Noise level (dB(A)) @ 100% PWM	15.5	16.4	28.1	28.6
Airflow @ 12V (cfm / m3/h)	59.5 / 101.09	50.5 / 80.47	77.57 / 131.79	73.33 / 124.58
Air pressure (mm / H2O)	1.08	1.79	2.16	3.37
Voltage range DC (V)	5-13.2	5-13.2	5-13.2	5-13.2
Input power (W)	3.6	1.44	6	4.44
Input current (A)	0.3	0.12	0.5	0.37
Connector	3-pin	3-pin	3-pin	3-pin
Lifetime @ 25°C (h)	up to 300,000	up to 300,000	up to 300,000	up to 300,000

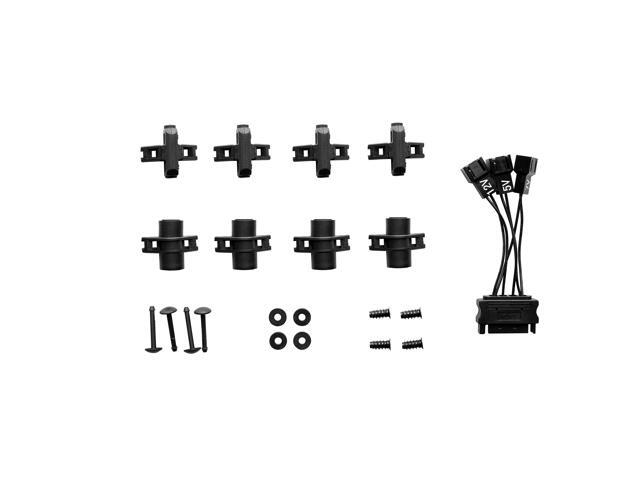

Accessories	SATA multi-voltage adapter, rubber & hard plastic mountings, fan screws

6-Pole Fan Motor »

6 poles contribute to:

smoother transition between magnetic poles
less vibration for quiet operation
reduced power consumption
low start-up voltage
