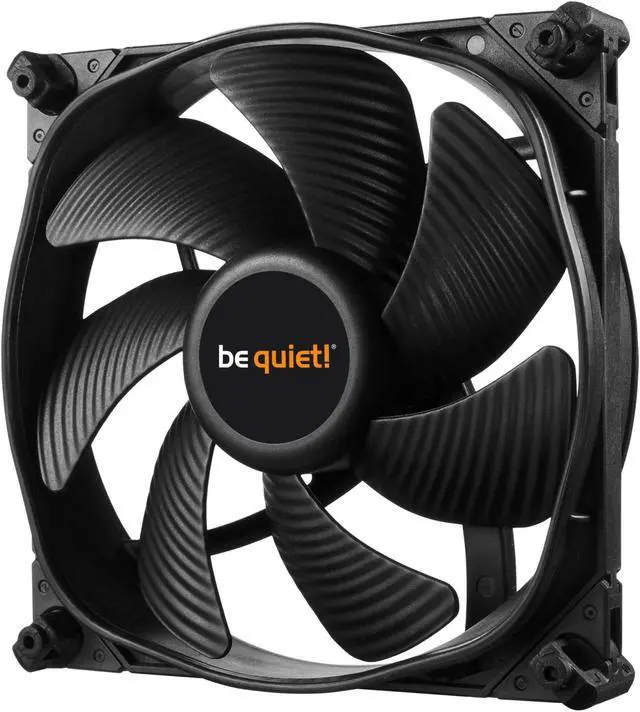

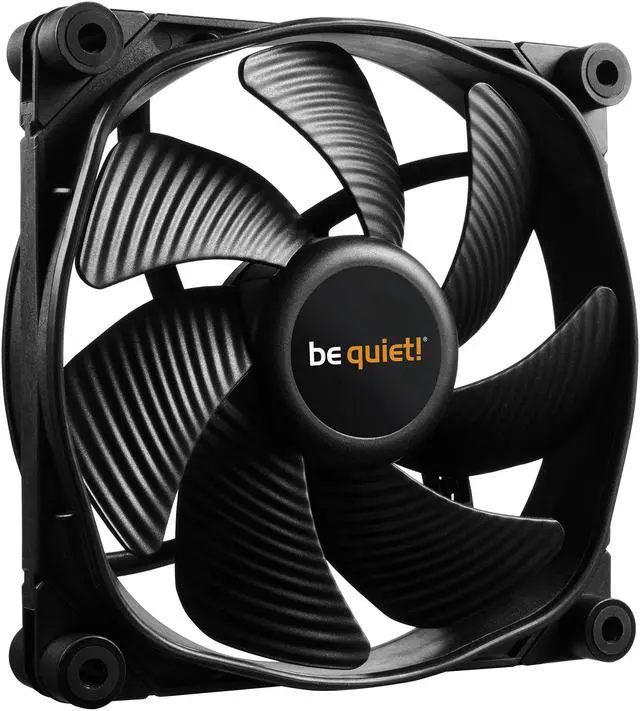

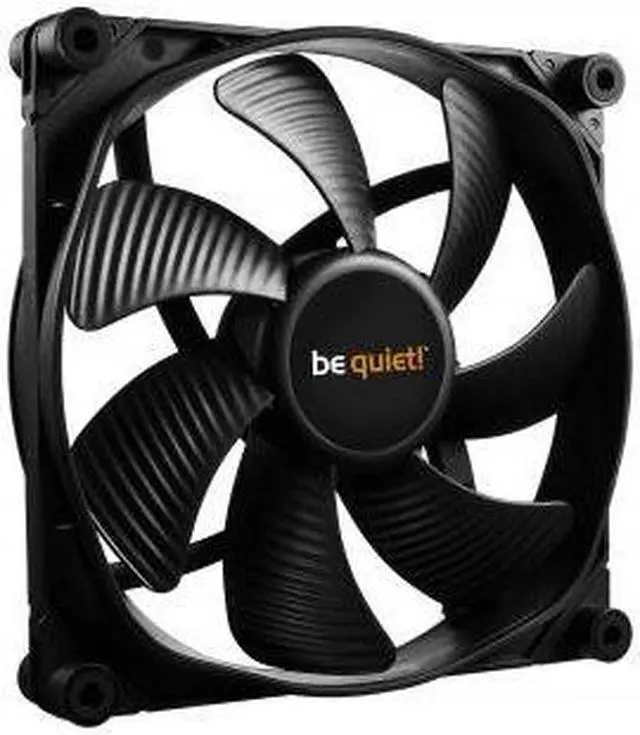

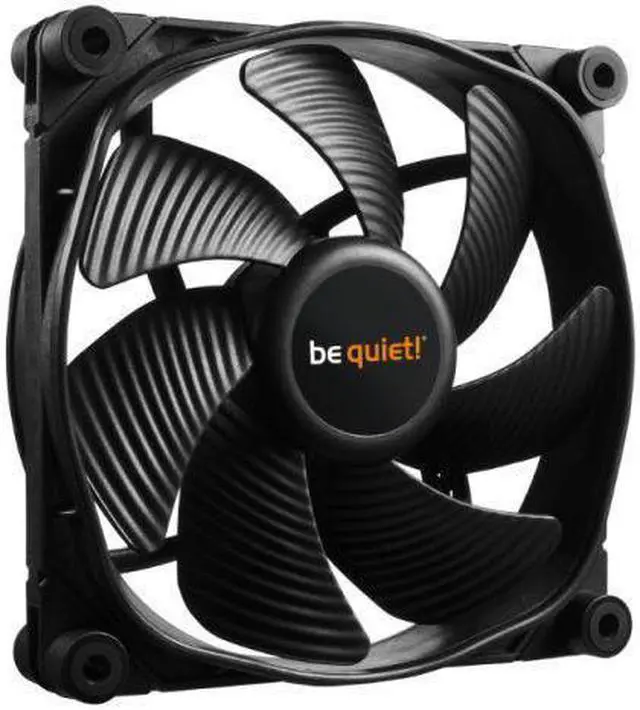

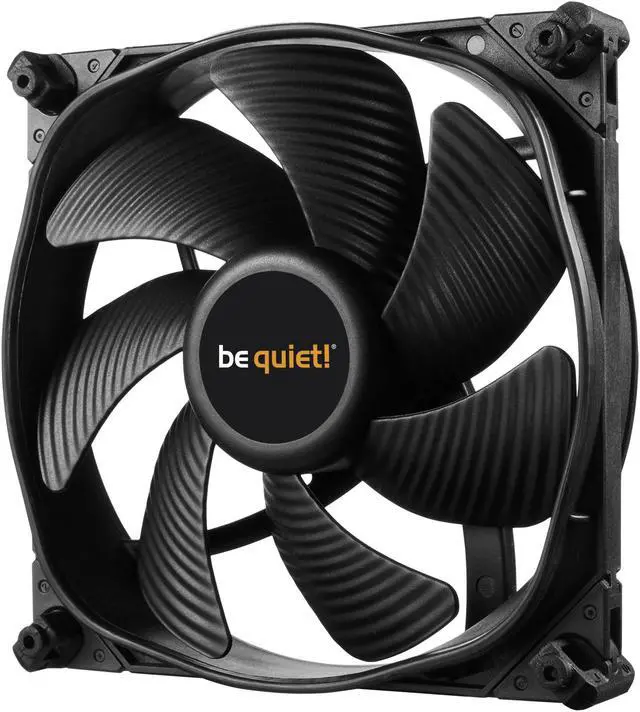

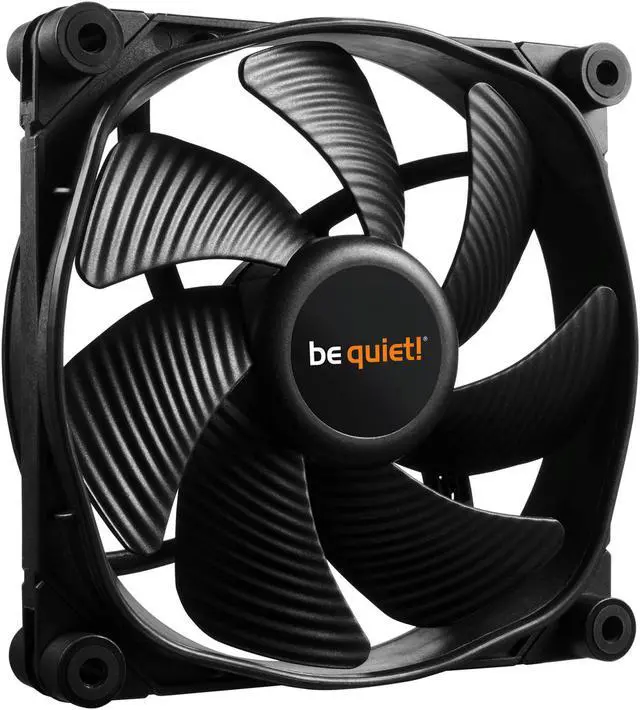

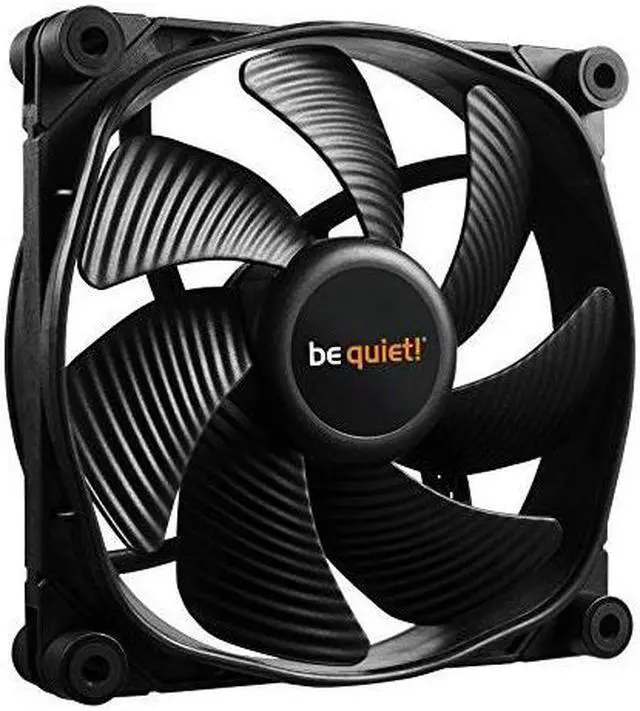

be quiet! SILENTWINGS 3 PWM 120mm HIGH SPEED
- Great performance-to-noise ratio with 28.6dB(A) at 2,200rpm
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing enables super-l
Overview
Specs
Reviews (116)
Any questions? Our AI beta will help you find out quickly.
Try me now
IDEAL APPLICATIONS
Very quiet workstations and desktop PCs
High-resolution gaming and multimedia systems
Super silent water-cooled PCs
Extremely overclocked systems
HIGHLIGHTS
Very silent even at high-speed operation
Optimized fan frame and blades
Smooth-running 6-pole fan motor
Noise absorbing anti-vibration concept
4-pin connector
No Compromise Silence and Performance
be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.
Highlights »
- Great performance-to-noise ratio with the perfect balance between cooling and silence
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
- Seven fan blades with optimized surface structures ensure excellent airflow
- The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
- Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
- Advanced high quality IC motor controller reduces electrical noise
- High-speed models are especially recommended for use in powerful water cooling and air cooling set ups
- PWM controlled fan speed by the motherboard
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
SilentWings 3 »
They are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
Features
Innovative 6-pole fan motor
6-pole fan motor with 3 phases for very
low power consumption, less vibrations and
therefore quieter operation.
High-quality motor controller
The high quality motor controller leads to a
minimization of electronic noises.
Airflow-optimized fan blades
Seven fan blades with optimized surface
structure ensure virtually inaudible operation and excellent airflow.

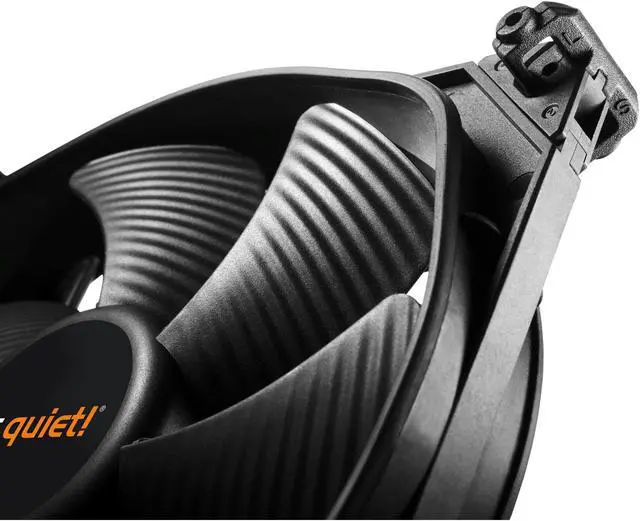

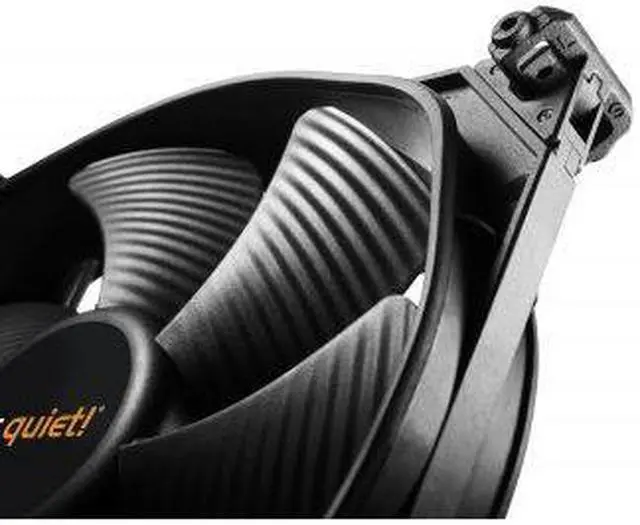

Anti-vibration mountings
Removable anti-vibration mountings on all four edges of the fan reduce the transmission of
vibrations to the PC case to a minimum.
Rubberized fan frame
The rubberized fan frame is equipped with
funnel-shaped air inlets for excellent air
circulation and pressure.
Technical Data »

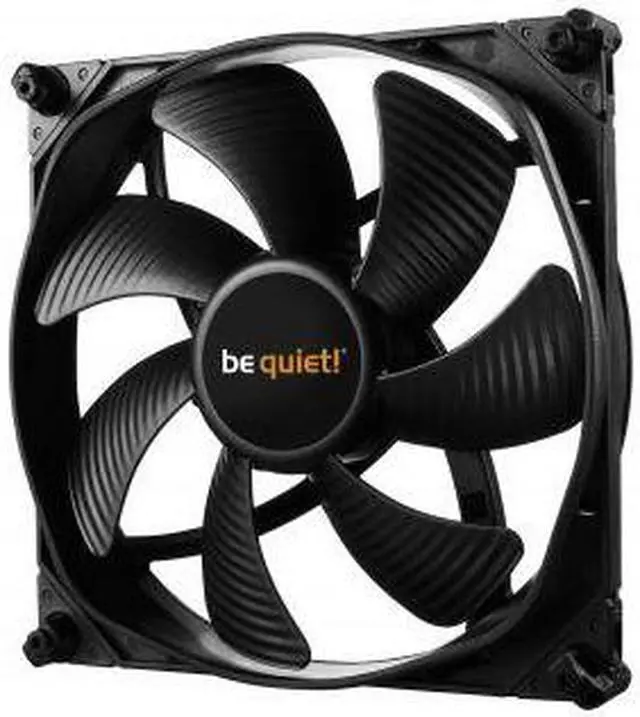

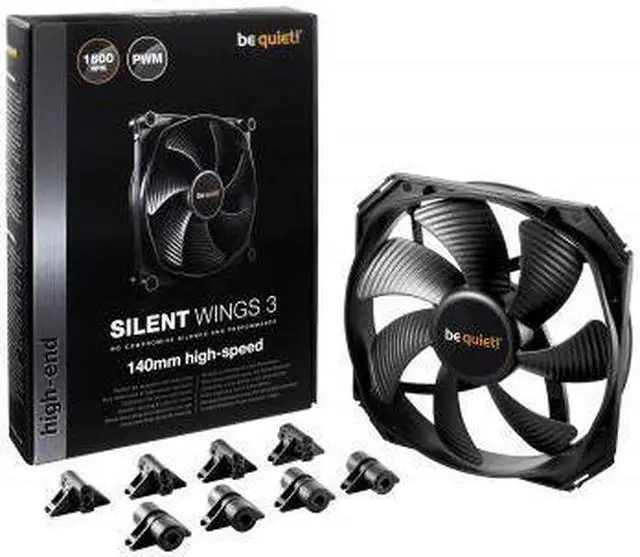

| Model | 140mm PWM | 120mm PWM | 140mm PWM high-speed | 120mm PWM high-speed |
|---|---|---|---|---|
| Article no. | BL067 | BL066 | BL071 | BL070 |
| EAN Code | 4260052184271 | 4260052184264 | 4260052184769 | 4260052184752 |
| Dimensions, (W x H x D in mm) | 140 x 140 x 25 | 120 x 120 x 25 | 140 x 140 x 25 | 120 x 120 x 25 |
| Fan speed (rpm) @ 100% PWM | 1,000 | 1,450 | 1,600 | 2,200 |
| Noise level (dB(A)) @ 100% PWM | 15.5 | 16.4 | 28.1 | 28.6 |
| Airflow @ 12V (cfm / m3/h) | 59.5 / 101.09 | 50.5 / 80.47 | 77.57 / 131.79 | 73.33 / 124.58 |
| Air pressure (mm / H2O) | 1.08 | 1.79 | 2.16 | 3.37 |
| Voltage range DC (V) | 5-13.2 | 5-13.2 | 5-13.2 | 5-13.2 |
| Input power (W) | 3.6 | 1.44 | 6 | 4.44 |
| Input current (A) | 0.3 | 0.12 | 0.5 | 0.37 |
| Connector | 4-pin | 4-pin | 4-pin | 4-pin |
| Lifetime @ 25°C (h) | up to 300,000 | up to 300,000 | up to 300,000 | up to 300,000 |

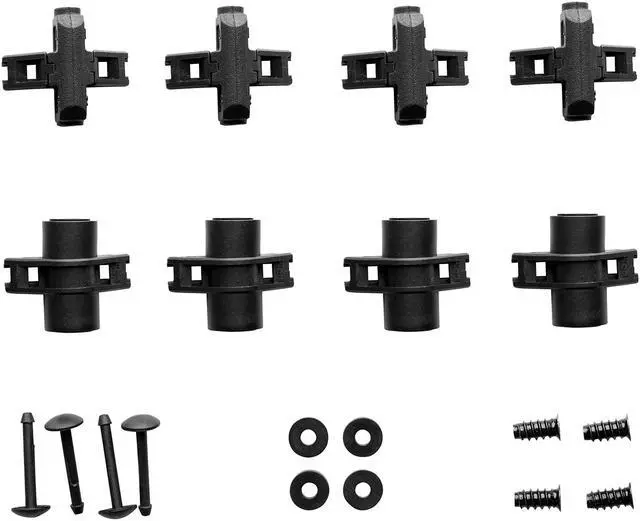

| Accessories | Rubber & hard plastic mountings, fan screws | |||
6-Pole Fan Motor »
6 poles contribute to:
- smoother transition between magnetic poles
- less vibration for quiet operation
- reduced power consumption
- low start-up voltage

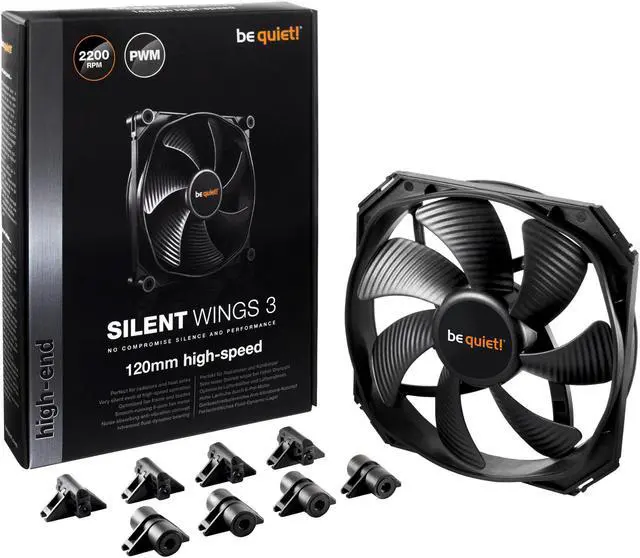

be quiet! Silent Wings 3 120mm PWM high-speed stands for state-of-the-art technology and virtually inaudible operation. The extremely high air pressure produced makes it a perfect choice for powerful water- and air-cooled systems.
Great performance-to-noise ratio with 28.6dB(A) at 2,200rpm
6-pole fan motor for less power consumption and vibration
Fluid-dynamic bearing enables super-long life span of 300,000 hours
Fan frame with funnel-shaped air inlets for extremely high air pressure
Seven fan blades provide optimized airflow
PWM controlled fan speed by the motherboard
German product conception, design and quality control
Three years manufacturer’s warranty
State-of-the-art technology
6-pole fan motor with three phases for very low power consumption, less vibration and therefore quiet operation of max. 28.6dB(A).
Advanced PWM function
Advanced high-quality IC motor controller reduces electrical noise. Pulse-width modulation (PWM) allows all compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed of the fan.
For even better cooling
Seven fan blades with an optimized surface structure ensure virtually inaudible operation and excellent airflow.
Virtually inaudible operation
Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case to an absolute minimum.
For a super long life span
The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours and greatly reduced operating noise.
Model: Silent Wings 3 | 120mm PWM high-speed
Dimensions (mm) 120 x 120 x 25
Fan speed @ 100% PWM / 12V (rpm) 2,200
Air Flow @ 100% PWM / 12V (CFM / m3/h) 73.33 / 124.58
Air Pressure @ 100% PWM / 12V (mm H2O) 3.37
Noise level @ 100% PWM / 12V (dB(A)) 28.6
