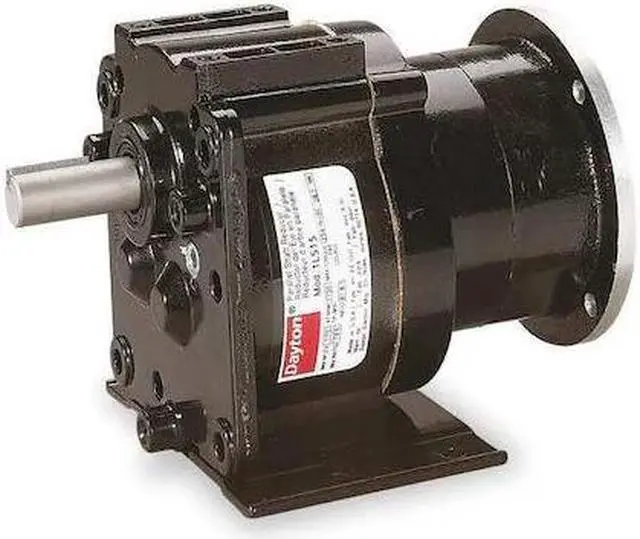

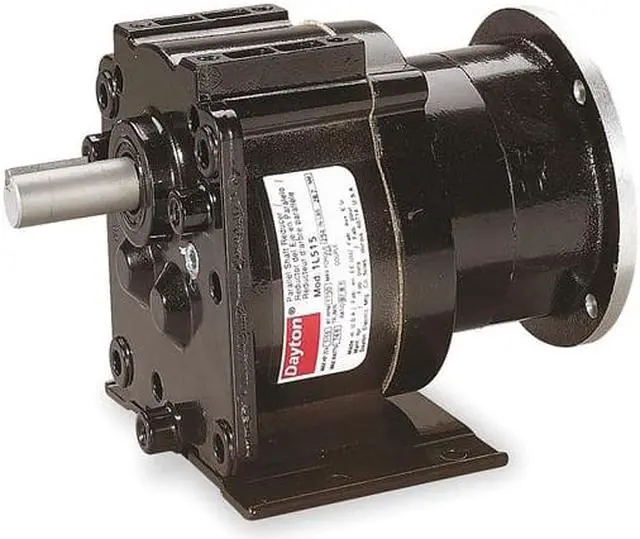

DAYTON 1L516 Speed Reducer, C-Face, 42CZ/48, 12.7:1
- The brand for this item is DAYTON
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Speed Reducer, Input Connection Type C-Face, Maximum Output Speed 136 RPM, Motor Frame Designation 42CZ/48, Base to Center 3.33 in,
Gear Ratio 12.67: 1, Rotation -, Maximum Input Horsepower 0.33 hp, Maximum Output Torque 176 in-lb, Overhung Load Capacity 175 lb, Mounting Orientation Any Angle, Overall Height 4.75 in, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1, 725 RPM. This item has been restricted from sale in the following state (s): []
Gear Ratio 12.67: 1, Rotation -, Maximum Input Horsepower 0.33 hp, Maximum Output Torque 176 in-lb, Overhung Load Capacity 175 lb, Mounting Orientation Any Angle, Overall Height 4.75 in, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1, 725 RPM. This item has been restricted from sale in the following state (s): []
