What are the dimensions and weight of the Bgears b-BlasterPWM fan?

The dimensions of the Bgears b-BlasterPWM fan are 90x90x25 mm, and it weighs 124 grams.

What is the speed range of the Bgears b-BlasterPWM fan?

The speed range of the Bgears b-BlasterPWM fan is from 1200 to 5000 RPM.

Questions & Answers: Bgears b-BlasterPWM 90mm 2 ball bearing PWM fan with speed range from 1200 to 5000 RPM AirFlow 118 CFM 4pin 4wire PWM 12VDC fan.

Weather Alert: Severe winter storms may impact delivery times in some regions. We appreciate your patience as carriers work to deliver orders as quickly as possible. UPS Service Alerts.

double click image to zoom in

Shop All BGears Products

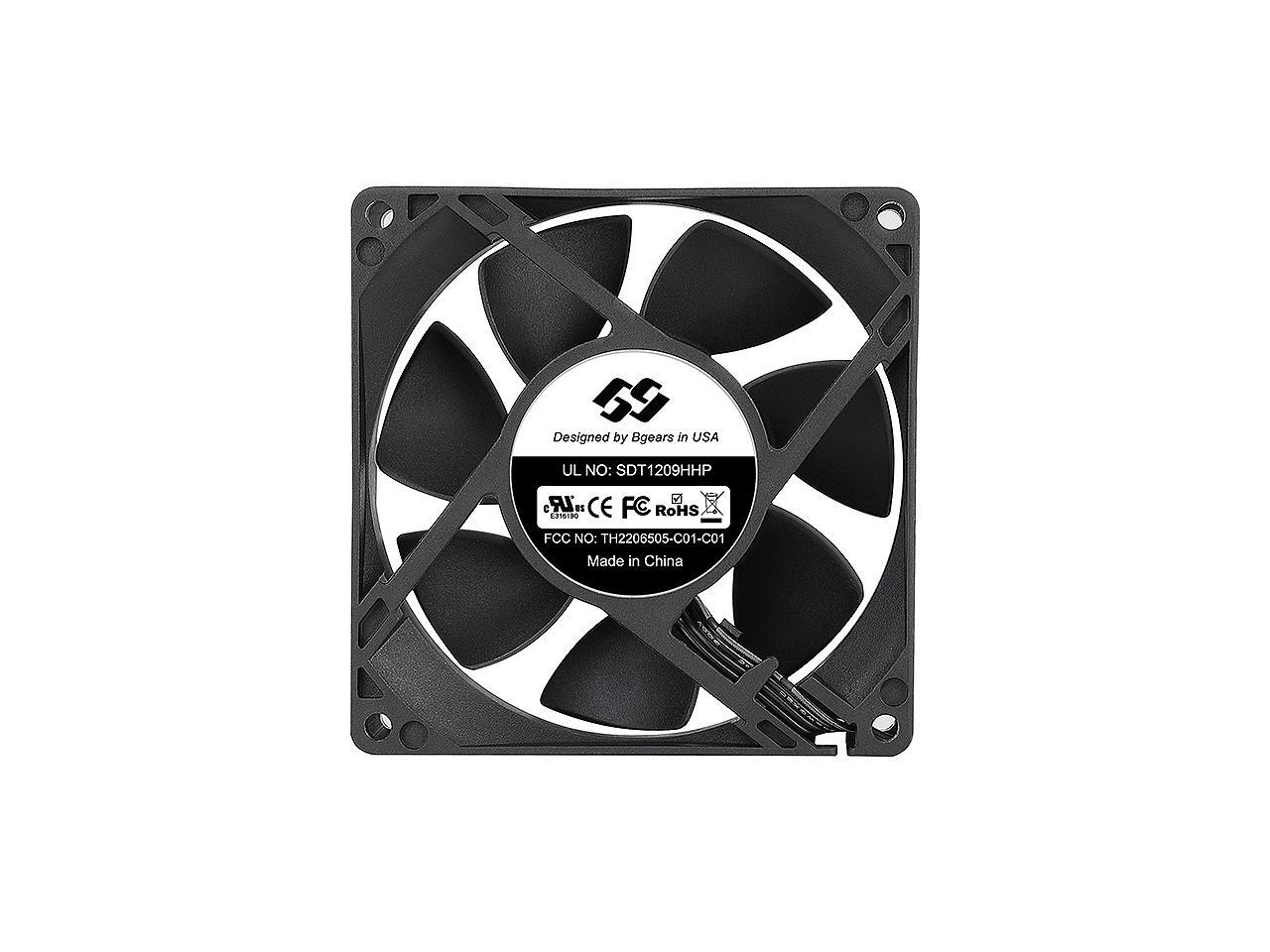

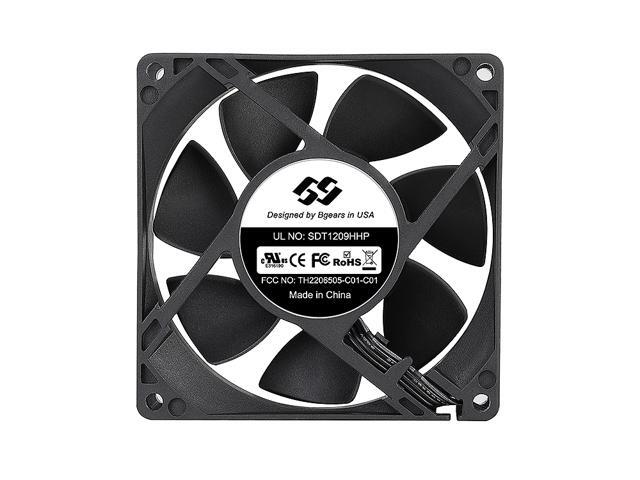

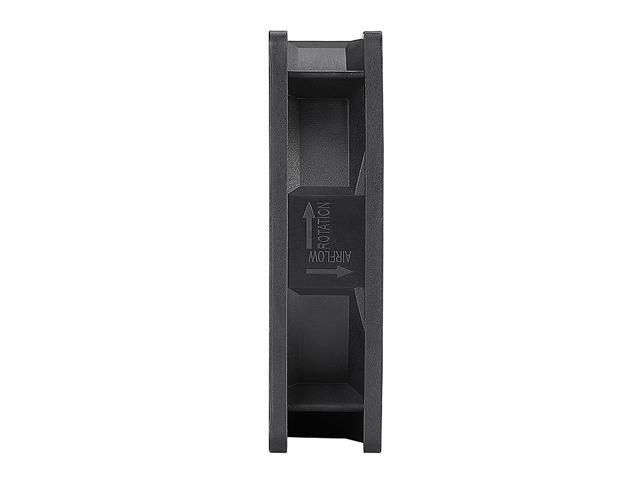

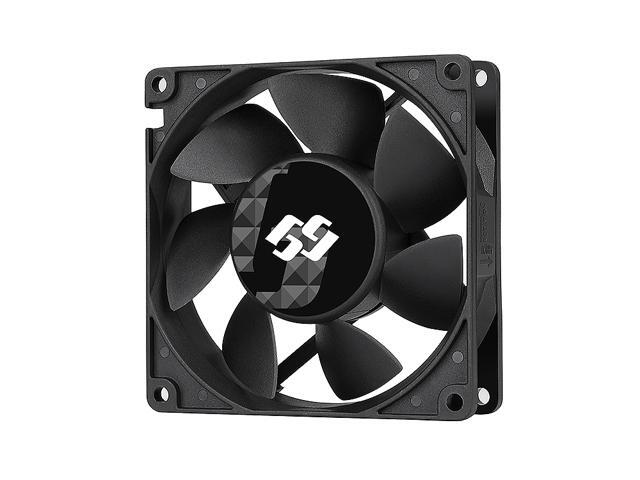

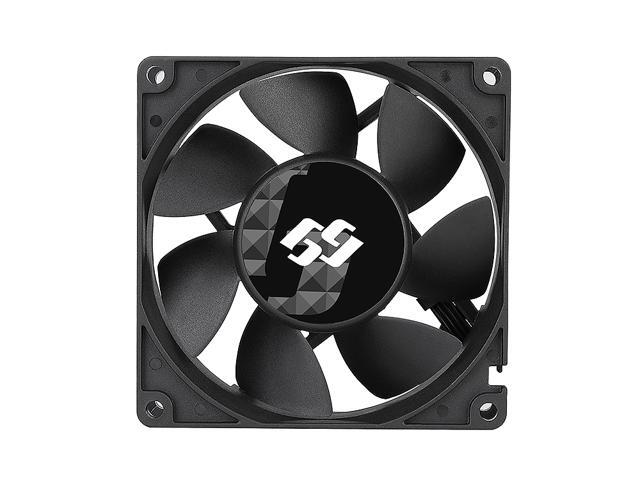

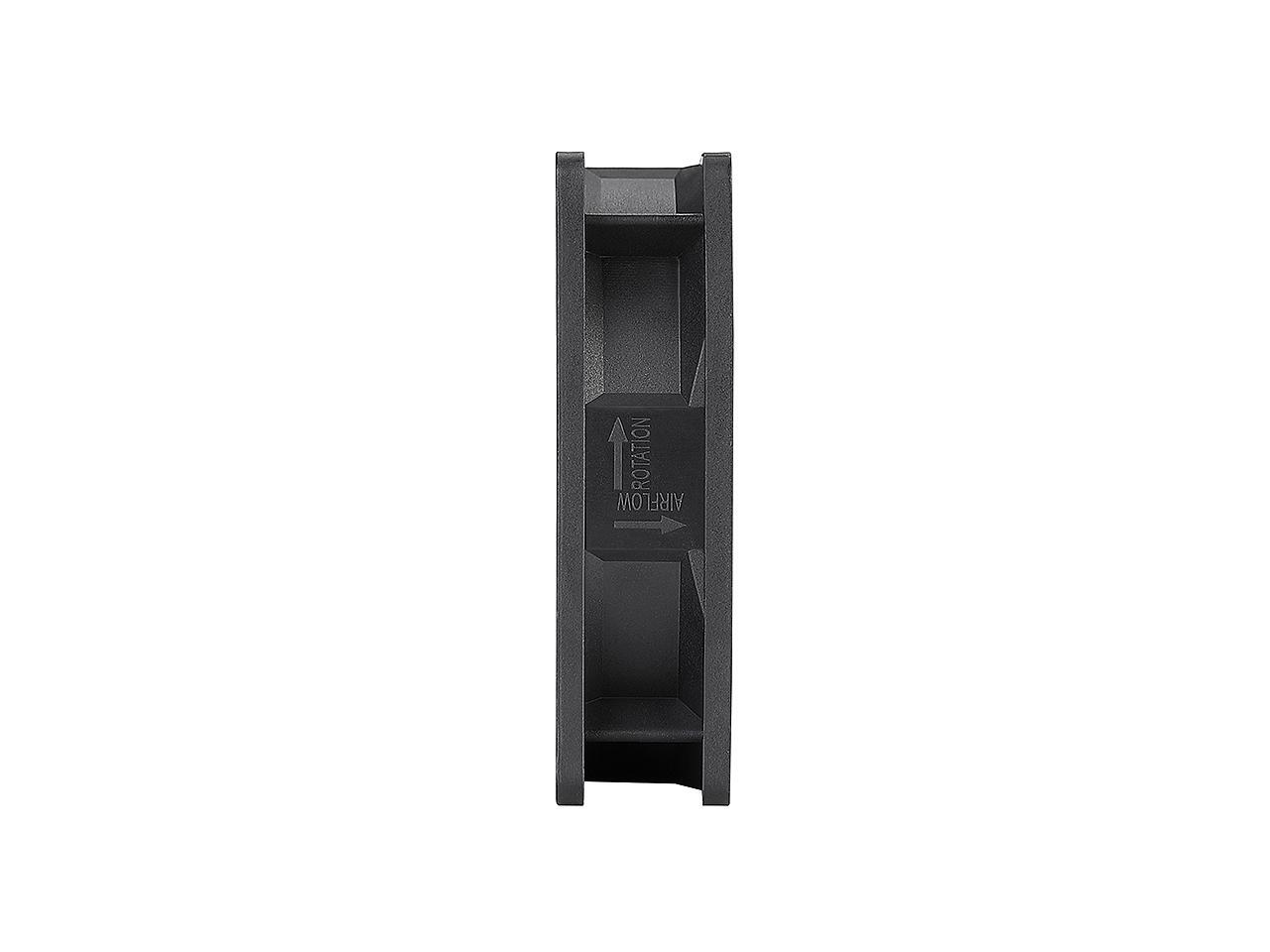

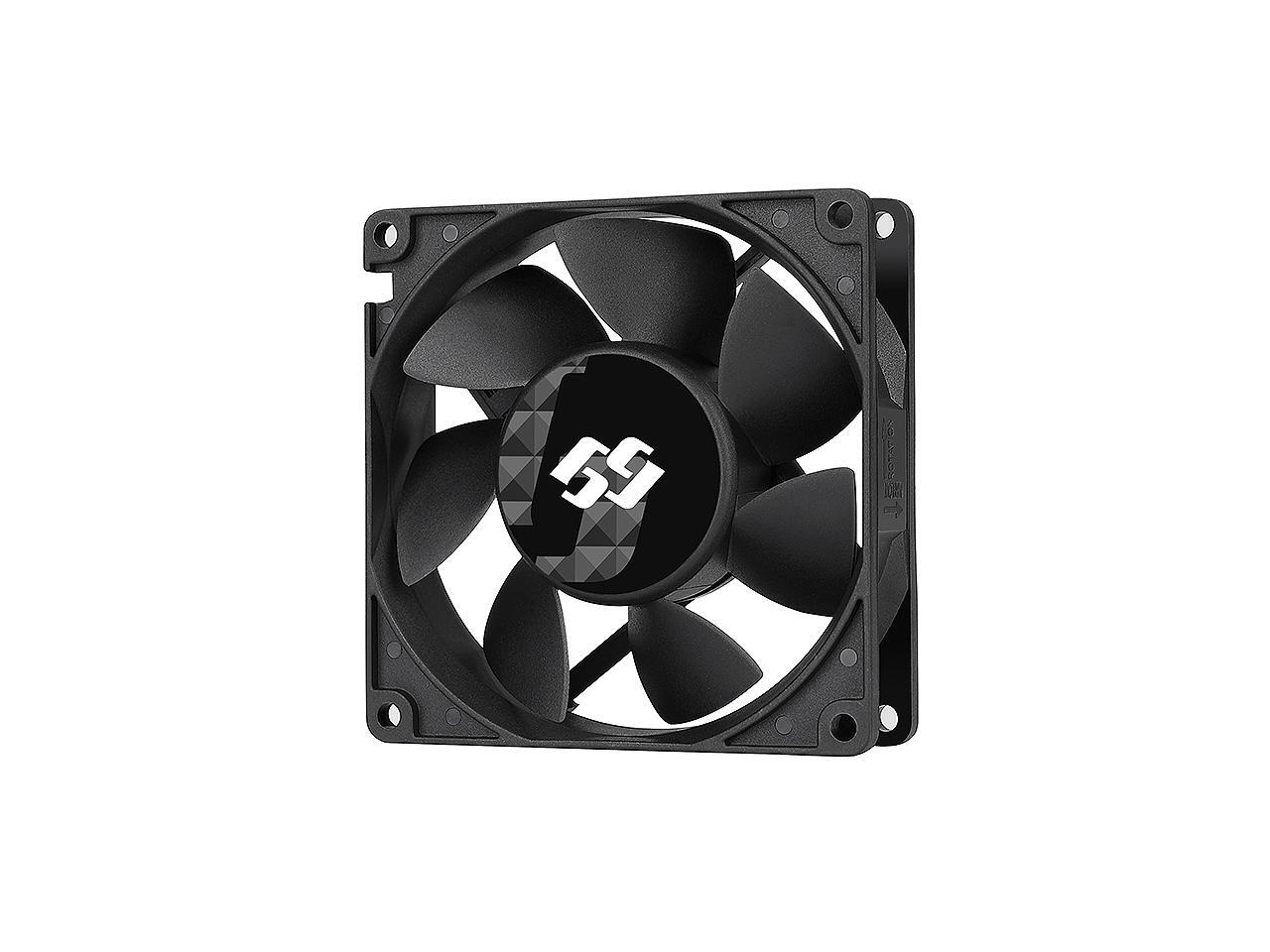

Bgears b-BlasterPWM 90mm 2 ball bearing PWM fan with speed range from 1200 to 5000 RPM AirFlow 118 CFM 4pin 4wire PWM 12VDC fan.

b-BlasterPWM Series 90mm
Speed(RPM): 1200 to 5000RPM±10%
Current(A): 0.52±0.05A
Power(W): 6.24
Airflow(CFM): 118
Airflow (at zero static pressure for pwm): 13
Static Pressure (at zero flow for pwm): 1.5mmH20
Static Pressure (max for pwm): 12.0mmH20
Rated Voltage(V): 12
Operating Voltage Range(V): 10.2~13.8
Noise Level at Max Speed(dbA): 49
Operating Temperature: -10°C~70°C
Storage Temperature: -20°C~70°C
Frame Size(mm): 90x90x25
Weight: 124g
Bearing: 2 Ball (Japanese ball bearing)

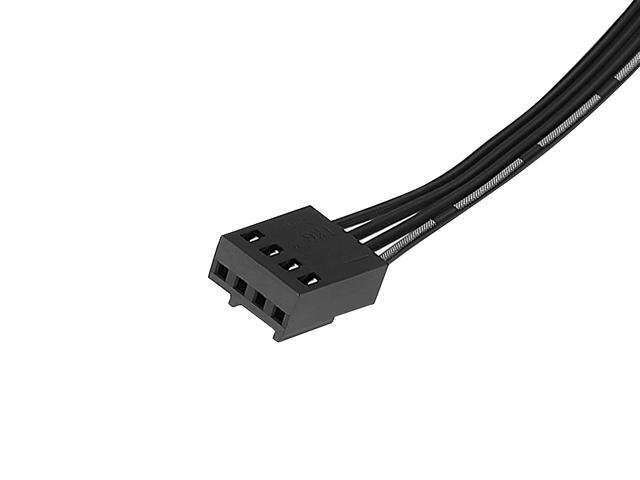

PWM Connector Mini 4 pin 4 wires
Life Expectancy : 60000
LED: None
