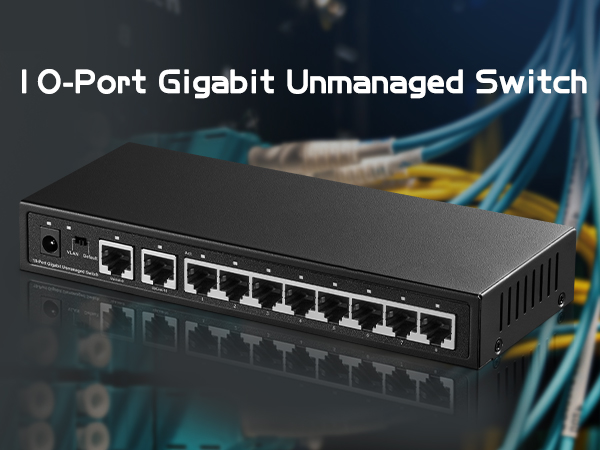

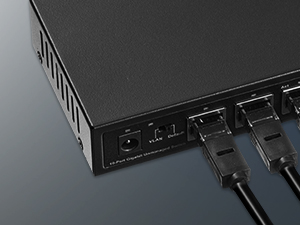

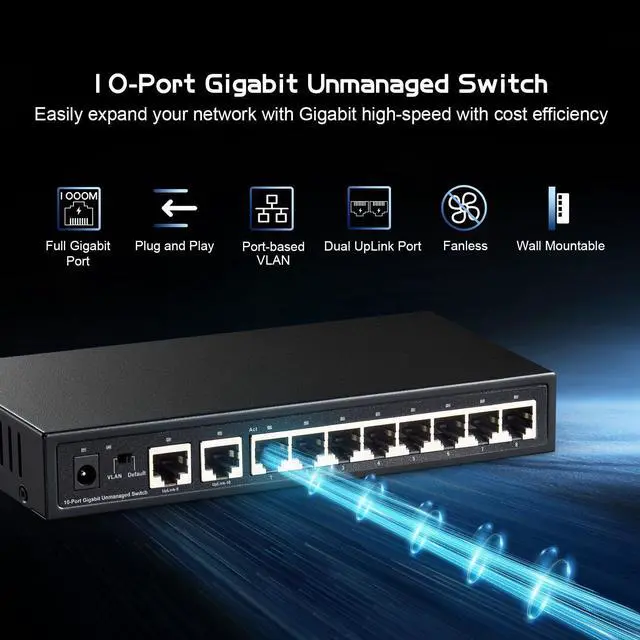

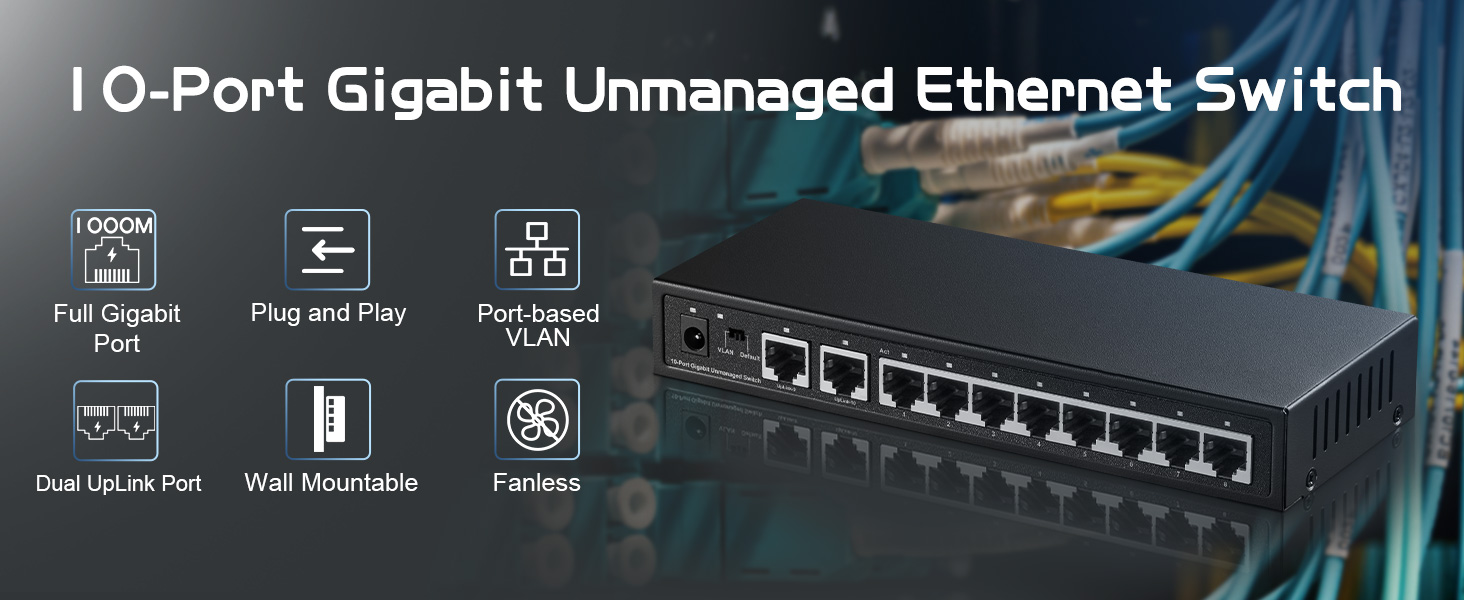

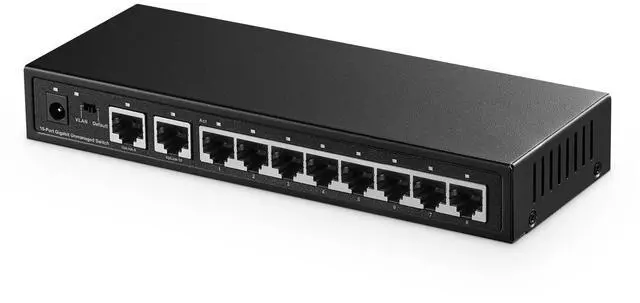

G10-082G is an unmanaged commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design. The switch feature with port-base vlan function,It improve stable network performance.

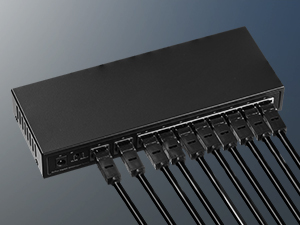

Non-Blocking Wire Speed
All ports can transmit streams at 1000Mbps without delay. Ensure smooth video stream and data transmission
Auto-Negotiation
All the ports automatically detect whether connected devices are running at 10M, 100M or 1000M and half-duplex or full-duplex mode.
Plug and Play
Unmanaged 2.5g ethernet switch, no configuration required. Simply plug a device into the network. It automation begins.
EEE Compliance
The switch comply with the IEEE Energy Efficient Ethernet (EEE), It provides power saving functionality to reduce energy consumption and save costs.

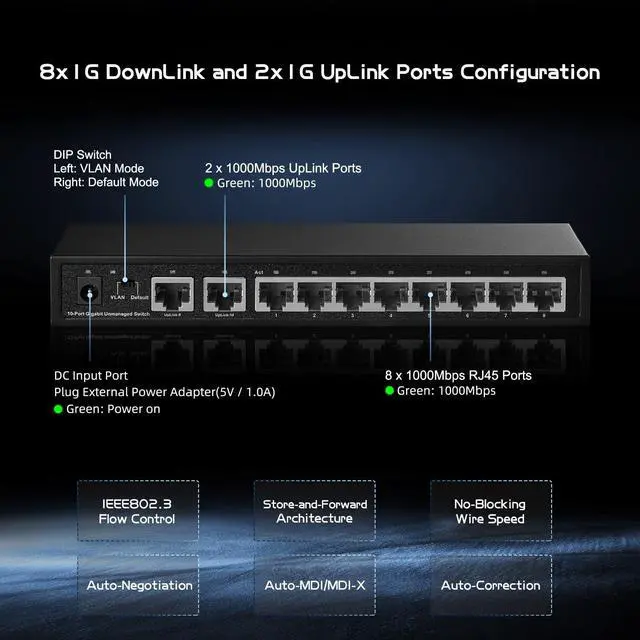

Dual Uplink Ports
The switch provides 2x1G uplink ports. This ensures the ports can easily cope with bursty high traffic, the uplink channel is unobstructed

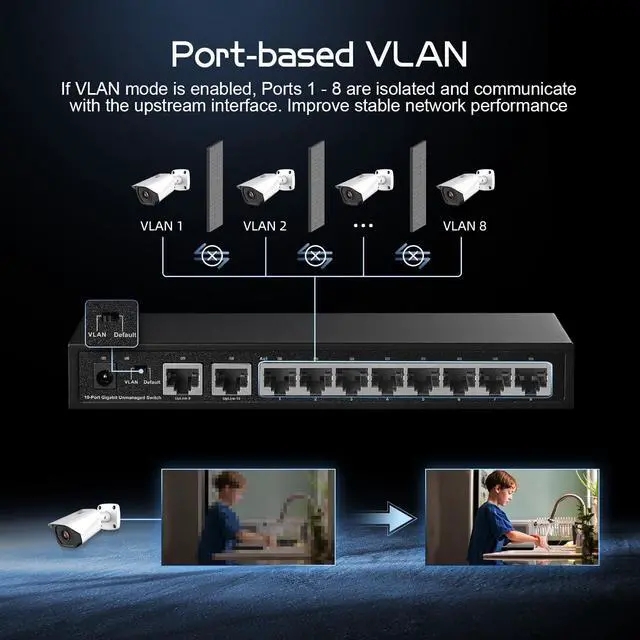

Port-based VLAN
If enabled port-based VLAN feature, Ports 1 to 8 are isolated and communicate with the upstream interface. Improve stable network performance

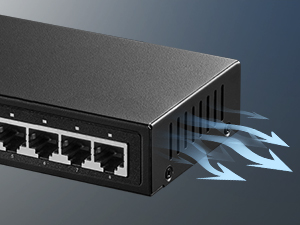

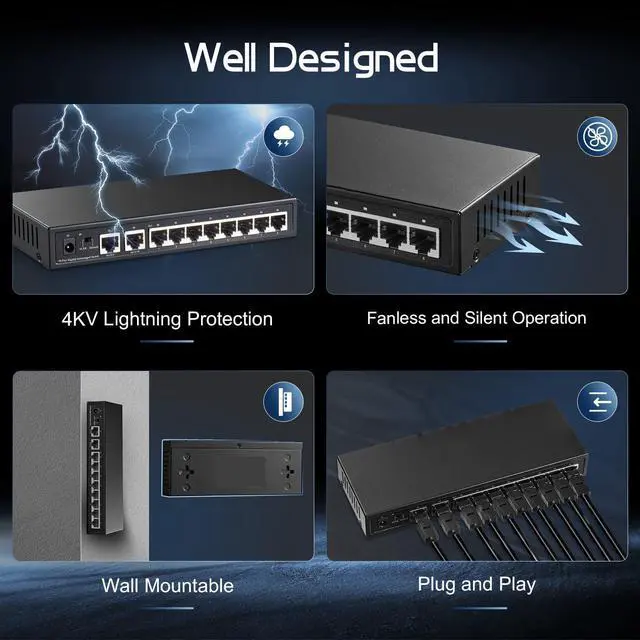

Fanless and Silent Operation
It is a silent and perfectly noiseless switch. All the internal hardware is passively cooled which is very beneficial for home and office.

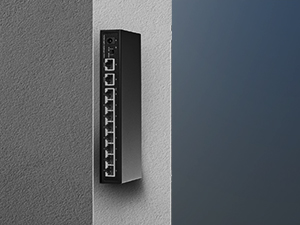

Wall Mountable
Compact size meet space-constrained deployments, Support wall mounting.
Technical Parameter
G10-082G is an unmanaged commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design. The switch feature with port-base vlan function,It improve stable network performance.
Non-Blocking Wire Speed
All ports can transmit streams at 1000Mbps without delay. Ensure smooth video stream and data transmission
Auto-Negotiation
All the ports automatically detect whether connected devices are running at 10M, 100M or 1000M and half-duplex or full-duplex mode.
Plug and Play
Unmanaged 2.5g ethernet switch, no configuration required. Simply plug a device into the network. It automation begins.
EEE Compliance
The switch comply with the IEEE Energy Efficient Ethernet (EEE), It provides power saving functionality to reduce energy consumption and save costs.
Dual Uplink Ports
The switch provides 2x1G uplink ports. This ensures the ports can easily cope with bursty high traffic, the uplink channel is unobstructed
Port-based VLAN
If enabled port-based VLAN feature, Ports 1 to 8 are isolated and communicate with the upstream interface. Improve stable network performance
Fanless and Silent Operation
It is a silent and perfectly noiseless switch. All the internal hardware is passively cooled which is very beneficial for home and office.
Wall Mountable
Compact size meet space-constrained deployments, Support wall mounting.
Technical Parameter
| Model | G10-082G |
|---|---|
| Ethernet | 10x 10M/100M/1000Mbps RJ45 Ports |
| ChipSet | EN8850DH*2 |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.1q |
| Network Media(Cable) | 100BASE-TX: UTP category 5, 5e cable(=100m) 1000BASE-TX UTP category 5e, 5 cable(=100m) |
| MAC Address Table | 4K, Auto-learning, Auto-updating |
| Transfer Mode | Store-and-Forward |
| Switching Capacity | 20Gbps |
| Packet Forward Speed | 14.88Mpps |
| Power supply | DC 5V/1A(External) |
| Power Consumption | Max. 3.8W |
| Dimensions (L*W*H) | 190*93*29.3mm |
| Temperature | Operating Temperature: 0°C ~ 40 °C Storage Temperature: -40 °C ~70°C |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Extend Mode | VLAN:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default:Normal mode, all interfaces can communicate with each other. |
