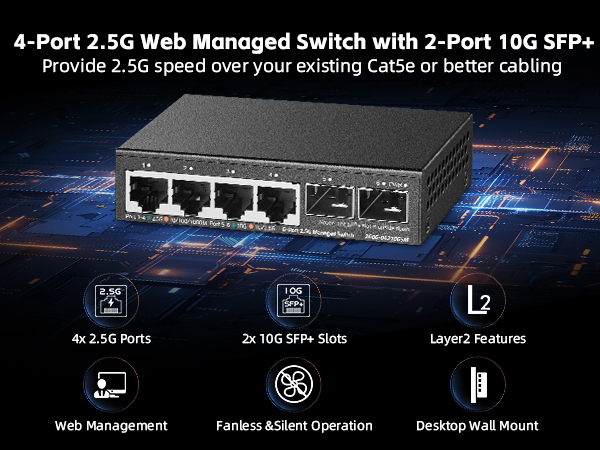

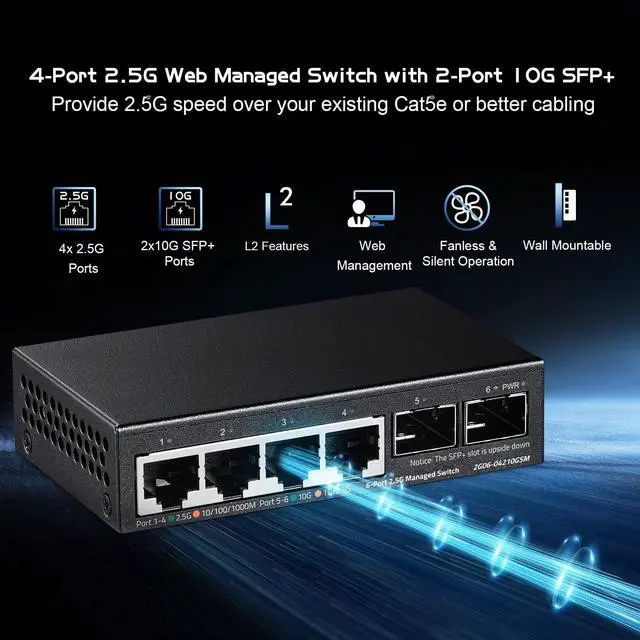

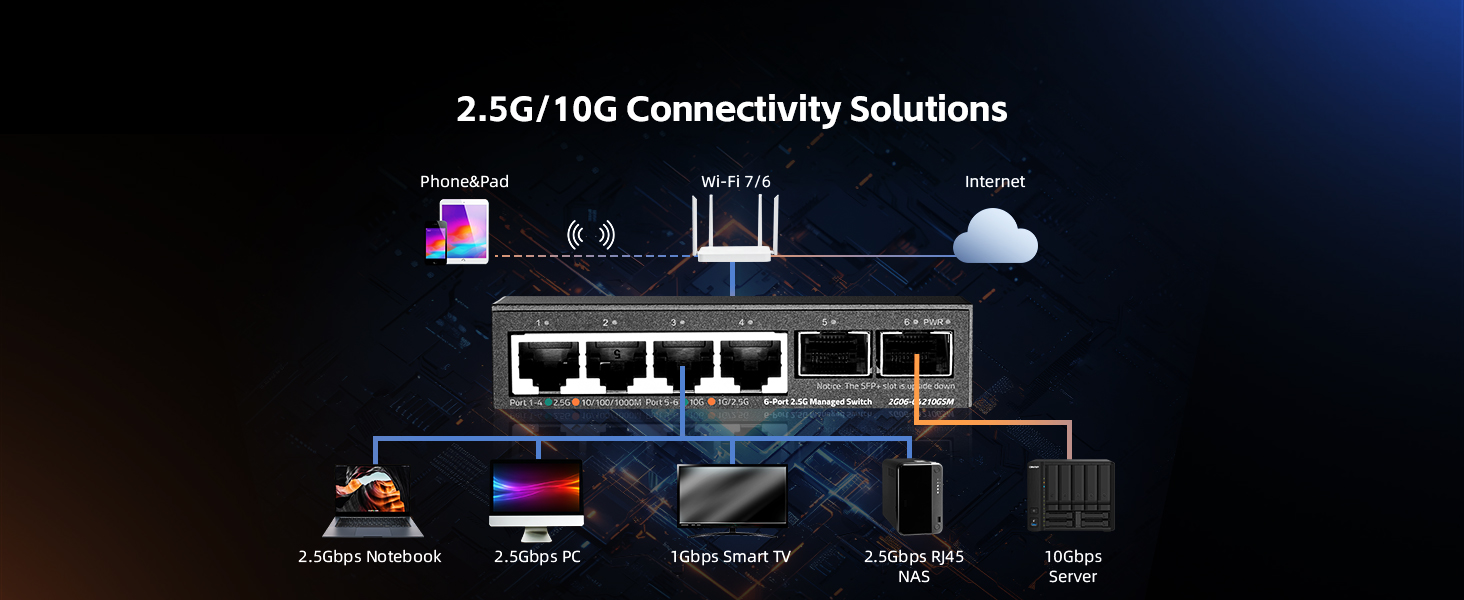

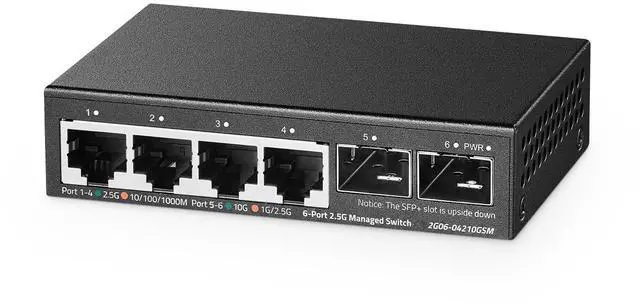

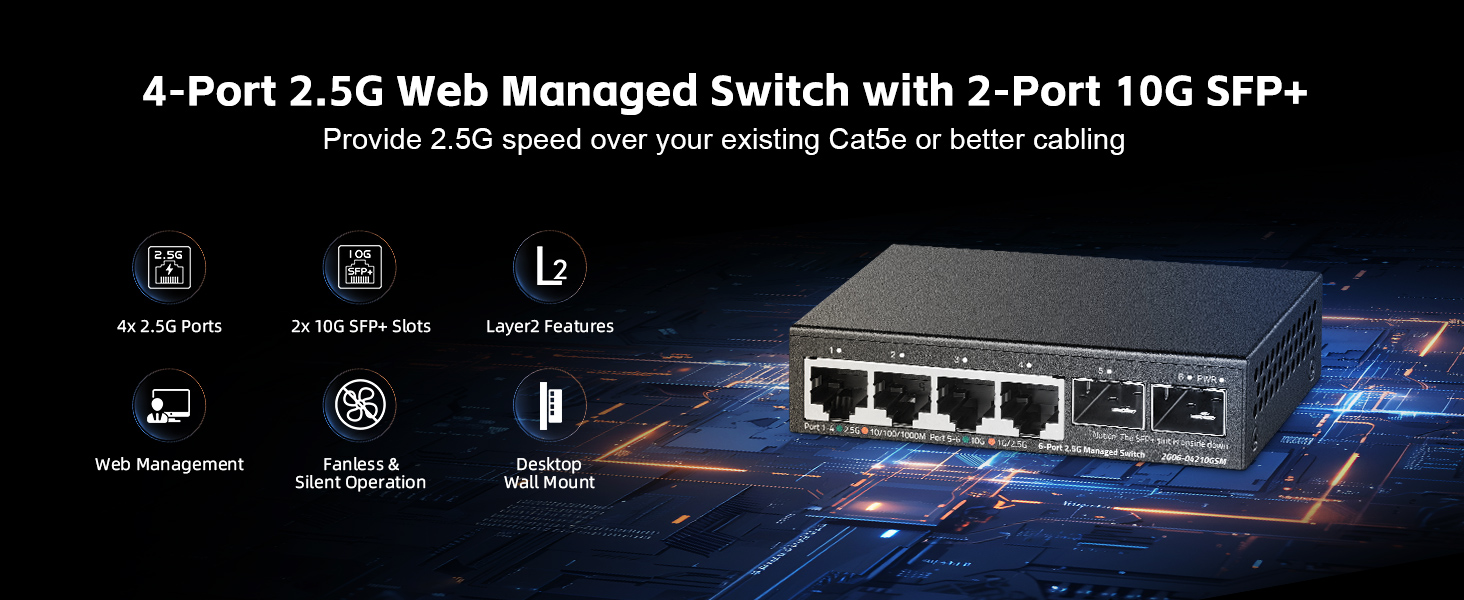

The 2G06-04210GSM is a desktop web managed switch with 4x 2.5GbE RJ45 ports and 2x 10GbE SFP+ uplink ports, It can connecting 1G/2.5GE/10G devices with different interfaces at an affordable price. Suitable for SMB and SOHO users.

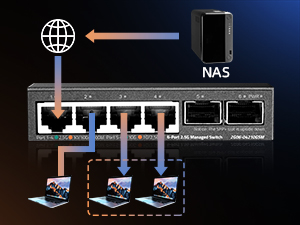

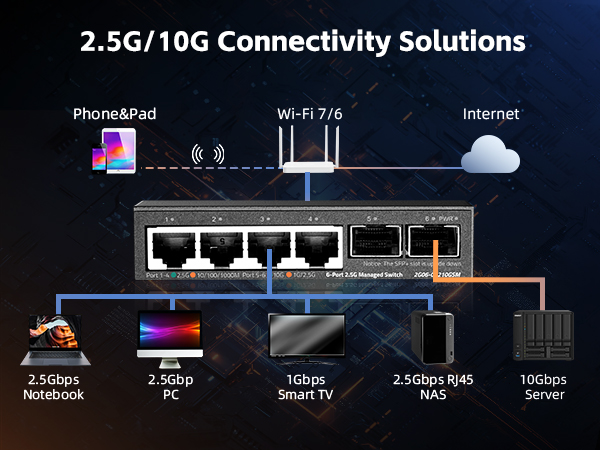

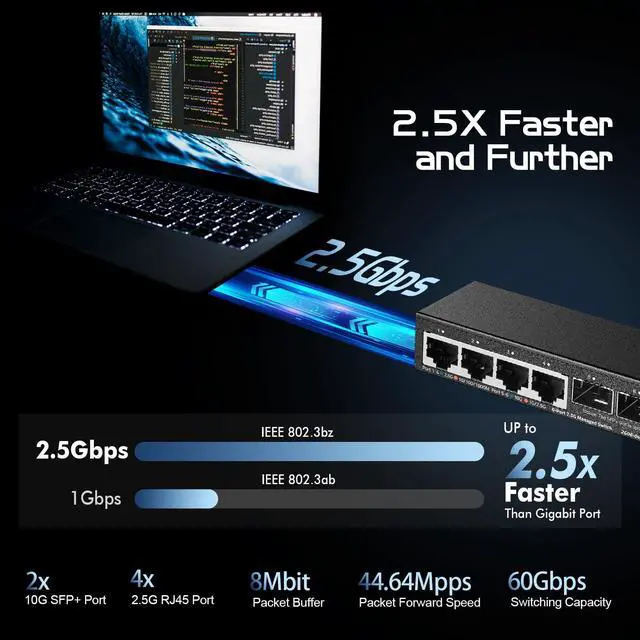

4x2.5GE Connectivity for wifi7/6 and NAS
The switch includes 4x 2.5GbE RJ45 ports (backward compatible with 2.5G/1G/100Mbps) for high-speed networks, such as wifi7/6 AP, servers.

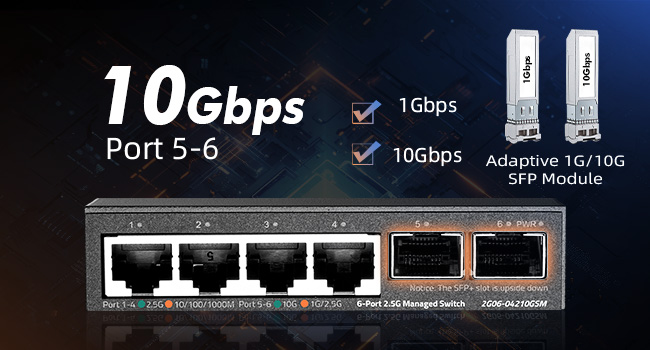

2x 10G Uplink Slots for Servers and Core Switches
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to servers and core switches.

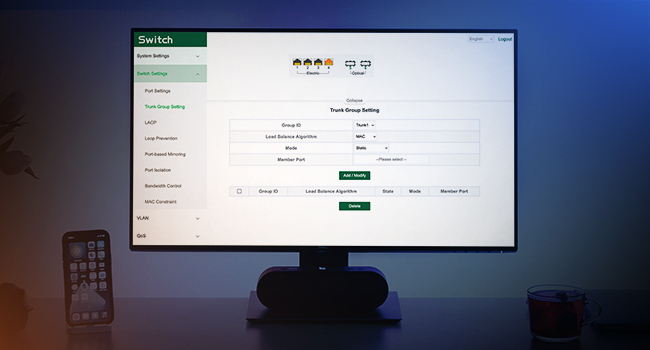

Flexible Management Options
Innovative design supports easy-to-use Web GUI, it provides an overview dashboard, port management and setting guide, making network management intuitive.

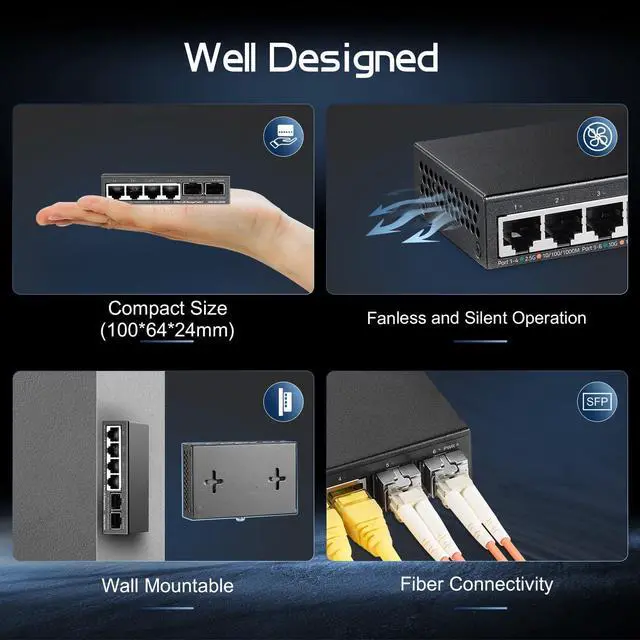

Mounting flexibility
Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.

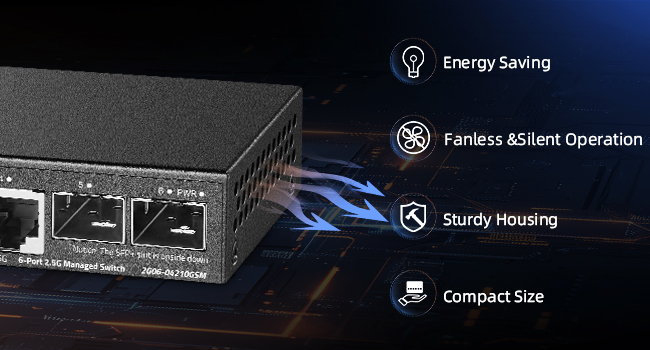

Energy Saving
It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length. With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere.
Lighting Protection
With a dedicated intelligent microchip and lighting protection, It can avoid damaging the ethernet ports and power port.
Layer2 Management Features
Virtual Networks (VLAN)
Virtual Networks helps separate traffic within a business such as isolated resources between between employees and public guest users.

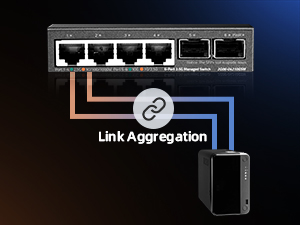

Link Aggregation (LACP)
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
Quality of Service (QoS)
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Technical Specifications
The 2G06-04210GSM is a desktop web managed switch with 4x 2.5GbE RJ45 ports and 2x 10GbE SFP+ uplink ports, It can connecting 1G/2.5GE/10G devices with different interfaces at an affordable price. Suitable for SMB and SOHO users.
4x2.5GE Connectivity for wifi7/6 and NAS
The switch includes 4x 2.5GbE RJ45 ports (backward compatible with 2.5G/1G/100Mbps) for high-speed networks, such as wifi7/6 AP, servers.
2x 10G Uplink Slots for Servers and Core Switches
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to servers and core switches.
Flexible Management Options
Innovative design supports easy-to-use Web GUI, it provides an overview dashboard, port management and setting guide, making network management intuitive.
Mounting flexibility
Flexible mount options for desktop or wall-mount in your office and home, meet various network environment requirement.
Energy Saving
It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length. With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere.
Lighting Protection
With a dedicated intelligent microchip and lighting protection, It can avoid damaging the ethernet ports and power port.
Layer2 Management Features
Virtual Networks (VLAN)
Virtual Networks helps separate traffic within a business such as isolated resources between between employees and public guest users.
Link Aggregation (LACP)
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
Quality of Service (QoS)
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Technical Specifications
| Model | 2G06-04210GSM |
|---|---|
| Interface | 4x100M/1000M/2.5Gbps RJ45 Ports + 2x1G/10Gbps SFP+ Slots |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x,IEEE802.1x, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad, IEEE802.3bz, IEEE802.3ae |

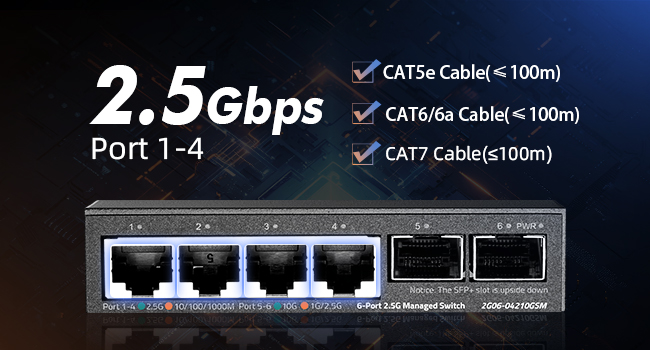

| Network Media | 100BASE-X:UTP category 5,5e cable (=100m), 1000BASE-X:UTP category 5e,6 cable (=100m), 2.5GBASE-X:UTP category 6,6a cable (=100m), 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF, 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m-300m), 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m-10000m) |

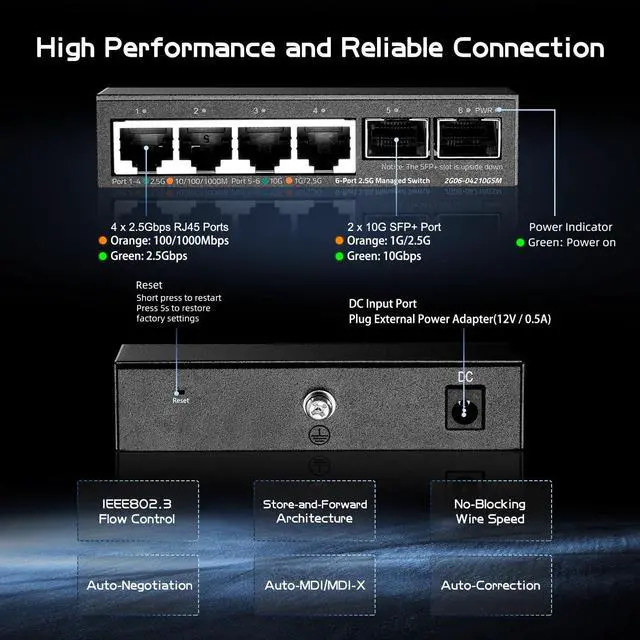

| LED Indicator | PWR(Green), Link/Act (Green/Orange) |
| MAC Address Table | 4K |
| Packet Buffer | 12Mbit |
| Buffer | 8.1 Mbit |
| Switching Capacity | 60Gbps |
| Packer Forward Speed | 44.64Mpps |
| Lightning Protection level | Differential mode ±2KV, Common mode ±4KV |
| Input Power Supply | AC: 100-200V, 50/60Hz, 0.5A Max |
| Structure Information | Product Dimensions: 100mm*63.7mm*24mm, Packaging Dimensions: 149mm*95mm*50mm, Product Net Weight: 0.54KG, Product Gross Weight:0.85KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
