Brand | Black Box |
---|---|
Series | KVX Series |
Model | KVXLCHDP-200 |
Type | KVM Extender over CATx |
---|---|

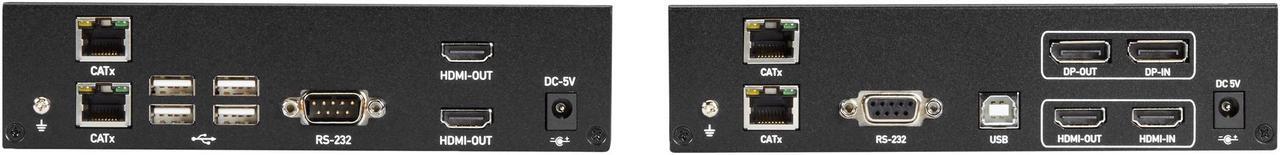

PC Connectors | Video Input: (1) HDMI female, (1) DisplayPort female Serial Control Port: (1) DB9 female Link Port: (1) RJ-45 female USB: (1) USB Type B female Audio: (1) Line in, (1) Line out; Local Video Output: (1) HDMI female, (1) DisplayPort female |
Console Connectors | Video Output: (2) HDMI female Serial Control Port: (1) DB9 male Link Port: (1) RJ-45 female USB 2.0: (4) USB Type A female Audio: (1) Mic In, (1) Speaker Out |
Video Resolution | 4K @ 30 Hz, 3840 x 2160 @ 30 Hz |

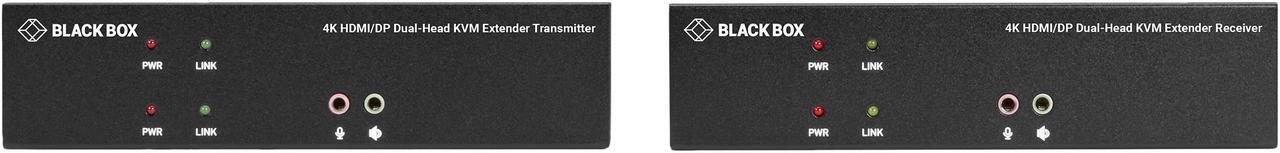

LED Indicators | Power: Red Link: Green |
Audio Features | 2-Way Analog Audio |
---|---|
Power Features | External DC 5V / 2A Power Supply |
Features | DisplayPort or HDMI dual-head transmission up to 100m over standard CATx cable Supports DisplayPort and HDMI video up to 3840 x 2160 at 30 Hz Transparent USB 2.0 extension supports HID devices, mass storage devices. Bidirectional audio via speaker/mic connection Supports RS-232 peripheral (serial) devices such as scanners or terminals. Local and remote units connect at distances of up to 330 feet (100m) using two CAT5e cables Supports dual 4K view video source transmission (one PC with two video output ports) Local video port loopback for monitoring on transmitter (TX) unit |
Dimensions | 1.71" H x 7.09" W x 3.27" D (4.4 x 18 x 8.3 cm) |
---|---|
Weight | 0.85 lb. (0.386 kg) |
Package Contents | (1) HDMI/DP Dual-Head KVM CATx Extender Transmitter (1) HDMI/DP Dual-Head KVM CATx Extender Receiver (2) Power Supplies (includes US, EU, UK, AU plug types) (1) HDMI cable (6-ft./1.8-m) (1) DisplayPort cable (6-ft./1.8-m) (1) 3.5mm audio cable (6-ft./1.8-m) (1) USB-B to USB-A cable (6-ft./1.8-m) |
---|
Date First Available | August 02, 2024 |
---|
