| Specifications | Electrical Characteristics: Maximum resolution supported: 2048x1536 Impedance: 75+/-5O Capacitance: 58pF/m Conductor resistance at 20 degree C: 30AWG - 376.96O/km, 28AWG - 237.25O/km, 24AWG - 98.25O/km Dielectric strength: AC 500V/1minute Insulation resistance: 10MO/km at 20 degree C DC 500V
Voltage rating: 30V Minimum bend radius: 85mm 3.5mm breakout length: Source - 24in, Dispaly - 10in
Conductor (3 conductors): Conductor type: 30AWG (7/0.127) (tinned copper(OFC)) Shield: Aluminum foil (100% coverage) Drain wire: 26AWG (7/0.20)(tinned copper) Insulation: Foamed PE Covering: PVC
Conductor (9 conductors): Conductor type: 28AWG(7/0.20) (tinned copper(OFC)) Insulation: SR-PVC
Conductor (2 conductors): Conductor type: 24AWG (7/0.20) (tinned copper(OFC)) Shield: Aluminum foil (100% coverage) Drain wire: 24AWG (7/0.20) (tinned copper) Insulation: Foamed PE Covering: PVC
Overall cable construction: Drain wire: 26AWG (7/0.20) (tinned copper(OFC)) Foil shield: Aluminum foil (100% coverage) Braided shield: 16/7/0.12+/-0.008mm (tinned copper(OFC)) (85% coverage) Jacket: CMG

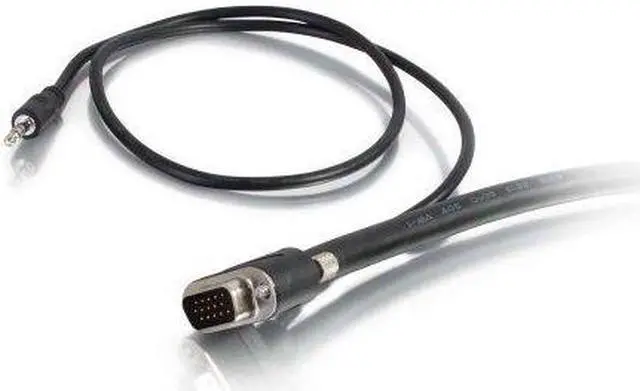

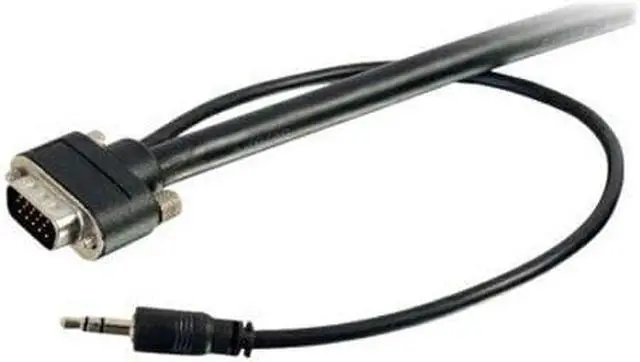

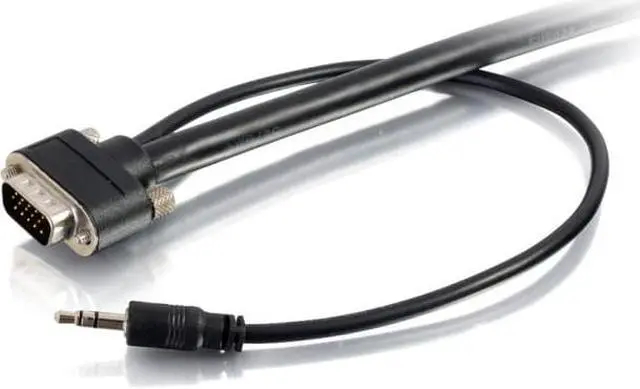

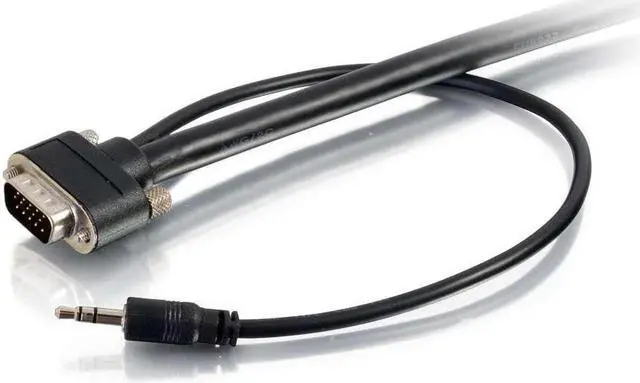

Connectors: Connector types: VGA (HD15), 3.5mm Plating: Nickel Housing: Black PBT VGA connector dimensions: 13.1 x 31.2 x 34.0mm |
|---|
