Question 1

Do I need low-profile memory for this?

Accepted Answer

No. You would only need it if you had a CPU cooler that hung over the memory slots. But you won't in this case because you'll need a very short cooler like a Noctua NH-L9I or Cryorig CR-C7A.

Question 2

Will a  RocketRAID 2680 SGL card fit in this box??
Thanks,
Skip -Perspective buyer

Accepted Answer

It should fit since it comes with a half height adapter. It's only supports Sata II though. It you wanted Sata III you would have to jump up to a Intel RMS25KB040 using pcie x8.

The case it very to work in since with the cover off you have access to both sides and the top. If you want to put a drive in the optical drive, good luck finding the part for it!

Also, if you are going with SAS, there is a different version for it. It can be found on a popular bidding website.

Question 3

Are the hard drive bays SATA or SAS?

Accepted Answer

This is the SATA backplane model.....

The mini SAS backplane version is model IW-MS04-S2-S265

Question 4

Can I install Centos6.x on this mini box?

Accepted Answer

It's standard realtek and intel drivers you could load centos on this yes. I loaded freebsd.

Question 5

What type of power connectors are on the included PSU? 24-pin or 20+4-pin ATX? (4-pin) ATX12V or (8-pin) EPS12V or (4+4-pin) EPS12V? PCI-E? Peripheral (Molex)?

Accepted Answer

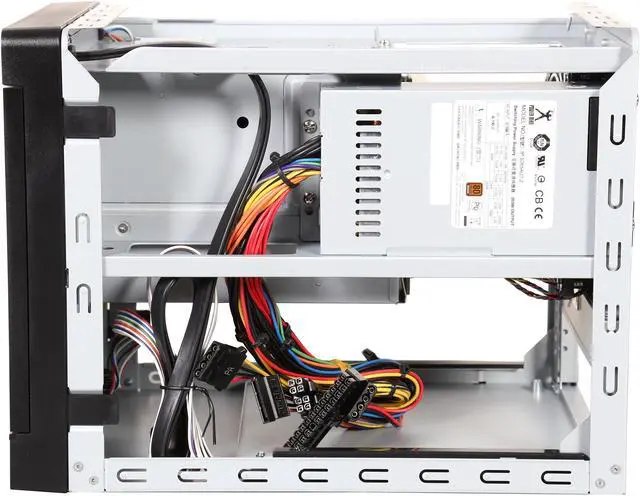

The PS has 24-pin MB, 4+4-pin 12v, two 4-pin molex for backplane power, one SATA power, and one slim ODD SATA power. There is no 6-pin video power connector (the PS is only 265 watts).

Also worth noting: the pictured SAS breakout cable was not included with my case. It is only needed if your MB has the 4in1 SATA or SAS port. The case backplane has 4 SATA connectors.

Question 6

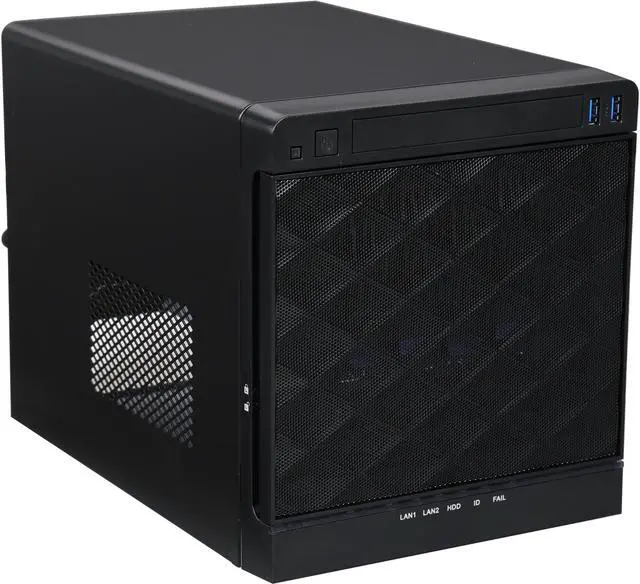

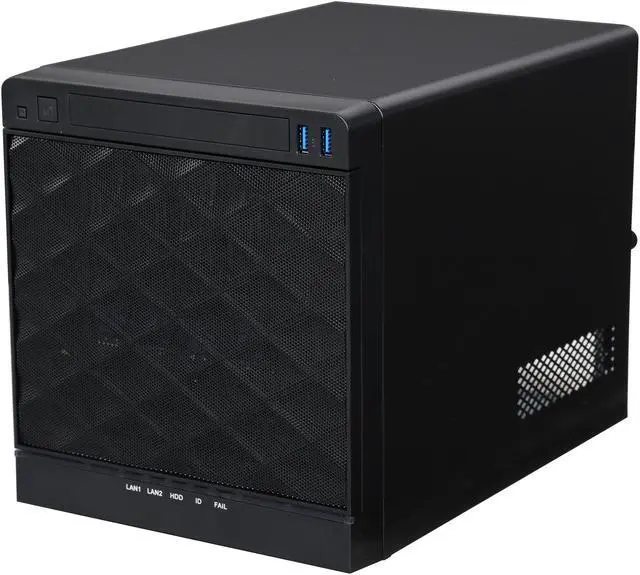

What's the ID LED on the front of the case for?

Accepted Answer

It is for identifying the system. If your motherboard supports the feature, you can control the LED on/off using software. It is useful in the scenario where you have many computers and want to physically access a specific one. You turn the LED on with software, then look in your server room for the computer with the illuminated ID LED.

Question 7

Do the input plugs from the caseload on the front of case ( Lan1, Lan2, HDD, I/O) plug into MB or backplane, if backplane where?

Accepted Answer

Yes your right, however if your MB doesn't support it, you can plug into hard dive activities on backplane. The lettering on the front of case will not corespond but HDD light attivity will look nice

Question 8

Will this fit a full size GPU?

Accepted Answer

No, this will not fit a full size GPU. The case supports only one low profile slot.

Question 9

Will a 2.5" HDD/SSD SATA disk fit in the external disks bay?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.

Yes, a 2.5" HDD/SSD will fit in the external disks bay.

Thank you,
Newegg Support

Question 10

Will a RocketRAID 2680 SGL card fit in this box??
Thanks,
Skip -Perspective buyer

Accepted Answer

Yes it can

Brand	IN WIN
Model	IW-MS04-01-S265

Chassis Type	Tower
Form Factor	Mini ITX (M/B cooler maximum 65mm)
Color	Black
Case Material	0.8 mm SGCC
Motherboard Compatibility	Mini ITX
Power Supply	In Win 265 Watts 80+ Brozne Flex ATX power supply

External 3.5" Drive Bays	External: 3.5" x 4, Slim ODD x 1
Internal 2.5" Drive Bays	1
Expansion Slots	Low profile Slot x 1
External Slim Drive Bays	1
