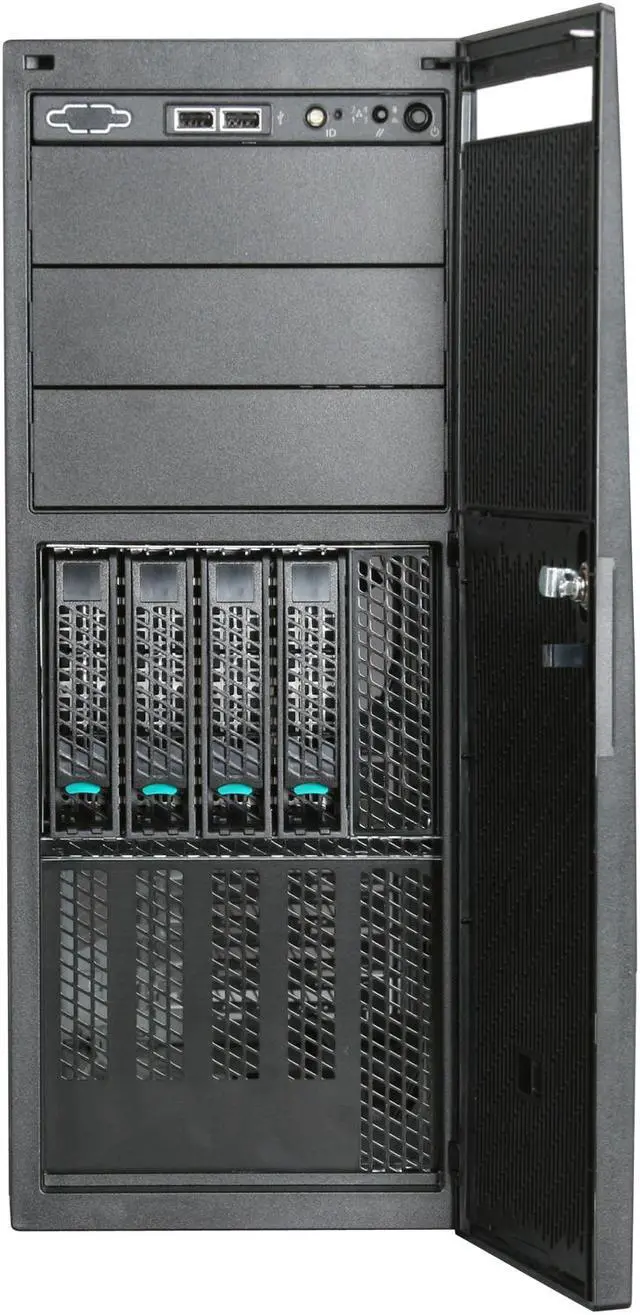

Intel P4304XXSHCN Black 4U Pedestal Server Chassis with 365W 80Plus Silver Certified Power Supply 3 External 5.25" Drive Bays
- 4U Pedestal form factor (17.24" x 21.5" x 6.81")

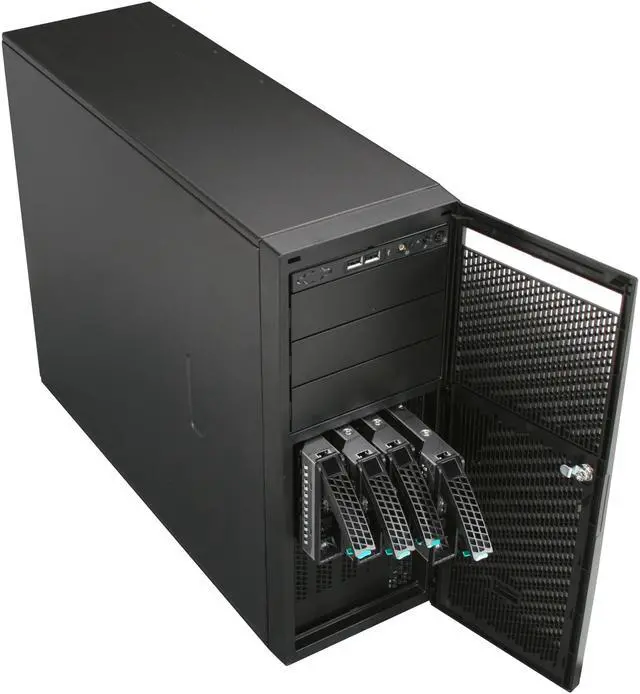

- 4x hot-swap drive carriers
- 1x 365W non-redundant power supply

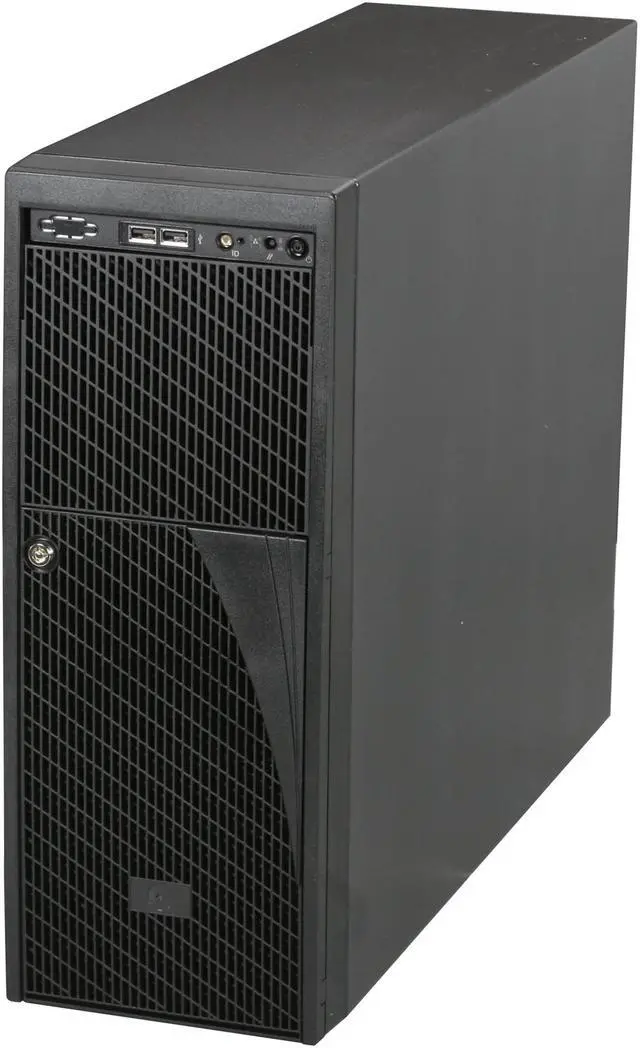

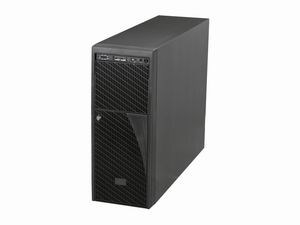

Intel Black 4U Pedestal Server Chassis
Model: P4304XXSHCN
Overview
The Intel Server Chassis P4304 family delivers a reliable and cost-effective solution to small- and medium-sized businesses. The newly designed 4U pedestal chassis features up to four fixed or four hot-swap hard drives, high efficiency power supply, and up to six full height PCI slots support.
| Model |
P4304XXSHCN |
| Chassis Form Factor |
4U Pedestal |
| Chassis Dimensions |
17.24 x 21.5 x 6.81" |
| Description |
An entry-level general purpose pedestal chassis supporting four 3.5" hot-swap HDDs, and a non-redundant power supply, optimized for thermal and acoustic performance. |
| Target Market |
Small and Medium Business |
| Power Supply |
365W |
| Power Supply Type |
AC |
| Power Supplies Included |
1 |
| Redundant Fans |
NO |
| Redundant Power Supported |
NO |
| Backplanes |
Included |
| Included Items |
(1) Intel® Server Chassis P4304XXSHCN- Pedestal form factor (17.24" x 21.5" x 6.81"), (4) hot-swap drive carriers; (1) 365W non-redundant power supply. No air duct required to be used in this chassis with the following server boards: Intel® Server Board S1200BTLRM, S1200BTL or S1200BTS. |
| Front Drives Supported |
4 |
| Front Drive Form Factor |
Hot-swap 2.5" or 3.5" |

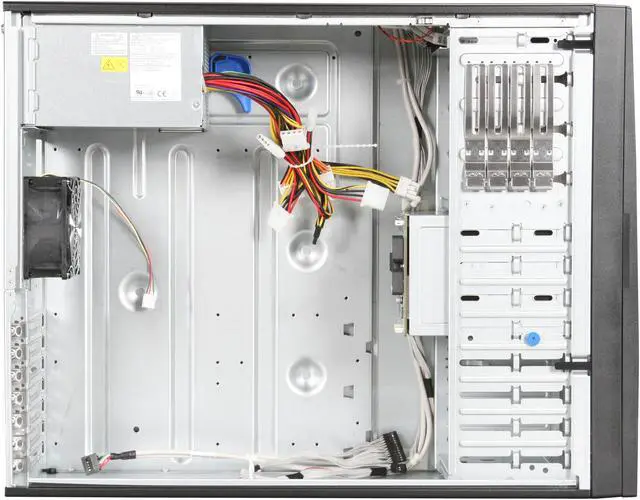

Gallery

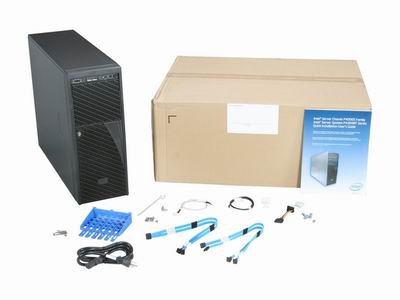

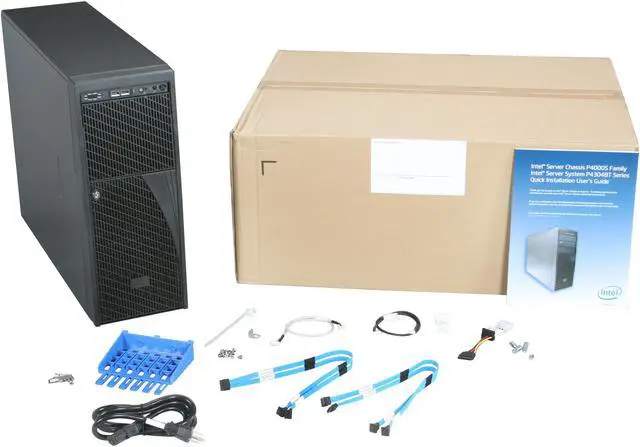

What's in the Box
Motherboard Supported: ATX, Micro ATXNumber of Fans Installed: 1Installed Fan Size: 3.62"Number of External 5.25" Bays: 3Number of External 3.5" Bays: 4Number of Total Expansion Bays: 7Number of Total Expansion Slots: 6Total Number of USB Ports: 2Power Supply Installed: YesNumber of Power Supplies Installed: 1Power Supply Wattage: 365 WCompatible Rack Unit: 4UForm Factor: PedestalHeight: 17.2"Width: 6.8"Depth: 21.5"Package Contents: Server Chassis P4304XXSHCN, 1 x System fan assembly, 1 x Front Panel assembly with cables, 1 x 365W Fixed Mount Power Supply, 1 x System fan assembly, 4 x 3.5 inch Hot swap drive carriers, 2 x ODD Slide Rail Assemblies, 1 x 450mm SATA data cable, 1 x 600mm I2C data cable, 1 x 450mm SGPIO data cable, 1 x 200mm chassis intrusion switch cable, Limited Warranty: 3 YearAn entry-level general purpose pedestal chassis supporting four 3.5" hot-swap HDDs, and a non-redundant power supply, optimized for thermal and acoustic performance.
