iStarUSA 3U Stylish Zinc-Coated Steel Rackmount Server Chassis Front-Mounted ATX Power Supply (D-300-PFS)
See more "server case"
Check more best sellers of "Server Chassis"
Check more lowest price of "Server Chassis"
Check more deals of "Server Chassis"
OUT OF STOCK.
- Front Mount ATX Power Supply
- 2 External 5.25" Drive Bays
- Front Access 2 x USB 2.0
Overview
Specs
Reviews

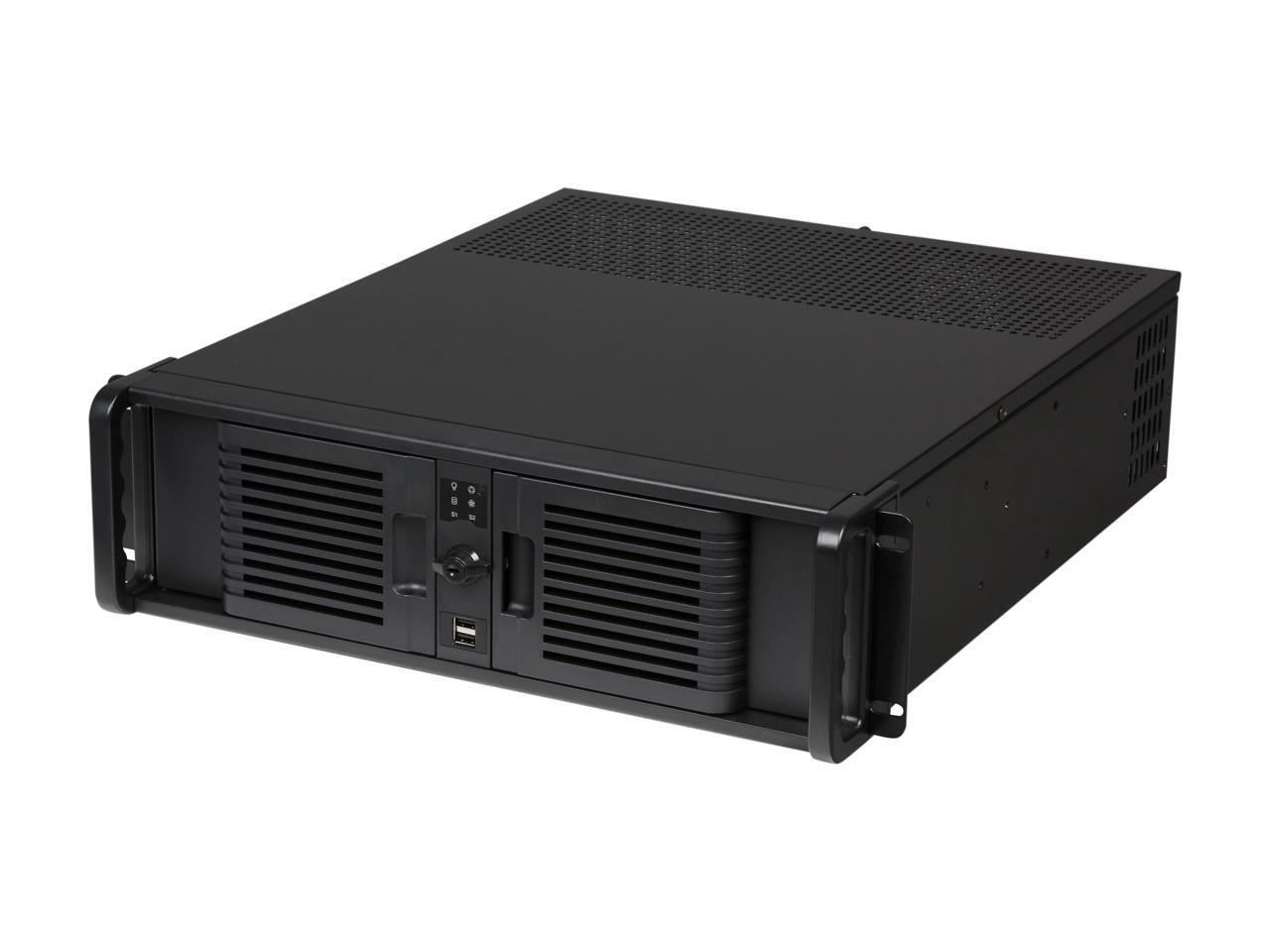

iStarUSA D-300-PFS 3U Compact Stylish Rackmount Chassis with Front-Mounted ATX Power Supply
- Front Mount ATX Power Supply
- Front Access USB 2.0 x 2
- 80mm x 1, 60mm x 1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
The 3U industrial rackmount chassis D Storm D-300-PFS features two 5.25in. and six 3.5in. bays for high-density storage applications. The D-300-PFS backplane supports seven full-length add-on cards. Optional aluminum body reduces total chassis weight and also provides enhanced thermal cooling solution to provide your system with maximum flexibility and performance.
Specifications
| Model Number | D-300-PFS |
|---|---|
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
3.5in. Drives: One 3.5in. Drive (internal): Five 5.25in. Drives: Two |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power ON/OFF, System & Alarm Reset |
| Expansion Slots | Seven |
| Security | Front Bezel |
| Material of Front Bezel | Plastic |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | Front USB 2.0 x 2 Connector |
| Air Filter | Removable and Washable |
| Motherboard Size | 12 x 9.6in. (ATX, microATX) |
| Cooling Fan | 1 x 60mm, 1 x 80mm |
| Optional Fan: | 60mm x 1, 80mm x 3 (DD-FANGUARD-8 required) |
| Dimensions (WxHxD) |
19in. x 5.25in. x 20.80in. (482.6mm x 133.3mm x 528.3mm) |
| Notes | Compatible with standard ATX PSU no more than 160mm in depth. |

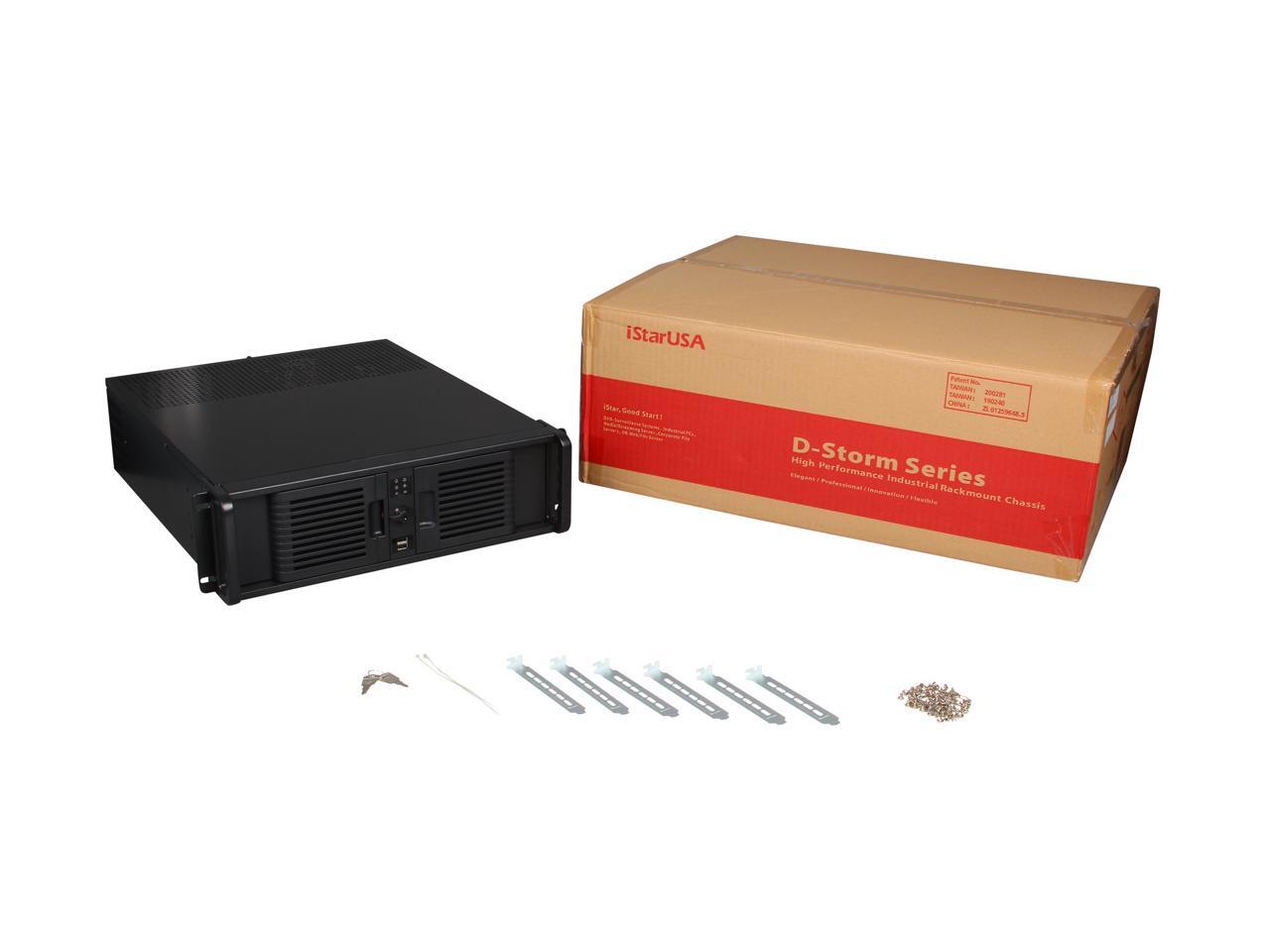

What's in the Box
