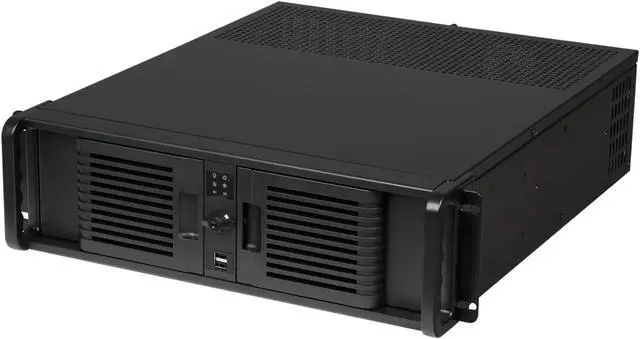

iStarUSA 3U Stylish Zinc-Coated Steel Rackmount Server Chassis Front-Mounted ATX Power Supply (D-300-PFS)

(46)(4) Write a Review
  • Front Mount ATX Power Supply
  • 2 External 5.25" Drive Bays
  • Front Access 2 x USB 2.0
Overview
Specs
Reviews (46)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

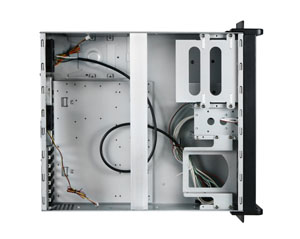

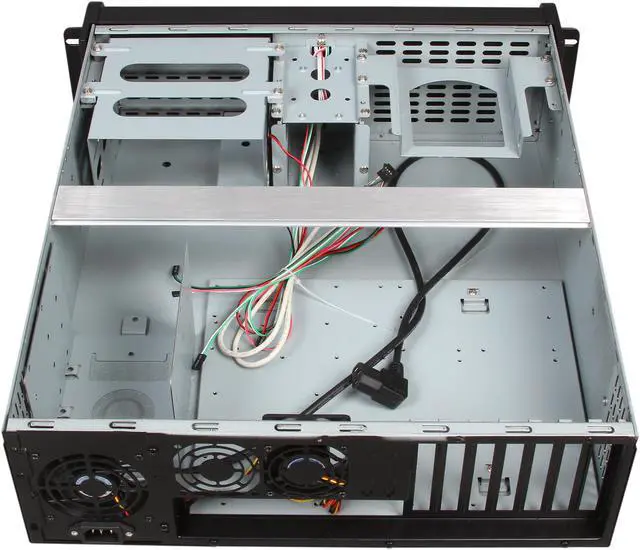

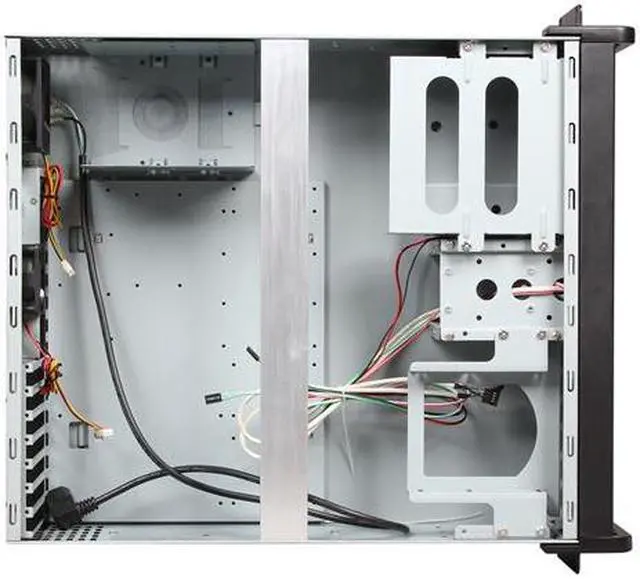

The D-300-PFS 3U server case from iStarUSA proves that rack mount server cases don't have to be boring looking to function well. The 3U form factor lets the case accept 12"x10" ATX motherboards. That means there is room inside for 7 full height expansion cards, so you have a wider variety of options.

They didn't skimp on drive space either with two 5.25" and one 3.5" external bays and five 3.5" internal bays. This gives you plenty of room to build an internal RAID solution. Up front with the drive bays is a spot for a regular ATX power supply so you don’t have to worry about sourcing a special unit.

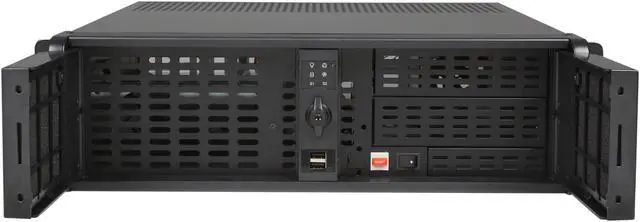

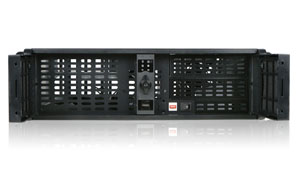

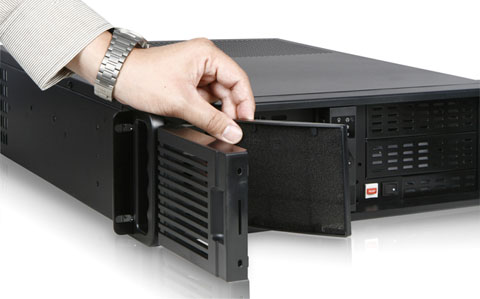

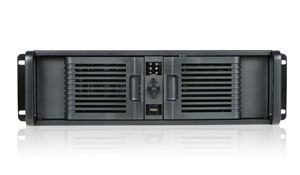

The front panel has LED indicators for an indication of system status at a glance. There are also 2 USB ports for quick connections of external devices. In between the LEDs and the USB ports is a keyed lock to prevent unauthorized users from opening the drive bay doors. The doors hold washable air filters.
iStarUSA

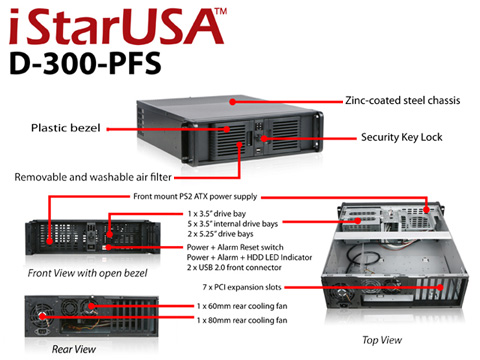

iStarUSA D-300-PFS 3U Compact Stylish Rackmount Chassis with Front-Mounted ATX Power Supply
iStarUSA
  • Front Mount ATX Power Supply
  • Front Access USB 2.0 x 2
  • 80mm x 1, 60mm x 1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis

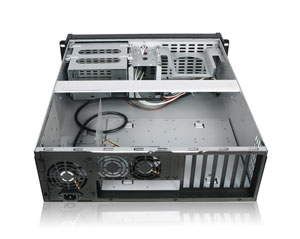

The 3U industrial rackmount chassis D Storm D-300-PFS features two 5.25in. and six 3.5in. bays for high-density storage applications. The D-300-PFS backplane supports seven full-length add-on cards. Optional aluminum body reduces total chassis weight and also provides enhanced thermal cooling solution to provide your system with maximum flexibility and performance.

iStarUSAiStarUSA

Specifications

iStarUSA
Model Number D-300-PFS
RoHS Compliance Version Yes
Standard Drive Bays 3.5in. Drives: One
3.5in. Drive (internal): Five
5.25in. Drives: Two
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power ON/OFF, System & Alarm Reset
Expansion Slots Seven
Security Front Bezel
Material of Front Bezel Plastic
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector Front USB 2.0 x 2 Connector
Air Filter Removable and Washable
Motherboard Size 12 x 9.6in. (ATX, microATX)
Cooling Fan 1 x 60mm, 1 x 80mm
Optional Fan: 60mm x 1, 80mm x 3 (DD-FANGUARD-8 required)
Dimensions (WxHxD) 19in. x 5.25in. x 20.80in.
(482.6mm x 133.3mm x 528.3mm)
Notes Compatible with standard ATX PSU no more than 160mm in depth.
iStarUSA
iStarUSAiStarUSA

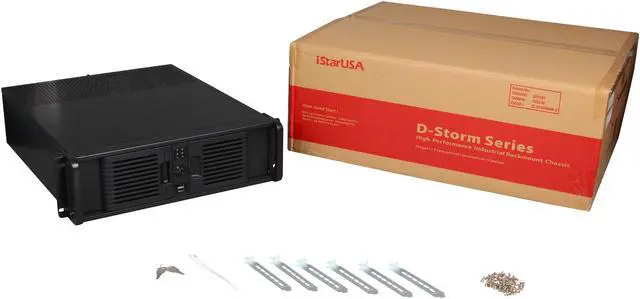

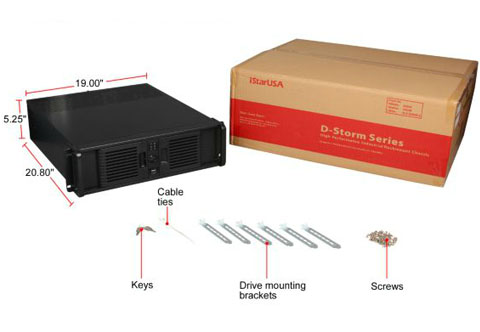

What's in the Box

iStarUSA



Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
