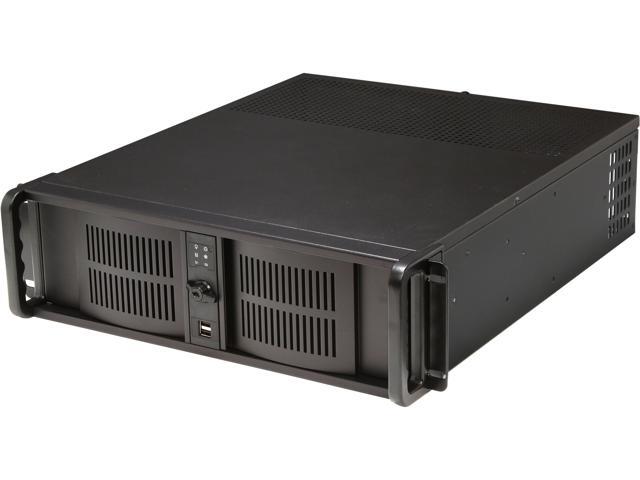

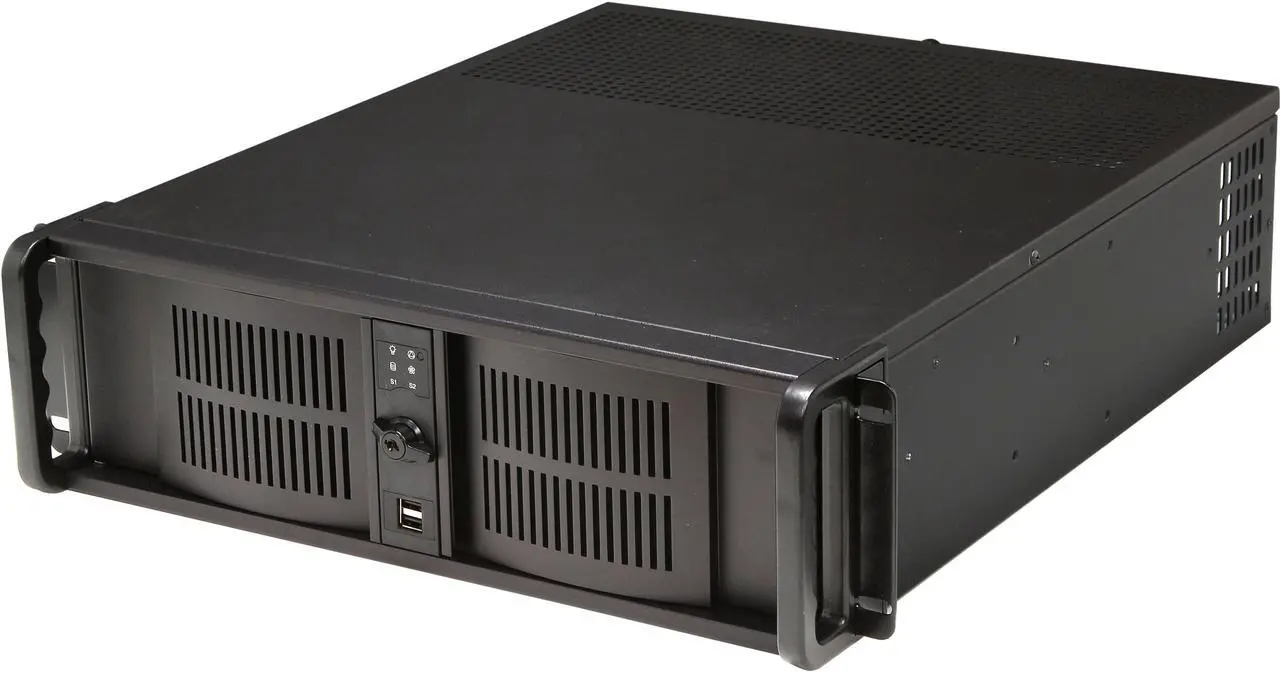

iStarUSA D-300 Black Aluminum / Steel 3U Rackmount Compact Stylish Chassis - Black Bezel 4 External 5.25" Drive Bays
- 4 External 5.25" Drive Bays
- 1 60mm Fans
+
+
Overview
Specs
Reviews (7)
iStarUSA Rackmount Server Chassis
The 3U industrial rackmount chassis D Storm D-300. Optional BPU series enable hot-swappable storage and RAID configuration. D-300 backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.
Features
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 60mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Specifications
| Model Number | D-300 |
|---|---|
| Color of Front Bezel | Black |
| Form Factor | 3U |
| Standard Drive Bays | 3.5" Drives: 2 3.5" Drive (internal): 1 5.25" Drives: 4 |
| Security | Front Bezel Key Lock |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 1U, 2U |
| Security | Front Bezel Key Lock |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x60mm |
| Optional Fan | 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) |
| Color Options | (Item Number) Black Bezel:11-165-414 Blue Bezel:11-165-188 Red Bezel:11-165-190 Silver Bezel:11-165-189 |
| Dimensions (WxHxD) | 19.00" x 5.25" x 20.80" |
| Notes | - the length of 2U redundant power supply might conflict with hotswap drive cages. |

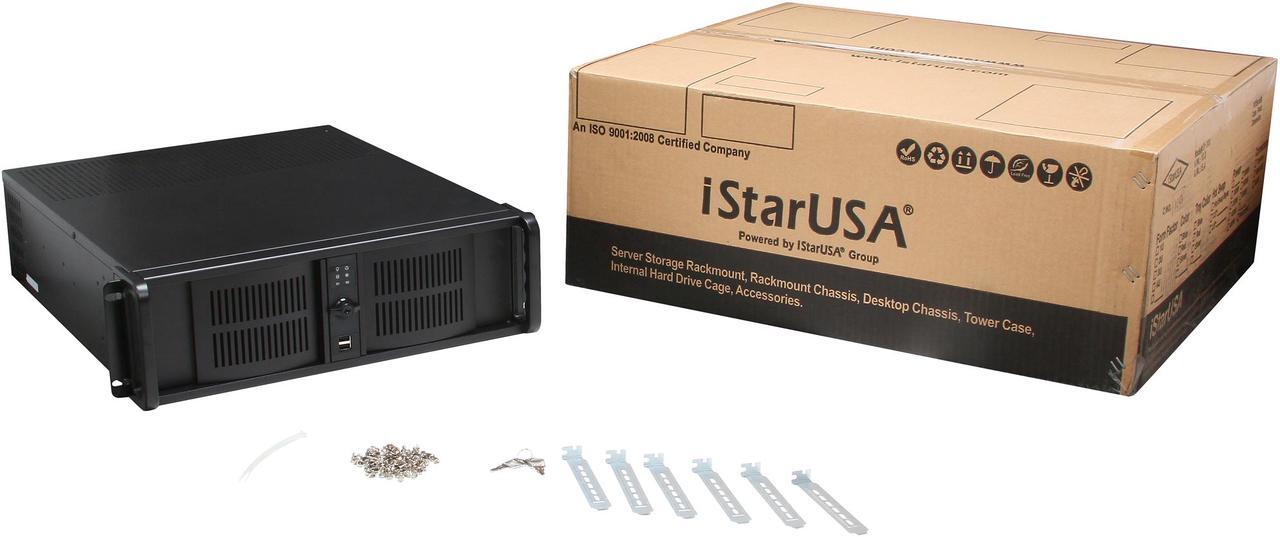

What's in the box
