What kind of fan sizes can you put inside?

I just built a unit and used two 80mm fans for the front intake and two 60mm fans for the rear exhaust.

Does this chassis allow full size graphics cards to be installed?

If you have a 3U or larger chassis & the add-in slots are perpendicular to mobo, then yes. To get full size in 2U or smaller, you will need to get slots that are parallel w/ the mobo. Any other will be short slots, unless you are dealing w/ a customer spec'd chassis.

what power supply provides both front to back circulation and enough sata connection to power drives in all 7 drive bays?

The power supply mount looked like it only supported ATX or maybe SFX PSUs. I have an ATX PSU in mine and it works fine. There isn't a ton of front to back airflow, but mine is in a water loop, so not something really impacting me personally.

$249^.99

Limit 99999 per customer.

Price alert

Add to wish list(Found on 18 wish lists)

Sold by Newegg

Shipped by Newegg

Main image of iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 2 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 3 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 4 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 5 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 6 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Alt view image 7 of 7 - iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

Customer images

Shop All IStarUSA Inc. Products

iStarUSA D-314-MATX Black 3U Rackmount Chassis ATX Power Supply Compatible

(16)(2) Write a Review

Supports Front Access USB2.0 x2
Power and HDD LED
Power and Reset Switch
Support ATX PS2 Power Supply
Support 4 x Full Height Add-on Cards

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (16)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

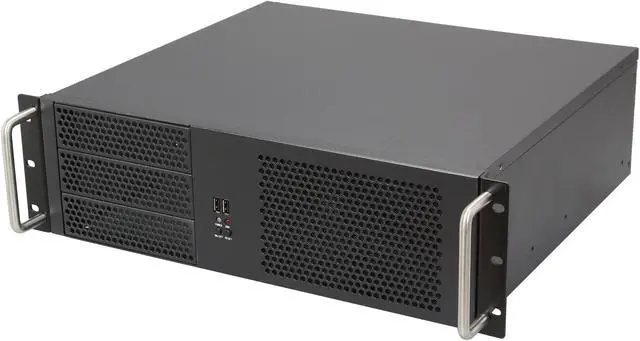

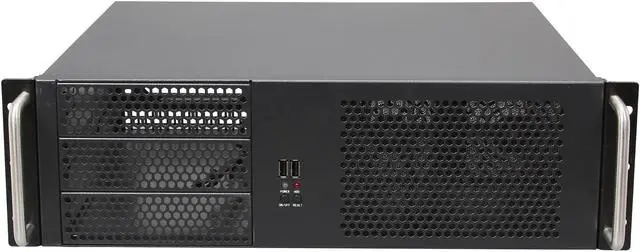

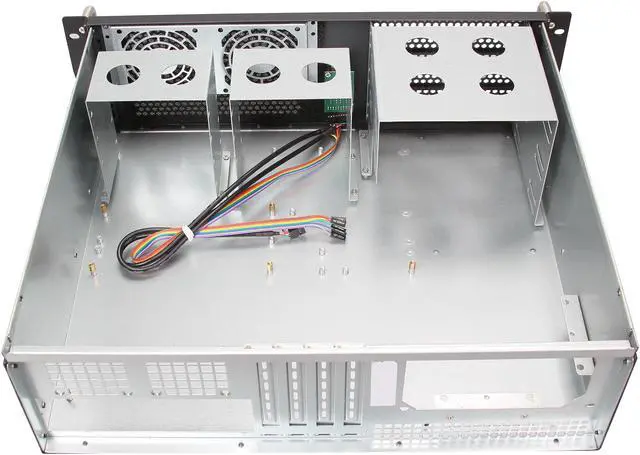

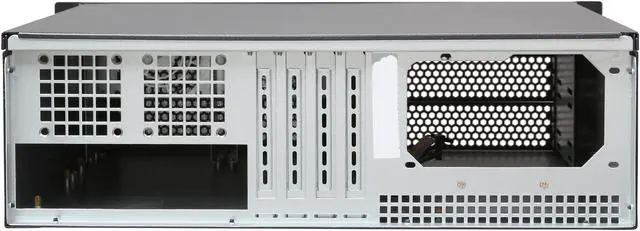

D-314-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.

Best Seller Ranking	#84 in Server Chassis

Model
Brand	iStarUSA
Model	D-314-MATX

Details
Chassis Type	Rackmount
Form Factor	3U
Color	Black
Case Material	Material of Front Bezel: SGCC 1.2mm Material of Handle: Steel Material of Main Chassis: SGCC 1.2mm
Motherboard Compatibility	12" x 9.6" (ATX, microATX, mini-ITX)

Expansion
External 5.25" Drive Bays	3
Internal 3.5" Drive Bays	4
Expansion Slots	4 (full height & up to 165mm deep with hdds installed)

Ports
Front Ports	2 x USB 2.0

Features
Features	D-314-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.

Dimensions & Weight
Dimensions	19.00" x 5.24" x 16.89"

Additional Information
First Listed on Newegg	December 04, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
