What power supply size will fit this casing?

2U PSU in the back side, or an ATX in the front in revered position has a power plug runs to the rear and you won't be able to access the switch with out opening the case and it will be a tight fit. I bought an MicroATX adaptor and power supply I also changed the power supply fan to run the other way to keep the air flow from front to back and mounted the ps upside down because there isn't much room for air flow on the bottom of the case. I would suggest getting an micro like I did, or use a 2U PSU or a standard at with a fan on the back and not on the bottom unless you plan to mount it with the fan facing upwards.

Are all the motherboard standoffs re/movable?

Yes. They aren't installed when you get the chassis. They're in the cardboard box along with other mounting hardware.

Do I need rails to mount this in my rack (4 post open frame, 22" deep)? I have received this and have it fully assembled, and it's heavy -- feels like the ears alone will not support its weight. If so, what rails do you recommend?

Norco recommends either the RL20 or RL26 rail kit. Research it on Norco's website.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

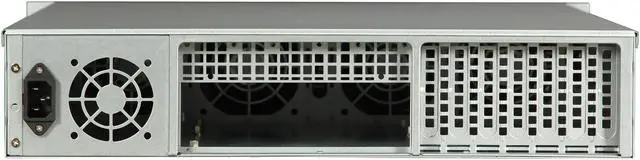

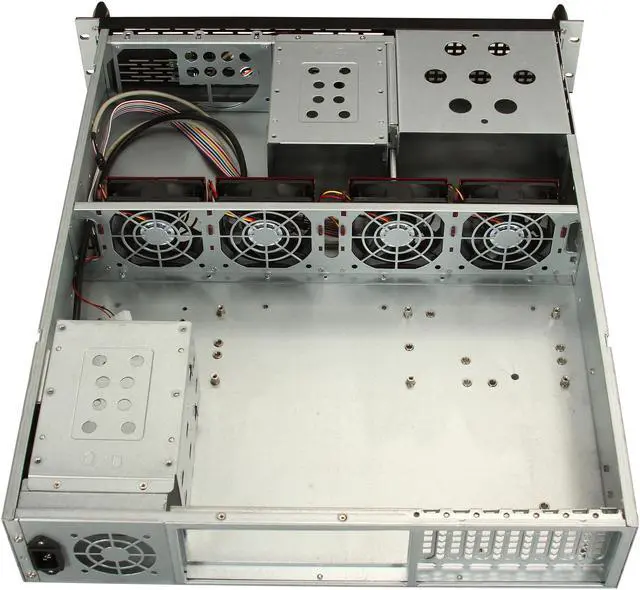

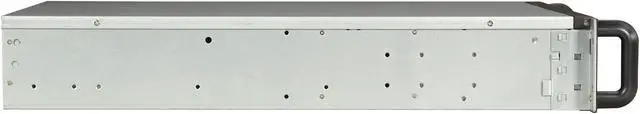

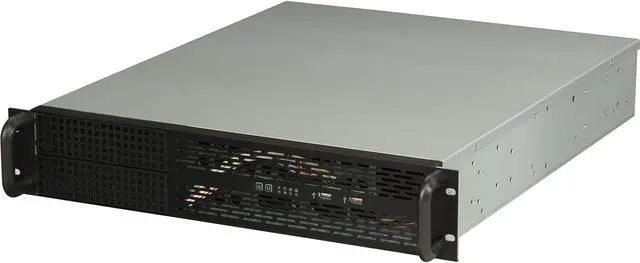

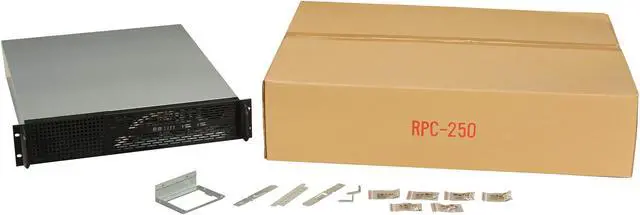

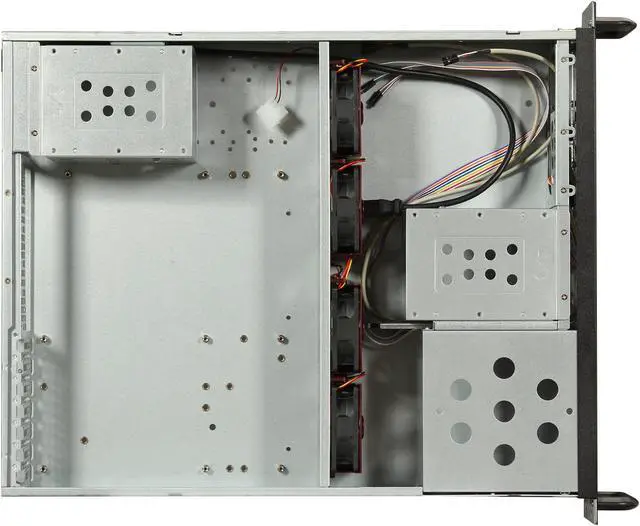

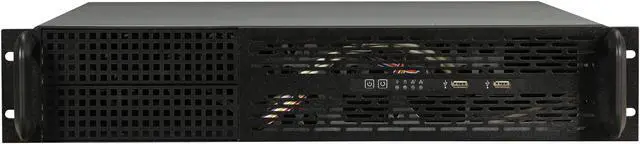

Main image of NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 2 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 3 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 4 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 5 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 6 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Alt view image 7 of 7 - NORCO RPC-250 Black 2U Rackmount Server Chassis

Shop All Norco Technologies Inc. Products

NORCO RPC-250 Black 2U Rackmount Server Chassis

(38) Write a Review

6 Internal 3.5" Drive Bays
2 5.25" Drive Bays
4 80mm Fans

Overview

Specs

Reviews (38)

Any questions? Our AI beta will help you find out quickly.

Try me now

Features

2U rack mount design,meets EIARS-310C standard.
2 x 5.25 in. drive bays, 6 x 3.5 in. drive bays.
Support CEB(12 x 10.5 in.) ATX (12 x 9.6 in.), Micro ATX (9.6 x 9.6 in.), Mini-ITX (6.7 x 6.7 in.)motherboard.
4 x 80 mm. ball bearing fans wall for better ventilation.
Front USB ports.

Specifications

Drive Bay - Supports six 3.5 drives and two 5.25 in. drives.
Cooling Fan - 4 x 80 mm. middle fans.
Switch - Power ON/OFF x 1, System reset x 1.
Indicator - Power ON/OFF x 1, HDD x 1, NETWORK X 2.
Connector - Two front accessible USB ports.

Black 2U Rackmount Chassis

RPC-250

Features

2U Rackmount Design, Meets EIARS-310C Standard
Supports CEB (12 x 10.5"), ATX (12 x 9.6"), Micro ATX (9.6 x 9.6"), and Mini-ITX (6.7 x 6.7") motherboards

2 x 5.25" Drive Bays, 6 x 3.5" Drive Bays
4 x 80mm Ball Bearing fans wall for better ventilation
Front USB Ports

Specifications

Drive Bays: Supports six 3.5" drives and two 5.25" drives
Cooling Fans: 4 x 80mm middle fans
Switches: Power ON/OFF x 1, System reset x 1
Indicators: Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connectors: Two front accessible USB ports
Motherboard Compatibility: Support CEB (12 x 10.5"), ATX (12 x 9.6"), Micro ATX (9.6 x 9.6"), Mini-ITX (6.7 x 6.7")
Power Supply Options: Standard ATX, standard 2U power supply, 2U redundant power supply (W x H: 3.98 x 3.31 inches)
Dimensions (W x D x H): 19 x 21.6 x 3.5" (483 x 550 x 88mm)
Weight: 18.5lbs (8.4kg) (NET) 23.8lbs (10.8kg) (GROSS)
Packing: Double boxes
Environment Temperature: 32 - 131 °F (0 - 55 °C) (Operating) -4 - 140 °F (-20 - 60 °C) (Non-Operating)
Relative Humidity: 5% to 95%, non-condensing
Vibration: (5 - 500Hz): 1Grms (Operating), 2G (Non-Operating)
Shock: 10G (with 11ms duration, half sine wave) (Operating), 30G (Non-Operating)

Model
Brand	NORCO
Model	RPC-250

Details
Chassis Type	Rackmount
Form Factor	2U
Color	Black
Motherboard Compatibility	CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")

Expansion
Internal 3.5" Drive Bays	6

Front Ports
Front Ports	USB

Cooling System
80mm Fans	4

Features
Features	Drive Bay: Supports 6 x 3.5" drive bays and 2 x 5.25" drive bays. Switch: Power ON/OFF x 1, System reset x 1 Indicator: Power ON/OFF x 1, HDD x 1, NETWORK x 2 Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating). Meets EIARS-310C standard. Screwless top cover.

Dimensions & Weight
Dimensions (H x W x D)	19" x 21.6" x 3.5"
Weight	18.5 lbs.
