Will any old ATX power supply work in this case, or is there a specific fan configuration needed to ensure the PSU gets enough air?

The case take a standard ATX power supply no idea what size that is. I use a Antec EA-380D Green in the case Dimensions: 3.4" x 5.9" x 5.5" and it fits perfectly. Make sure the fan on the power supply vents to the rear and not out the front. In this case if you use a ATX power supply it sits at the front of the case so you want to make sure the hot air is not vented into the case.

Does this come with rails?

No the rails are not included with this case.

If I install a 2U power supply, will I be able to access its switch without opening the case?

it has an external power switch but that is supposed to be hooked up to the mother board. this is a server case. the power supply it requires would turn on when the mother board is turned on.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 1 wish list)

Main image of NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 2 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 3 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 4 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 5 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 6 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Alt view image 7 of 7 - NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

Shop All Norco Technologies Inc. Products

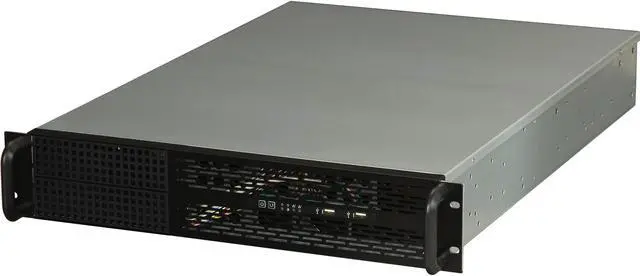

NORCO RPC-270 Black 2U Rackmount Server Case 2 External 5.25" Drive Bays

(16) Write a Review

2 External 5.25" Drive Bays
6 Internal 3.5" Drive Bays
4 x 80mm middle fans wall

Overview

Specs

Reviews (16)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Black 2U Rackmount Chassis

RPC-270

Features

2U Rackmount Design, Meets EIARS-310C Standard
2 x 5.25" Drive Bays, 6 x 3.5" Drive Bays
Support EEB (12 x 13"), CEB(12 x 10.5"), ATX (12 x 9.6"), Micro ATX (9.6 x 9.6"), Mini-ITX (6.7 x 6.7") motherboard

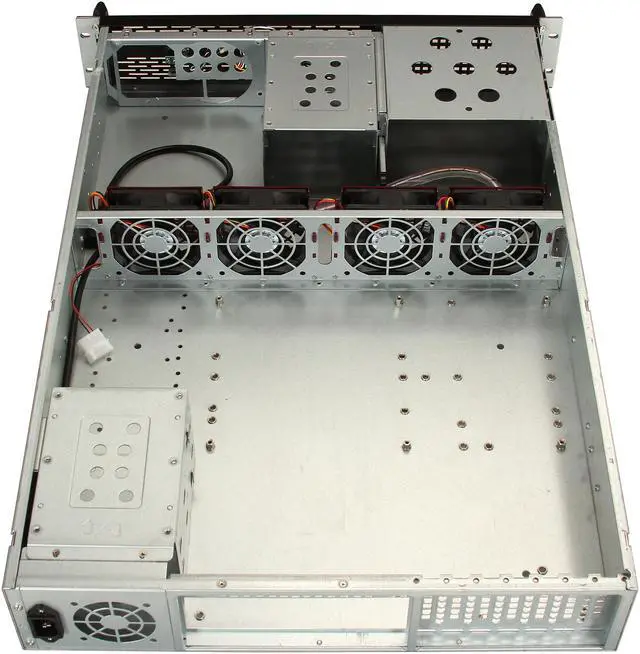

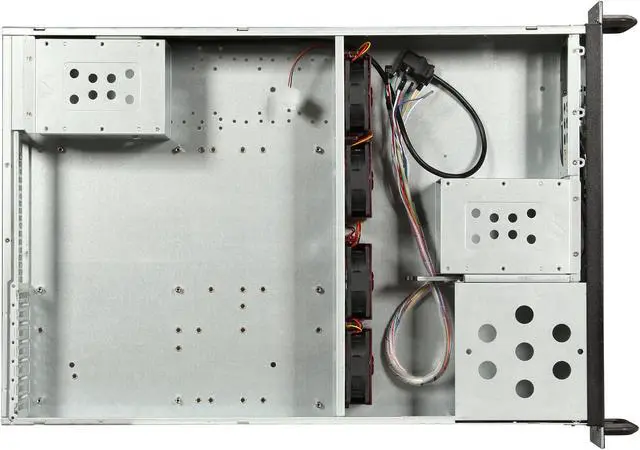

4 x 80mm Ball Bearing mid-wall fans for better ventilation

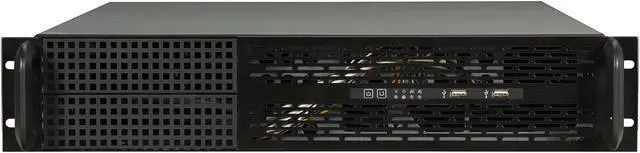

Front USB ports

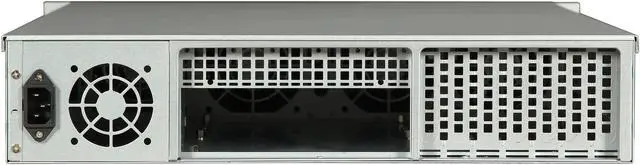

Support Standard ATX power supply, standard 2U power supply (W x H: 3.94 x 2.76 inch), 2U redundant power supply (W x H: 3.98 x 3.31 inches)

Specifications

Drive Bay: Supports six 3.5" drives and two 5.25" drives
Cooling Fan: 4 x 80mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator: Power ON/OFF x 1, HDD x 1, Network X 2
Connector: Two front USB ports
Motherboard Compatibility: Support EEB (12 x 13"), CEB (12 x 10.5"), ATX (12 x 9.6"), Micro ATX (9.6 x 9.6"), Mini-ITX (6.7 x 6.7")
Power Supply Options: Standard ATX Power Supply, Standard 2U power supply (W x H: 3.94 x 2.76 inches), 2U redundant power supply (W x H: 3.98 x 3.31 inches)

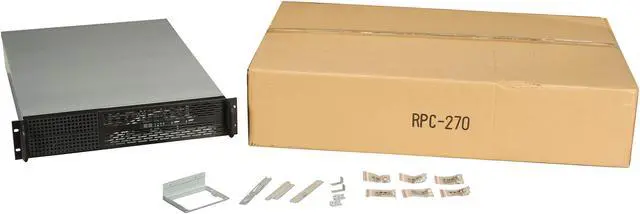

Packing: Double boxes
Dimensions (L x W x H): 19 x 25.5 x 3.5" (483 x 650 x 88mm)
Weight: 20.7lbs (9.4kg) (NET) 26.5lbs (12kg) (GROSS)
Environment Temperature: 32 - 131°F (0 - 55°C) (Operating) -4 - 140°F (-20 - 60°C) (Non-Operating)
Relative Humidity: 5% to 95%, non-condensing
Vibration (5 - 500Hz): 1Grms (Operating), 2G (Non-Operating)
Shock: 10G (with 11ms duration, half sine wave) (Operating), 30G (Non-Operating)

Features

2U rack mount design,meets EIARS-310C standard.
2 x 5.25 in. drive bays, 6 x 3.5 in. drive bays.
Support EEB (12 x 13 in.), CEB(12 x 10.5 in.), ATX (12 x 9.6 in.), Micro ATX (9.6 x 9.6 in.), Mini-ITX (6.7 x 6.7 in.) motherboard.
4 x 80 mm. ball bearing middle fans wall for better ventilation.
Front USB ports.

Specifications

Drive Bay - Supports six 3.5 in. drives and two 5.25 in. drives.
Cooling Fan - 4 x 80 mm. middle fans.
Switch - Power ON/OFF x 1, System reset x 1.
Indicator - Power ON/OFF x 1, HDD x 1, NETWORK X 2.
Connector - Two front USB ports.

Model
Brand	NORCO
Model	RPC-270

Details
Chassis Type	Rackmount
Form Factor	2U
Color	Black
Motherboard Compatibility	Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboard

Expansion
External 5.25" Drive Bays	2
Internal 3.5" Drive Bays	6

Ports
Front Ports	2 x USB

Cooling System
80mm Fans	4

Features
Features	Switch: Power ON/OFF x 1, System reset x 1 Indicator: Power ON/OFF x 1, HDD x 1, NETWORK x 2 2U rackmount design,meets EIARS-310C standard. Support Standard ATX power supply, standard 2U power supply (W x H 3.94 x 2.76 inch),2U redundant power supply (W x H=3.98inch x 3.31inch).

Dimensions & Weight
Dimensions	19" x 25.5" x 3.5"
Weight	9.4 kg/20.7 lb (NET)
