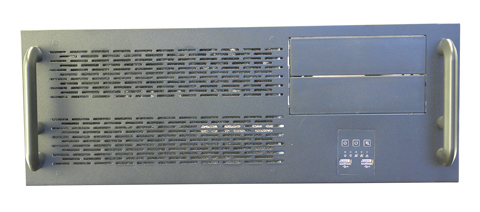

NORCO RPC-430 Black 4U Rackmount Super Short Depth 15.25" Server Case 6 Internal 3.5" Drive Bays

OUT OF STOCK.
  • 2 x External 5.25" Drive Bays
  • 6 x Internal 3.5" Drive Bays
  • 2 x 80mm Fans
Overview
Specs
Reviews

Norco 4U Rackmount Chassis Drive Bays

Features

NORCO Drive Bays
  • Super short depth, only 15.25 inches
  • 4U rackmount design; meets EIARS-310C standard
  • 2 x 5.25" drive bays, 6 x 3.5 " drive bays
  • Easy drive mounting with screwless rails

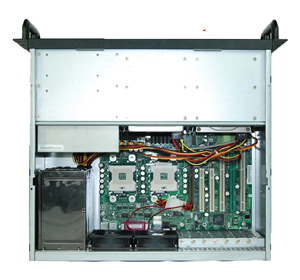

  • Support CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard
  • 2 x 80mm Rear ball bearing fans for better ventilation
  • 2 x Front USB ports
  • RoHS Compliant
  • Smooth border for safe and comfortable handling


Specifications

NORCO Drive Bays

Drive Bay Supports six 3.5" drives and two 5.25" drives
Cooling Fan 2 x 80mm ball bearing rear fans
Switch Power ON/OFF x 1, System reset x 1
Indicator Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector Front USB port x2
Motherboard Compatibility Supports CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Power Supply Options Standard ATX, mini redundant power supply (H x W: 5.91 x 3.31 inches)
Dimensions (W x D x H) 19" x 15.25" x 7" (483 x 387 x 176mm)
Packing Double boxes
Weight 15lbs (6.8kg) (NET) 22lbs (10kg) (GROSS)
Environment Temperature 32 - 131 °F (0 - 55°C) (Operating) -4 - 140 °F (-20 - 60 °C) (Non-Operating)
Relative Humidity 5% to 95%, non-condensing
Vibration (5 - 500Hz) 1Grms (Operating), 2G (Non-Operating)
Shock 10G (with 11ms duration, half sine wave) (Operating), 30G (Non-Operating)

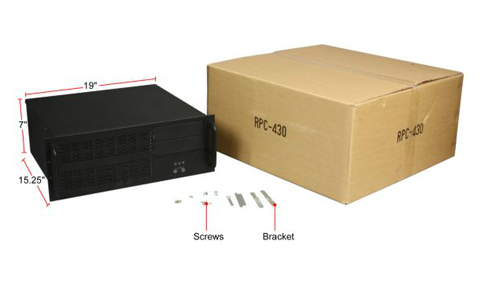

WHAT'S IN THE BOX

NORCO Drive Bays
