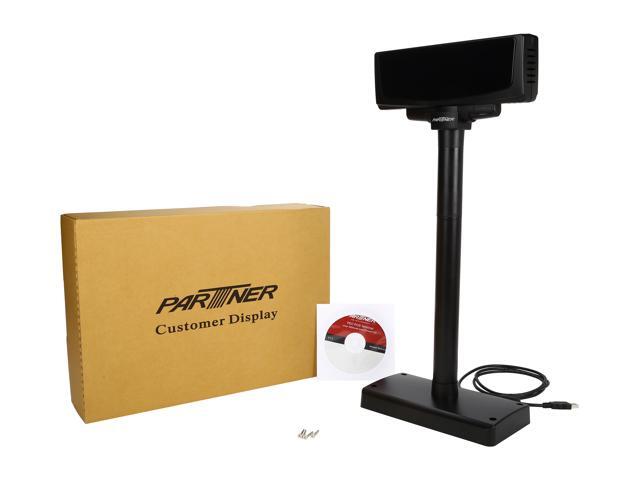

PartnerTech CD-7220-UN-5V-B CD-7220 Customer Pole Display

Ships from United States. Most customers receive within 2-8 days.

Sold and Shipped by Uniquepos a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 2x20
  • Vacuum fluorescent
  • Works With WEPOS, XP PRO, XPE
  • MTBF: 25000 Hour
  • Alphanumeric
  • USB 2.0 Interface
  • 3.1" x 9.1" x 1.6"

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The CD-7220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will appreciate not having to remain in a fixed viewing position to see the display.

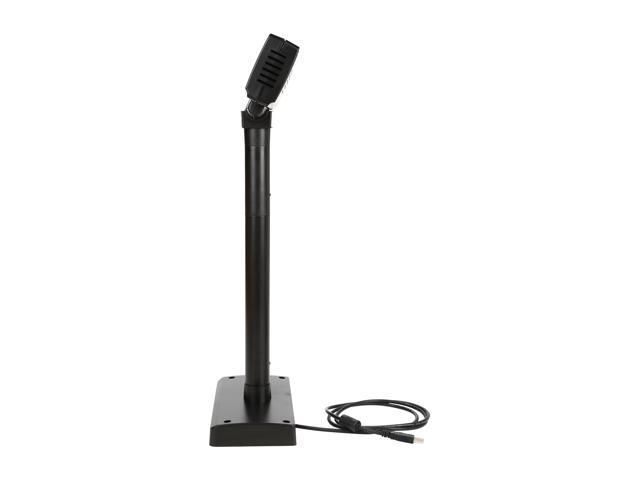

The CD-7220 customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you the flexibility to tailor the display position to your unique application. The CD-7220D provides Dual independent displays. You can choose to show the same or different messages with a single pole display. With two lines of twenty characters on each side, the CD-7220D can display 96 alphanumeric messages with 13 partners characters. Additionally, a software utility is provided to transfer character dot patterns to ASCII code giving you the ability to define characters and demo messages to download to the display EPROM.

The CD-7220 customer pole display uses an easy to connect RS-232C serial port connection with a wide range of available communication speeds from 4800 to 38,400 bps. The CD-7220 pass-through function allows you to connect another serial device by sharing one single serial port on the host system. The CD-7220 also offers a variety of emulation modes including Epson, Aedex, Emax and Ultimate.

Features

CD-7220
  • Vacuum fluorescence display
  • 270° rotation option
  • Interface RS232 or USB
  • Adjustable height
  • Two-line display with 20 characters per line
  • Options
  • External power supply 12V
CD-7220 CD-7220 CD-7220
Specifications
Model CD-7220
Display Method Vacuum fluorescent
Display Color Blue Green
Brightness 700 cd/m2
Interface RS-232 Serial (D-Sub 9 pin) with pass through function,USB with 5V power (do not require power supply)
Power Supply 12VDC +/- 5% (5V optional)
Power Consumption 5 Watts / 8 Watts
Safety FCC Class B, CE Class B, EMC Approved
MTBF 25,000 hours
Weight 2 lb (.9 kg)
Viewable Angle +/- 15°
Rotation Angle Maximum 270°
Character Font 5 x 7 dot matrix, comma and decimal point
Character Size 9.0 mm x 5.25 mm
Character Pitch 8.3 mm
Character Type 96 alphanumeric, 13 partners sets and one custom
Number of Characters 40 (20 columns x 2 lines) / 40 (20 columns x 2 lines) x 2 sides
Dimension 109 mm Base or 42 mm VFD (L) x 230 mm (W) max. 504 mm (H) with long & short pole
Options Dual Side Display

Learn more about the Partner Tech USA CD-7220 (CD-7220-UN-5V-B)

General

|
Brand
Partner Tech
Model
CD-7220 (CD-7220-UN-5V-B)
Part Number
CD-7220-UN-5V-B
Color
Black

Specifications

|
Interface
USB
Form Factor
Pole Display
Display Type
Vacuum Fluorescent Display
Display Color
Blue-Green
Number of Characters
20 Columns / 2 Lines
Viewing Angle
+/- 30 degrees

Dimensions & Weight

|
Dimensions
9.06" x 4.33" x 1.65" (W x H x D)
Weight
1.98 lbs

Features

|
Features
20 columns x 2 lines for each side.

Display panel is adjustable both by tilting vertically and rotating horizontally.

Configuration of baud rate, emulation mode, and user-defined fonts are configured by software or by using external dipswitches.

Command emulation modes include: PTC, Epson, ADM787, ADM788, Aedex, Emax, DSP 800 and Ultimate.

Has the ability to design user-defined characters that are stored in a non-volatile EEPROM.

Reverse characters (black characters on blue green background) using Epson command set.

Display windowing commands are available using PTC or Epson command sets.

Uses RS-232 serial interface with communication speeds from 300 to 38400 BPS.

Display pass through function allows printer and display to share one port.

Additional Information

|
Date First Available
October 02, 2019
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
