What type of motherboard's may be used and type of processor that would fit this case?

Question

Accepted Answer

I used the MBD-X7SPE-HF-D525-O motherboard with CPU already mounted.  I put in two sticks of KVR800D3S8S6/2G for a total of 4GB of RAM.  I used a 120GB HyperX SSD SH103S3/120G.  You will need to purchase at least one HDD/SSD mount MCP-220-00044-0N.  You have to either get a Wye cable or a single extension for both the fans to reach the Mobo header (FAN4EXT12 or CA-PWM).  I bought both, but the single extension worked best for me, but that might have been luck that allowed one of the fan cables to reach.  I loaded it with Xubuntu, and it has been running our companies PostgreSQL database and an internal website with MySQL.  It has been working great for over a year now.  Very low power consumption, and with the fans, it stays pretty cool.  The PWM works great and the fans are quite during normal operation.

Brand	SUPERMICRO
Series	SuperChassis
Model	CSE-510-200B

Chassis Type	Rackmount
Form Factor	1U
Color	Black
Motherboard Compatibility	9.6" x 9.6"
Power Supply	200W

Dimensions (H x W x D)	17.2" x 11.3" x 1.7"
Weight	11 lbs. Gross

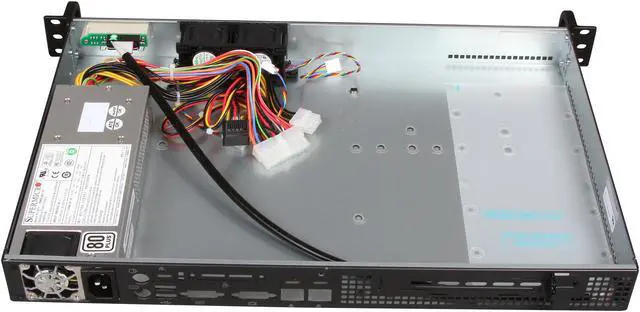

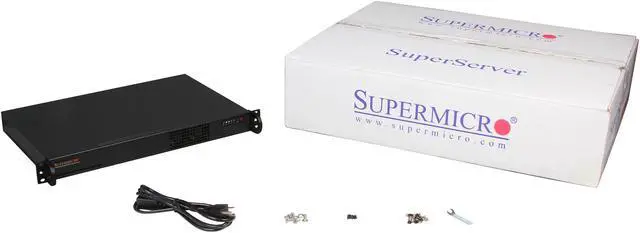

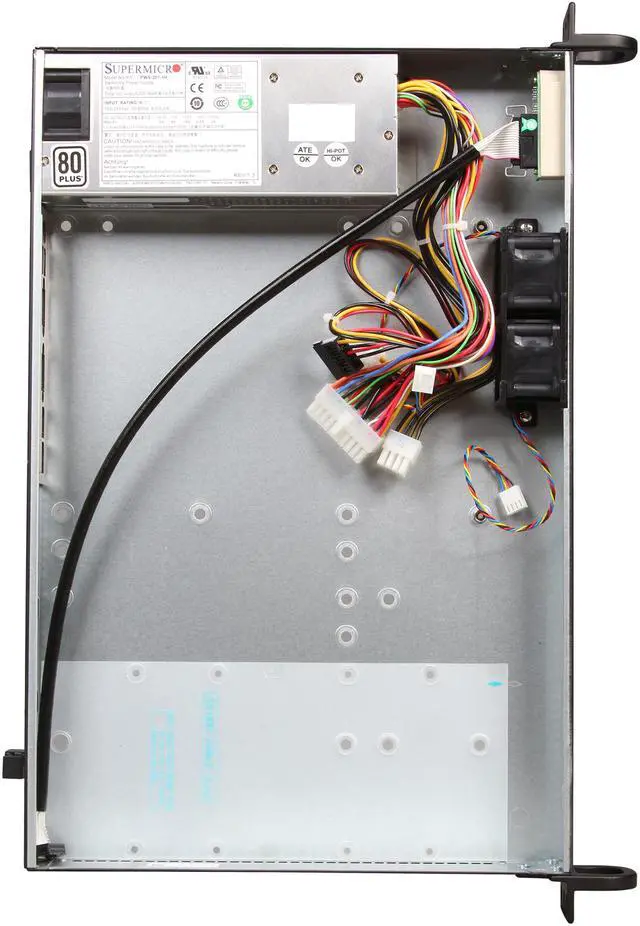

SUPERMICRO SuperChassis CSE-510-200B Black 1U Rackmount Server Case 200W

Learn more about the Supermicro CSE-510-200B

Customer Reviews of the Supermicro CSE-510-200B

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16811152108
