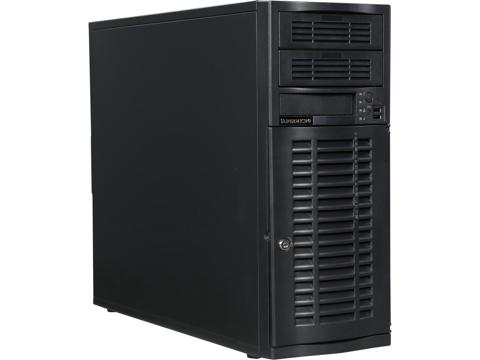

SUPERMICRO CSE-733T-500B Black Pedestal Server Case 500W w/ 80 PLUS Bronze Certified 2 External 5.25" Drive Bays
- 500W w/ 80 PLUS Bronze Certified
- 2 External 5.25" Drive Bays 4 x 3.5" SAS/SATA Hot-Swap Drive Bays
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

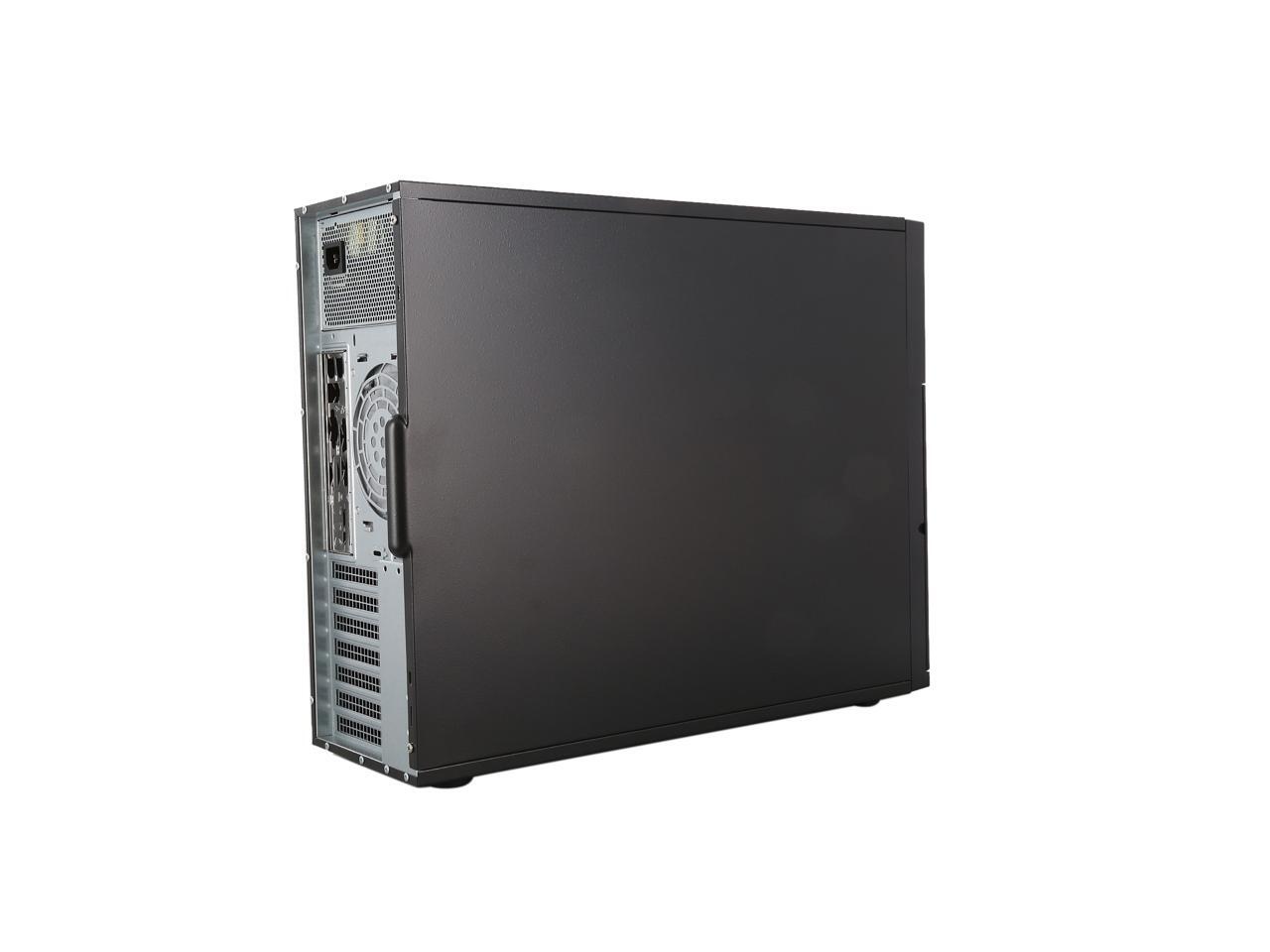

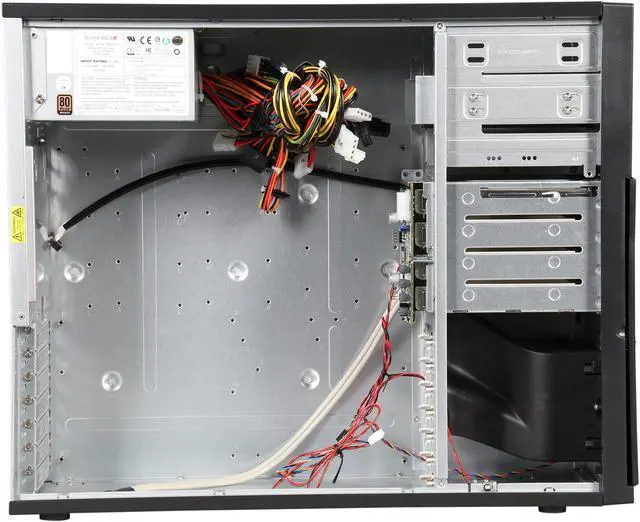

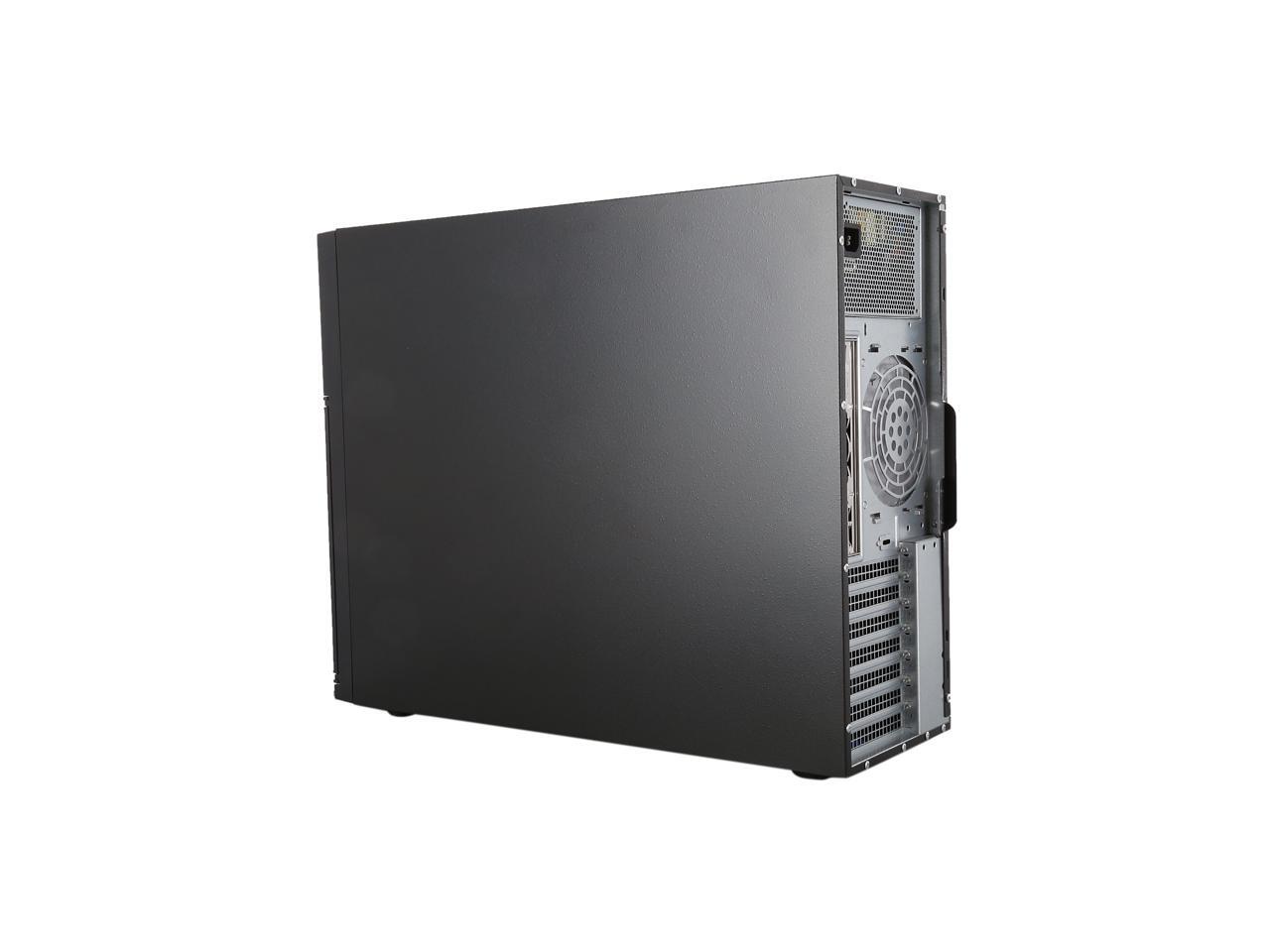

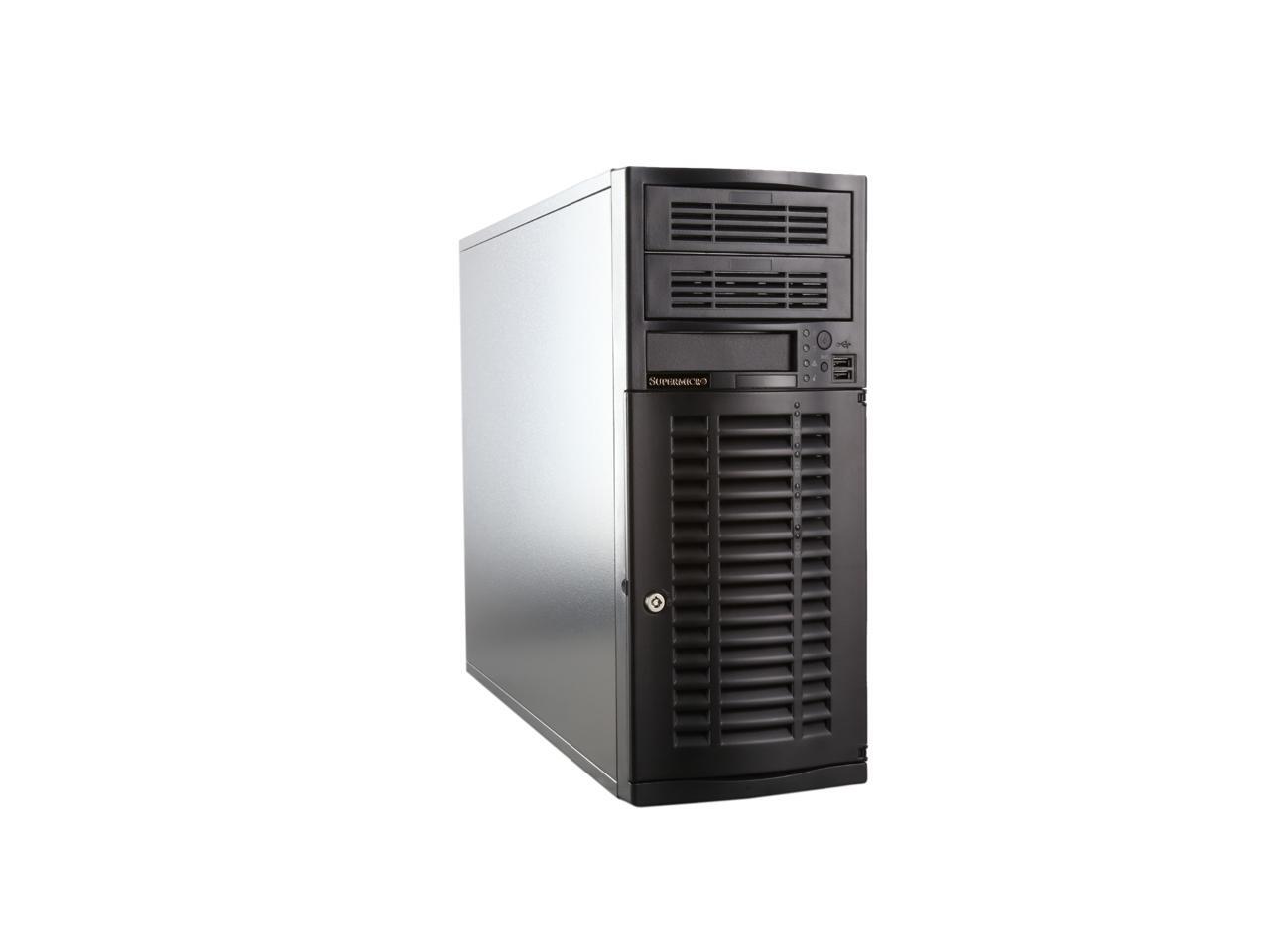

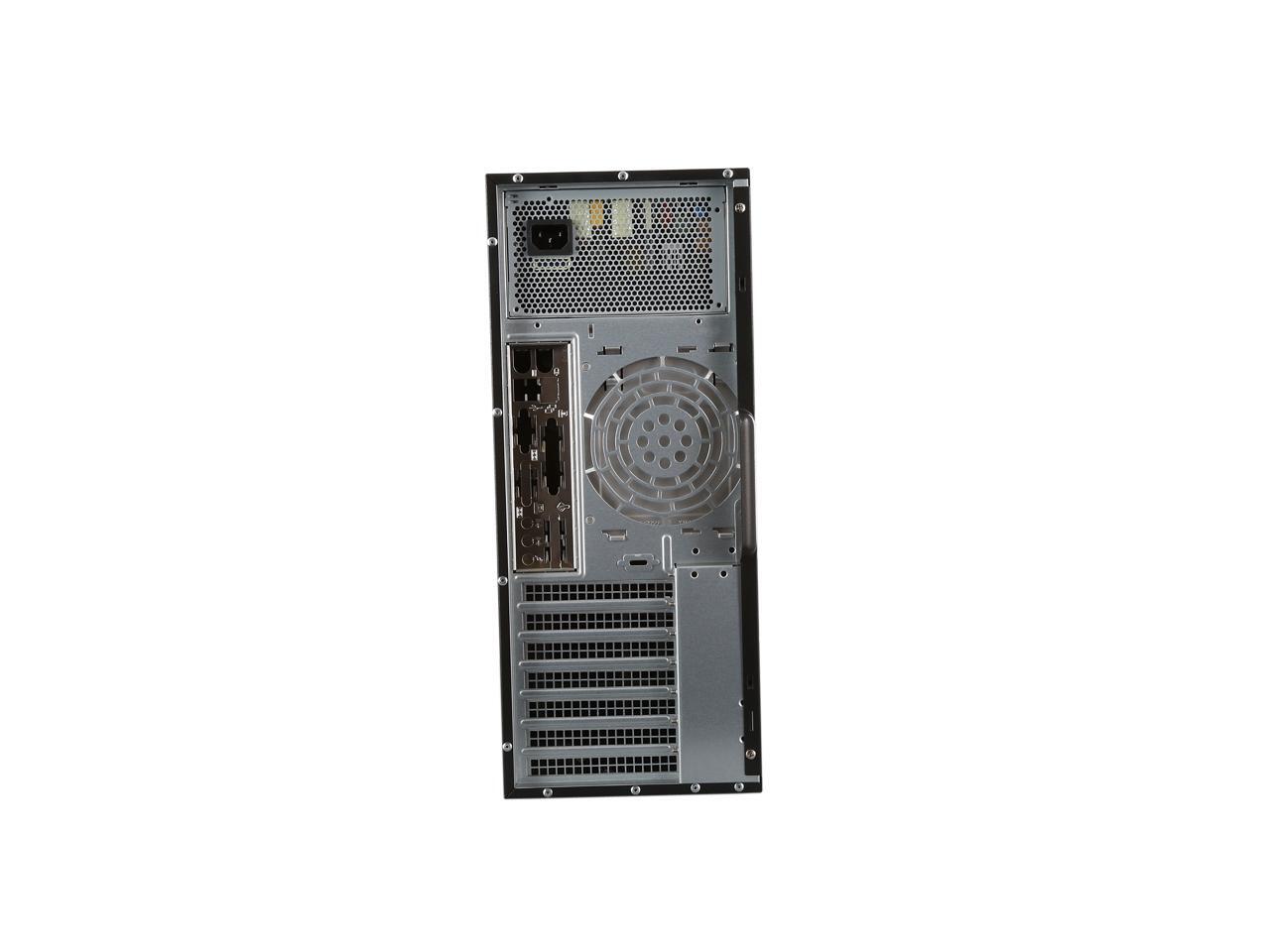

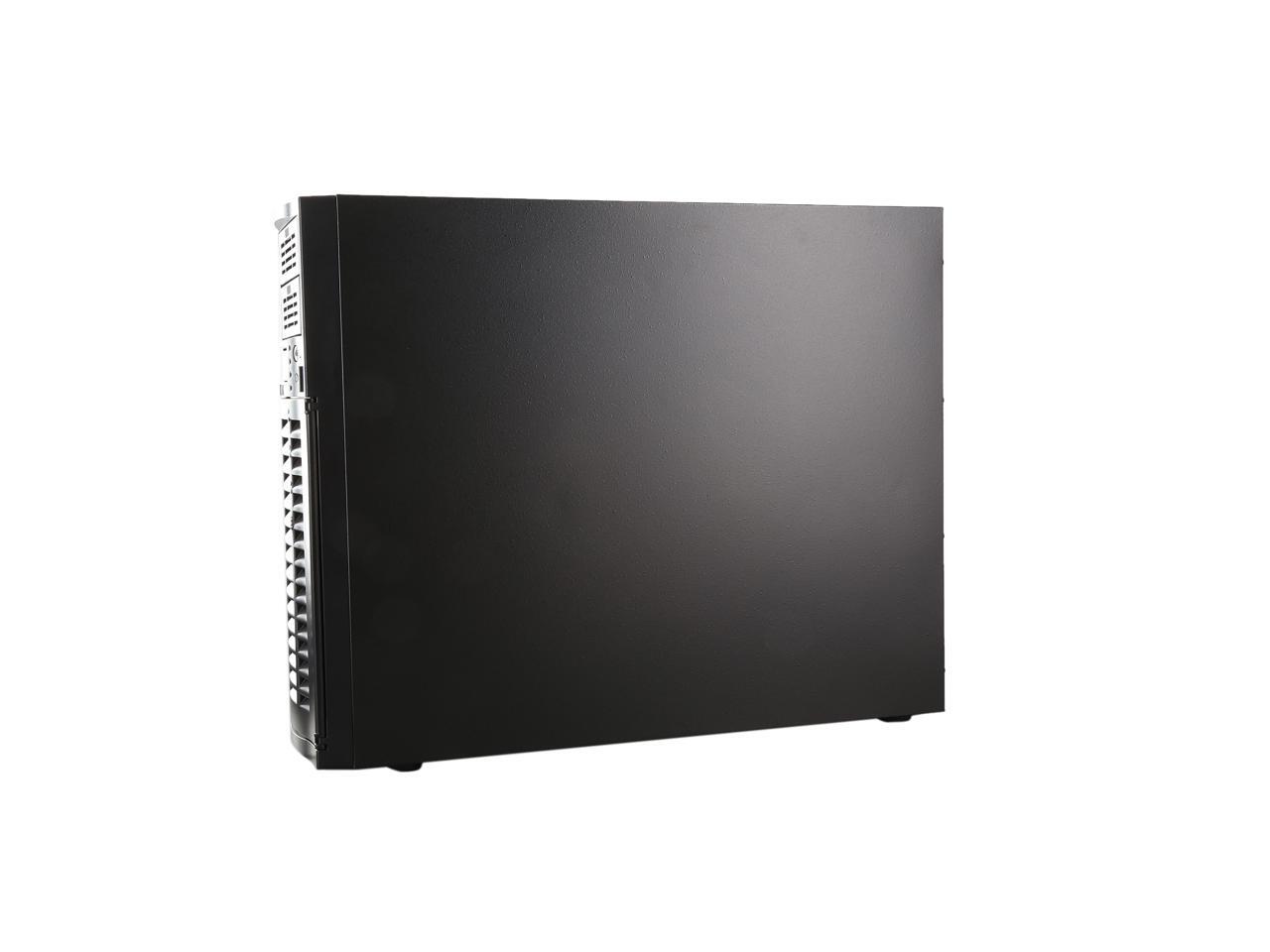

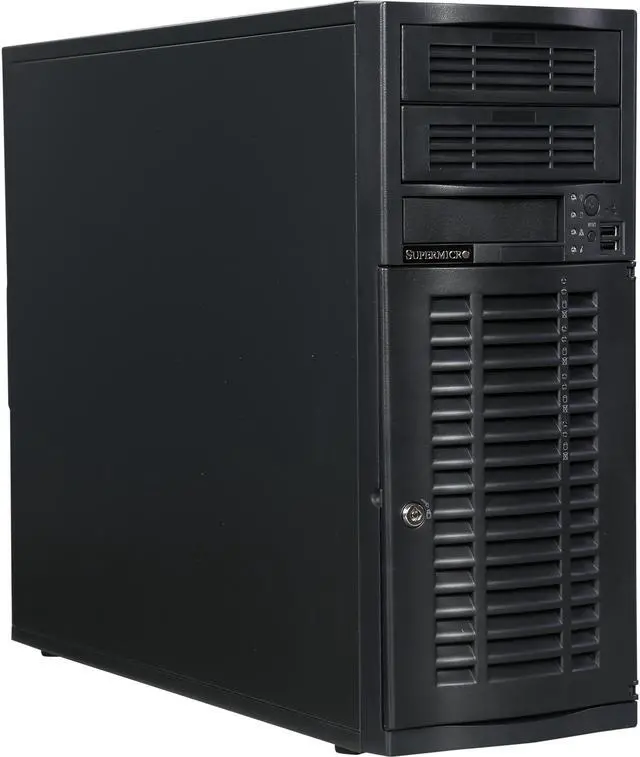

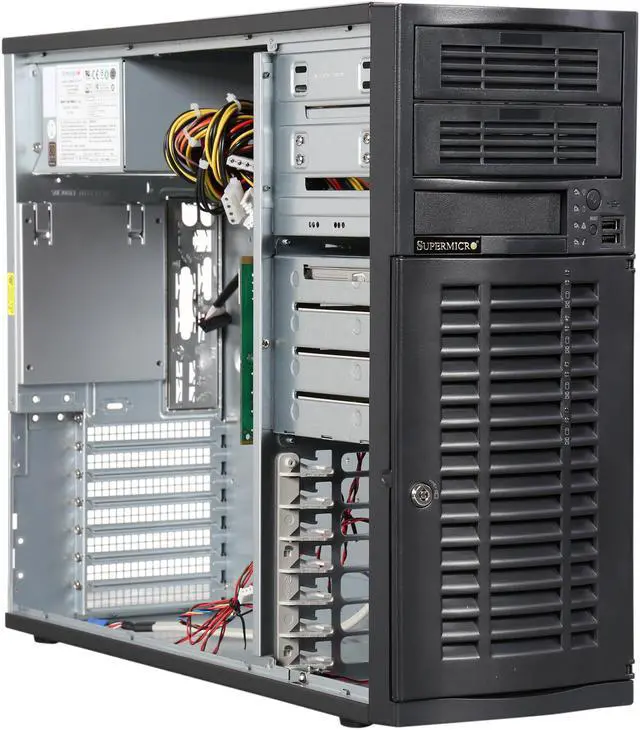

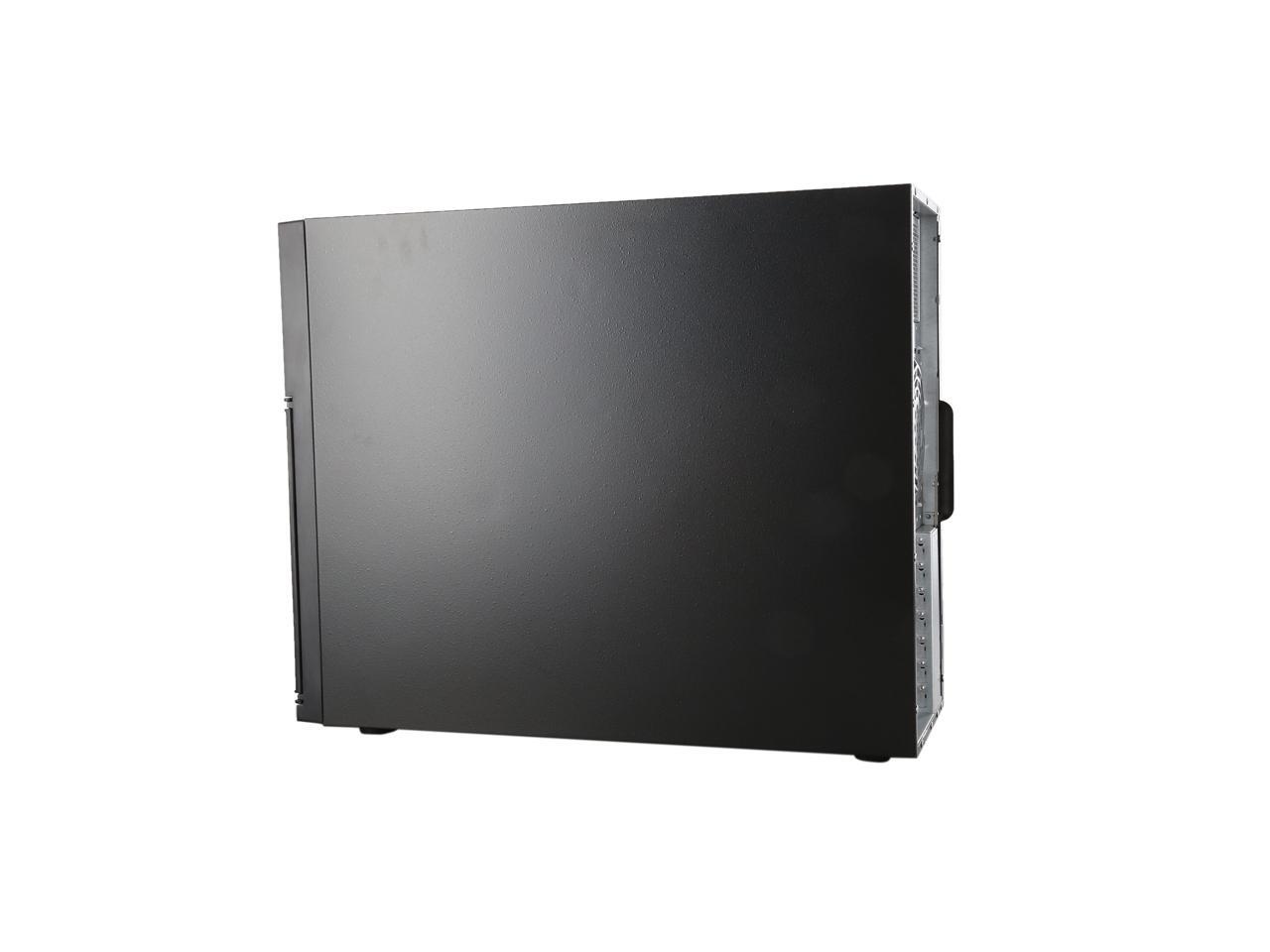

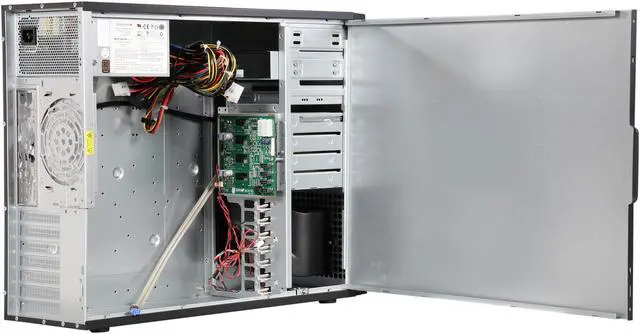

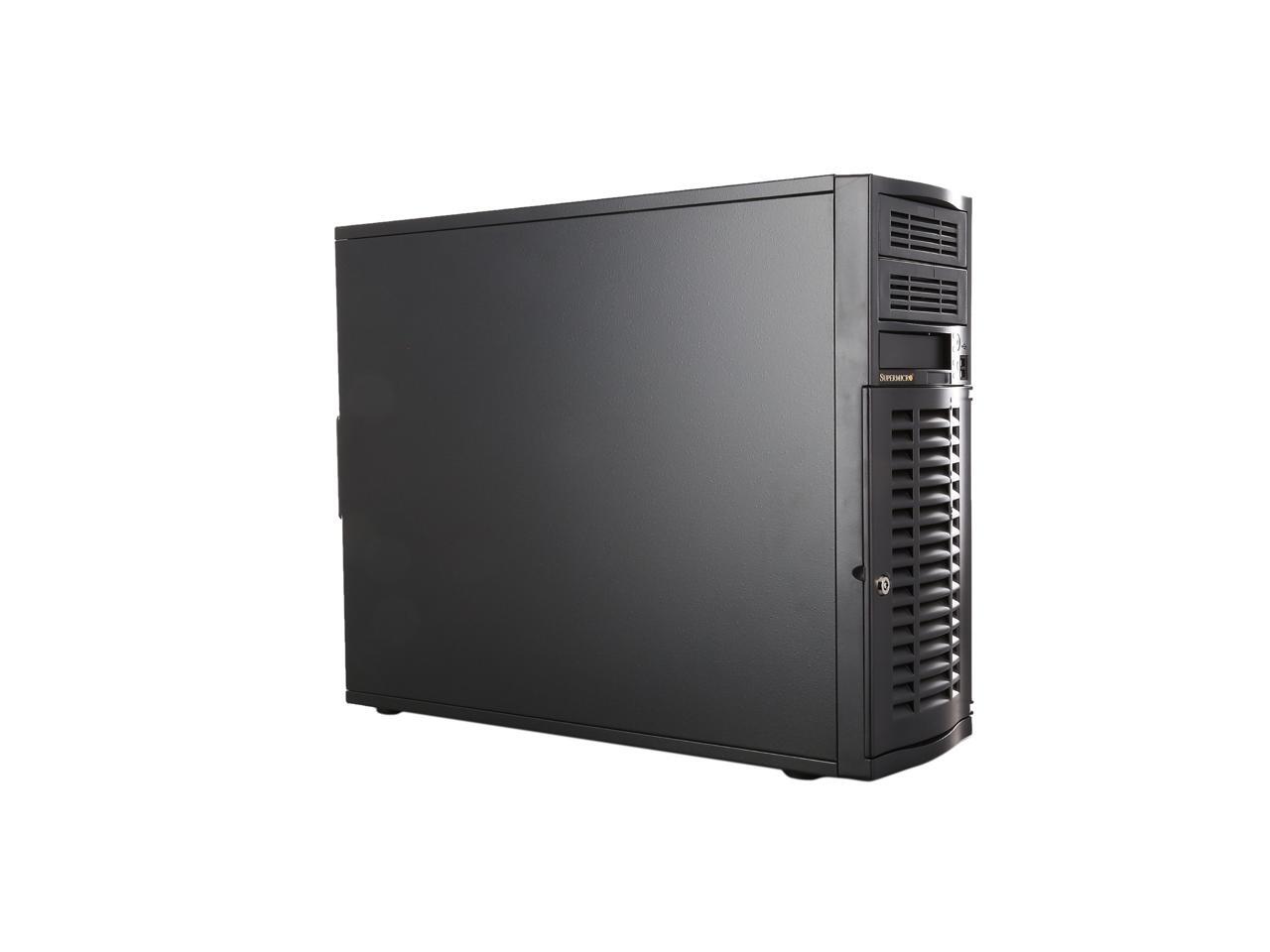

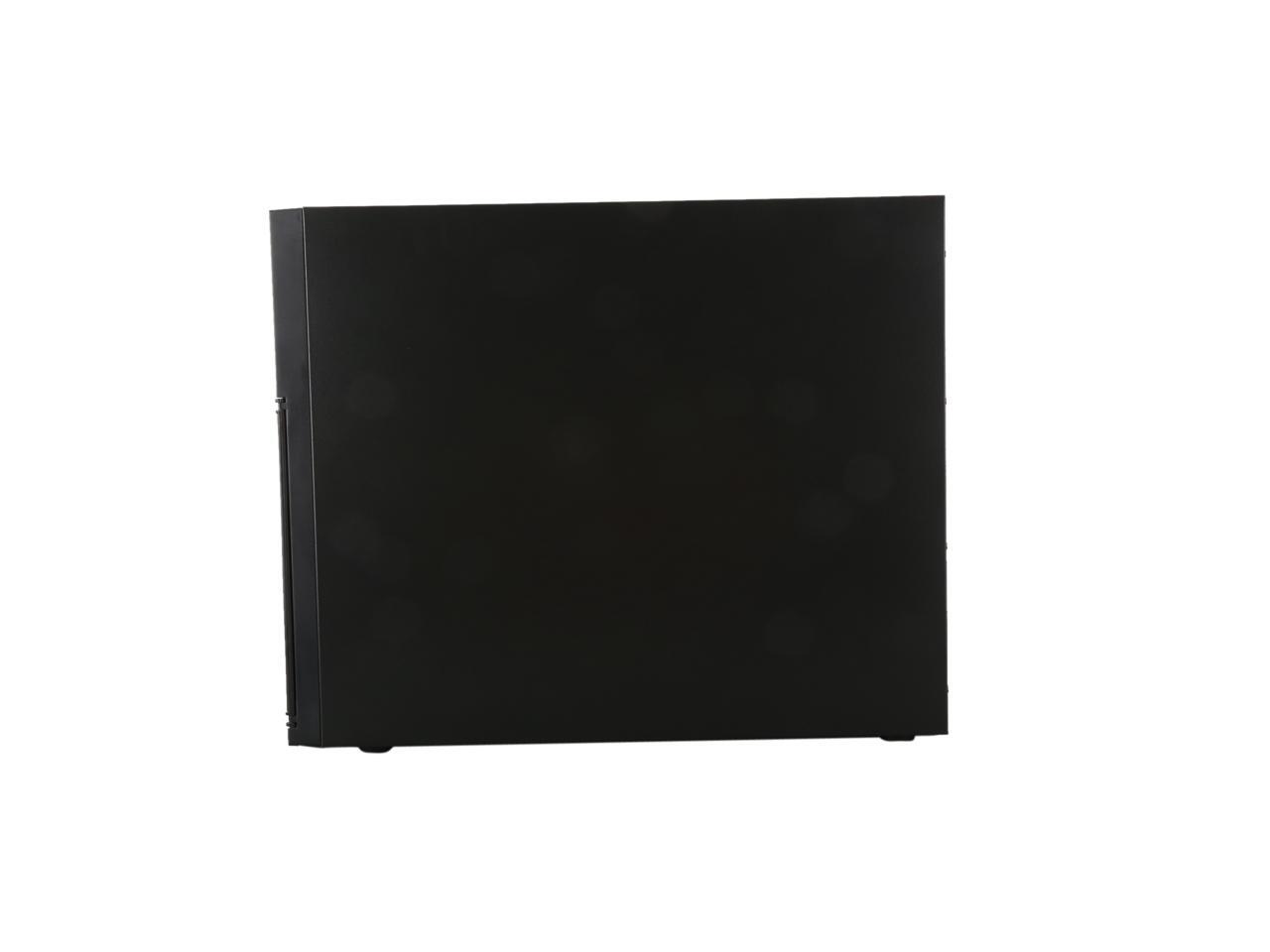

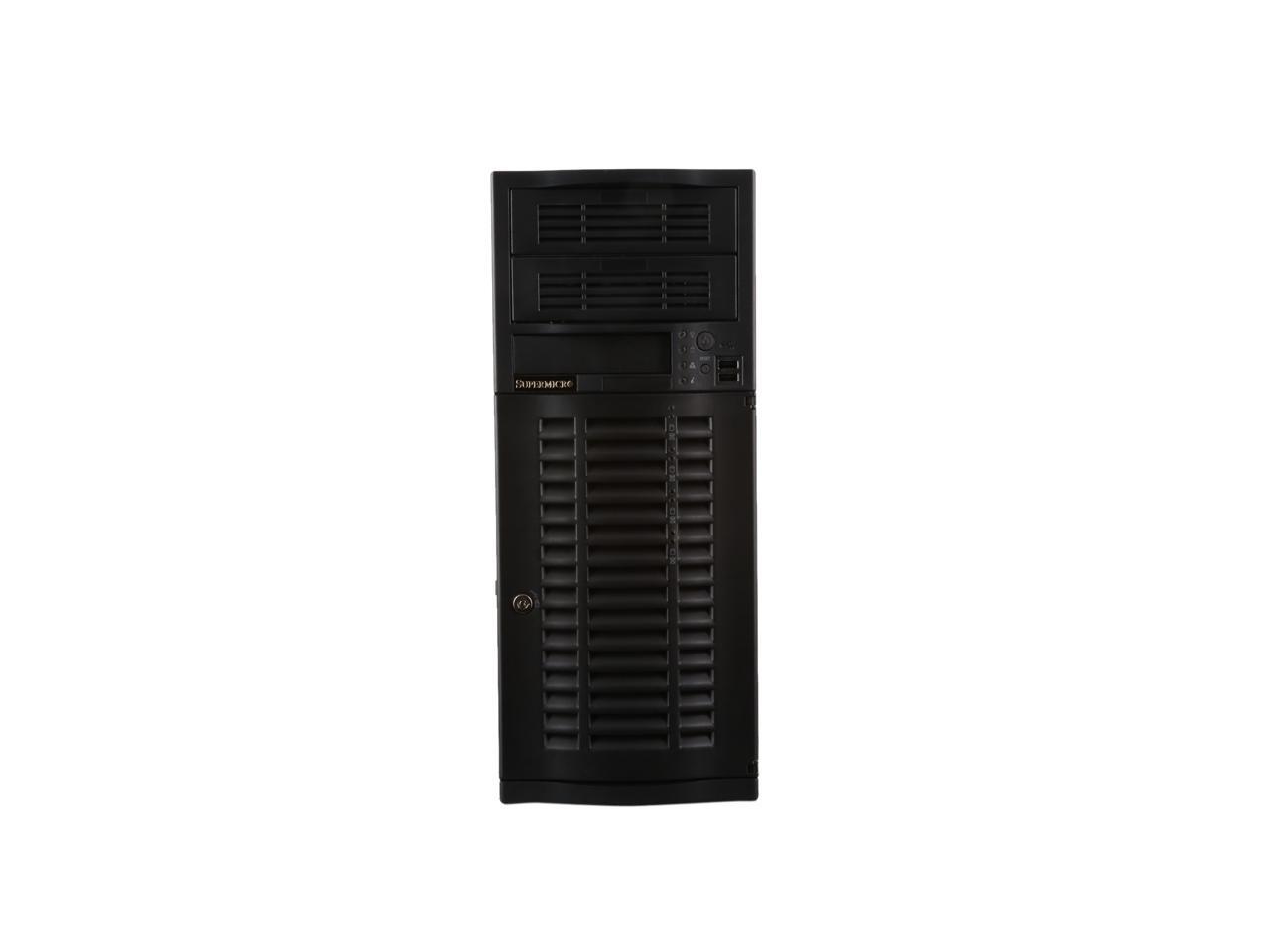

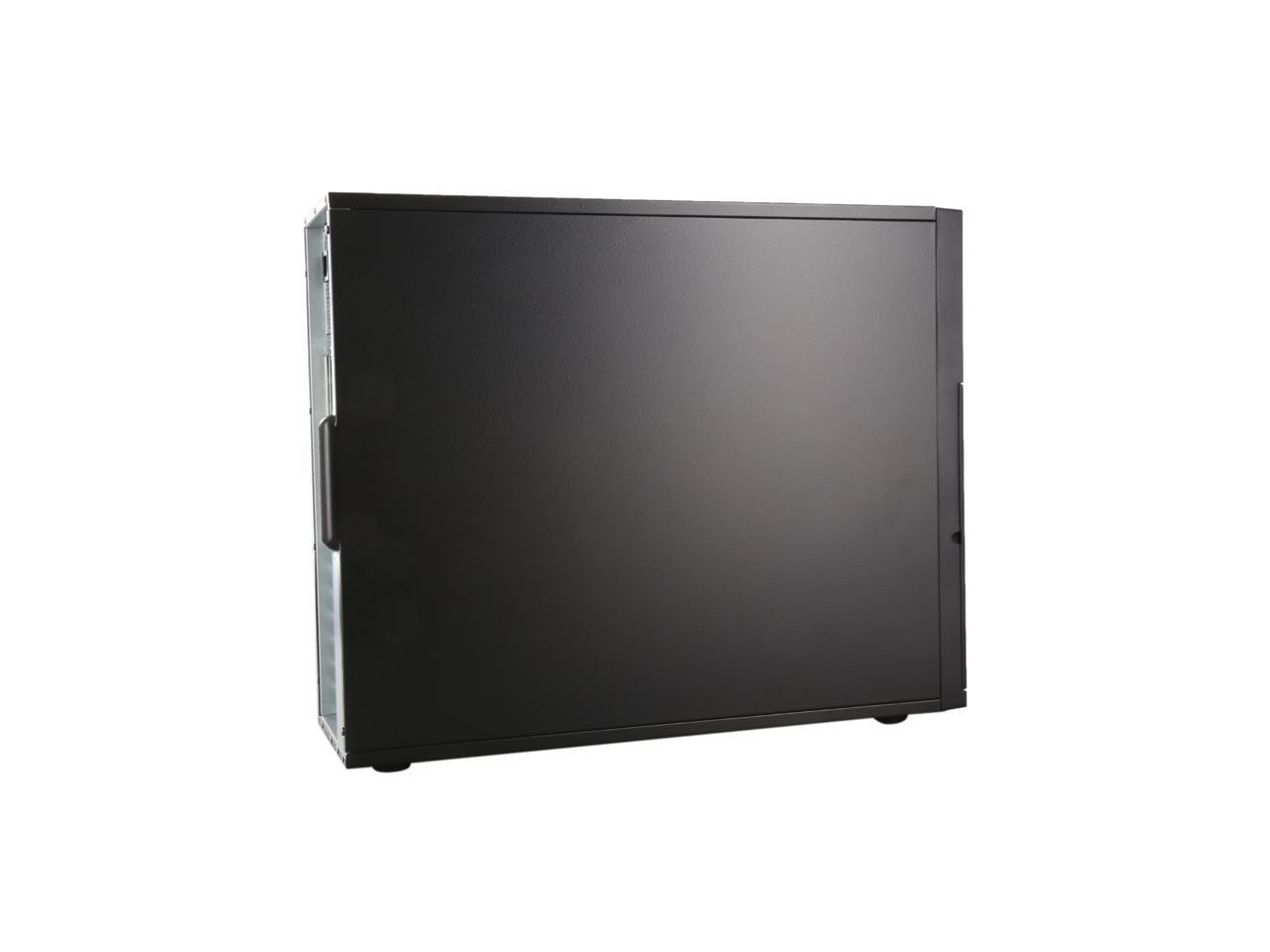

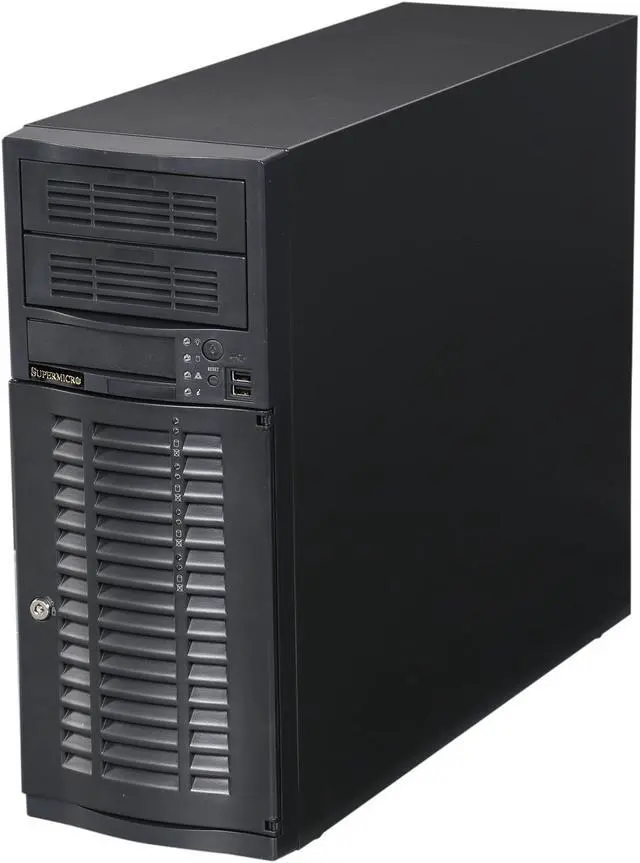

SUPERMICRO CSE-733T-500B Black Pedestal Server Case

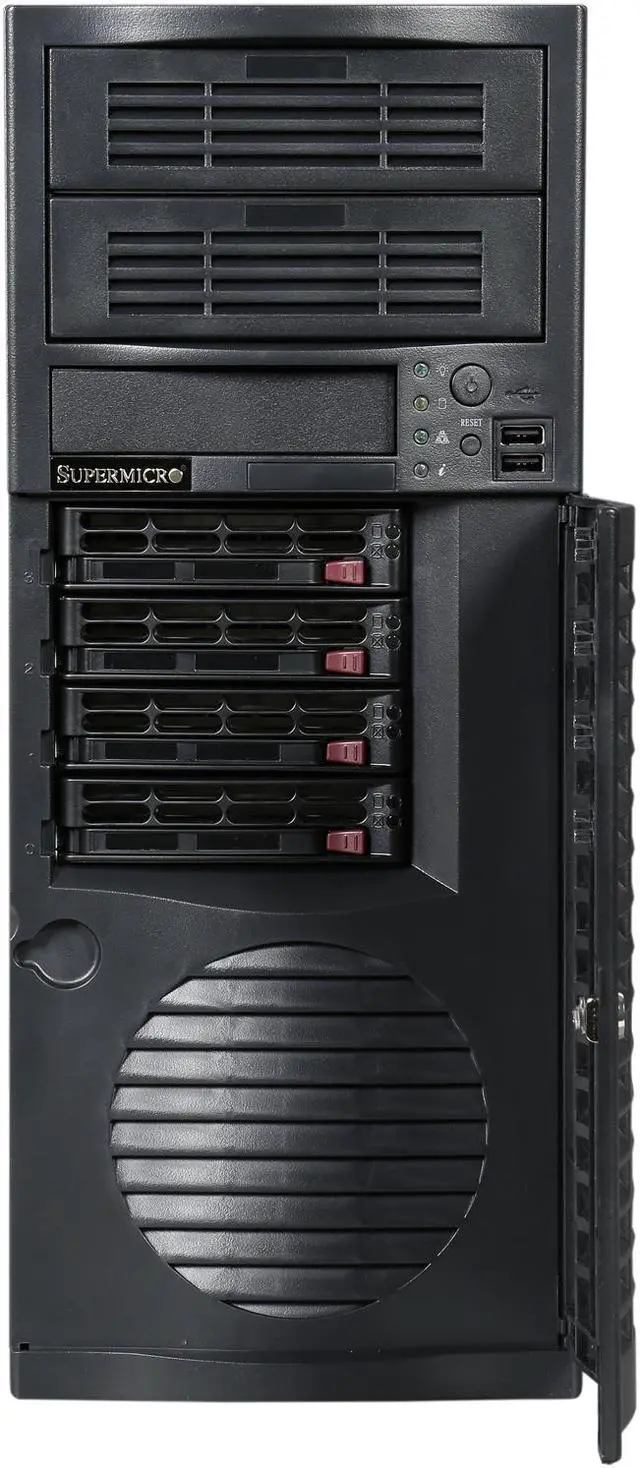

Features
- 500W High-efficiency Power Supply
- 4x 3.5" Hot-swap SATA Drive Bays
- 2x 5.25" Drive Bays and 1x 3.5" Bay 1x Floppy Drive or card reader (opt.)
- 1x 92mm Front Thermal Fan
- 7x Full-height, Full-length Expansion Slots
- 2x USB Front Access I/O
- Power Switch & 4 LED Indicators

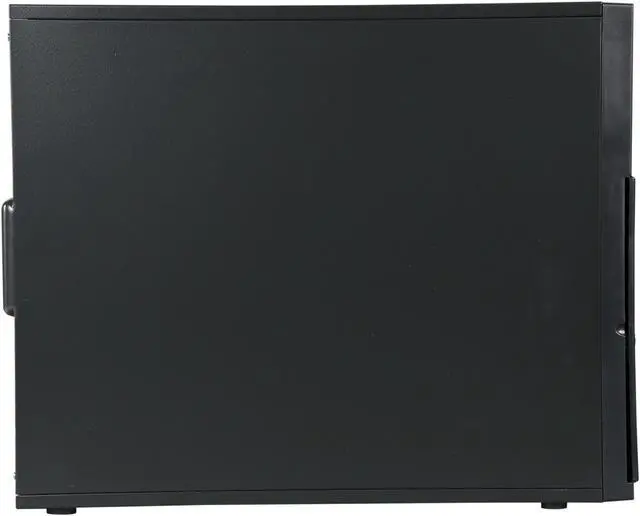

- Locking Side Panel
Specifications
| Product SKUs | |
| CSE-733T-500B | SuperChassis 733T-500B (Black) |
| Form Factor | |
| Form Factor | Mid-Tower & Workstation chassis support for max. motherboard size - 12" x 13" E-ATX |
| Processor Support | |
| Processor Support | Supports dual, single Intel® / AMD processors |
| Dimensions | |
| Height | 16.8" (427 mm) |
| Width | 7" (178 mm) |
| Depth | 20.9" (531 mm) |
| Weight | 39 lbs (17.7 kg) |
| Available Colors | Black |
| Expansion Slots | |
| Expansion Slots | 7x Full-height, Full-length I/O expansion slots |
| Drive Bays | |
| Hot-swap |
|
| Peripheral Bay |
|
| SATA Backplane | |
| SATA Backplane | 4 x 3.5" SATA Backplane |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Ports | 2x Front side USB ports (USB 2.0 ready) |
| System Cooling | |
| Fans | 1x 92mm Front Thermal Fan |
| Operating Environment (System) | |
| Operating Temperature Range | 10° - 35°C (50° - 95°F) |
| Non-Operating Temperature Range | -40° - 70°C (-40° - 158°F) |
| Humidity Range | 8 - 90% non-condensing |
| Non-Operating Humidity Range | 5 - 95% non-condensing |
| Power Supply | |
| Power Supply | 500W AC power supply w/ PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 7-3.5 Amp |
| +5V | 20 Amp |
| +5V standby | 3 Amp |
| +12V1 | 17 Amp |
| +12V2 | 17 Amp |
| +12V3 | 17 Amp |
| +12V4 | 18 Amp |
| -12V | 0.5 Amp |
| +3.3V | 15 Amp |
| Certification | 80 Plus Bronze Certified |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
Standard Parts List
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Chassis | CSE-733T-500B | 1 | SC733T-500 Black Mid Tower Chassis |
| Backplane | CSE-SATA-733 | 1 | 4 x 3.5" SATA / SAS Backplane |
| Cable(s) | CBL-0049L | 1 | Front Panel Cable |
| Cable(s) | CBL-0084 | 1 | 6" 16-pin Front Control Split Cable |
| Drive Tray | CSE-PT39-B0 | 4 | Black Hot-swap Drive Tray for SC733 |
| Fan(s) | FAN-0076L4 | 1 | 92x25mm 4-pin PWM Fan w/ HUS for SC733 |
| Power Supply | PWS-502-PQ | 1 | 500W PS2 High efficiency Power Supply |

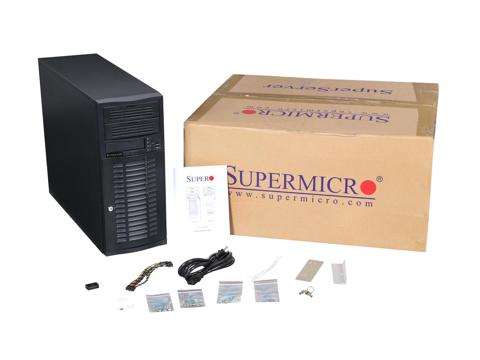

What's in the Box
1. 500W High-efficiency Power Supply 2. 4x 3.5 Hot-swap SATA Drive Bays 3. 2x 5.25 Drive Bays and 1x 3.5 Bay 1x Floppy Drive or card reader (opt.) 4. 1x 92mm Front Thermal Fan 5. 7x Full-height, Full-length Expansion Slots 6. 2x USB Front Access I/O 7. Power Switch & 4 LED Indicators 8. Locking Side Panel Package Contents: SuperChassis SC733T-500B System Cabinet 4 x 3.5 SATA / SAS Backplane 1 x Front Panel Cable 1 x 6 16-pin Front Control Split Cable 4 x Black Hot-swap Drive Tray 1 x 92x25mm 4-pin PWM Fan w/ HUS Product Type: Server Case Motherboard Supported: EATX Product Type: Server Case Manufacturer Part Number: CSE-733T-500B Motherboard Supported: EATX Limited Warranty: 3 Year Weight (Approximate): 39 lb Color: Black Form Factor: Mid-tower Color: Black Form Factor: Mid-tower Manufacturer: Supermicro Computer, Inc Product Model: SC733T-500B Product Name: SuperChassis SC733T-500B System Cabinet Product Line: SuperChassis Brand Name: Supermicro Brand Name: Supermicro Height: 16.8 Width: 7 Depth: 20.9 Number of External 3.5 Bays: 1 Number of External 5.25 Bays: 2 Number of Power Supplies Supported: 1 Number of Power Supplies Installed: 1 Number of Internal 3.5 Bays: 4 Front USB: Yes Power Supply Wattage: 500 W Number of Total Expansion Bays: 7 Product Family: SuperChassis Number of Fans Supported: 2 Number of Fans Installed: 1 Number of External 3.5 Bays: 1 Number of External 5.25 Bays: 2 Number of Power Supplies Supported: 1 Number of Power Supplies Installed: 1 Number of Internal 3.5 Bays: 4 Power Supply Wattage: 500 W Number of Total Expansion Bays: 7 Number of Total Expansion Slots: 7 Total Number of USB Ports: 2
