SUPERMICRO SuperChassis CSE-745TQ-R800B Black 4U Rackmount Server Chassis 800W Redundant
- 800W Redundant power supply w/ PFC
- 2 x 5.25" Peripheral Drive Bay
- 1 x 5.25" Bay For Floppy Drive

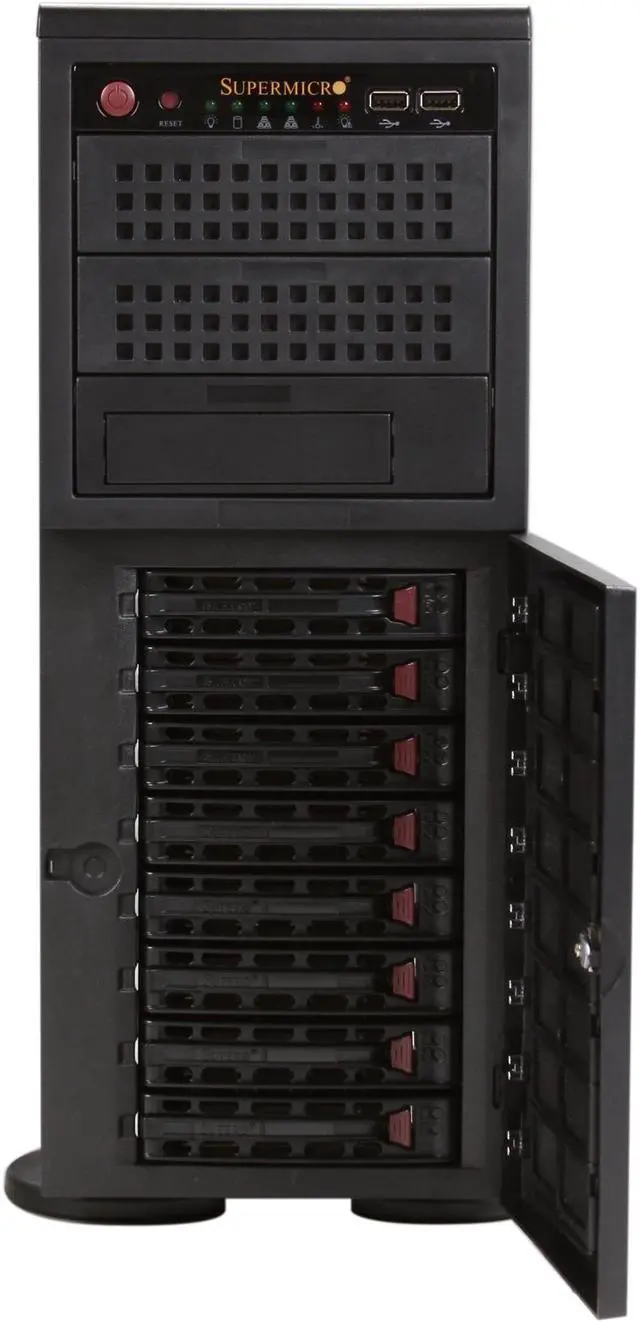

- 8 x 3.5" Hot-swap Drive Bays
Overview
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now

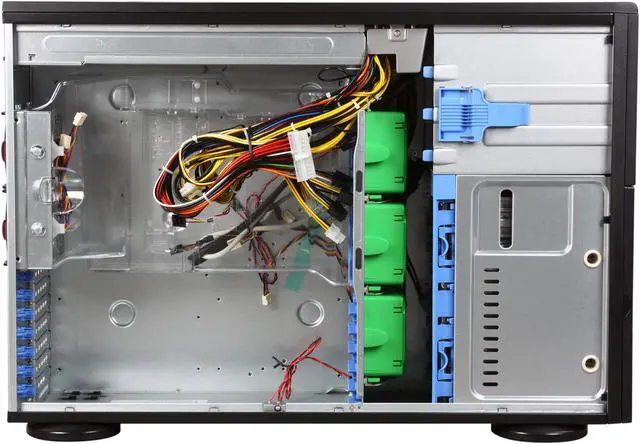

SUPERMICRO SuperChassis CSE-745TQ-R800B Black 4U Rackmount Server Chassis
Features
- 800W Redundant High-efficiency Power Supplies
- 8 x 3.5" SAS/SATA Hot-swappable Drive Bays
- GPU Support
- Adjustable Air Shroud for Any Configurations
- 100% Cooling Redundancy
- Rack mount / Tower Convertible
- 2x Front USB Ports
- Locking Bezel with Filter
- Tool-less operation
- Full SES2 support is available with SAS motherboards and other compatible components.
Specifications
| Product SKUs | |
| CSE-745TQ-R800 | SuperChassis 745TQ-R800 (Beige) |
| CSE-745TQ-R800B | SuperChassis 745TQ-R800B (Black) |
| Form Factor | |
| Form Factor | Tower / 4U chassis support for max. motherboard size - 13.68" x 13" ( 347mm x 330mm ) |
| Processor Support | |
| Processor Support | Supports dual, single Intel® / AMD processors |
| Dimensions | |
| Height | 17.8" (452mm) |
| Width | 7.0" (178mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | 62 lbs (28kg) |
| Available Colors | Beige, Black |
| Expansion Slots | |
| Expansion Slots | 7x PCI expansion slots |
| Drive Bays | |
| Hot-swap |
|
| Peripheral Bay | 3x 5.25" Peripheral Drive Bay |
| SAS / SATA Backplane | |
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane with SES2 |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Ports | 2x USB 2.0 Ports |
| System Cooling | |
| Fans |
|
| System Monitoring | |
| System Monitoring | Chassis intrusion switch |
| Operating Environment (System) | |
| Operating Temperature Range | 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply and Distributor | |
| Power Supply | 800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 10-4 Amp |
| +5V standby | 4 Amp |
| +12V | 66 Amp |
| With Power Distributor |
|
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|

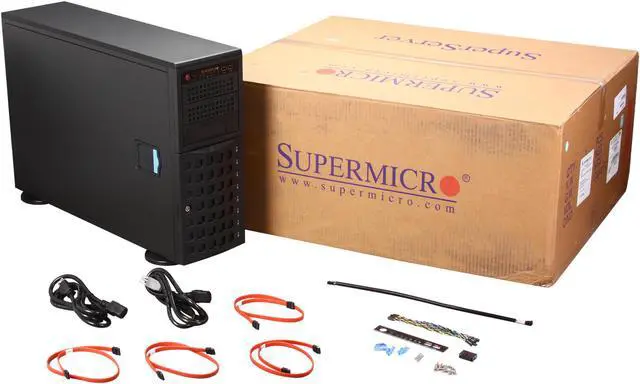

What's in the Box
MAIN OVERVIEW FEATURES: Motherboard Supported: EATXNumber of External 5.25" Bays: 3Number of External 3.5" Bays: 8Number of Total Expansion Bays: 11Number of Total Expansion Slots: 7Total Number of USB Ports: 2Power Supply Wattage: 800 WColor: BlackCompatible Rack Unit: 4UForm Factor: Rack-mountable,TowerPackage Contents: SuperChassis SC745TQ-R800 Rackmount Enclosure1 x Front Bezel Filter4 x SATA Cable (2 Ft, Amphenol)1 x 6" Split Converter Cable1 x Front Panel Ribbon Cable1 x 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives)1 x Power Cord3 x 210mm 4-pin to 3-pin Fan Power Cable3 x 5000 RPM Hot-Swappable Cooling Fan2 x 5000 RPM Hot-Swappable Rear Exhaust Fan8 x 1" Hard Drive Carrier Trays1 x SAS / SATA Hard Drive Backplane with AMI MG9072 Chip [ Manual ]2 x SP801-1R 800W Power Supply (Redundant)1 x Power Supply Backplane1 x Dummy Power Cover1 x Air Shroud
