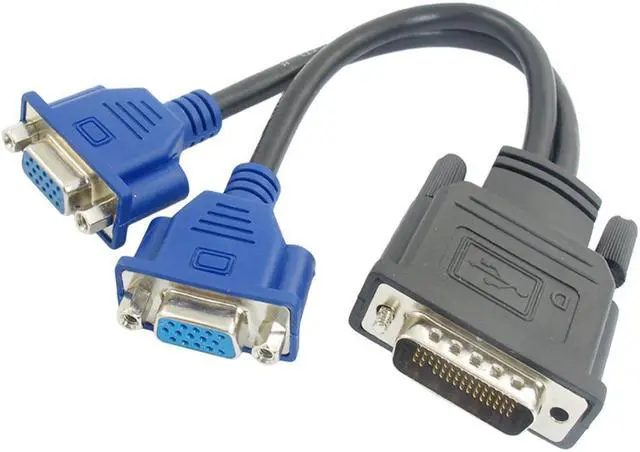

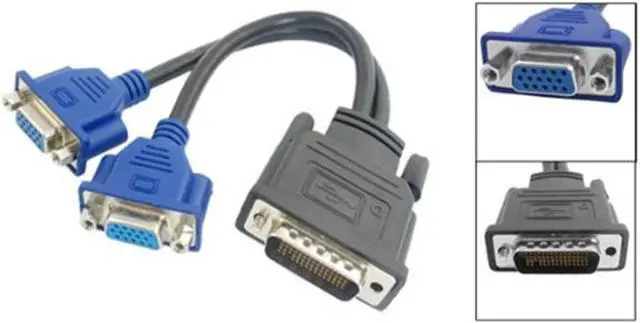

DMS-59 Pin Male to 2 Dual VGA Female Y Splitter Video Card Adapter Cable

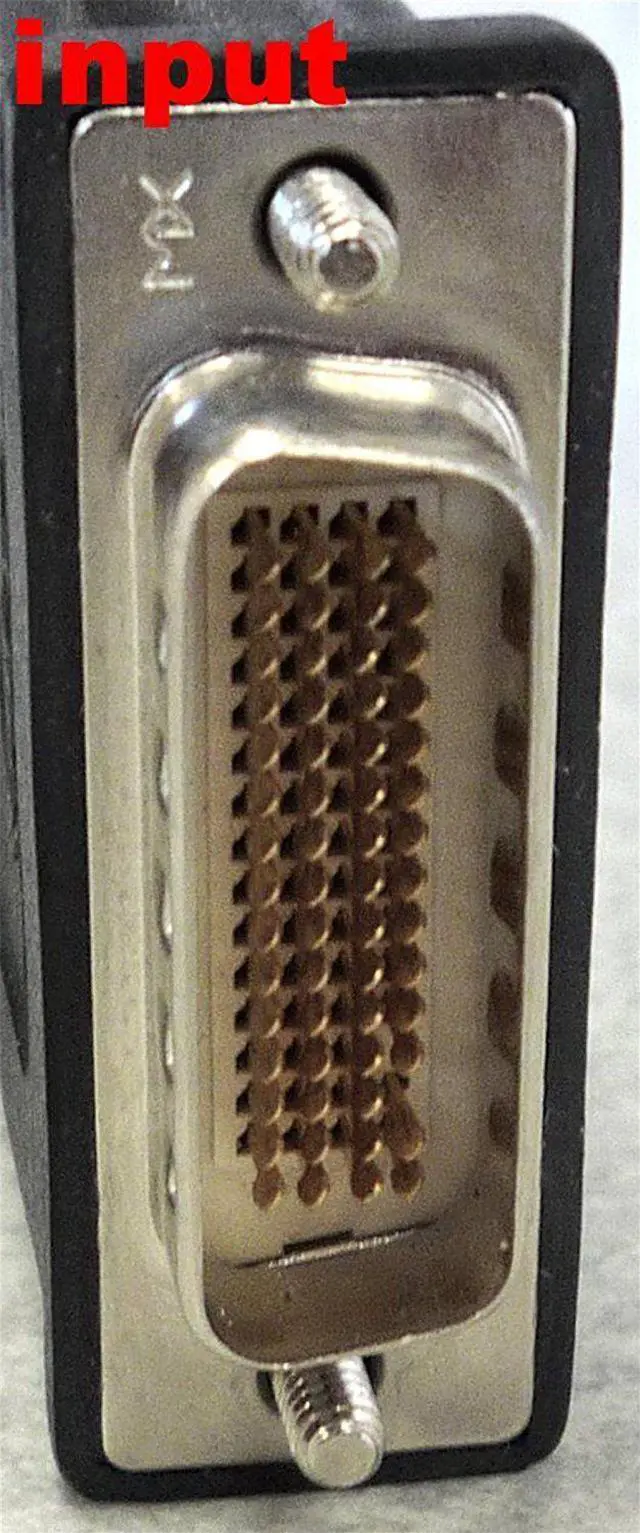

Connector: 1 x DMS-59 (male), 2 x 15 pin VGA (female) Split the video signal from your DMS-59 video output to two separate monitors Connect your computer to two monitors through one video card Foil shielded to prevent EMI/RFI Interference Compatible with DELL, SONY, COMPAQ, HP, Gateway, and other manufacturers Description DMS-59 is a 59-pin electrical connector generally used for computer video cards. It provides two DVI or VGA outputs on a single connector. An adapter cable is needed for conversion from DMS-59 (digital) to DVI (digital) or VGA (analog), and different types of adapter cables exist. The connector is four pins high and 15 pins wide, with a single pin missing from the bottom row, in a D-shaped shell, with thumbscrews. The application for DMS-59 is to support a higher density of video displays, in a similar amount of connector space to a DVI connector. DMS-59 supports two DVI Single Link digital channels or two VGA analog channels from a single connector. The compact size lets a half-height card support two high resolution displays, and a full-height card (with two DMS-59 connectors) up to four high resolution displays.

The DMS-59 connector is used by ATI, NVIDIA, and Matrox for video cards sold in Lenovo Thinkcentres, Viglen Genies and Omninos, Dell, HP, and Suncomputers This cable is used to connect a LFH/DMS 59 equipped graphics card to 2 VGA monitors.
Package Included: 1 x Male DMS-59 to Dual Female VGA Y Splitter Video Adapter Cable NO Retail Box. Packed Safely in Bubble Bag.
