We currently have this machine, but have not actively used it in the last three years. What is the next step of quality machine, we need two machines ASAP with voter registration?

I have used these signature pads with most of my dental offices because of its compatibility with their practice management software. I recommend these because of their durability and shows the user their signature while they are writing on the LCD screen. You could go with the bigger LCD screen but it does cost more. I know that these signature pads can accept a logo bitmap to be displayed onto the LCD screen for advertisement or some kind of a message to the user, but have not tried it.

Can I save the signatures as a jpeg or png file to use later?

Our current system doesn't allow us to. We are at a Credit Union so we cannot.

I need to purchase the PEN only for this system. Do you know which one will work for this signature capture ??

You need the following item for replacement Topaz ClipGem P-T113-B - Stylus - PC

$322^.31

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by NothingButSavings

Top Rated

4.5 (8,939 seller ratings)

Shipped by NothingButSavings

Meet Your Seller

NothingButSavings

See Seller Store

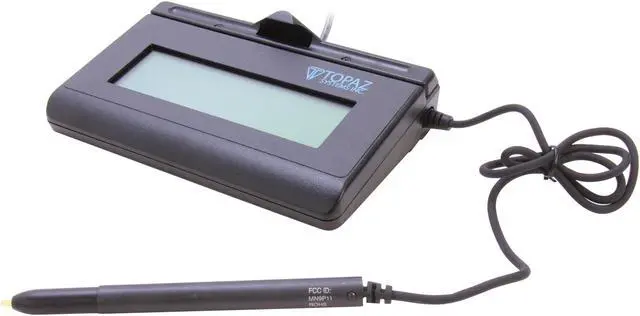

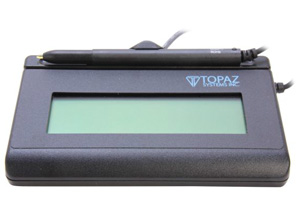

Main image of Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

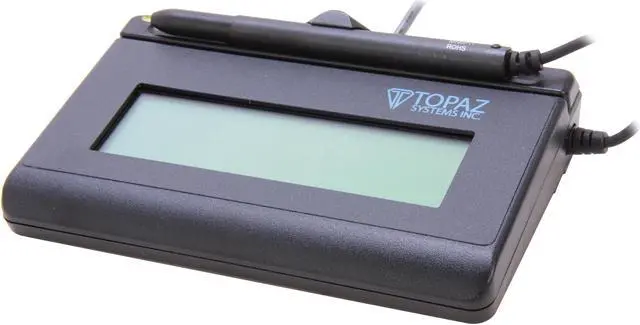

Alt view image 2 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

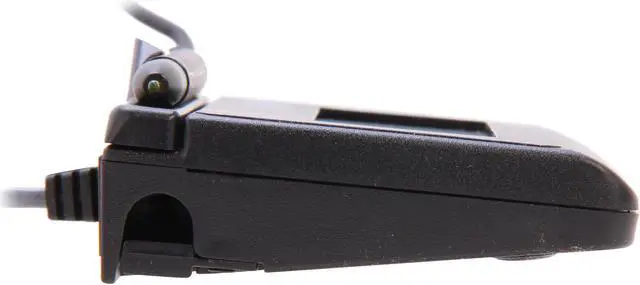

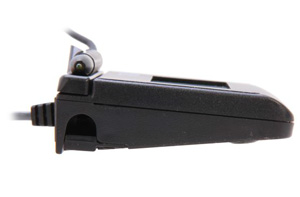

Alt view image 3 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

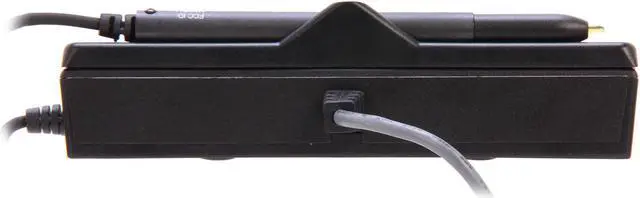

Alt view image 4 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

Alt view image 5 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

Alt view image 6 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

Alt view image 7 of 7 - Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

Shop All Topaz Systems, Inc Products | Visit NothingButSavings Store

Topaz SignatureGem LCD 1x5 T-L462 Series HID-USB T-L462-HSB-R Signature Capture Pad

(4) Write a Review

Interfaces: USB

USB
Virtual Serial via USB

Backlit Option: No

Yes
No

1x5
Active Electromagnetic Sensor
HID-USB

Overview

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

SignatureGem LCD 1x5 includes all the high-quality capture features of a Topaz electronic signature pad with the added feature of an LCD interactive display, allowing users to see "electronic ink" under the pen tip as they sign as well as navigate and display text and graphics. The wide signing area and rugged tempered glass signing surface make this a versatile pad for the most demanding applications.

All Topaz products come bundled with our powerful software tools and support for the capture, binding, and authentication of electronic signatures. All software and updates are licensed for use with Topaz tablets at no extra charge and can be downloaded from our website.

Topaz SignatureGem LCD 1x5 Capture Pad

The SignatureGem®LCD 1X5 is an advanced biometric electronic signature pad. Bundled secure software APIs provide for interactive text, graphics, and pen-tap hotspots and checkboxes which enable users to navigate screens, read agreements, and select preferred options before signing.

Feature

SignatureGem LCD 1x5 includes all the high-quality capture features of a Topaz electronic signature pad with the added feature of an LCD interactive display, allowing users to see "electronic ink" under the pen tip as they sign as well as navigate and display text and graphics. The wide signing area and rugged tempered glass signing surface make this a versatile pad for the most demanding applications.

Specifications

Sensor Type	Tempered glass signing surface with internal high-performance E/M digitizer
Pen Type	Active low-power, rugged E/M pen, batteryless
Dimensions	6" x 3.8" x 1.4" 152 x 95 x 36 mm
Signing Area	4.4" x 1.3" 112 x 33 mm
Data Conversion Rate	377 Points per second.
Signature Resolution	410 PPI (programmable)
Software Support	SigPlus development tools for ActiveX, .NET, C++, Native Java, Multi-browser, Word, Excel, Acrobat, pDoc Signer, eSign Emcee server, etc. Updates and support at no charge.
Authentication	Forensic-quality .SIG data capable of examination and authentication with Topaz SigCompare™ & SigAnalyze® software.

Gallery

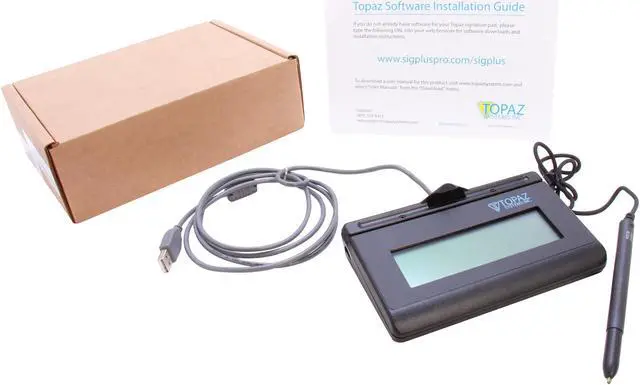

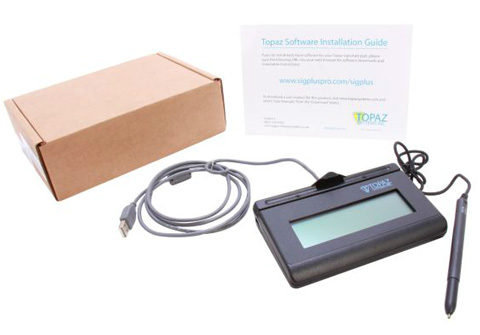

What's in the Box

Best Seller Ranking	#8 in Signature Pads

General
Brand	Topaz
Series	SignatureGem Interactive LCD Series
Model	SG LCD 1X5 HID-USB
Part Number	T-L462-HSB-R
Color	Black

Specifications
Interfaces	USB
Sensor Type	Active Electromagnetic
Pen Type	Active Energized
Backlit Option	No
Signing Area Size	4.4 inches x 1.3 inches
Data Conversion Rate	377 pps
Resolution	410 Ppi
Connectivity	Wired

Dimensions & Weight
Dimensions	1.40" x 6.00" x 3.80"
Weight	0.85 lb.

Features
Features	Sensor / Pen Technology: Tempered glass with active pen Meets Min. Signing Width: Yes - 4.30" Text Display: 258 characters per screen at 12 pt Pen-tap Navigation: Yes - unlimited screens Text Font and Size: Yes - unlimited fonts Tablet Identification: Electronic model / serial

Additional Information
Date First Available	August 01, 2024
