Compatible with directional and omni-directional antennas
Compatible with 2.4GHz & 5GHz devices
+
+
Overview
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now

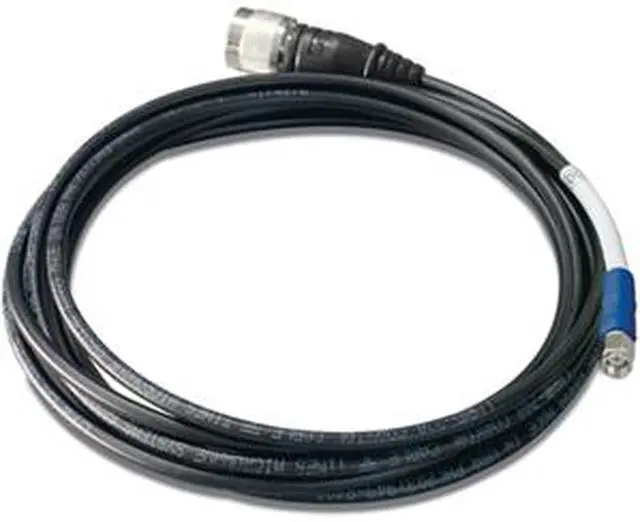

LMR200 RVRS SMA TO N-TPYE CABLE/2M 6IN
Learn more about the TRENDnet TEW-L202
Model
Brand
TRENDnet
Model
TEW-L202
Details
Type
SMA to N-Type
Type
Others
Color
Black
Length
6.5 ft.
Connector Number
2
Specifications
Construction Inner Conductor (Solid BC) 0.044 in. (1.12 mm) Dielectric (Foam PE) 0.116 in. (2.95 mm) Outer Conductor (Aluminum Tape) 0.121 in. (3.07 mm) Over Braid (Tinned Copper ) 0.144 in. (3.66 mm) Jacket (PE) 0.195 in. (4.95 mm) Mechanical Bend Radius: Installation 0.5 in. (12.7 mm) Bend Radius: Repeated 2.0 in. (50.8 mm) Bending Moment 0.2 ft-lb (0.27 N-m) Weight 0.022 lb/ft (0.03 kg/m) Tensile Strength 40 lb (18.2 kg) Flat Plate Crush 15 lb/in. (0.27 kg/mm) Environment Temperature Operating: -40° C ~ 85°C (-40°F~185°F) Storage: -70° C ~ 85°C (-94°F~185°F) Electrical Cut-off Frequency 39 GHz Velocity of Propagation 83% Dielectric Constant 1.45 Time Delay 1.22 nS/ft (4.02 nS/m) Impedance 50 ohms Capacitance 24.5 pF/ft (80.3 pF/m) Inductance 0.061uH/ft (0.20 uH/m) Shielding Effectiveness > 90 dB DC Resistance: Inner Conductor Outer Conductor 5.36ohms/1000ft (17.6 ohms/km) 4.9 ohms/1000ft (16.1 ohms/km) Voltage Withstand 1000 Volts DC Jacket Spark 3000 Volts RMS Peak Power 2.5 kW
Features
Features
Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks Reverse SMA Female to N-Type Male Connector. Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance. Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance Provides flexible Low-loss communication for wireless antenna 50dB RF Shielding is 10 dB greater than typical single shielded coax (40 dB). Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB. Weatherproof cable design for outdoors exposure with best materials for UV resistance Polyethylene jacketed cable designed for outdoor use Easy and quick deployment into a WLAN environment
Additional Information
First Listed on Newegg
September 05, 2022
