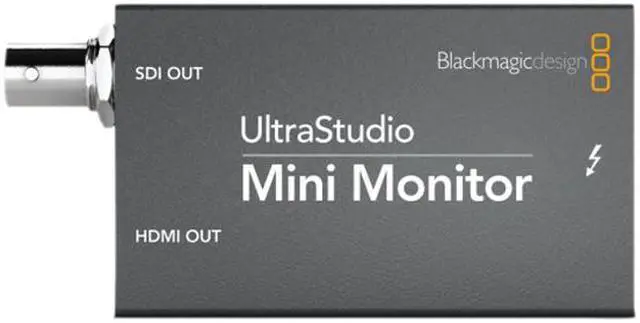

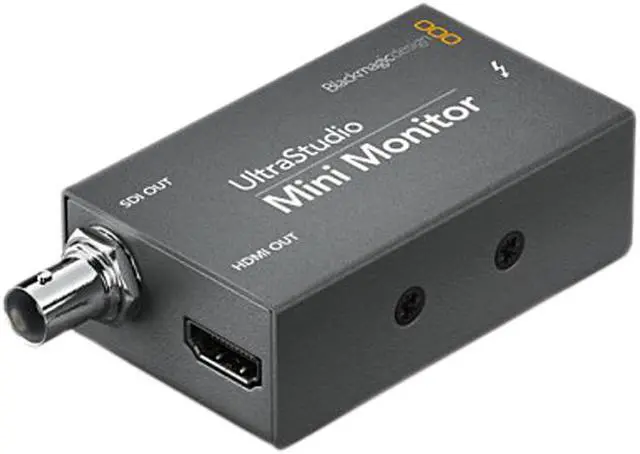

Blackmagic Design UltraStudio Mini Monitor Playback Device BDLKULSDZMINMON

Be the first to review this product...

Playback Aspect of Capture/Playback Card
Outputs Footage from Computer to Monitor
Enables Color Grading on Top-Res Monitor
SDI, HDMI, Thunderbolt / Embedded Audio
Real Time Colorspace Conversion

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Blackmagic Design
Model	BDLKULSDZMINMON

Performance
Format	SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
Video Sampling	4:2:2
SDI Compliance	SDI Compliance: SMPTE 259M and SMPTE 292M SDI Metadata Support: VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning
Audio Sampling	Television standard sample rate of 48 kHz at 24 bit
Color	Color Precision: 10-bit Color Space: REC 601, REC 709

Connection
HDMI	HDMI Configuration: HDMI automatically configures to connected display HDMI Resolution: Pixel for pixel HD resolution input to connected device HDMI Color Precision: 10-bit HDMI Video Output: 1x HDMI type A connector HDMI Audio Output: 8 channels embedded in SD and HD
SDI	SDI Video Output: 1x 10-bit SD/HD switchable SDI Audio Output: 8 channels embedded in SD and HD
Other Connector	Computer Interface: Thunderbolt

Compatibility
System Requirements	Requires computer with a Thunderbolt port Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later.

Feature
Feature	The Blackmagic Design UltraStudio Mini Monitor Playback Device is a very interesting and a highly useful device that Blackmagic has put out there. It is the "playback" aspect of any Blackmagic capture and playback device (and of any capture and playback device in general). Where a capture and playback device, such as the UltraStudio 3D or the Intensity Extreme, captures video from a camera, transfers it to a computer, and additionally lets you output the video to a display other than that of your computer's, UltraStudio Mini Monitor only performs the last of these functions, also referred to as "playback." The point of outputting to a separate display is to output to a top-resolution display, the kind that your computer's display likely isn't, the kind that'll give you the best representation of your footage, the kind that'll let you get as precise as possible in color-grading, perhaps the kind that has features like Waveform. Mini Monitor connects to your computer by Thunderbolt and outputs to a monitor by either HDMI or SDI. (You'll need a Thunderbolt-equipped computer, such as any Mac.) So, if you want to color grade on a top-resolution monitor, and you don't need the other characteristics of a capture and playback device, then UltraStudio Mini Monitor is all you need and it comes at a small portion of the cost of an average capture and playback device (also known as an I/O device). (If you'll need the "capture" aspect instead, please check out the UltraStudio Mini Recorder).

Additional Information
First Listed on Newegg	July 05, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
