Blackmagic Design Intensity Extreme HDMI and Analog Capture & Playback Device BINTSTBEXT

Be the first to review this product...

For Thunderbolt-Enabled Computers
10-Bit Editing Solution
HDMI Input / Output
Analog Video / Audio by Breakout Cable
1080p24, 1080i60/50, 720p60/50
NTSC & PAL

The Final Sales Disclaimer applies to this product.

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Blackmagic Design
Model	BINTSTBEXT
Interface	Thunderbolt

Performance
Format	HDMI: 525 NTSC, 625 PAL, 720HD and 1080HD switchable SD: 625i/50 PAL and 525i/59.94 NTSC HD: 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94 and 720p60
Video Sampling	HDMI video: 4:2:2
Audio Sampling	HDMI audio: television standard sample rate of 48 kHz and 24 bit
Color	Color Precision: HDMI: 4:2:2 Color Space: HDMI: YUV 4:2:2
Copy Protection	HDCP. For legal reasons HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Video	Video Input HDMI type A x1 Analog (via included breakout cable): HD/SD Component, NTSC, PAL, or S-Video Video Output HDMI type A x1 Analog (via included breakout cable): HD/SD Component, NTSC, PAL, or S-Video
Audio	Audio Input 2 channels via 1x HDMI Analog (via included breakout cable): 2 channels, 24-bit, HiFi Audio Output 2 channels via 1x HDMI Analog (via included breakout cable): 2 channels, 24-bit, HiFi S/PDIF x1: 2 channels, 24-bit

Compatibility
System Requirements	Macintosh computer with Thunderbolt running Mac OS X 10.6 or 10.7

Specification
Specification	Colorspace Conversion: Hardware-based real-time HD Down Conversion: Software-based down conversion during video playback HD Up Conversion: Real-time standard definition to 1080HD and 720HD during video capture Real-Time Effects: Apple Final Cut Pro internal effects and Adobe Premiere Pro internal effects in DV, DVCPRO HD, JPEG, and uncompressed edit formats Firmware Upgrade: Firmware built into software driver. Loaded at system start, or via updater software

Feature
Feature	Intensity Extreme from Blackmagic Design is a 10-bit editing solution that leverages the blazing-fast speed of a Mac's Thunderbolt connection to provide capture and playback of standard- and high-definition video via analog and HDMI connections. The breakout box is machined out of a solid piece of aluminum for a sturdy design and a professional look & feel. High-Quality HDMI and Component Analog Capture and Playback Professional Performance Professional Video Standards True HDMI Digital Connections Highest-Quality Analog Connections Uncompressed or Compressed Video Full Resolution DVD Authoring Live Streaming Record Your Game Play Blackmagic Media Express Software Included Final Cut Pro 7 Support Effects Software Support

Package Contents

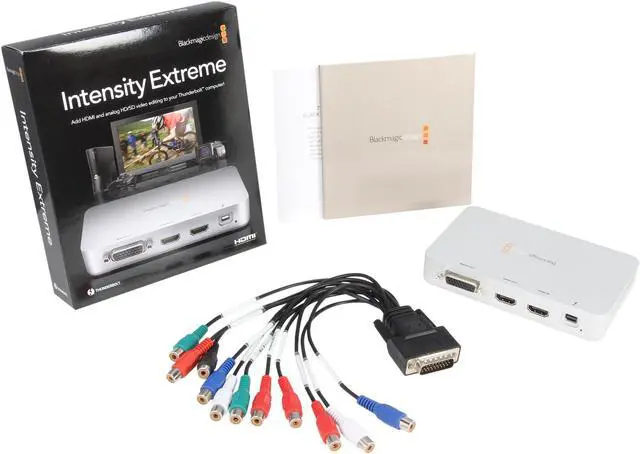

Package Content	Breakout Cable for Intensity Pro Media Express, Disk Speed Test, Blackmagic System Preferences & Blackmagic Driver Software

Additional Information
First Listed on Newegg	June 06, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Contact Manufacturer for Assistance
This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-408-954-0500
