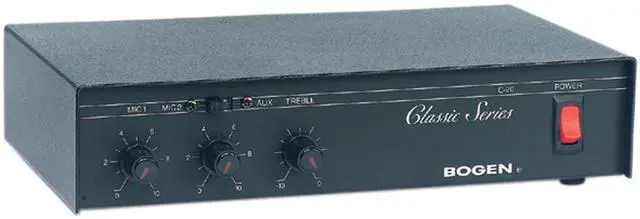

BOGEN C20 20 WATT AMPLIFIER

Bogen Models C10 and C20 public address amplifiers are rated at 10 and 20 watts, respectively, and are UL and C-UL listed. The amplifiers accommodate low-impedance microphones and high-impedance auxiliary sources. A front panel selector switch offers a choice of either two low-impedance balanced microphones (MIC1, MIC2), or one microphone and one auxiliary input (MIC1, AUX). The AUX input can be muted when a customer-supplied SPST normally open switch is used for microphone precedence. Independent volume controls and a treble control, for tonal balance, are provided. Balanced and unbalanced outputs are provided for 4-, 8-, and 16-ohm speakers and for 25- and 70-volt constant voltage systems.

An accessory transformer, Bogen Model WMT1A, can be installed to provide input and output matching to a telephone line.
Minimum Frequency Response: 70 HzMaximum
Frequency Response: 16 kHzSignal to
Noise Ratio (SNR): 70 dBRMS
Output Power: 20 WOperating
Power Consumption: 50
WHeight: 2.9W
idth: 11.4"D
epth: 7.4"W
eight (Approximate): 6 lbPackage
Contents: Classic C20 Amplifier
Line-Matching Transformer
Rack Panel Kit
In-Wall Mounting Kit
Limited Warranty: 2 Year
Package Contents
Classic C20 Amplifier
Line-Matching Transformer
Rack Panel Kit
In-Wall Mounting Kit"
