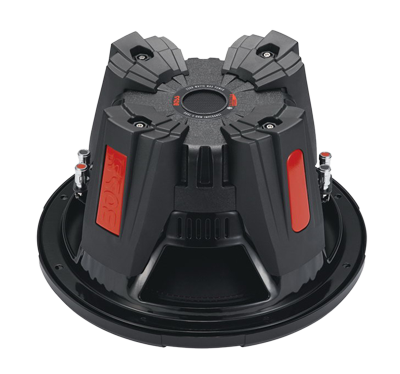

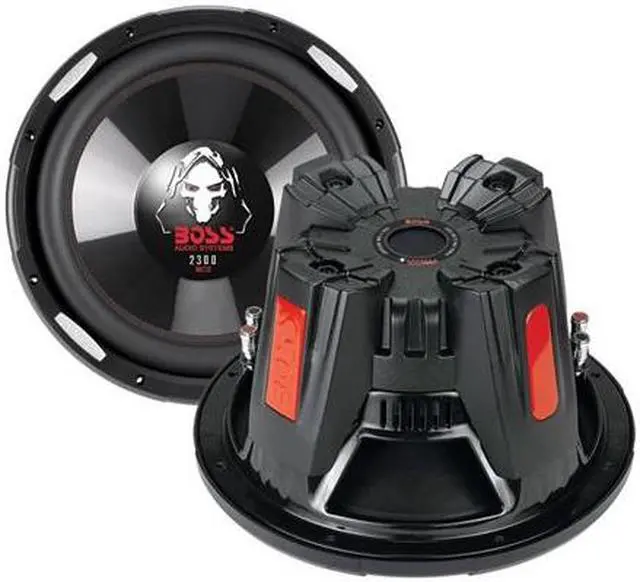

BOSS AUDIO 12" Car Subwoofer - P126DVC
The P126DVC will operate in a sealed or ported enclosure. Since the subwoofer has a pole-vent, it needs a minimum clearance of 0.75” (19 mm) from the rear wall of the enclosure. Below you will find the dimensions to make the enclosure to suit the subwoofer's needs. It has been designed for maximum output while retaining great sound quality.
The dimensions have already accounted for the volume displacement of the subwoofer, and using 3/4” (19mm) MDF. All dimensions are external.
- Dual 4 O Voice Coils
- 2300 W Peak Power Handling
- High Temperature Voice Coils
- Butyl Rubber Surround
PRODUCT OVERVIEW
12" Subwoofer Dual Voice Coil (4 Ohm) 2300 Watts
Standard Warranty: 1 Year
GALLERY
SPECIFICATIONS
General Specs
Subwoofer Size |
12" |
Peak Power Handling |
2300 Watts |
RMS Power Handling |
1150 Watts |
Voice Coil Configuration |
Dual |
Impedance |
4 ? |
Mounting Dimensions
Mounting Diameter |
11" |
Mounting Diameter |
6.75" |
T/S Parameters
FS |
31 Hz |
Qes |
0.577 |
Qms |
4.99 |
Qts |
0.517 |
Vas |
2.472 CuFt |
Xmax (One-Way) |
8 mm |
Sensitivity (1W/1m) |
84 dB |
Enclosure Specs
Recommended Sealed |
1 Cu. Ft |
Recommended Ported |
1.3 Cu. Ft |
Port Diameter |
3" |
Port Length |
6" |
Port Frequency |
38 Hz |
