Intel BOXD945GCZL LGA 775 Intel 945G Micro BTX Intel Motherboard

(6) Write a Review
  • Intel 945G
  • Celeron D / Core 2 Duo / Pentium 4 / Pentium D / Pentium Dual-Core
  • DDR2 667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel BOXD945GCZL

Model
Brand Intel
Model BOXD945GCZL
Supported CPU
CPU Socket Type LGA 775
CPU Type Celeron D / Core 2 Duo / Pentium 4 / Pentium D / Pentium Dual-Core
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 945G
South Bridge Intel ICH7
Onboard Video
Onboard Video Chipset Intel GMA 950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
Onboard Audio
Audio Chipset SigmaTel STAC9220
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro BTX
Dimensions (W x L) 10.5" x 10.4"
Power Pin 24 Pin
Packaging

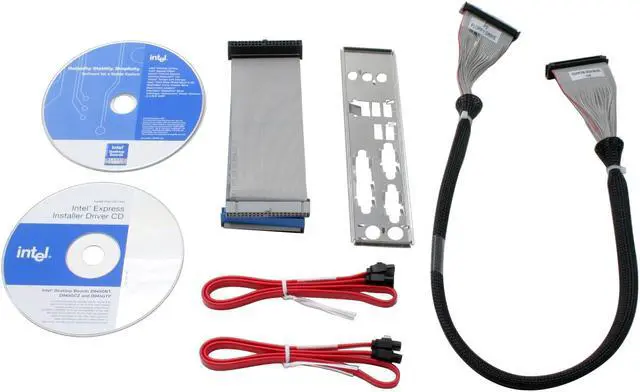

Package Contents BOXD945GCZL
Driver Disk
Software Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Details
Windows Vista Certified for Windows Vista
Additional Information
First Listed on Newegg June 16, 2005
