What operating systems are compatible with the ED-588?

The ED-588 is compatible with various operating systems including Microsoft Windows 8, Windows Server 2012, Raspberry Pi, Android, Windows 7, iOS, Mac OS X, and Linux.

What are the input and output specifications of the Brainboxes ED-588?

The Brainboxes ED-588 has 8 Digital Inputs and 8 Digital Outputs. The Digital Inputs operate at logic levels of -30.0V to +1.0V for logic level 0 and +2.0V to +30V for logic level 1. The outputs are open drain transistors with a maximum output load voltage of 30 VDC and a maximum output current sink of 0.85A per channel.

$290^.94

Free 30-day Returns

This product is available from Newegg.

Volume Discounts Available

2+$288.94 ea.

Limit 99999 per customer.

Sold by NothingButSavings

Hot Seller

4.5 (9,024 seller ratings)

Shipped by NothingButSavings

Price alert

Add to Wish List

Best Sellers

Newegg

$269^.99
+ FREE SHIPPING

Technology Galaxy

Hot Seller

4.1 (2,365 total ratings)

$269^.69
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,591 total ratings)

$296^.53
+ FREE SHIPPING

Meet Your Seller

NothingButSavings

See Seller Store

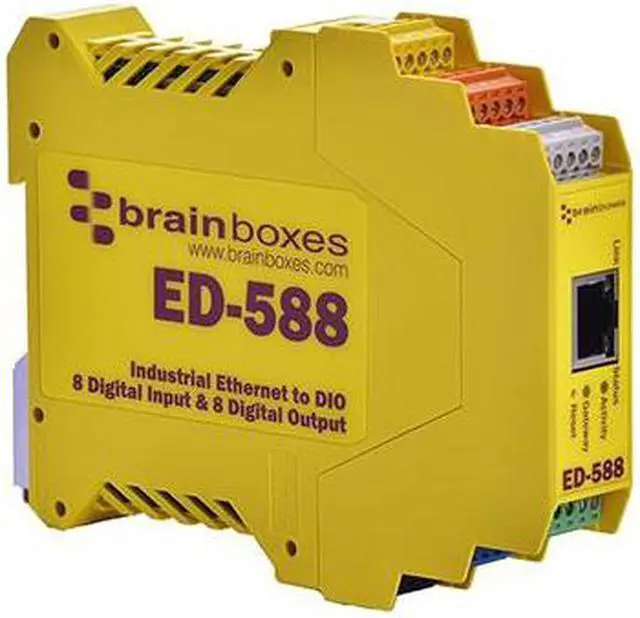

Main image of Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

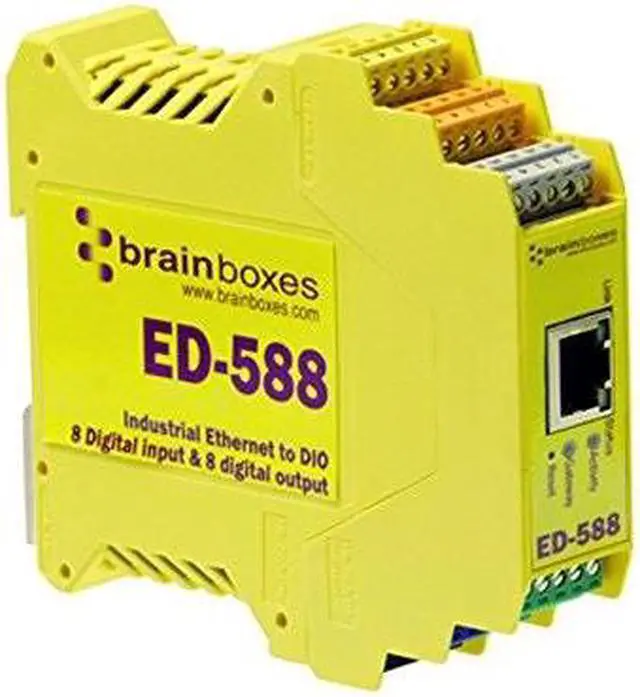

Alt view image 2 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

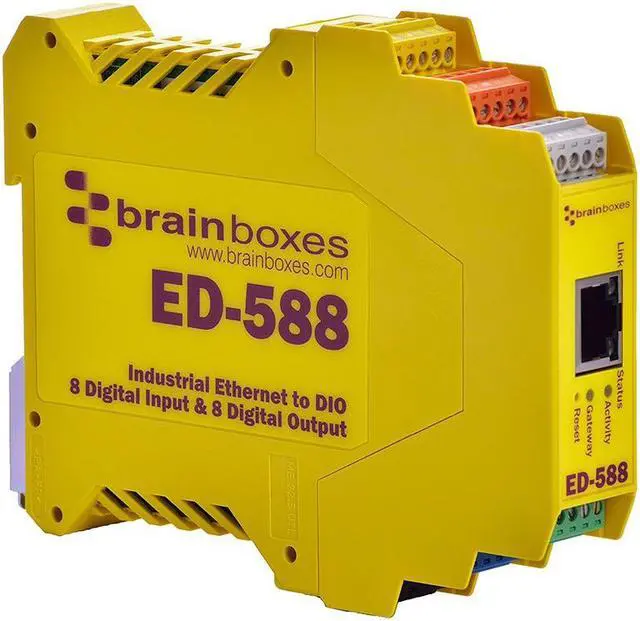

Alt view image 3 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

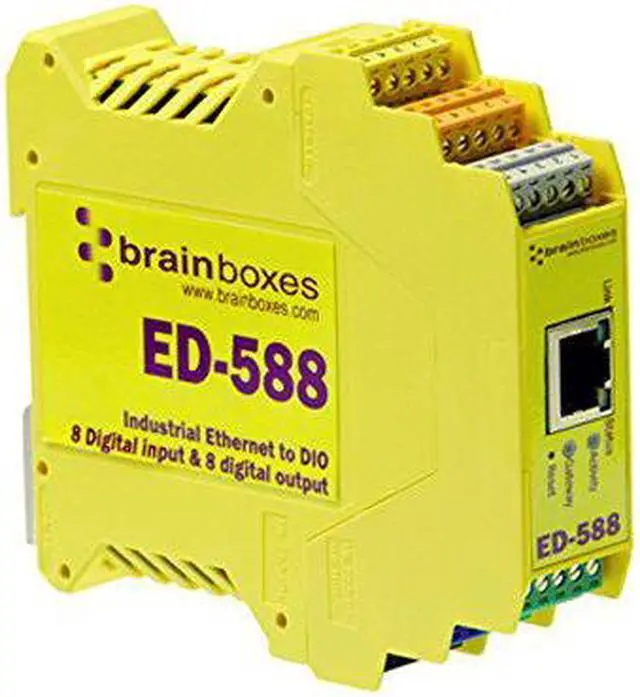

Alt view image 4 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

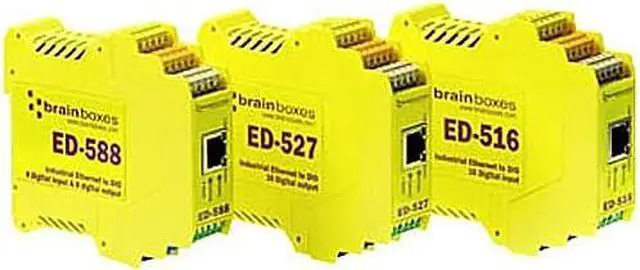

Alt view image 5 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

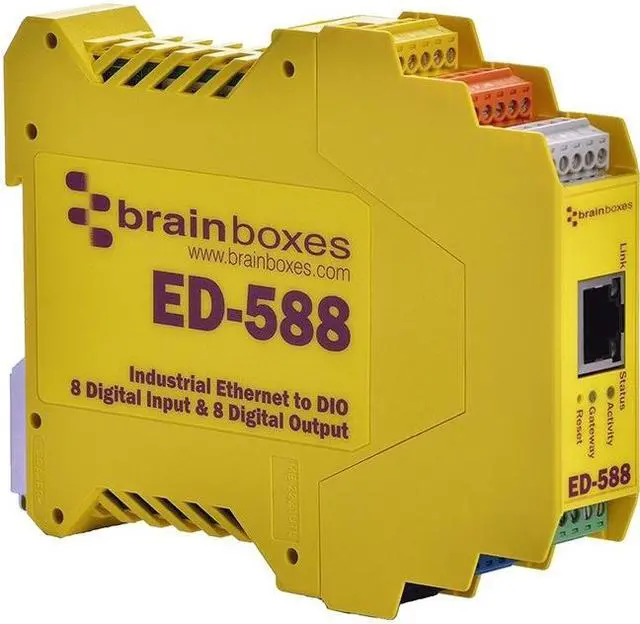

Alt view image 6 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

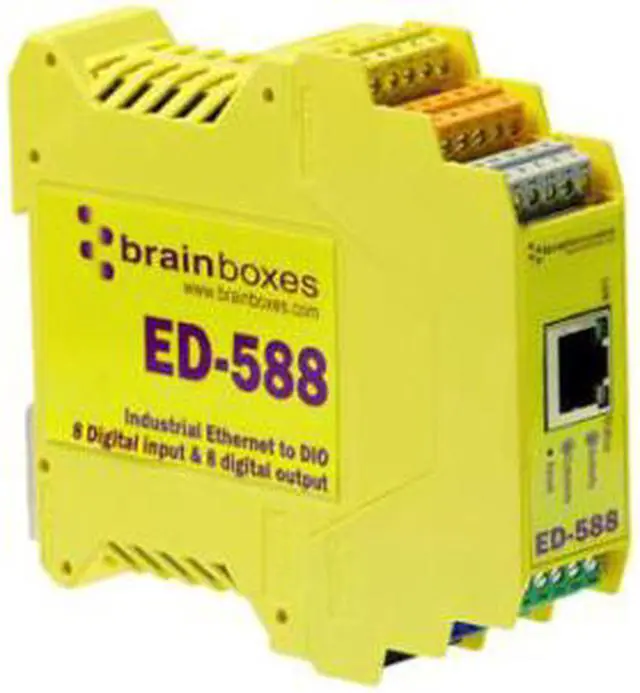

Alt view image 7 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 8 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 9 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 10 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 11 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 12 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 13 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Alt view image 14 of 14 - Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Shop All Brainboxes Products | Visit NothingButSavings Store

Brainboxes ED-588 Ethernet to Digital IO 8 Inputs + 8 Outputs

Be the first to review this product...

ED-588
N/A

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES:
Height: 0.91" (23 mm)
Width: 5.08" (129 mm)
Depth: 4.02" (102 mm)
Weight (Approximate): 138 gPackage
Contents: Ethernet to 8 Digital Inputs and 8 Digital Outputs + RS485 Gateway Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start
Guide Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
Limited Warranty: Lifetime

Model
Brand	Brainboxes
Model	ED-588

Details
Type	N/A
Specifications	Description: 8 Digital Inputs and 8 Digital Outputs Digital Inputs: 8 Logic Level 0: -30.0V to +1.0V Logic Level 1: +2.0V to +30V Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged Counter Inputs: User progammable- counts positive or negative transitions up to 100Hz Watchdog: Active high/low, Pulsed high/low Digital Outputs: 8 Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min Maximum Output Load Voltage: 30 VDC Maximum Output Current Sink: 0.85A per channel Serial Gateway: RS485 NuDam/ADAM compatible gateway Number of Ports: 1 Network Port Type: RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) Network Protocols: ICMP, IP, TCP, DHCP, HTTP Protection: 1500V Magnetic Isolation between ports and network Power Input: Redundant DC Dual Power Inputs, reverse polarity protected +5 VDC to +30VDC Power Supply 1 Description: Global Power Supply - PW-600 Power Supply 2 Description: Power supply PW-650 Max Input: 35 Volts Operating Systems: Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Raspberry Pi Android Windows Server 2008 R2 Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows Server 2003 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 Linux

Features
Features	8 Digital Inputs, 8 Digital Outputs and an RS485 Gateway Port Control any input or output from TTL to high voltage high current industrial devices Factory floor process control and automation Network enable NuDAM/ADAM/EDAM modules RS485 Gateway -30 degree C to +80 degree C Temperature range Integrated DIN rail mount
