User friendly interface, simple to use, powerful in operation
Web configuration and Rfc2217 compliant interface for non-windows users
Rugged metal enclosure
LED status indication
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Ports: 2 x 9-pin DB-9 Male RS-232 - Serial ExternalForm Factor: DIN Rail MountableHeight: 1.10" (28 mm)Width: 4.13" (105 mm)Thickness: 4.17" (106 mm)Weight (Approximate): 126 gTAA Compliant: Yes

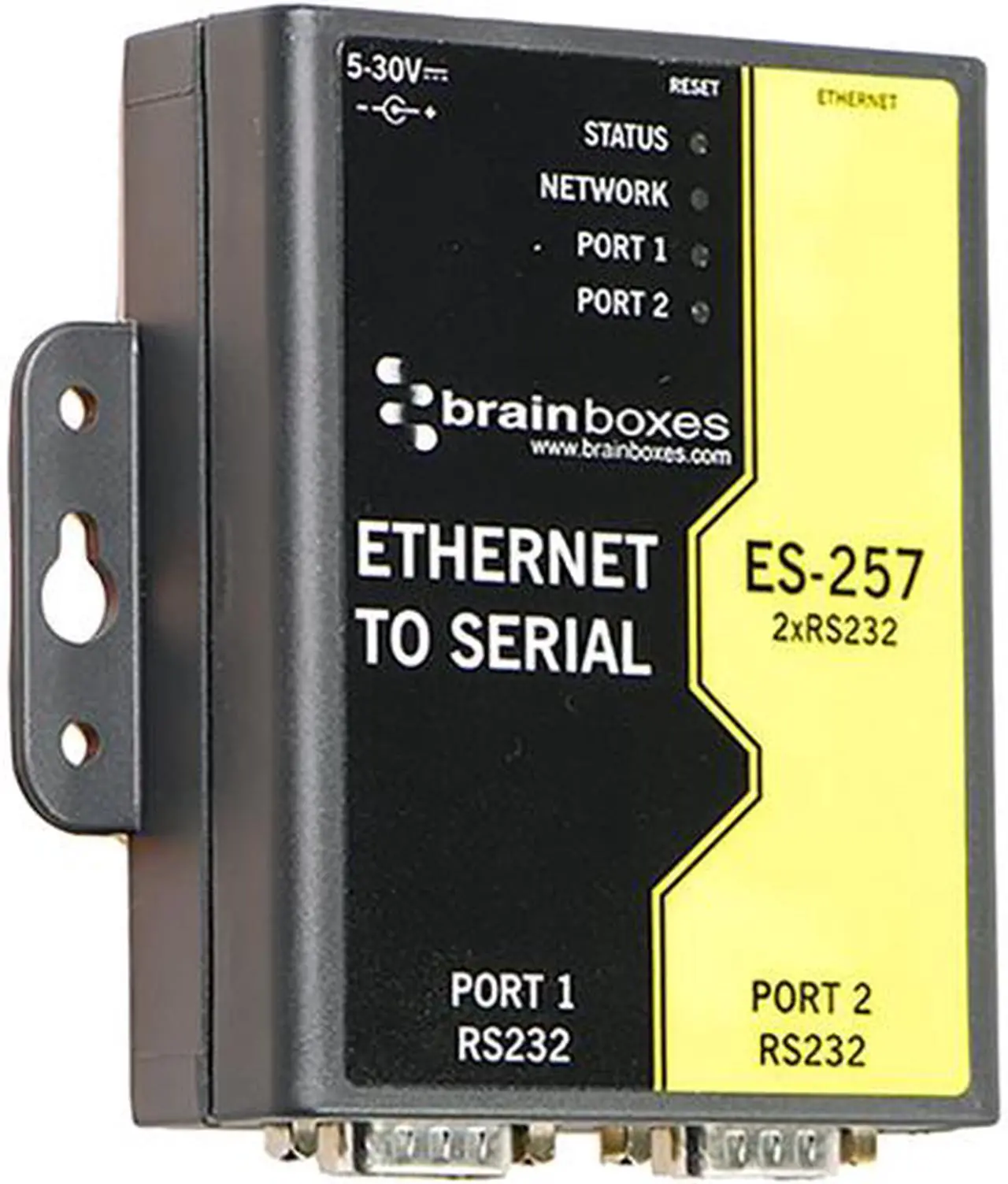

Learn more about the Brainboxes ES-257
Model
Brand
Brainboxes
Model
ES-257
Details
Color
Black
Cable Length
No
Specifications
Port Ports: 2 Protocol: RS232 Connector: DB9 Connector - 9 Pin Male Tx FIFO Size: 256 Rx FIFO Size: 32 Operating Distance: EIA - RS232 Standard Cable: No Cable; Integrated Connector
Port Settings Max Baud Rate: 1,000,000 (1 MegaBaud) Data Bits: 5,6,7 or 8 Parity: Odd, Even, None, Mark or Space Stop Bits: 1 or 2 Flow Control: RTS/CTS, DSR/DTR, XON/XOFF Tx/Rx Modes: Point to Point
Features
Features
2 port RS232
Max baud rate 1,000,000 (1 MegaBaud)
10/100Base TX Ethernet port
User friendly interface, simple to use, powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users
IP-30 rated enclosure
LED status indication
Optional DIN rail mounting kit
Serial Port Tunneling (individually configurable) allows serial cable
replacement over any distance, no software required
Power supply included (power input 5-30V DC)
Simple operation for each and every operating system
Dimensions & Weight
Dimensions
102(l) x 104(w) x 28(h) mm, 4.02(l) x 4.09(w) x 1.10(h) inches
Weight
0.122 kg, 0.27 pounds
Additional Information
Date First Available
April 29, 2025
