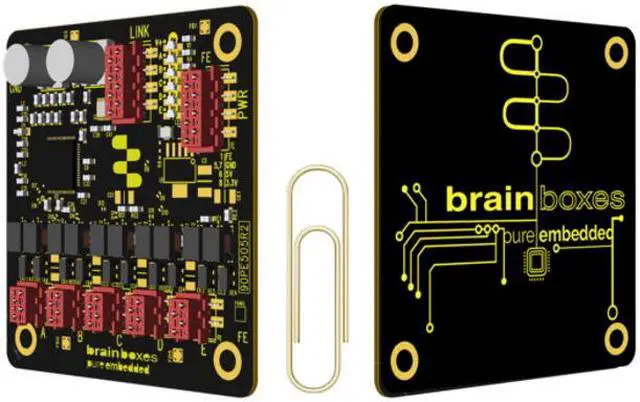

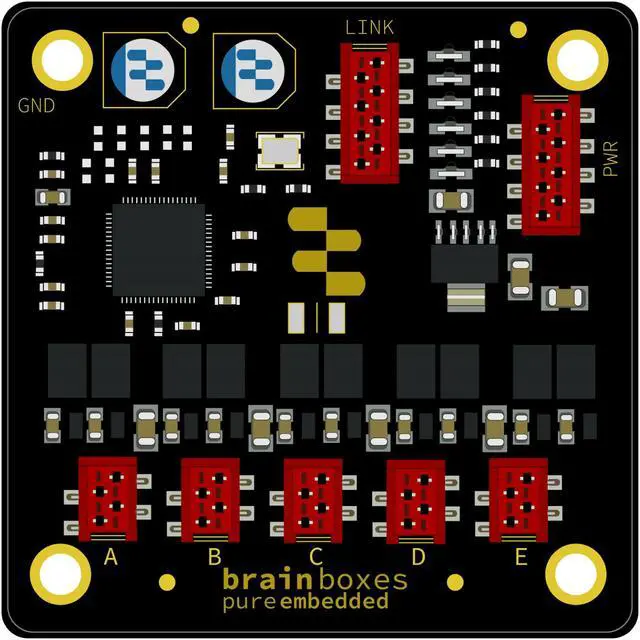

Embedded 10/100 5 Port Switch Industrial Ethernet Switch PE-505

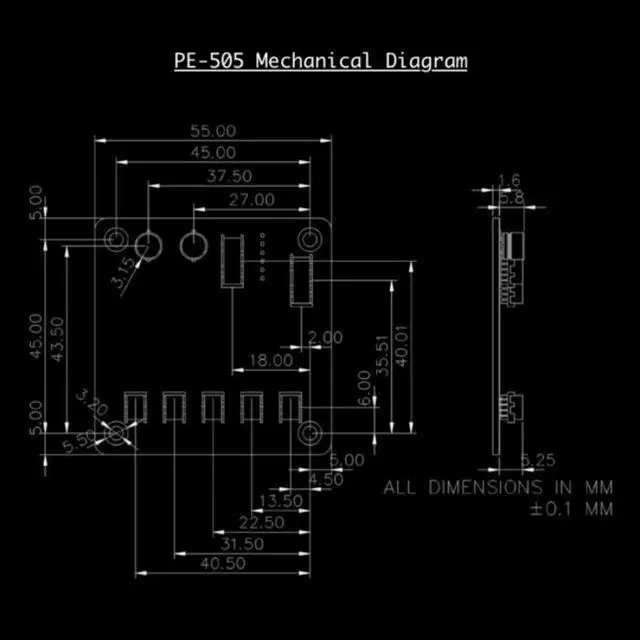

- Mega compact form – smaller than a standard business card (55x55x10mm)
- Industrial operating temp (-40 °C to +85 °C)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations – can be directed to outer casing via fibre optics or light pipe
- Comprehensive resources: schematic, DWF file, PCB footprint and 3D download
- Connectivity Technology: Wired
- Data Transfer Rate: 100 Mbps
- Networking / Ports Qty: 5
- Data Link Protocol: Fast Ethernet
- Networking Compliant Standards: IEEE 802.3az FCC Class A EN 55033 A
- Power / Device Type: Power Supply
- Max Power Consumption: 1.3W @ 3.3V 2.5W @ 5V Watt
- Power / Voltage Required: Voltage Input: 3.3V or 5V DC
- Min Operating Temperature: -40 Celsius
- Max Operating Temperature: 80 Celsius
- Min Storage Temperature: -40 Celsius
- Max Storage Temperature: 85 Celsius
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Brainboxes PE-505
| Brand | Brainboxes |
|---|---|
| Model | PE-505 |
| First Listed on Newegg | October 30, 2024 |
|---|
