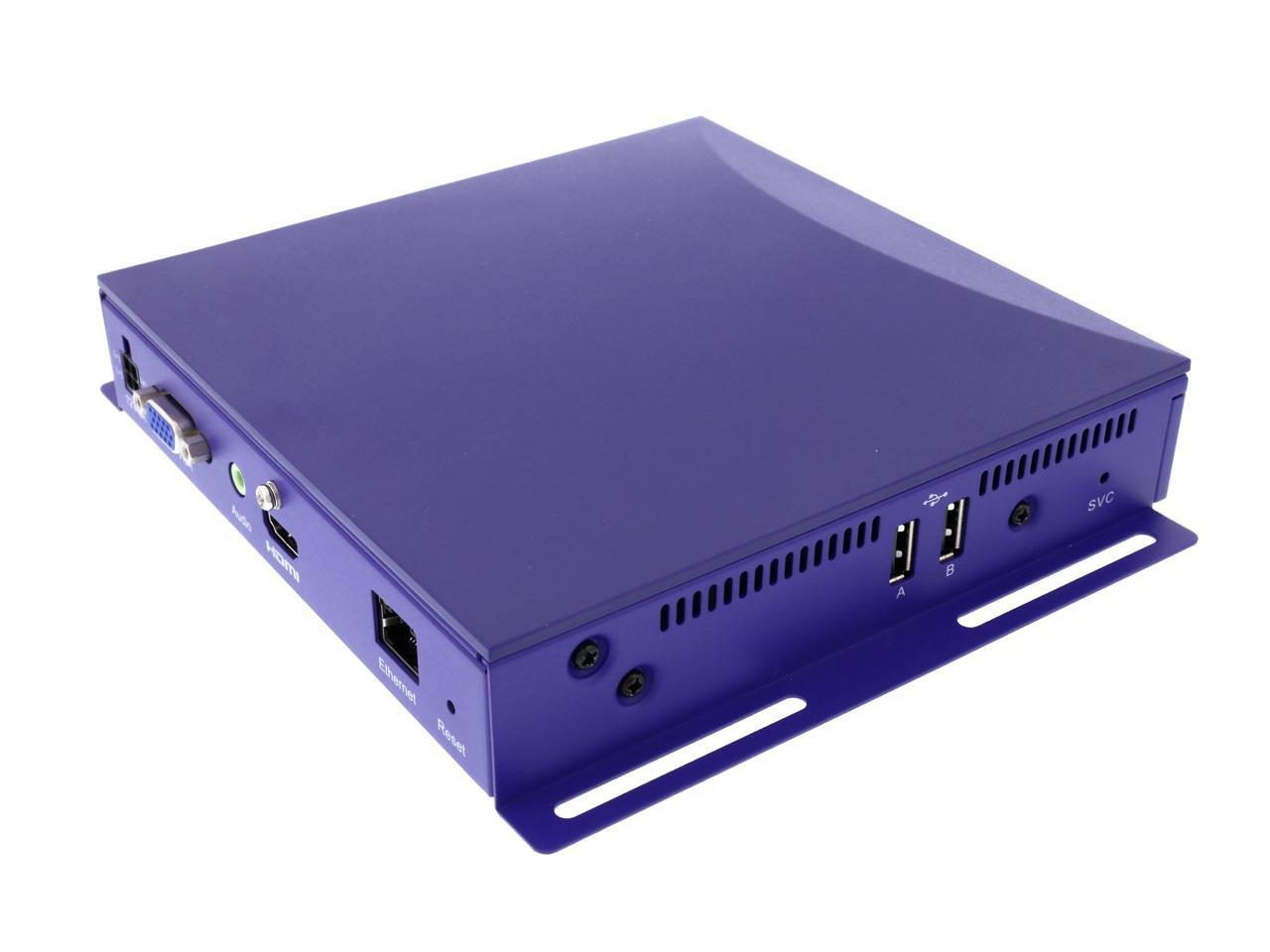

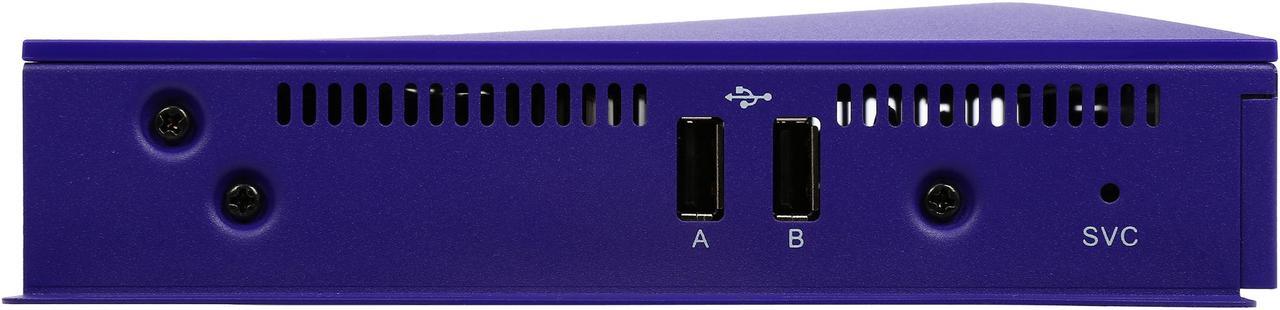

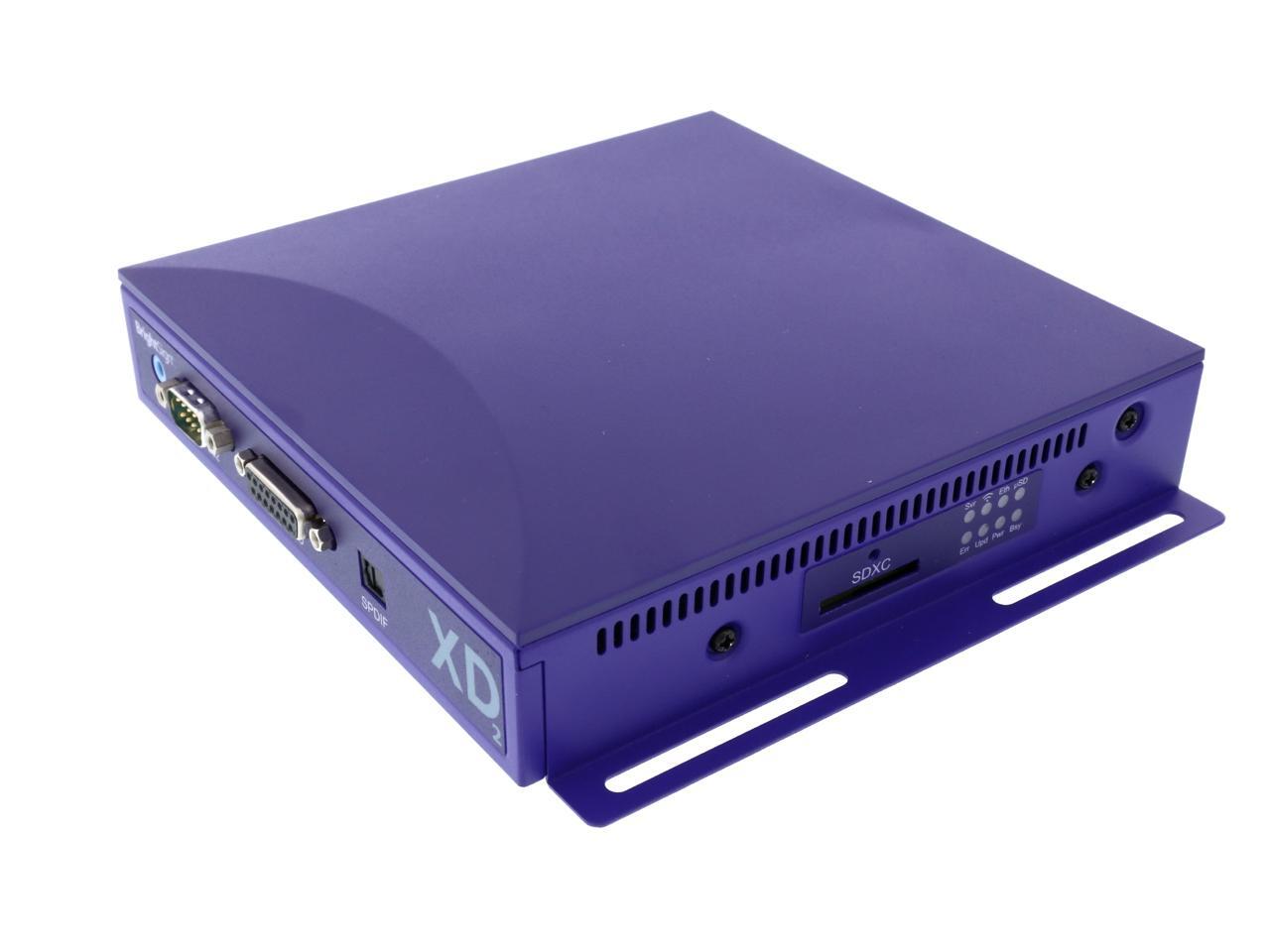

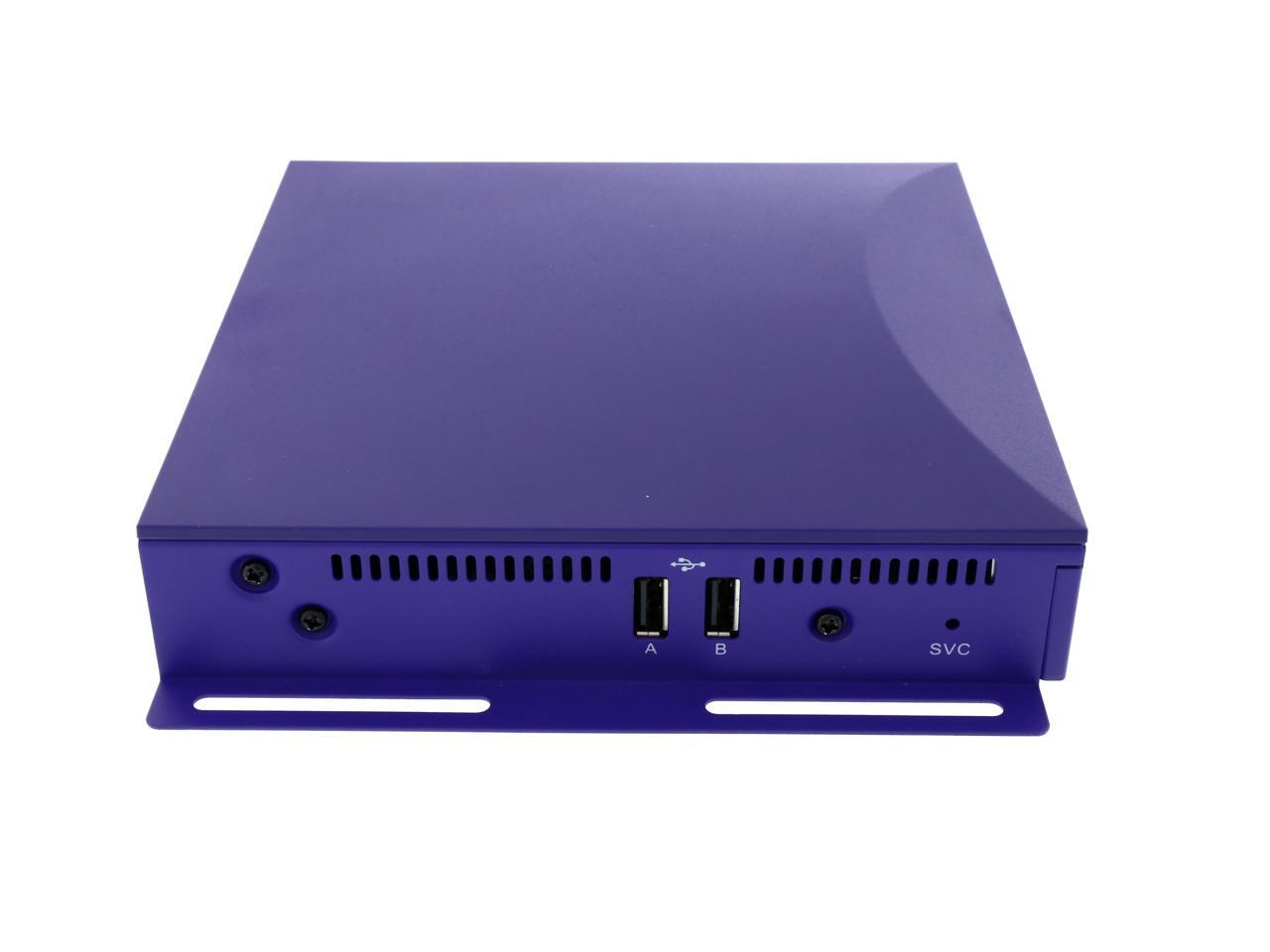

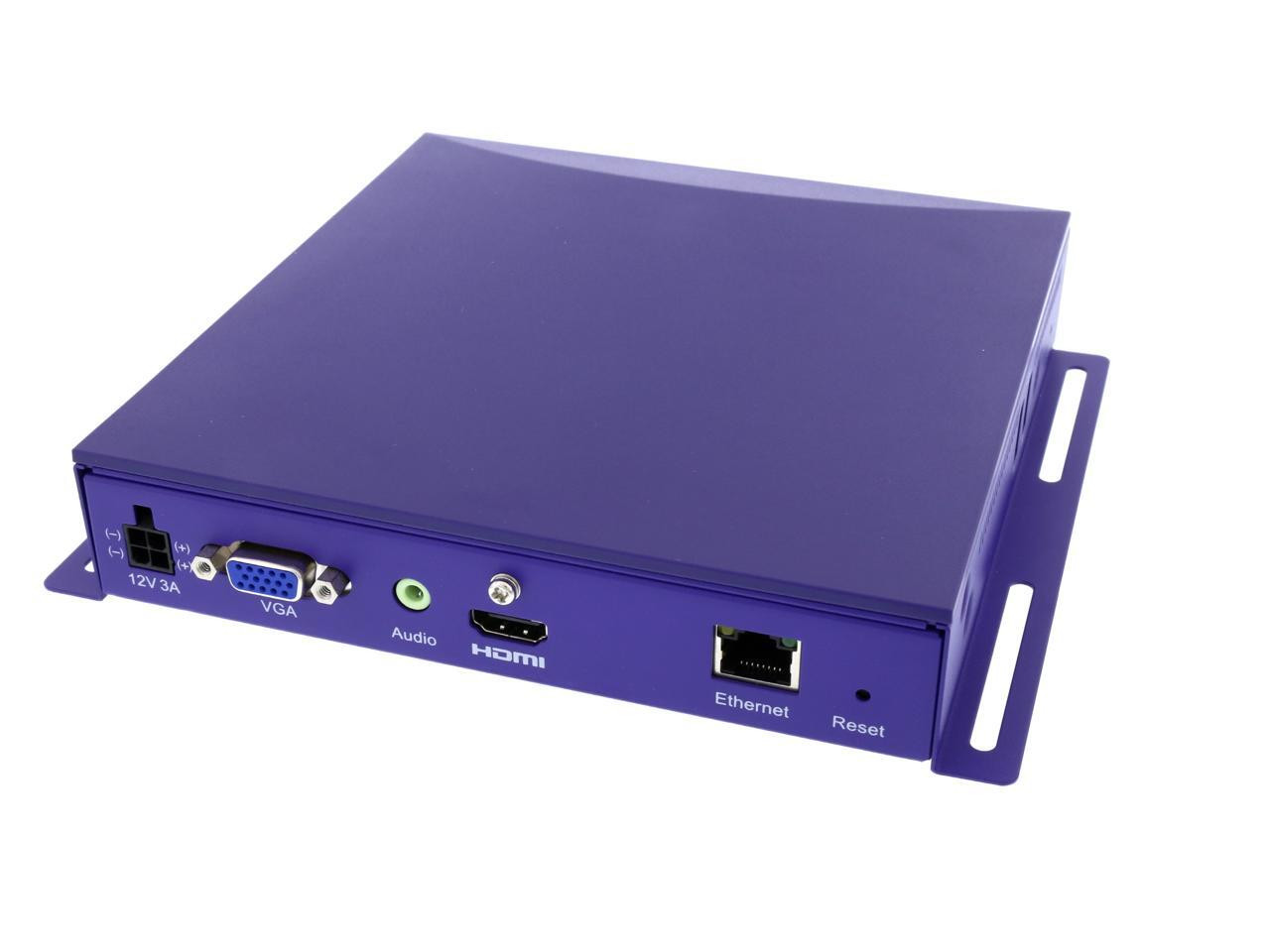

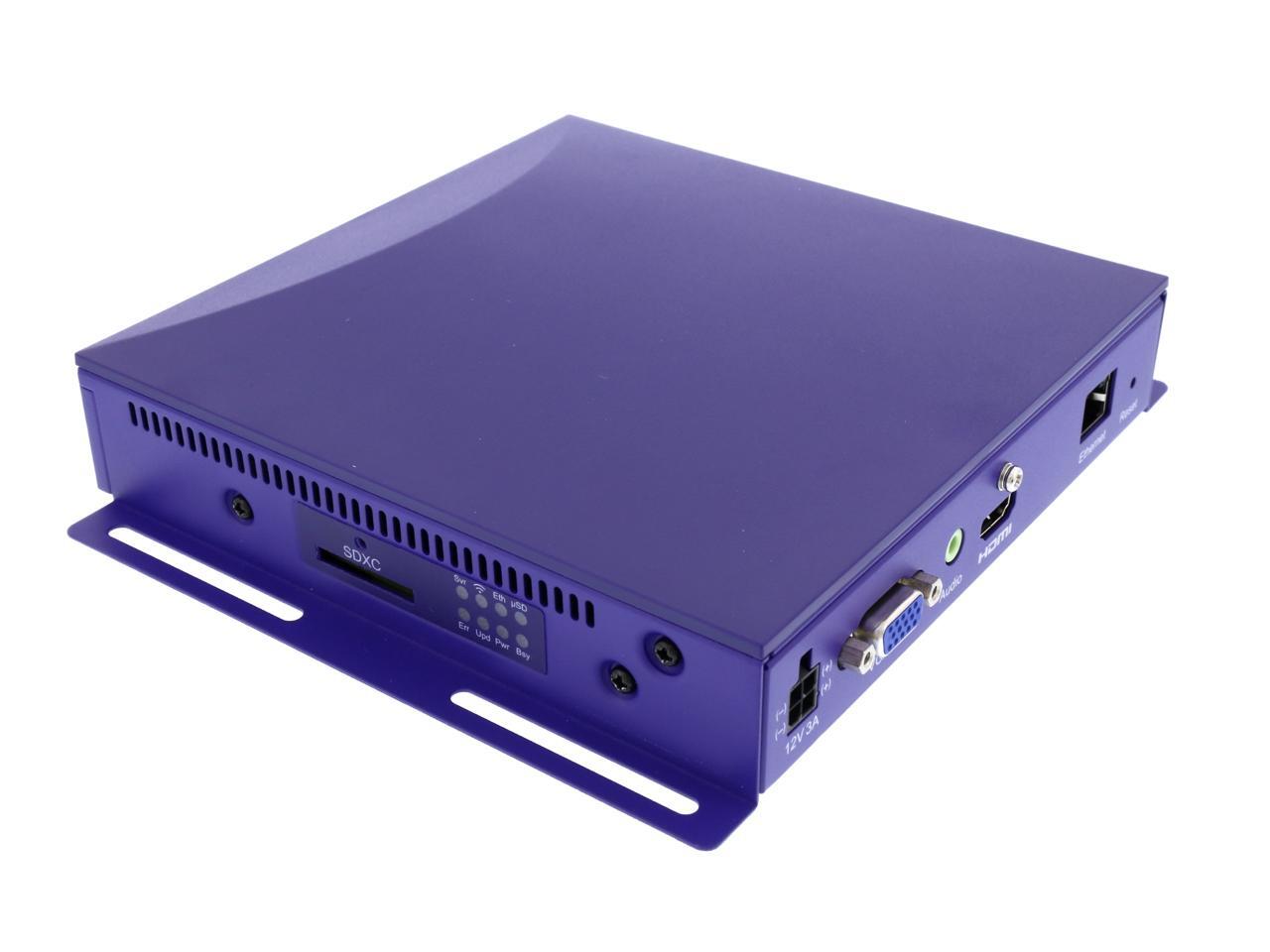

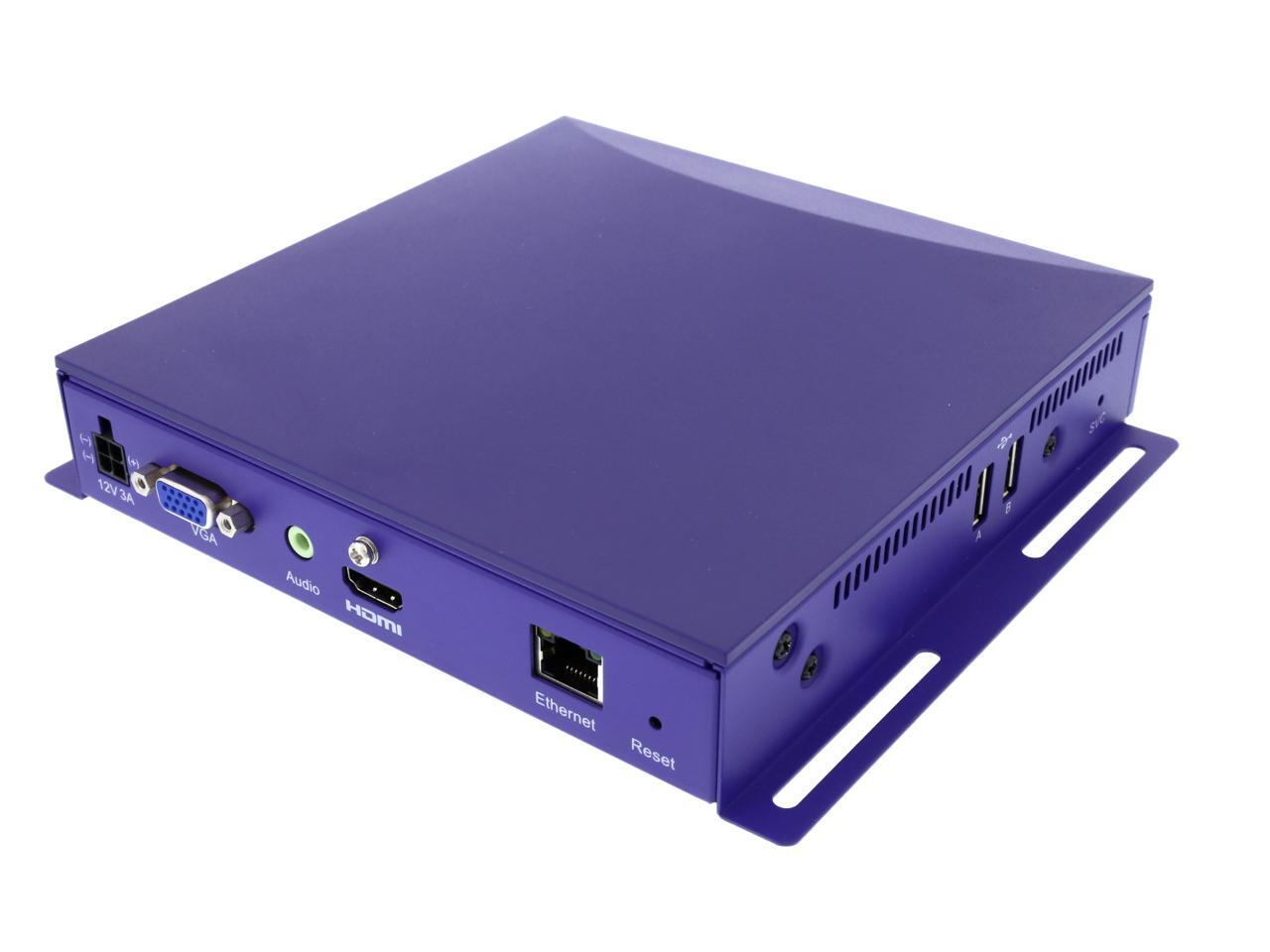

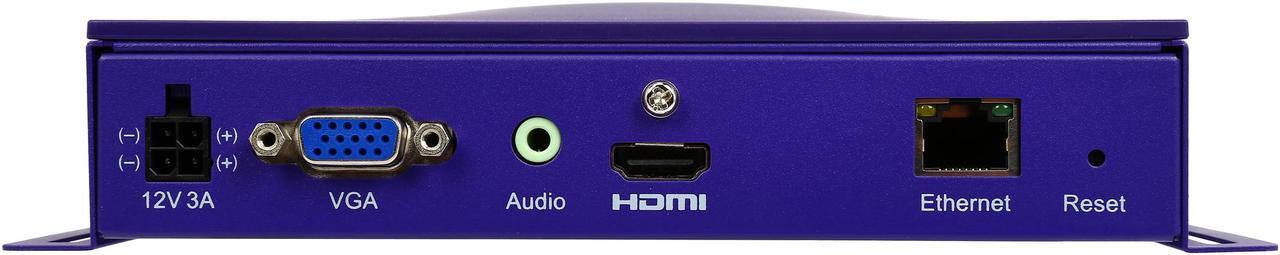

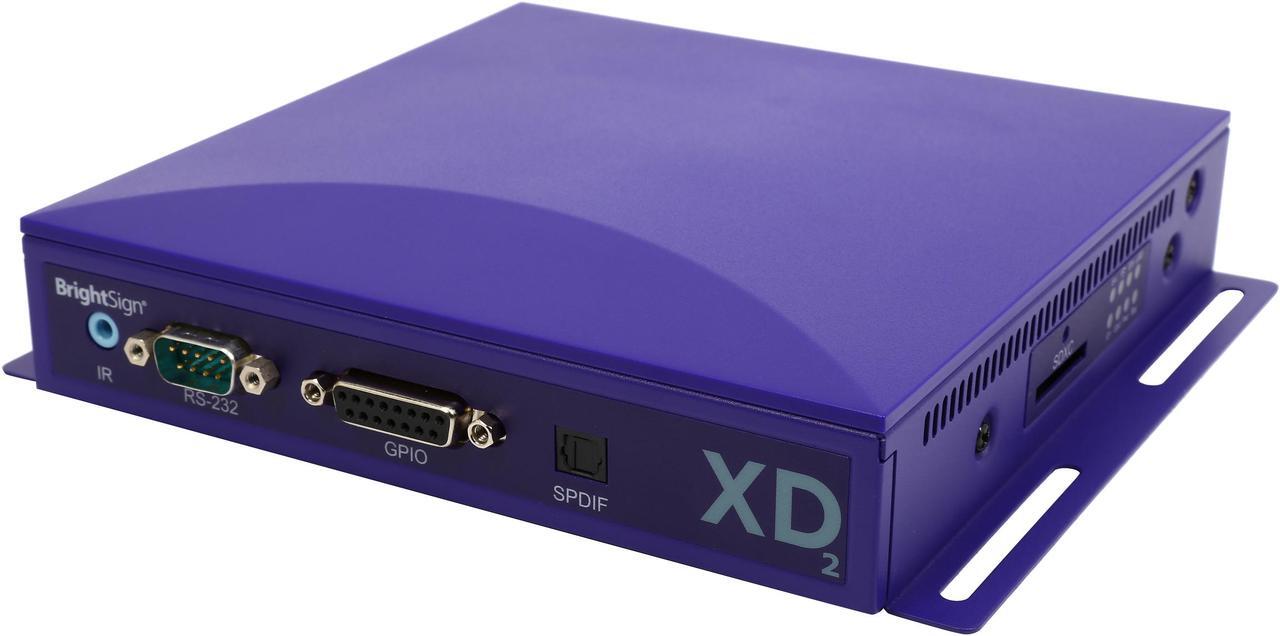

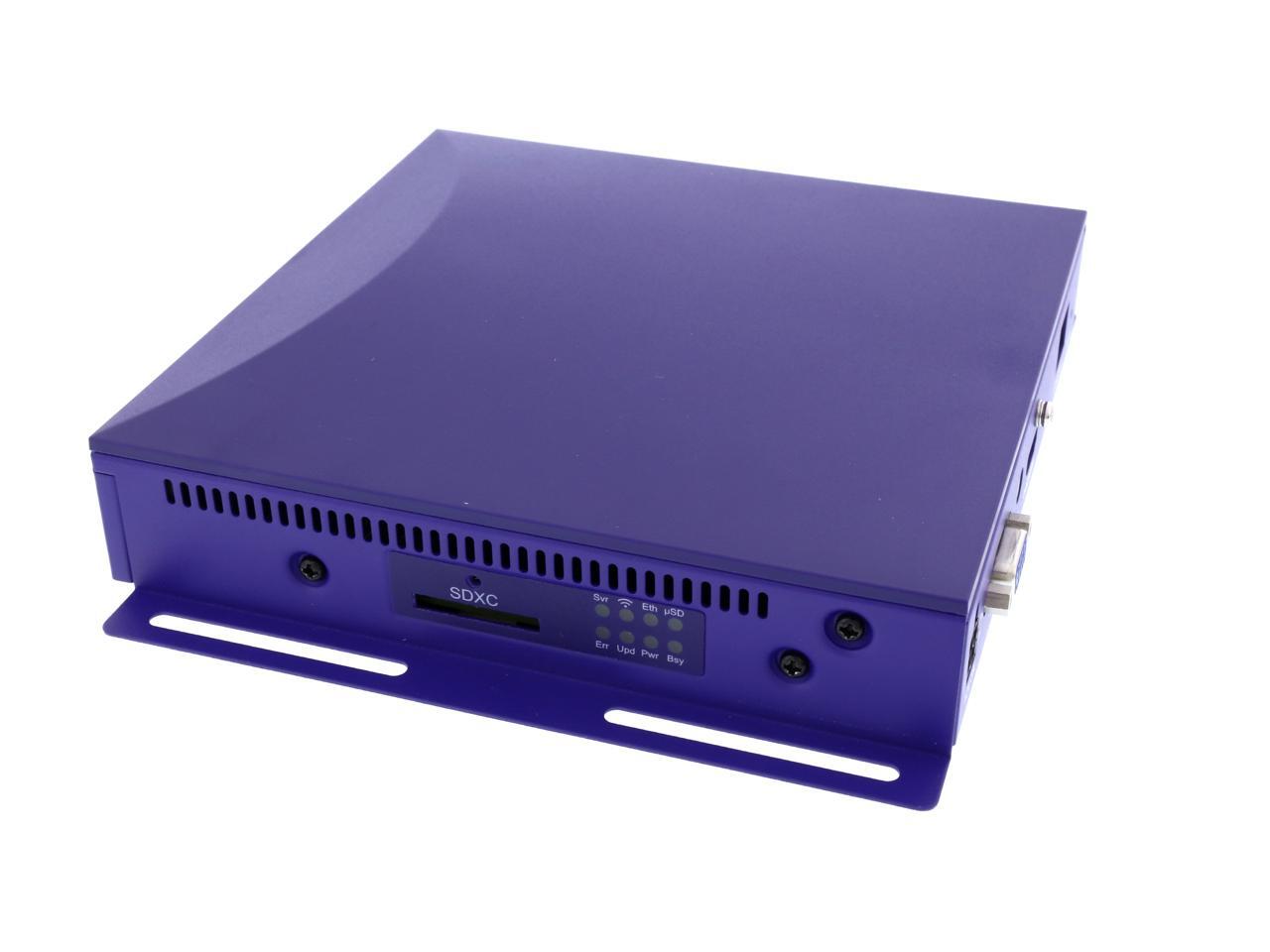

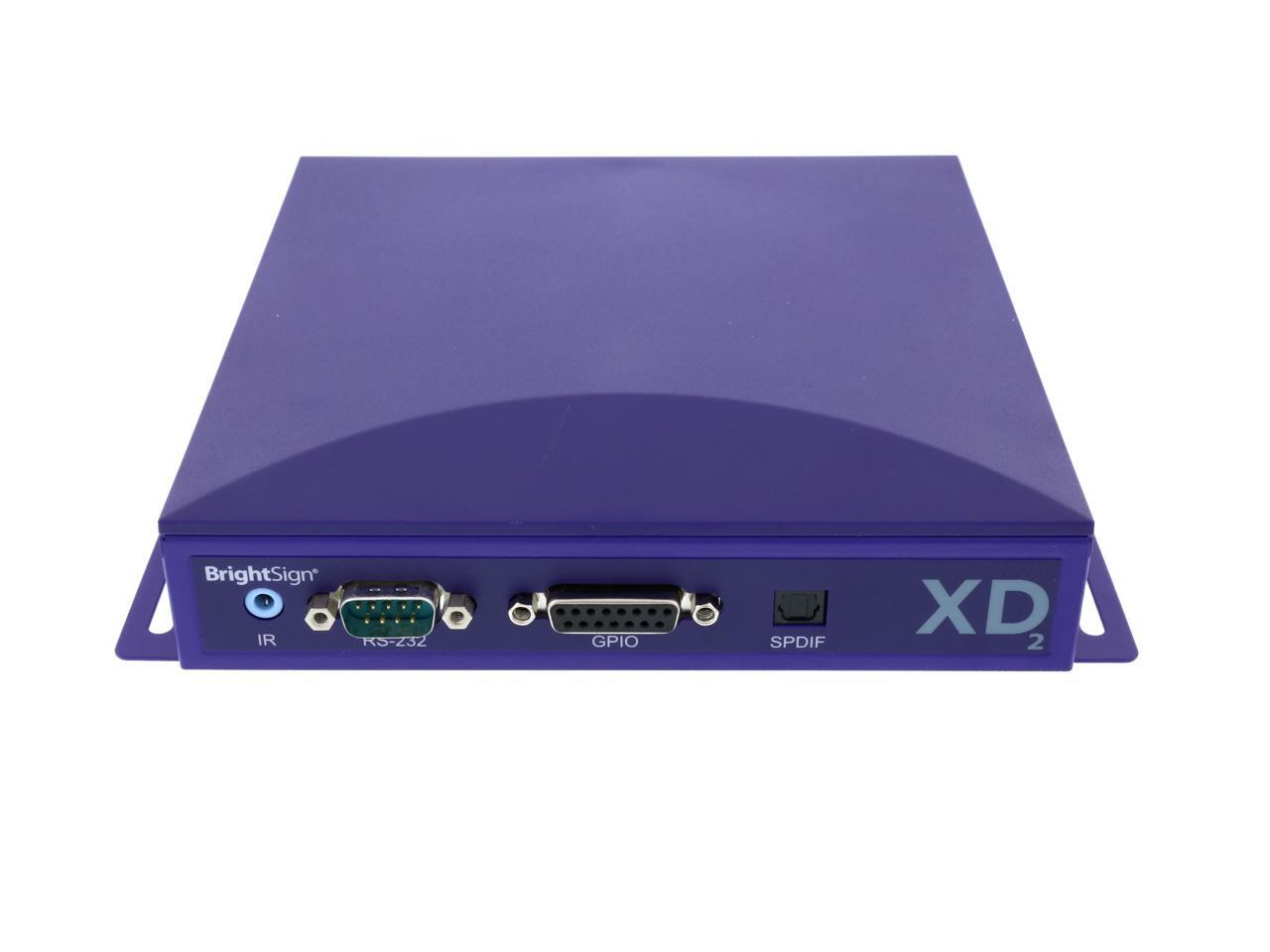

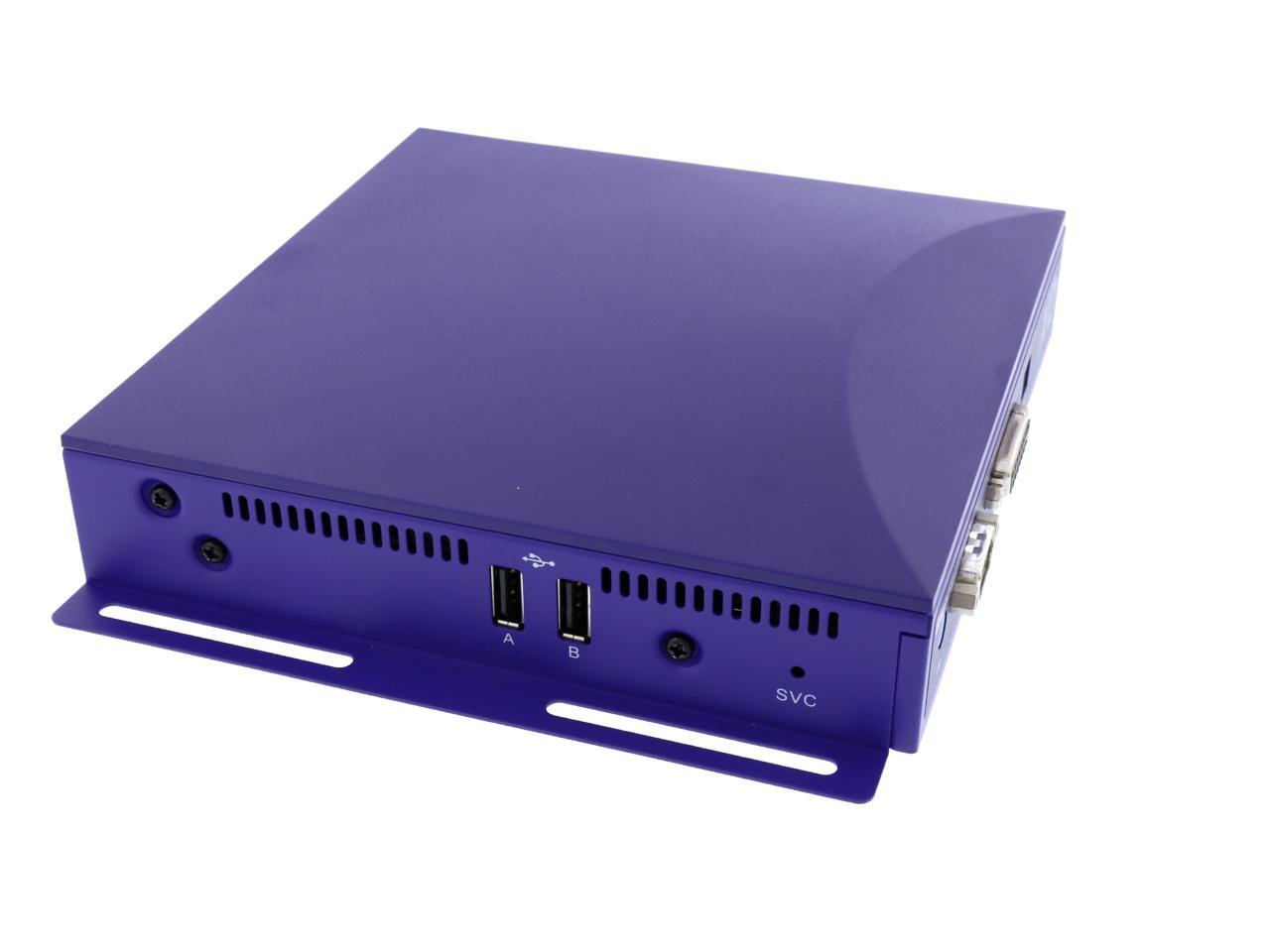

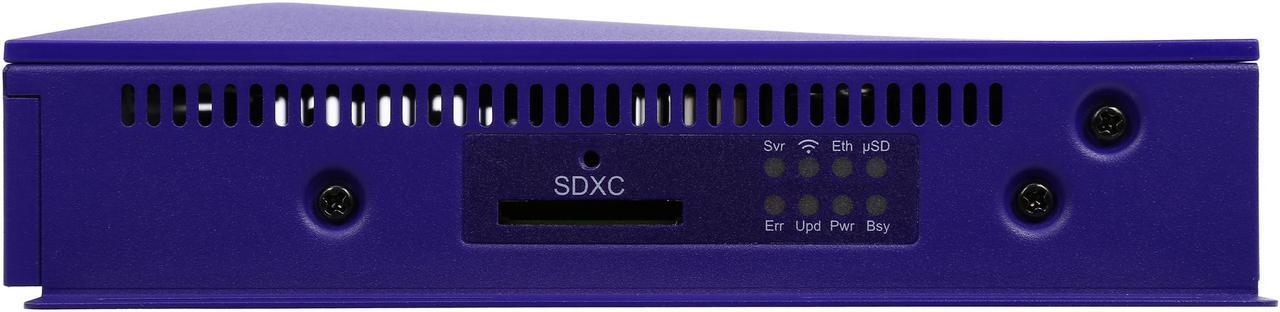

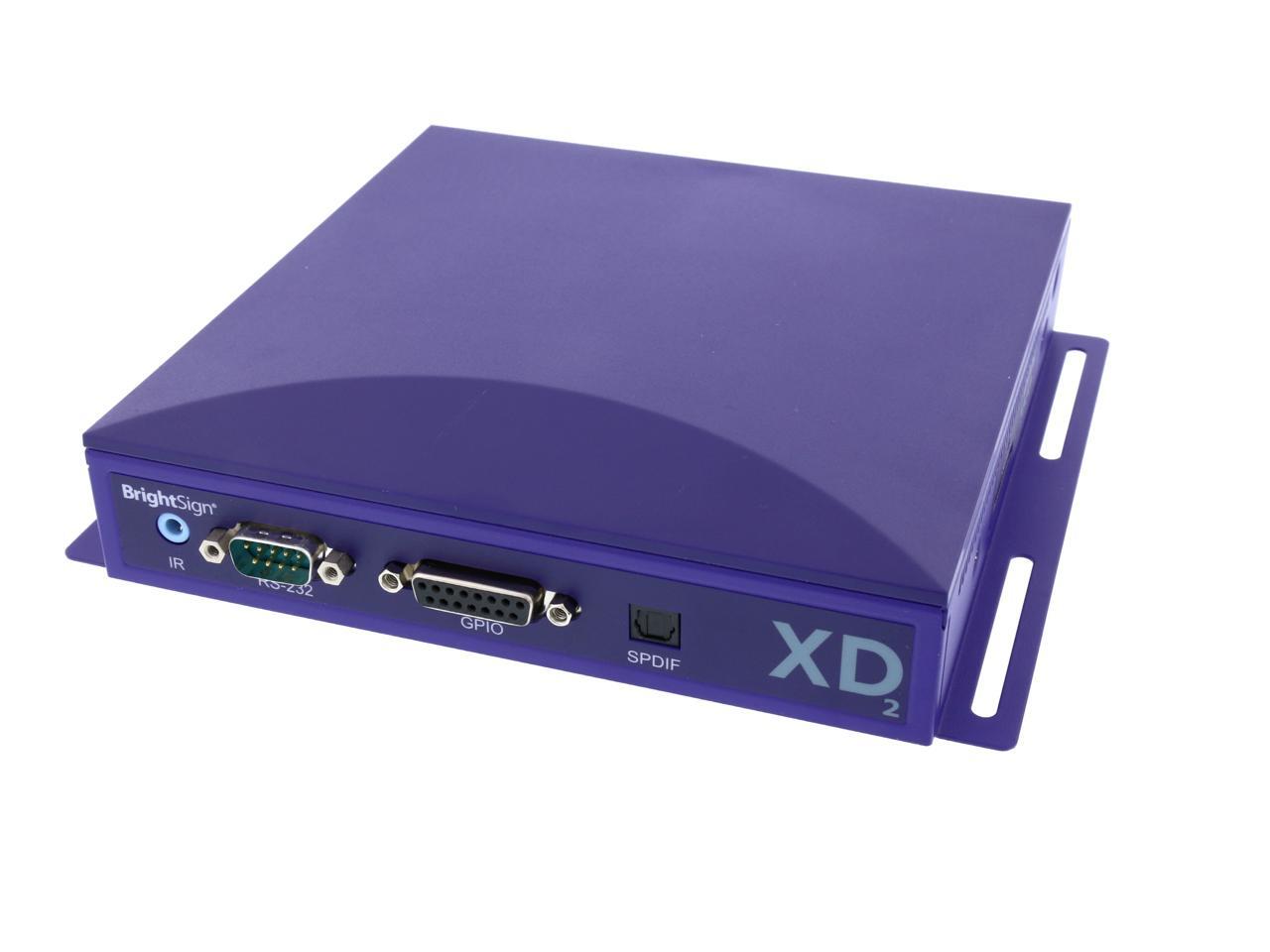

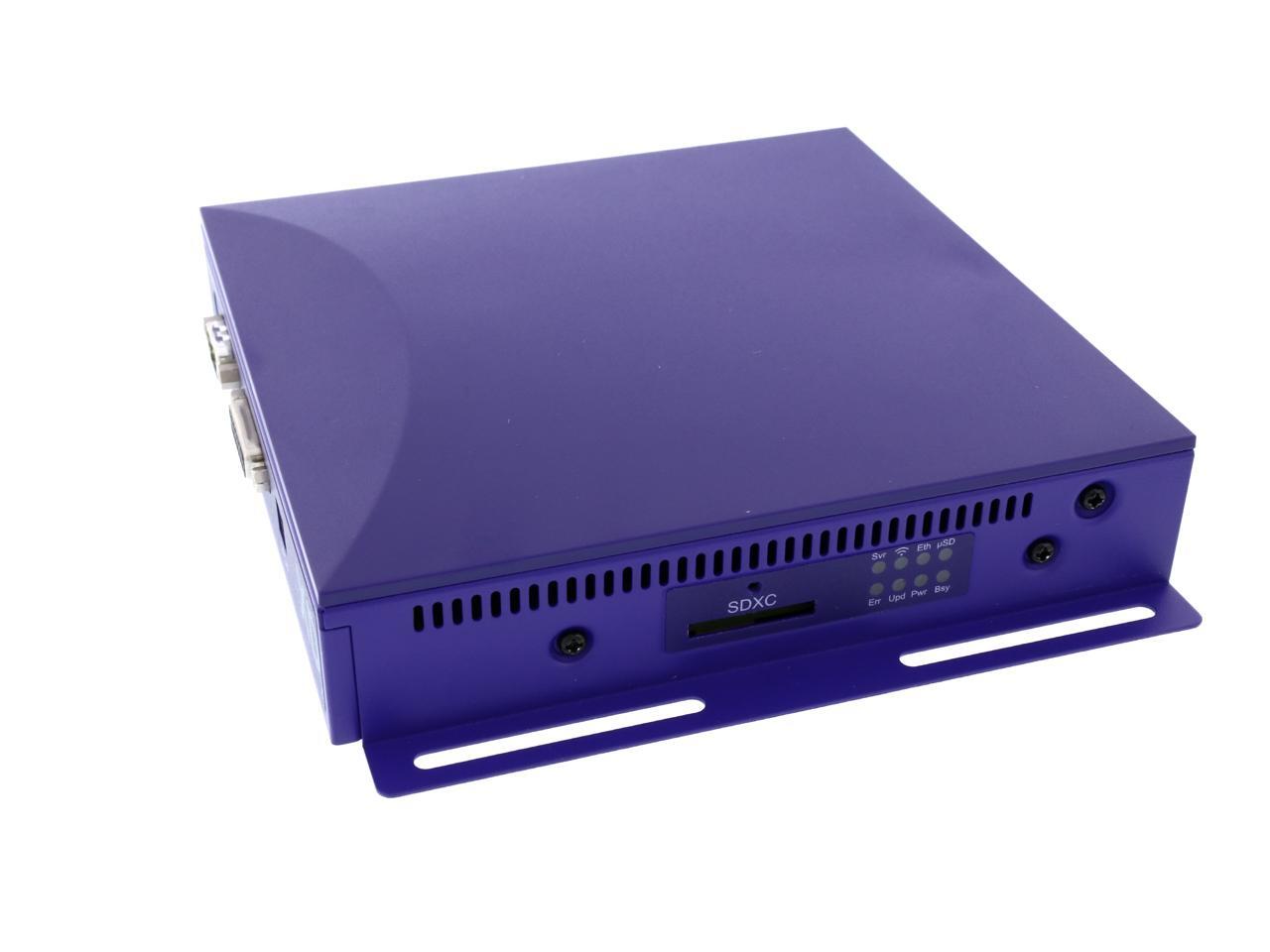

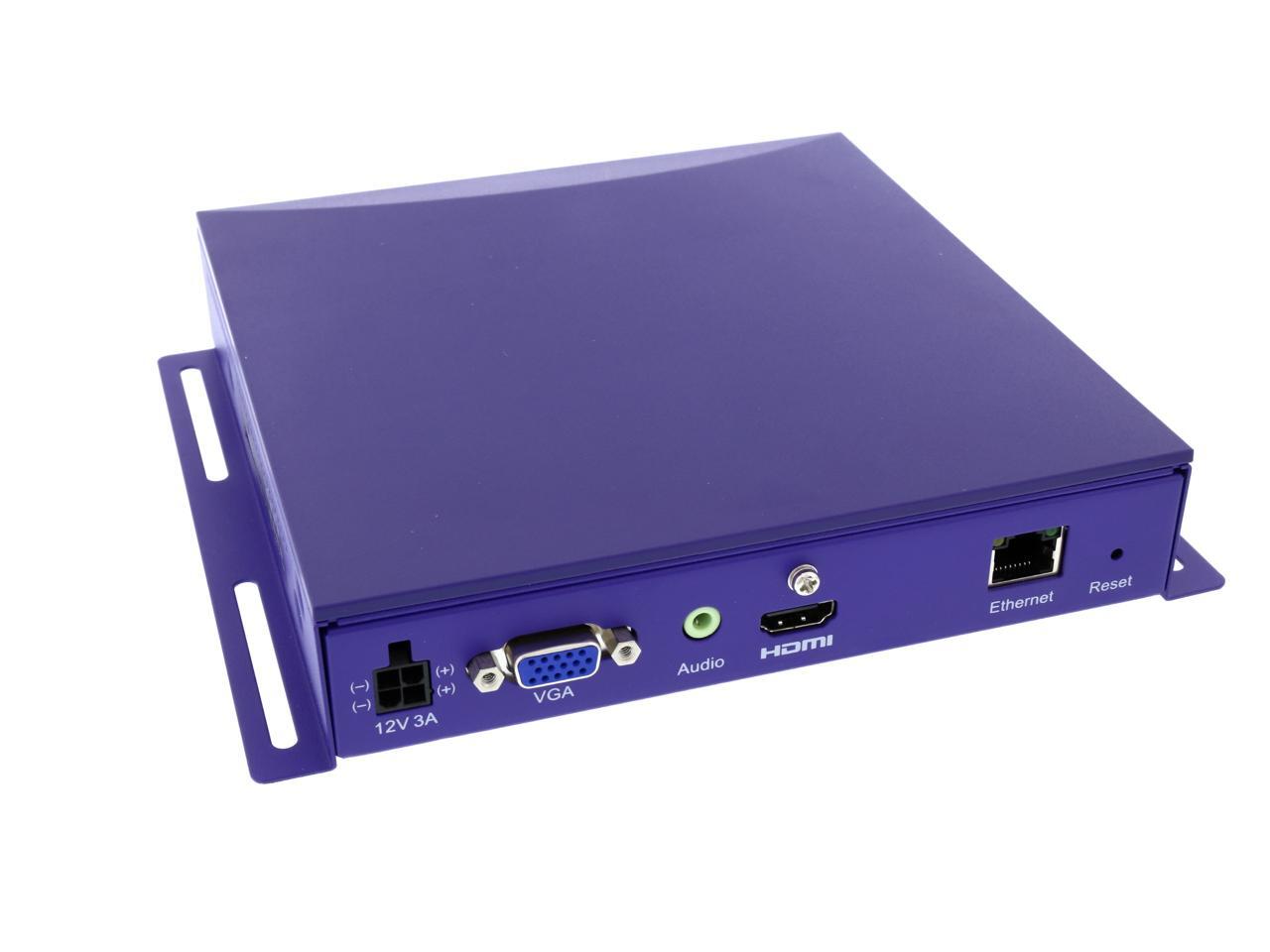

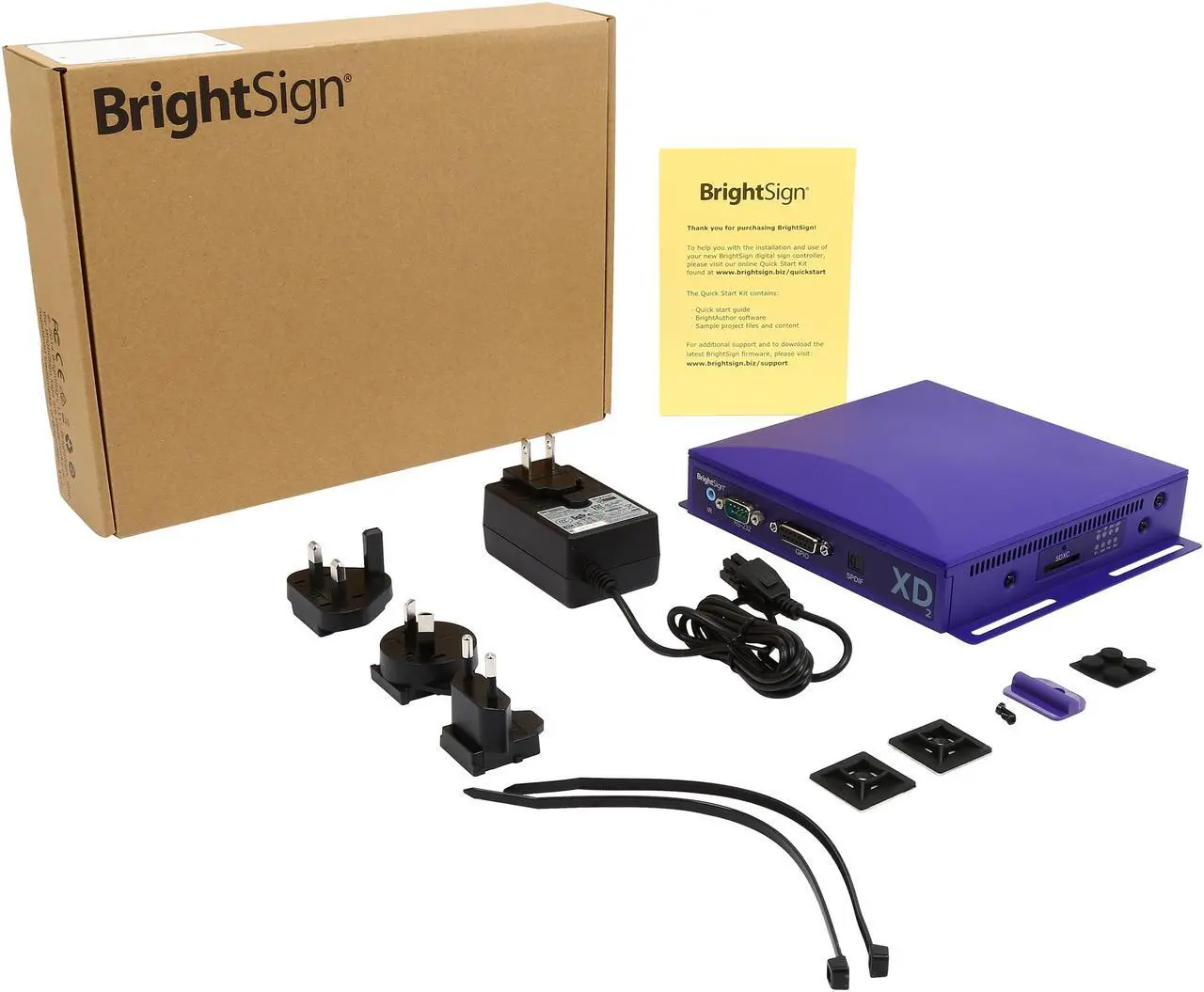

BrightSign XD1032 Networked Multi-Control Interactive Digital Signage Player

Live TV

Engage your audience with Live TV

• Play any broadcast content via the HDMI Input - even protected HDCP content
• BrightSign XD1132 includes an HDMI 1.4a input to play Live HDTV content
• BrightSign 4K1142 includes an HDMI 2.0 input to play Live HD or 4K TV content

Touch

Engage your audience with the popular touch screen interactivity

• BrightSign players integrate with leading touch screen displays for interactive touch solutions and kiosk presentations
• Easily add touch interactivity using simple drag and drop tools in BrightAuthor
• Create unique presentations that engages and empowers your audience

Interactivity

Engage your audience with interactive devices and controls

• Trigger playback from virtually any type of interactive device you can dream up!

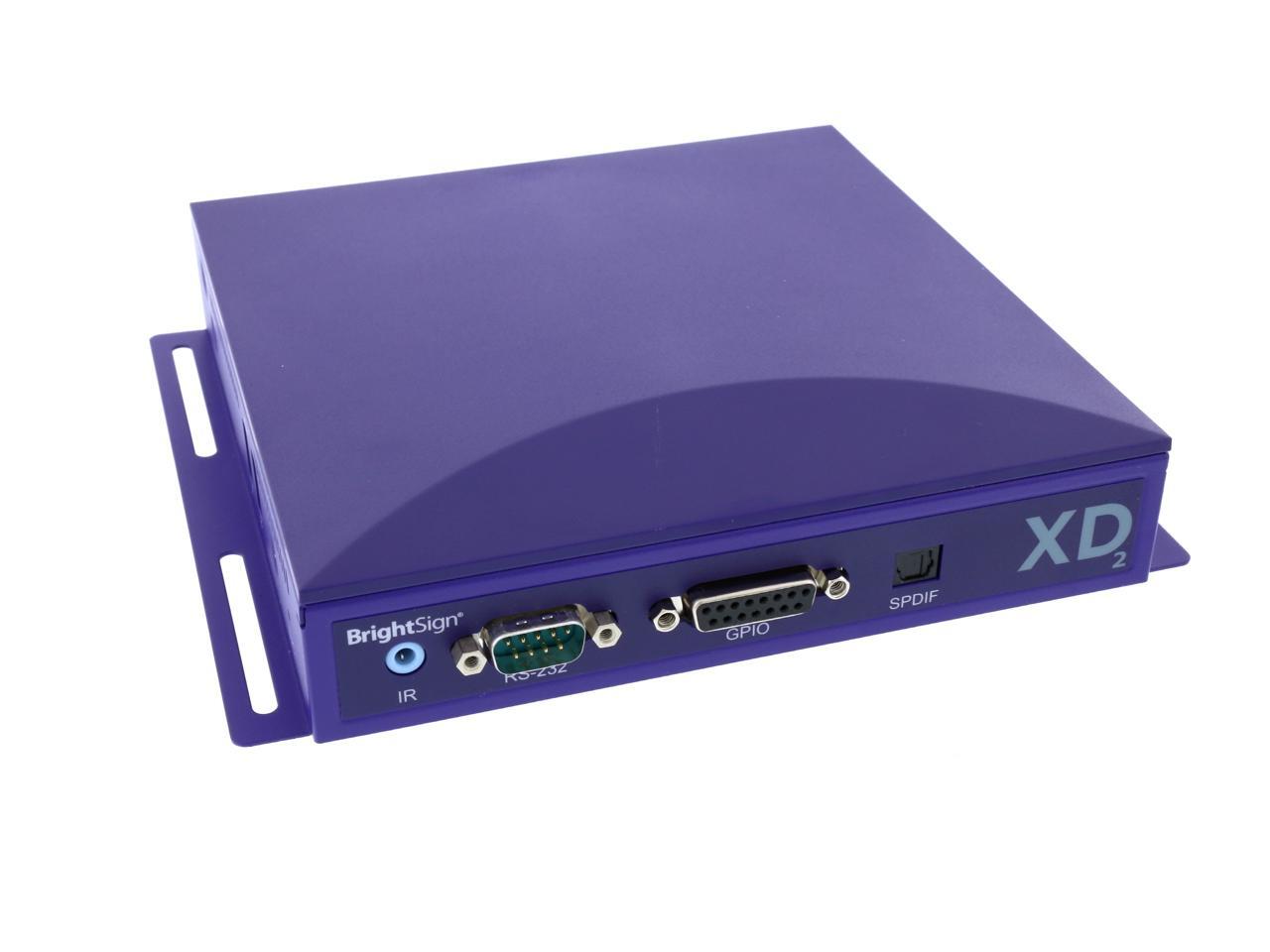

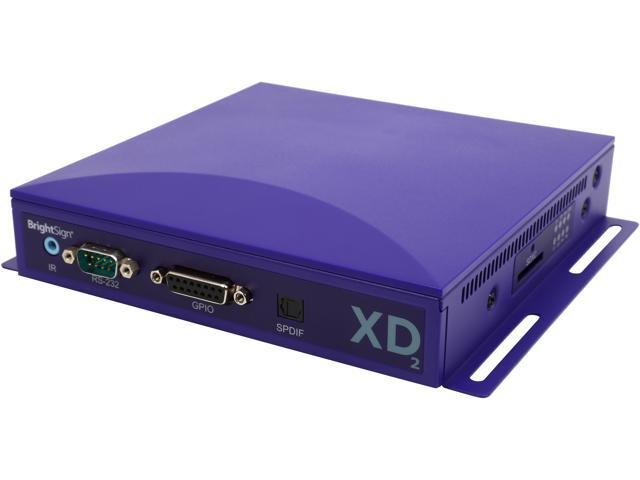

Digital Sound

Crystal clear digital sound via SPDIF

• Playback high-quality digital audio on BrightSign XD
• Easily add audio playlists to your presentations
• Synchronize audio with video playback
• Create and play interactive retail audio product demonstrations

Geo-Fencing

Moving digital signage that plays back content based on your current location

• BrightSign plays specific audio and/or video content when located within a defined geographical radius (requires a USB GPS device)
• Applications:
• Shuttles, taxis, public transportation and moving billboards: Advertise and promote local businesses
• Tour buses and boats: Inform and educate riders with video and audio relevant to the area

Full HD

Exceptionally smooth 1080p playback

• BrightSign HD, XD and even 4K will playback 1920x1080 Full HD video at 60 frames per second, providing a flawlessly smooth and crisp viewing experience.
• BrightSign LS supports 1920x1080 video at 30 frames per second.
• BrightSign HD plays one Full HD video, BrightSign XD can decode two Full HD videos simultaneously, and BrightSign 4K is capable of decoding one Full HD video and one 4K video simultaneously.

Powerful Video Engine

Advanced dual decoding and superior scaling deliver pristine 1080p60 video

• Uncompromised decoding, capable of decoding and playing:

• 4K players: one native 4K 3840x2160p60 video & one Full HD 1080p60 video simultaneously
• XD players: two Full HD 1080p60 videos simultaneously
• HD players: stellar Full HD 1080p60 video playback

• Superior scaling technology delivering pristine video quality for any screen or zone size
• Simultaneous playback of content from local, streaming and live content sources
• Accelerated JPEG decompression for instant image display and high-speed transitions
• Stimulating 3D video with display options of side-by-side & top-over-bottom

4K Upscaling

Upscale 1080p content to sharp 4K resolution.

• BrightSign 4K, XD and HD’s exceptionally powerful video engine enables customers to upscale 1080p content to sharp 4K resolution
• Display manufacturers can demonstrate the same 1080p content on a Full HD display and a 4K display side-by-side to clearly showcase the superior picture quality of the new 4K screens
• BrightSign's upscaling offers far better quality than the upscaling built in to screens

HTML5

Hardware-accelerated Chromium HTML5 rendering engine brings powerful content development tools to your fingertips

• BrightSign 4K Players
• Supercharged HTML5 engine includes full support for the WebGL language, plays complex HTML animations and transforms including gesture-based interactions such as swipe, pinch and zoom
• BrightSign XD Players
• Fast HTML5 engine to play interactive, full screen HTML5 content or a multitude of HTML5 assets layered with high-bandwidth video playback
• BrightSign HD Players
• Standard HTML5 engine for flawless playback of basic HTML5 content & some modular HTML5 assets layered with video
• Additional HTML5 Features
• Pull database & user variables into HTML with our built-in web server
• Use JavaScript extensions to enable interactive & advanced features
• Control user variables and UDP commands from iOS and consumer devices, or a web browser
• Use BrightSign Network’s Web UI HTML5 Uploader to bypass BrightAuthor and upload pure HTML5 presentations & automatically publish them to players

Power over Ethernet

More convenience with PoE+

• Use PoE+ (Type 2) to power your XD and 4K players with just an Ethernet connection.
• Eliminates the power cord with support of up to 25 watts of power
• 4K and XD players will not exceed 25 watts when running a standard presentation, an HDMI cable and 1-2 other outputs at most
• When 4K or XD is powered by PoE+, there is approximately 1A available for all other connectors

Remote Snapshot

Get a glimpse of what your signage playback looks like.

• See a snapshot image of your running presentation
• View snapshots using...
• Local networking via the BrightSign App and our Diagnostic Web Server
• BrightSign Network via BrightAuthor or the Web UI
• Supported on HD, XD and 4K players

IP Streaming

Full HD Video IP streaming available on all BrightSign players

• Supports Full HD video, Mjpeg and audio streaming including these formats:
• HLS (the standard for public internet streaming: i.e. YouTube, etc.)
• UDP/RTP/RTSP streaming from head-end real-time encoders
• HTTP including SHOUTcast
• Customize buffering and latency to improve media streaming performance
• Play streaming media in HTML5 assets or in BrightAuthor’s video, audio or MJPEG stream states
• Stream, buffer and play back content from IP cameras supporting the RTSP unicast streaming protocol
• Supports streaming motion JPEGs within image zones and video streams within video zones
• Play multiple video streams simultaneously with BrightSign 4K and XD

IP Streaming Server

Serve IP video streams from BrightSign 4K and XD

• Securely distribute video to a set of displays without downloading the content to display
• Serve IP video streams from BrightSign 4K or XD’s local storage to distribute video to a network of clients
• Supports MPEG transport stream (*.ts) video files
• Clients can be networked BrightSign XD or HD players, PCs, Macs, mobile devices, etc.
• Supports RTP unicast & UDP multicast
• Stream two separate videos at once as long as BrightSign is not playing video on the screen

BrightWall™

Create an impressive and vibrant impression across multiple displays

A powerful drag-and-drop BrightAuthor tool that makes building video walls simple in any size and layout

• Supports the use of separate videos per display or stretches a single video across all the displays
• Builds video walls by simply choosing the number of displays, specifying the configuration of the video wall and dragging the video(s) into BrightAuthor
• Utilizes the BrightSign Ethernet port and a common clock to achieve frame-accurate synchronization

Sign Preview

Get a sneak peek at how your signage will display

• Preview your presentation playback in BrightAuthor before publishing
• Speed up presentation authoring by reviewing the final look of your digital signage

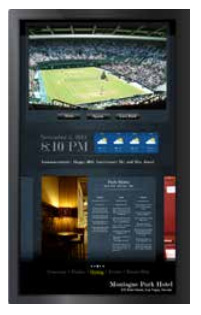

Zones

Multiply your content delivery with multi-zone layouts

• Playback multiple content files on a single screen with zones – even dual videos on BrightSign XD and 4K
• Abundant content support including Full HD video, images, HTML5, Live TV, audio, text tickers, Live Text, RSS feeds, date/time widgets and more!
• Control each zone with its own playlist
• Play video and audio independently from a single player
• Synchronize zones together and link to lighting and other displays to create an immersive experience

Interactivity

Engage your audience with interactive devices and controls

• Trigger playback from virtually any type of interactive device you can dream up!
• Touch screens, barcode scans, motion sensors, RFID, GPIO and USB button controls, IR remote controls, serial devices, keyboards, mice and more
• Easily create Interactive Playlists using the Free BrightAuthor PC software

Live Feeds

Link to virtually any live data and media feed available to display in your signage.

Live Text: Integrate these real-time text fields to your signage and instantly update messaging without republishing the presentation. Perfect for menu board pricing, waitlists, transportation schedules and more.

MRSS feeds: Keep your signage up to date by linking to and displaying popular news, finance, weather, sports feeds and more.

3rd party schedule and data feeds: Connect to virtually any database to display up to the minute details. Perfect for flight timetables, event schedules, corporate statistics, etc.

Twitter & Flickr feeds: Link to social media feeds such as twitter and Flickr to keep your signage relevant and fresh.

UDP Control

Remotely control and interact with your digital signs via Ethernet or wirelessly

• Interact with signage via mobile devices to download coupons or learn more about products
• Deliver emergency messaging by controlling digital signage remotely
• Integrate with databases to view inventory, statistics, pricing or any array of content
• Show controlling is made easy with UDP and serial controls to power and manage media playback, control AV devices such as projectors, lighting, etc. and integrate with other show controllers
• UDP controls can be sent via BrightSign’s Ethernet port or wirelessly

BrightSign App

Easily update messaging and interact with locally networked signage using your iPad or iPhone

• The BrightSign App offers a simple and secure interface on your iPad or iPhone to:
• Select any BrightSign player connected to a local network
• Easily update on-screen text and user variables immediately within the running presentation
• Trigger presentation events and change presentation content images and video playback via UDP commands
• Customize the app’s user interface to match your presentation
• Access the diagnostic facilities for each unit
• Secure your displays with a password
• This app is perfect for:
• Menu board updates
• Retail merchandising
• Emergency messaging
• And more!

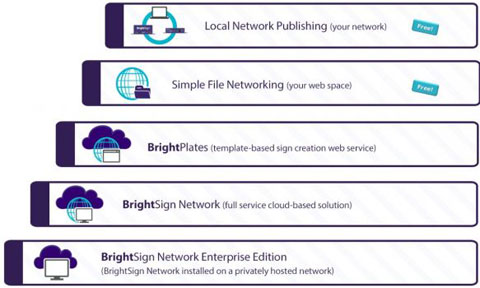

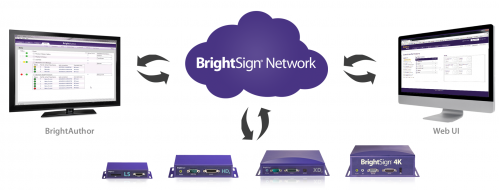

Networking

BrightSign offers a wide range of networking solutions to update content and easily manage your digital signs remotely

• Local Network Publishing: Free solution designed for small networks to distribute presentations and updates to BrightSign units within a single building using a LAN (local area network)
• Simple File Networking: Free solution designed for small networks to distribute presentations to BrightSign units through a web folder
• BrightPlates: Online template-based sign creation and cloud-publishing service for turnkey deployment of signage presentations
• BrightSign Network: Secure, scalable and affordable cloud-based digital sign network service offering:
• Secure cloud-based subscription service delivering the complete infrastructure to serve, manage and support your digital sign network
• Scalable to any size network allowing you to manage an unlimited number of BrightSign players on a single account
• Frees you from the complexities of hosting and maintaining your own network
• PCI-compliant service offering a complete set of tools to easily manage your network
• Flexible, free remote account access via desktop-based BrightAuthor PC-based software and browser-based Web UI on any PC or Mac
• Includes BrightPlates™
• BrightSign Network Enterprise Edition: An installable software version of BrightSign Network allowing you to host your own network with access to all of BrightSign Network's features
