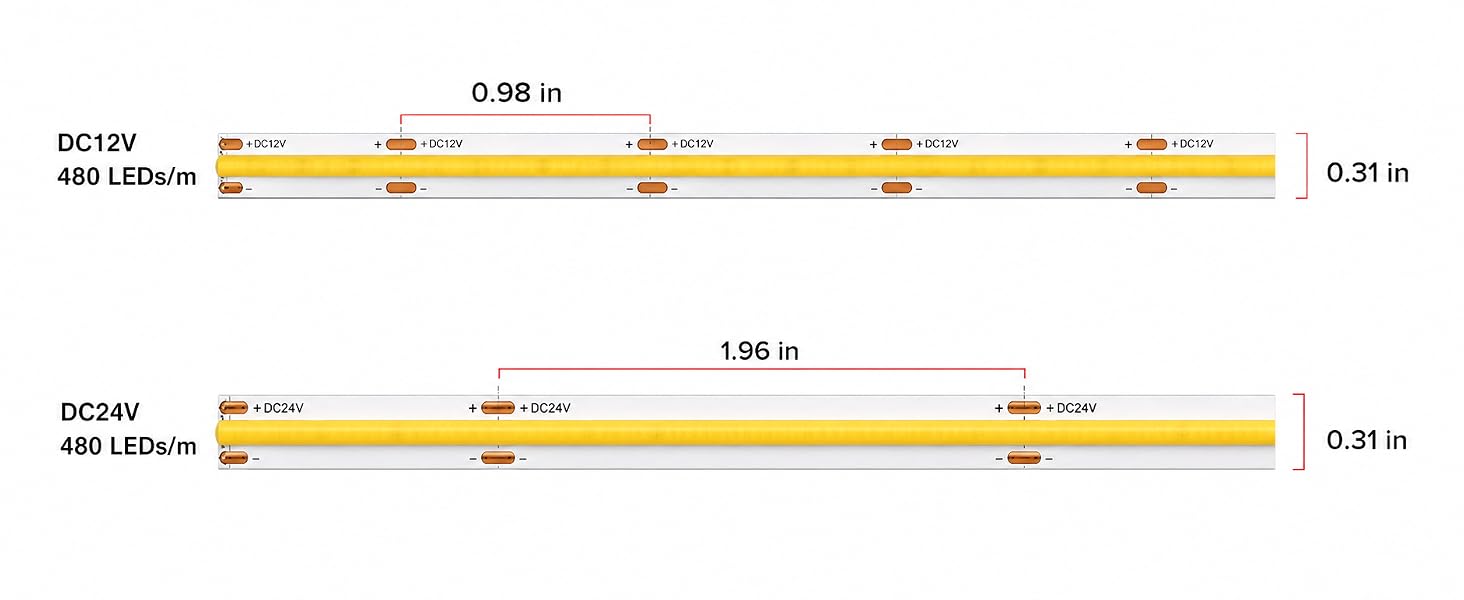

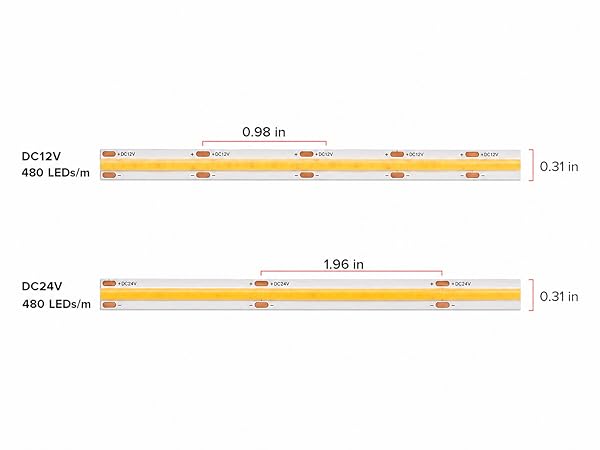

Distance Between Cutting Points, LED Strip Width

Parameter Table

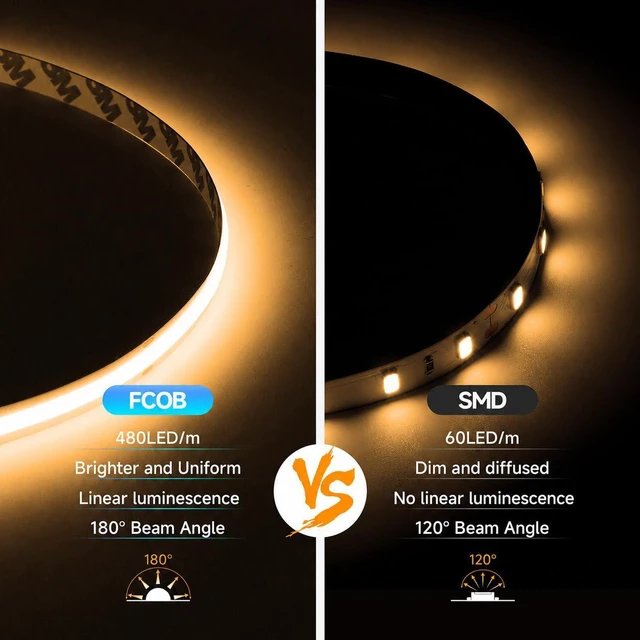

FCOB LED Strip
Flip Chip On Board Technology
Brighter and More Uniform Light

Distance Between Cutting Points, LED Strip Width

Parameter Table
| LED Type | FCOB Flexible Chip On Board LED Strip |
|---|---|
| Input Voltage | DC12V/DC24V |
| LED Quantity | 480LEDs/m |
| LED Strip Width | 8mm |
| Color Rendering Index | CRI>90 |
| Waterproof level | IP30 Non-waterproof |
| Color temperature | Warm White(2700K) |
| Operation temperature | -4?~113?(-20?~+45? ) |
| Storage temperature | -4?~140?(-20?~+60? ) |

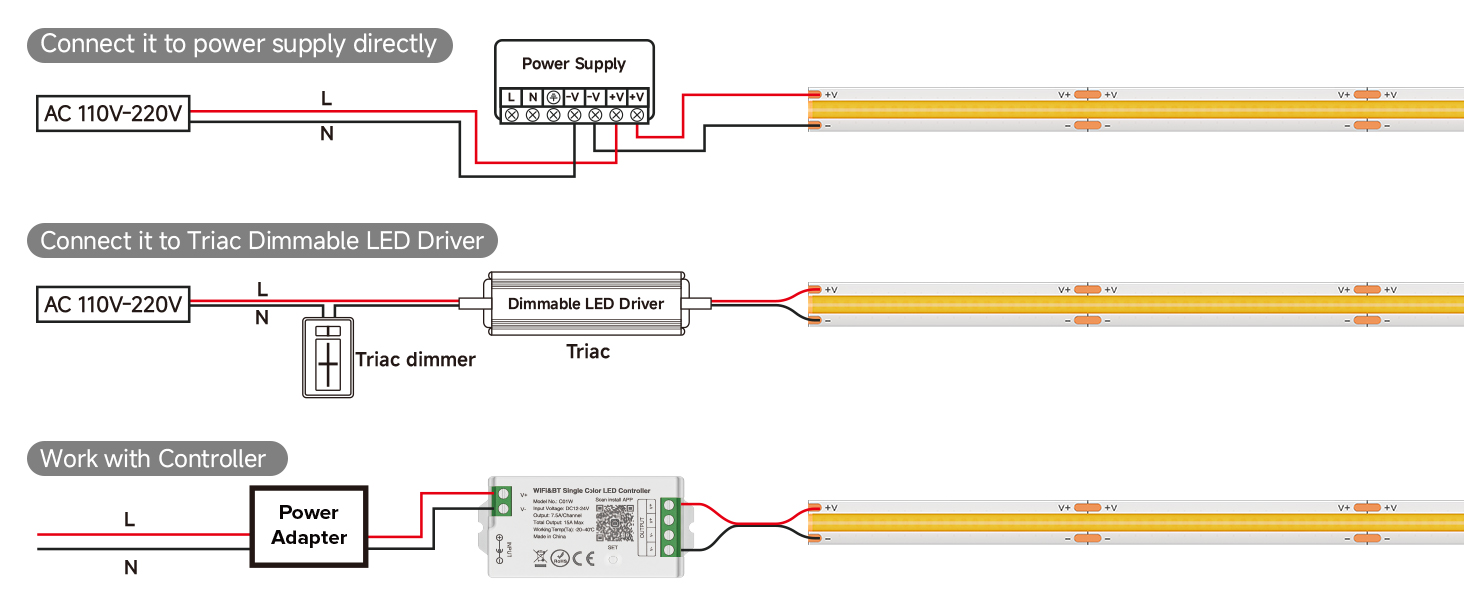

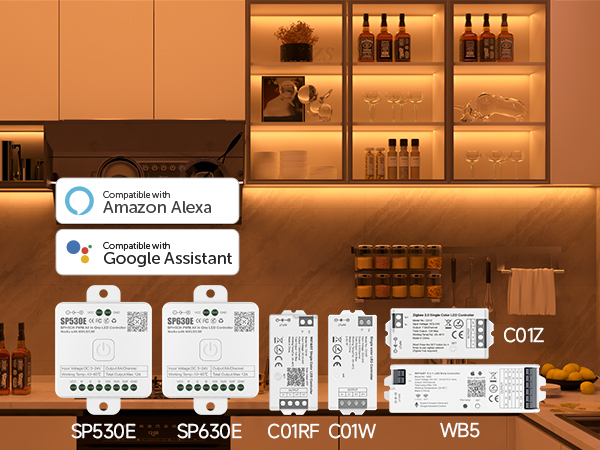

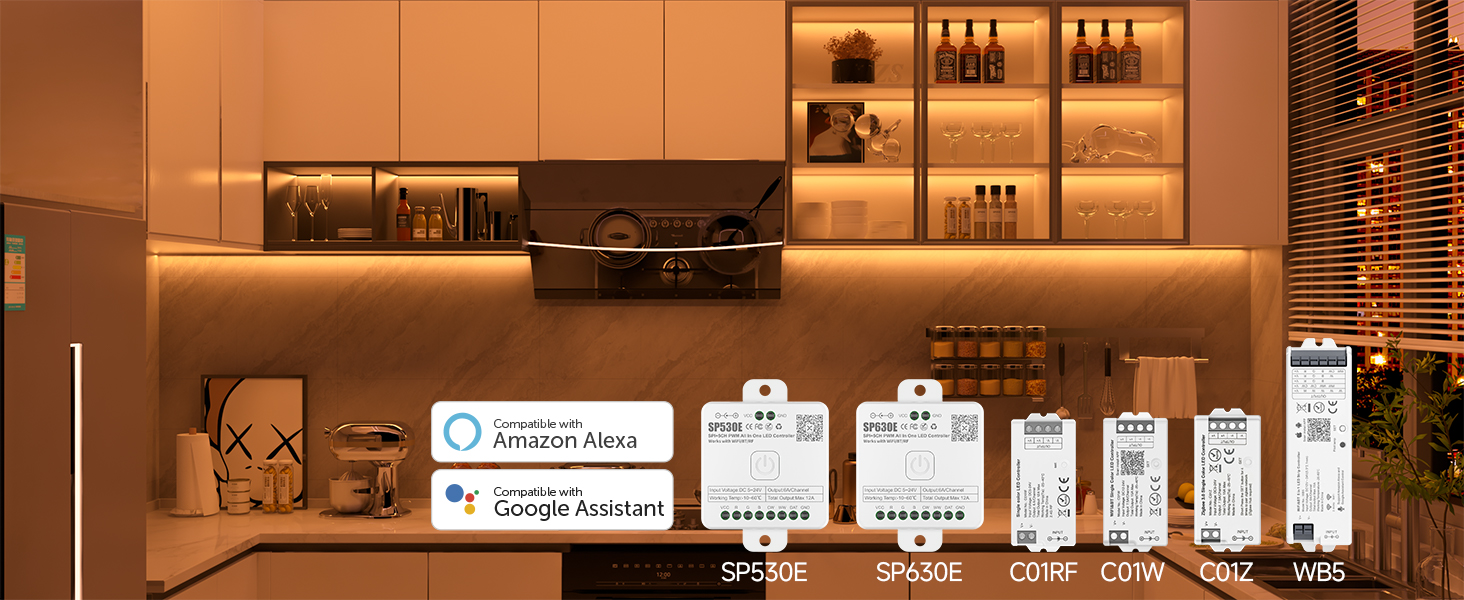

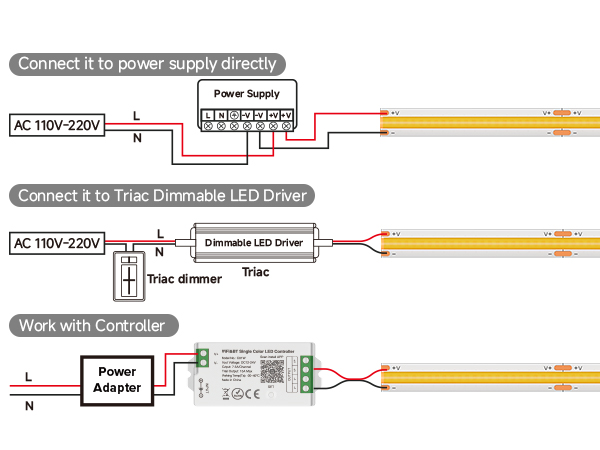

| Three ways of working | 1. Connect the power directly 2. Connect it to Dimmable LED Driver 3. Compatible with a dimmer controller- RF remote ,Bluetooth ,WiFi, Alexa ,Google Home ,Zigbee 3.0 |
| 480LEDs/m Luminous efficacy | 3000K:80-100LM/Watt; 4000K :90-110LM/Watt; 5000K :95-115LM/Watt; 6000K :95-120LM/Watt |
| Dimensions of DC Plug | 5.5mmx2.1mm |
| wattage | 9W/m |
| Double-Sided Tape | 3M Tape (Strong Adhesion) |

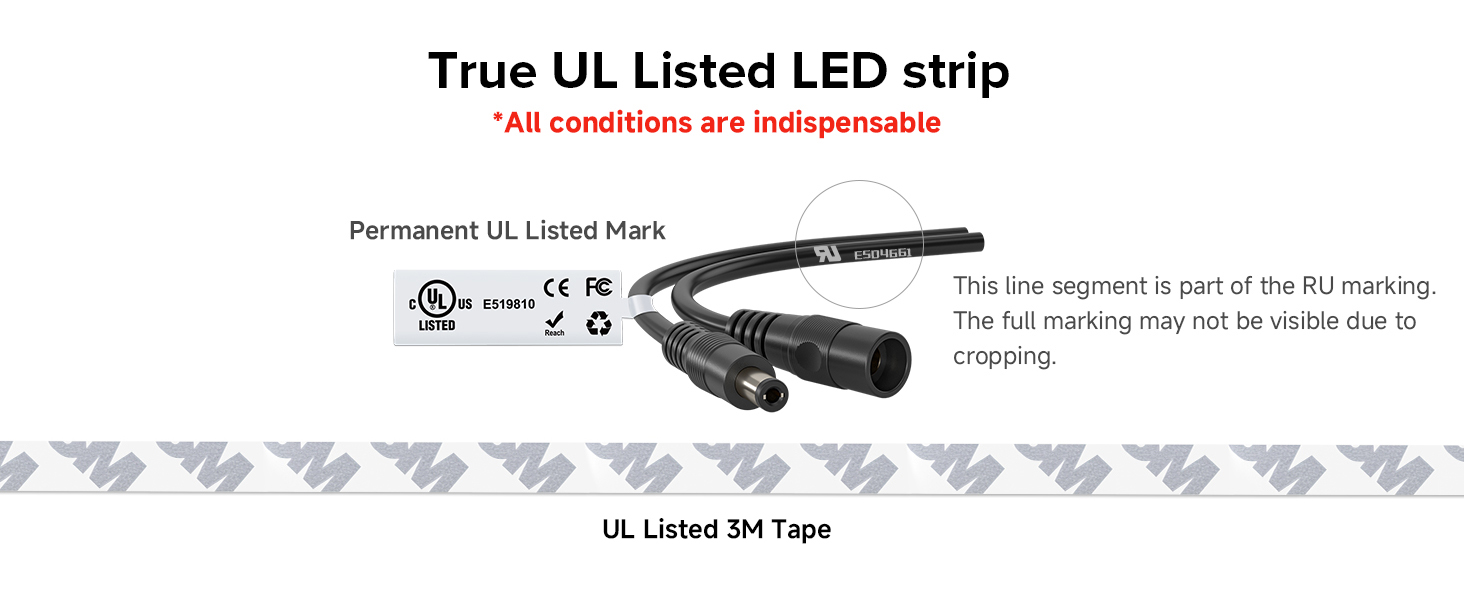

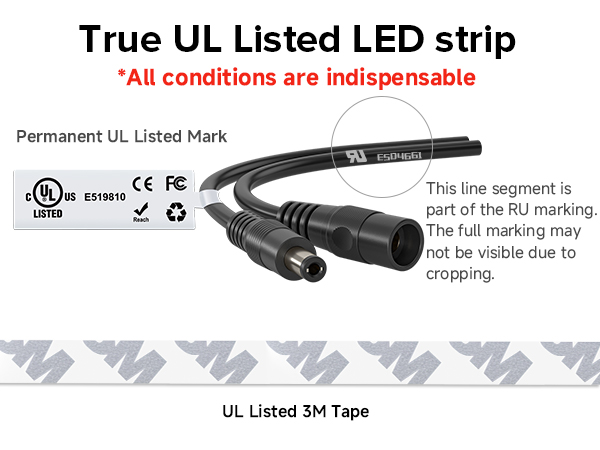

| UL Listed | YES (Safe to Use) |
FCOB LED Strip
Flip Chip On Board Technology
Brighter and More Uniform Light
