Parameters

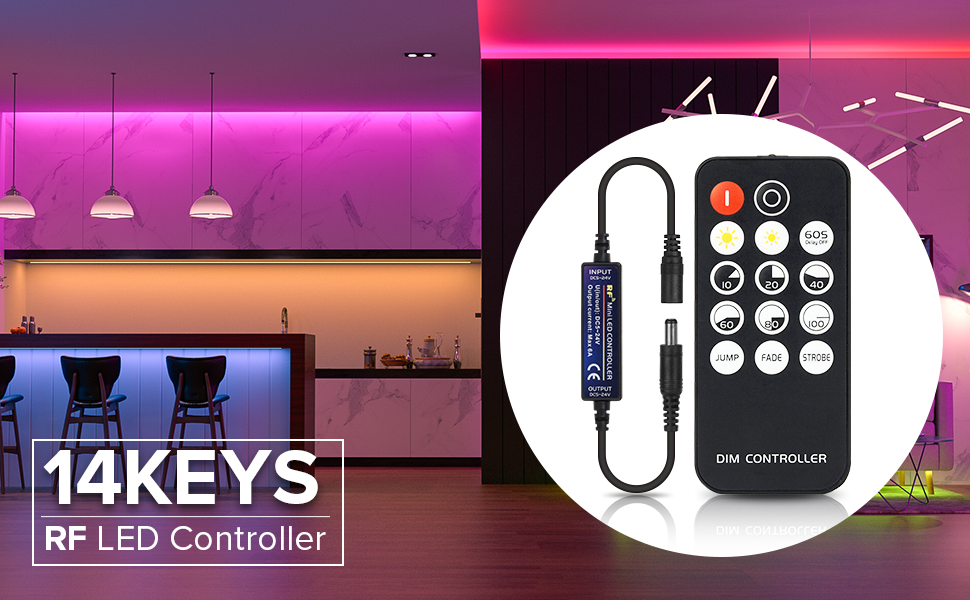

- Product name:RF dimmer 14 keys controller
- Working temperature:-20-60?
- Input voltage:DC5V/DC12V/DC24V
- Connection mode:Common anode
- Static power consumption:<0.5W
- Output current:<2A/CH max:3A
- Output power: Max: 5V:<30W,12V:<72W, 24V:<144W

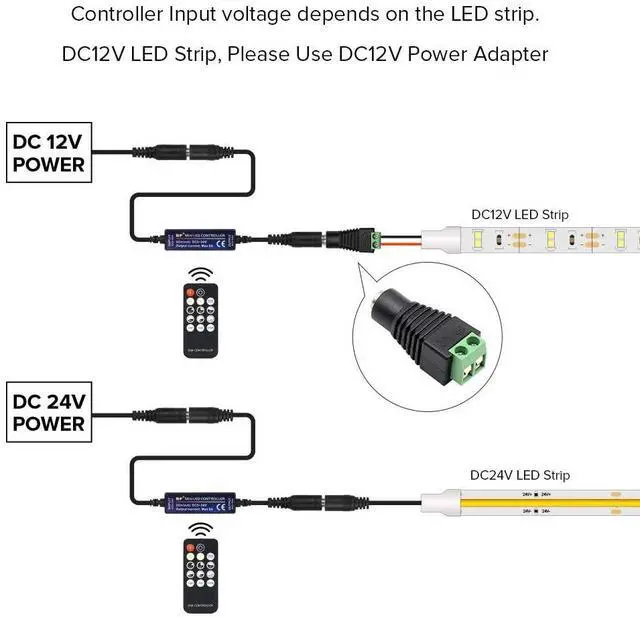

Please note: Voltage Depends on LED strip . DC12V LED strip , use DC12V Power supply. The choice of this power supply depends on the LED strip you are using.If your power supply is insufficient to power the LED strip you are using, it will cause your LED strip to flicker. Please ensure that the power supply you are using is sufficient to power the LED strip.

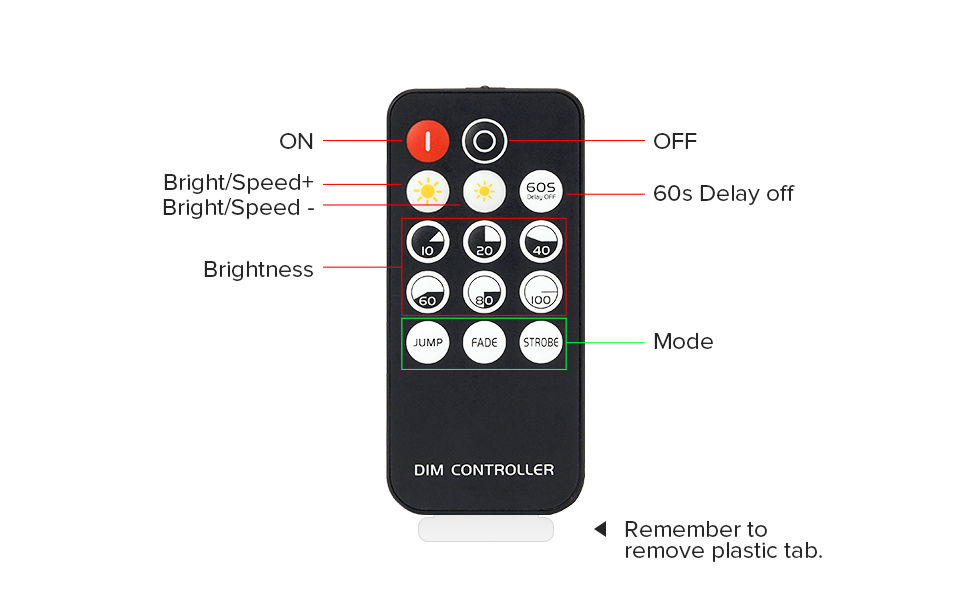

Mode List
-Mode 1:Jump
-Mode 2:Fade
-Mode 3:Strobe
-You can quickly choose the brightness of the light according to your needs.

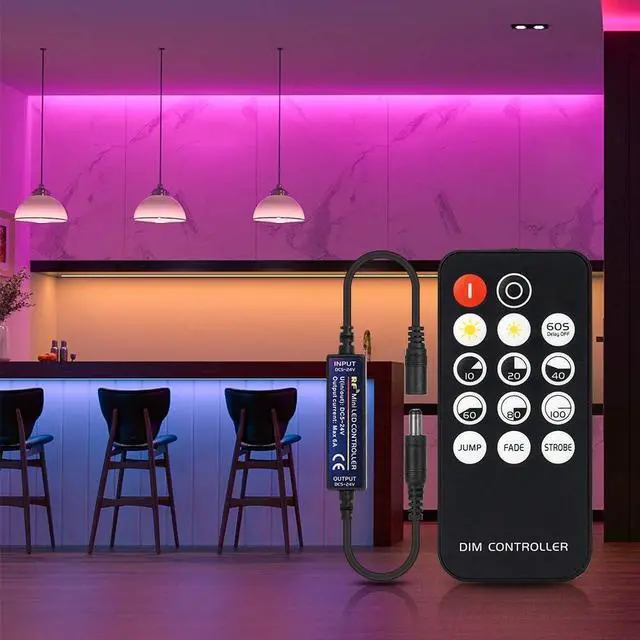

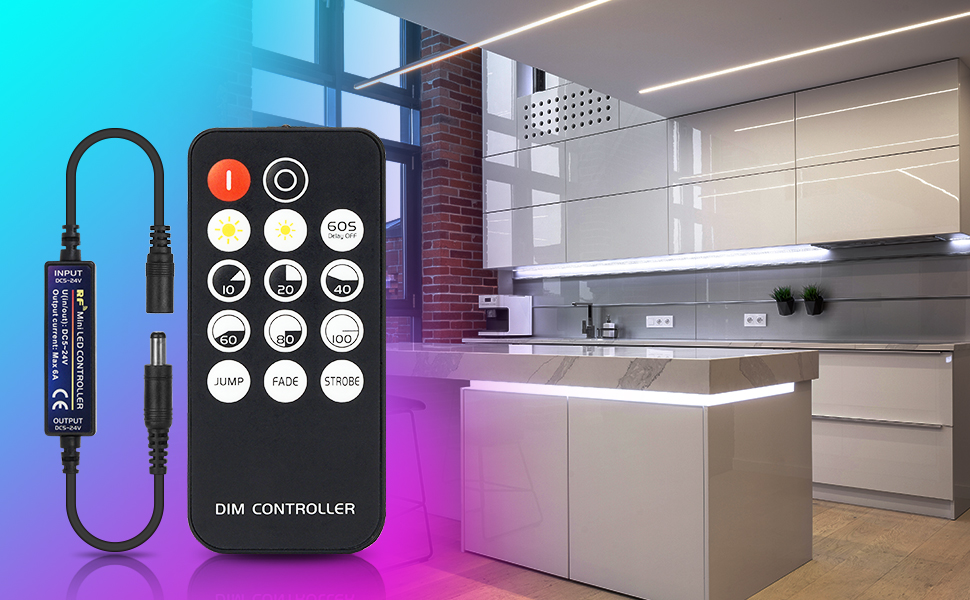

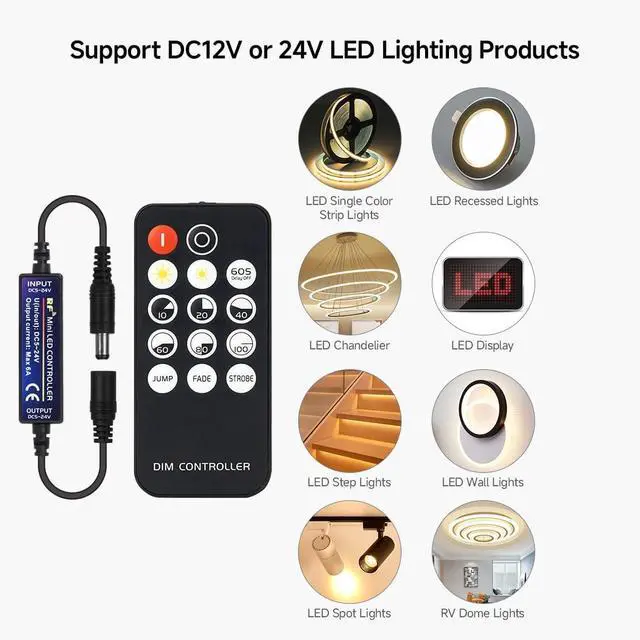

It can be widely used in TV background walls, bedside tables, bar counters and other applications.

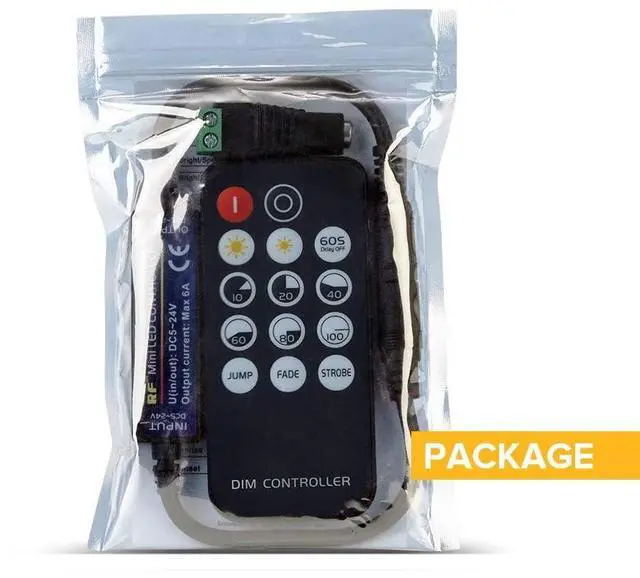

Package includes:

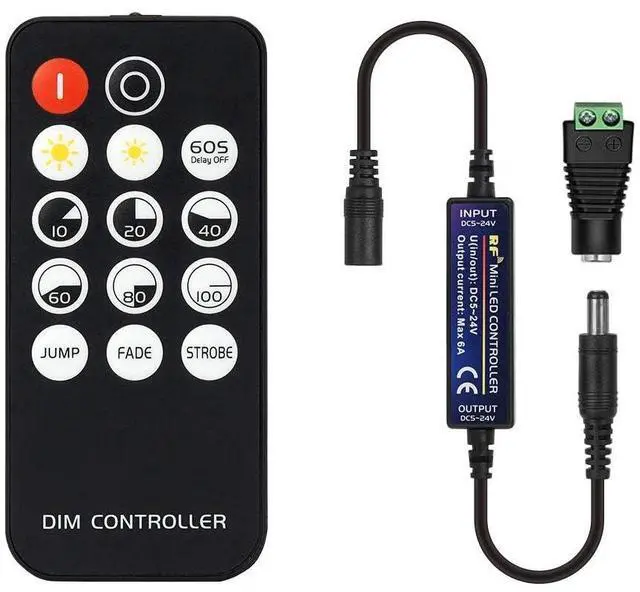

- 1* dimmer controller,1*connector,1*DC connector
(Note: power supply/mobile/controller/led strip are not included!)
Note:

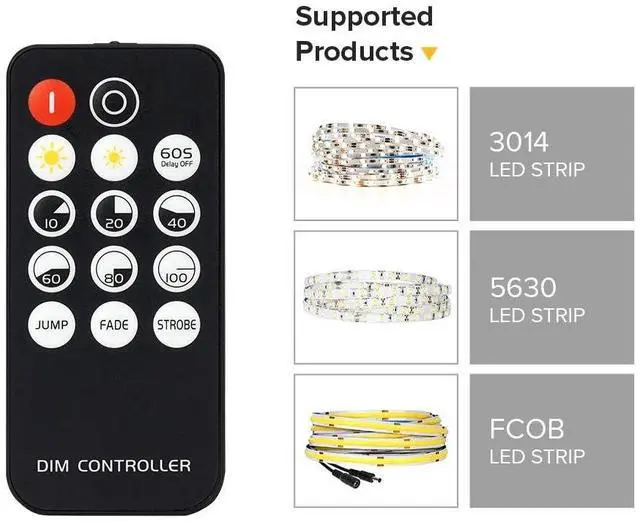

- Only for Monochrome LED strip.

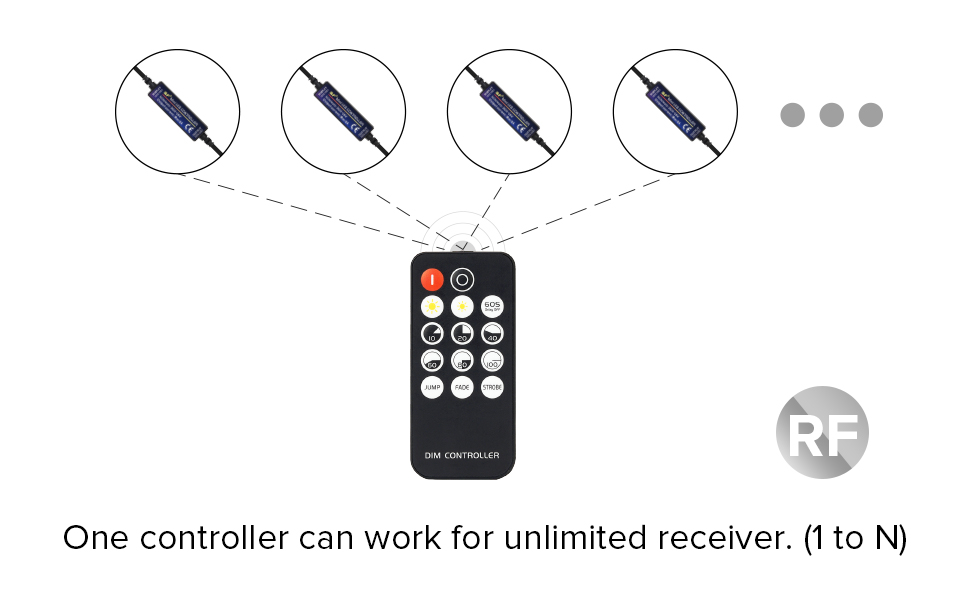

The controller and receiver in the same package have been successfully coded before leaving the factory; if you need to control two or more receivers, you need to perform the following operations.

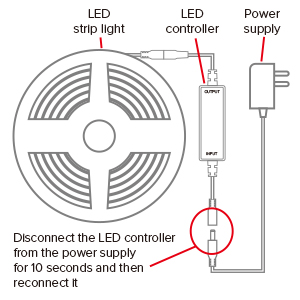

1.Disconnect the receiver and power supply, then reconnect the power supply

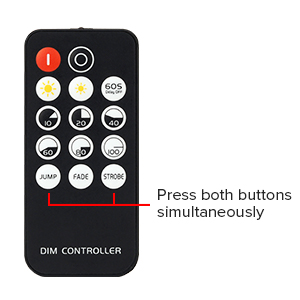

2.Press the JUMP and STROBE buttons simultaneously for 2~3 seconds.
3.The strip light blinks, it means that the code is successfully matched(Note: The RF remote is not decodable after matching on the receiver.)
Parameters
- Product name:RF dimmer 14 keys controller
- Working temperature:-20-60?
- Input voltage:DC5V/DC12V/DC24V
- Connection mode:Common anode
- Static power consumption:<0.5W
- Output current:<2A/CH max:3A
- Output power: Max: 5V:<30W,12V:<72W, 24V:<144W
Please note: Voltage Depends on LED strip . DC12V LED strip , use DC12V Power supply. The choice of this power supply depends on the LED strip you are using.If your power supply is insufficient to power the LED strip you are using, it will cause your LED strip to flicker. Please ensure that the power supply you are using is sufficient to power the LED strip.
Mode List
-Mode 1:Jump
-Mode 2:Fade
-Mode 3:Strobe
-You can quickly choose the brightness of the light according to your needs.
It can be widely used in TV background walls, bedside tables, bar counters and other applications.
Package includes:
- 1* dimmer controller,1*connector,1*DC connector
(Note: power supply/mobile/controller/led strip are not included!)
Note:
- Only for Monochrome LED strip.
The controller and receiver in the same package have been successfully coded before leaving the factory; if you need to control two or more receivers, you need to perform the following operations.
1.Disconnect the receiver and power supply, then reconnect the power supply
2.Press the JUMP and STROBE buttons simultaneously for 2~3 seconds.
3.The strip light blinks, it means that the code is successfully matched(Note: The RF remote is not decodable after matching on the receiver.)
