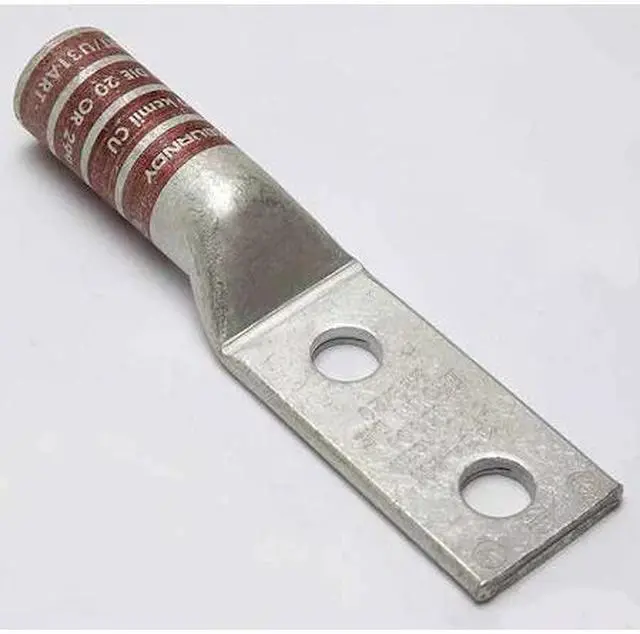

Main image of NEMA CU Lug, 2 Hole, 500 kcmil

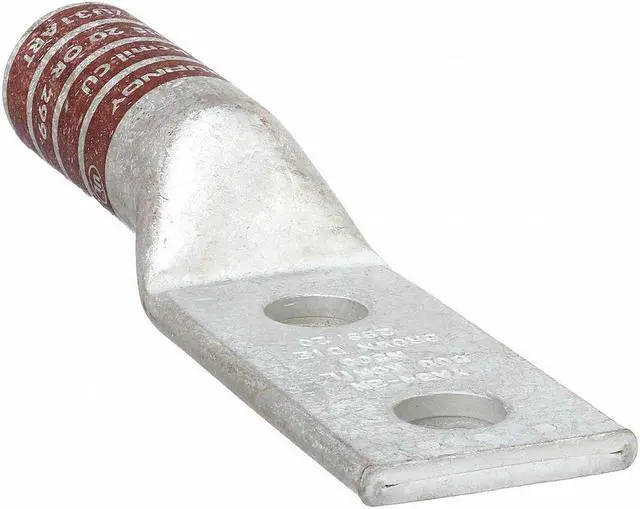

Alt view image 2 of 2 - NEMA CU Lug, 2 Hole, 500 kcmil

Shop All Burndy Products | Visit Zoro Store

NEMA CU Lug, 2 Hole, 500 kcmil

Commercial
Copper

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Compression Lug, Barrel Size Long, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2.
