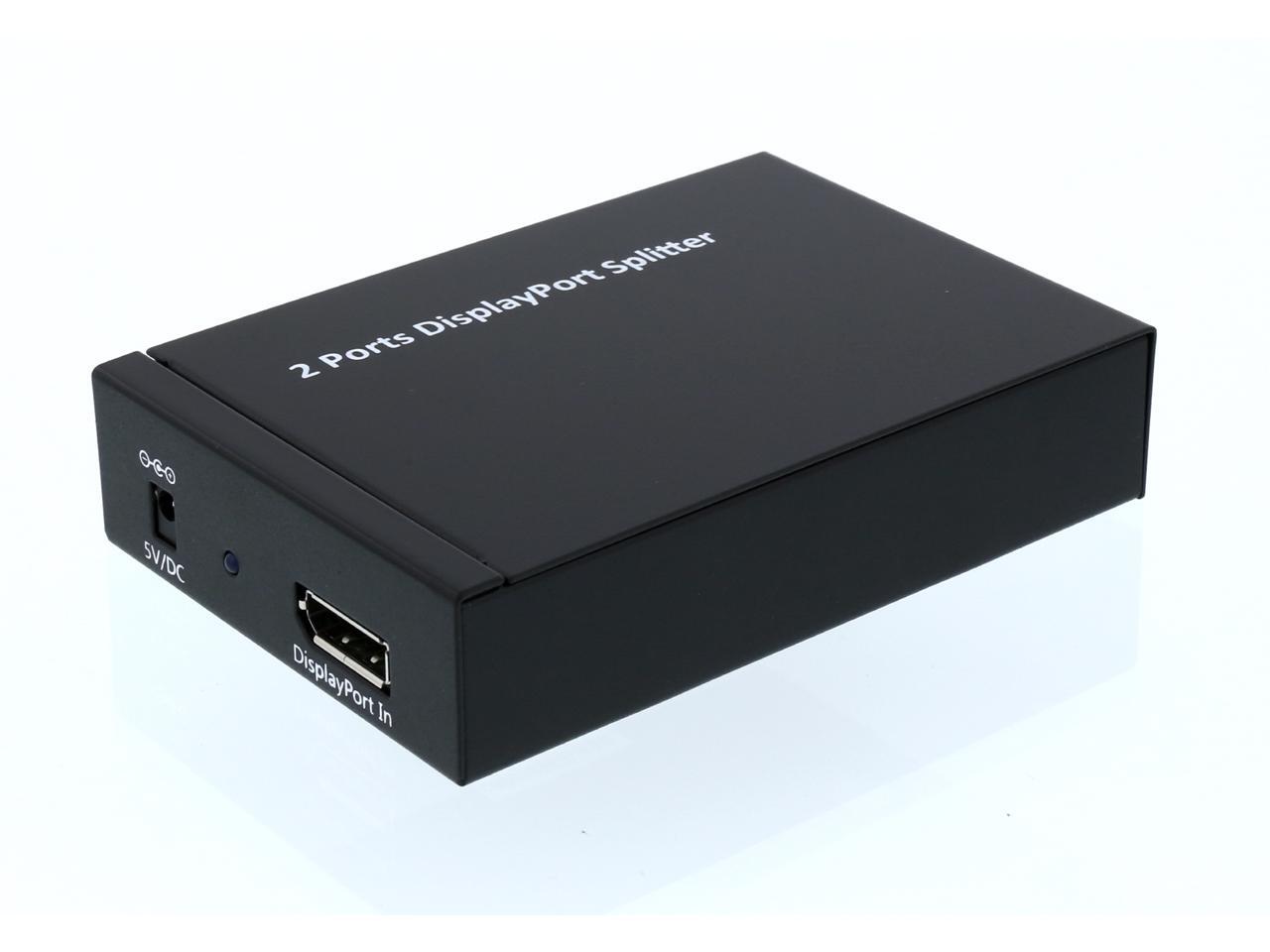

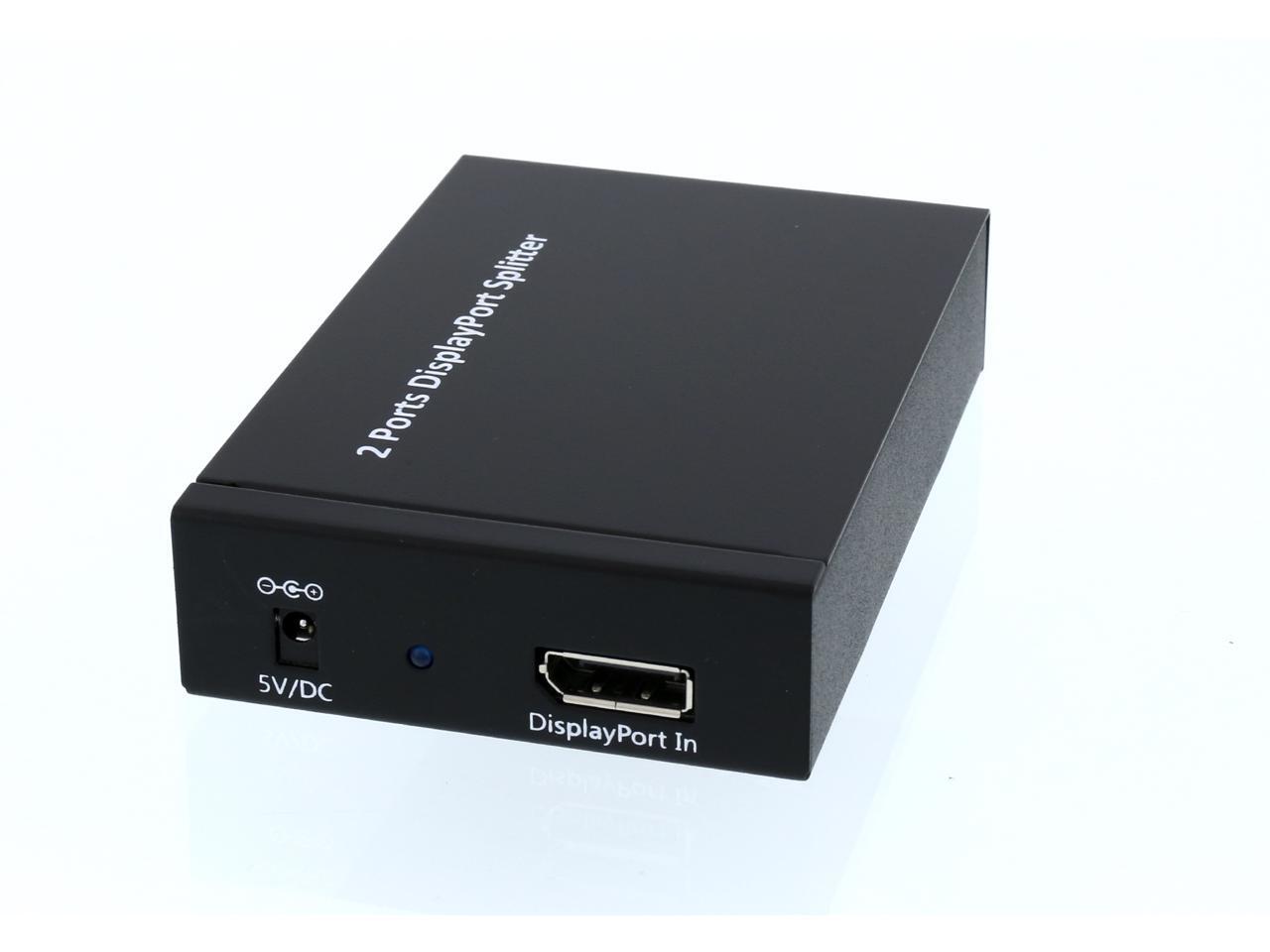

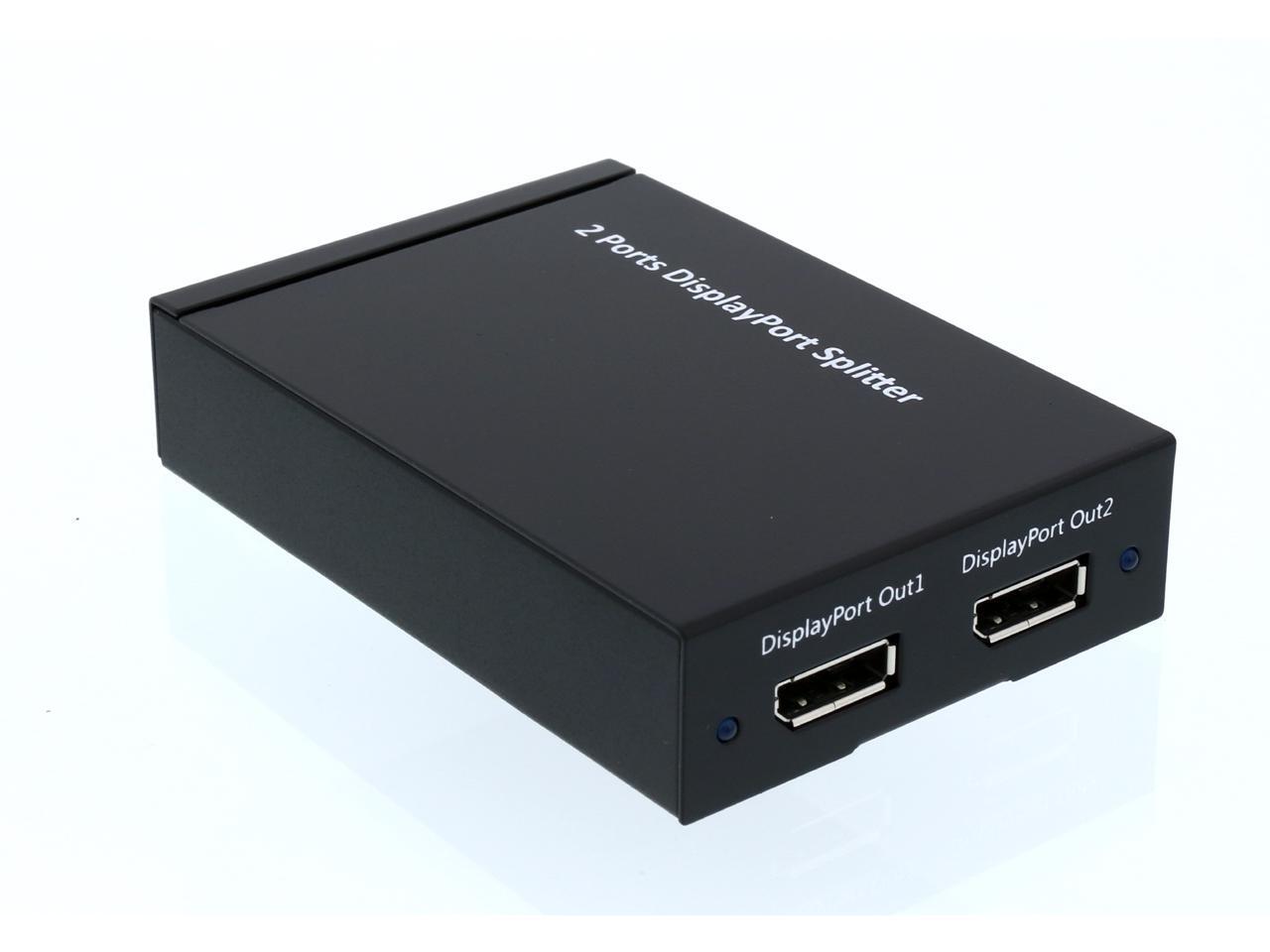

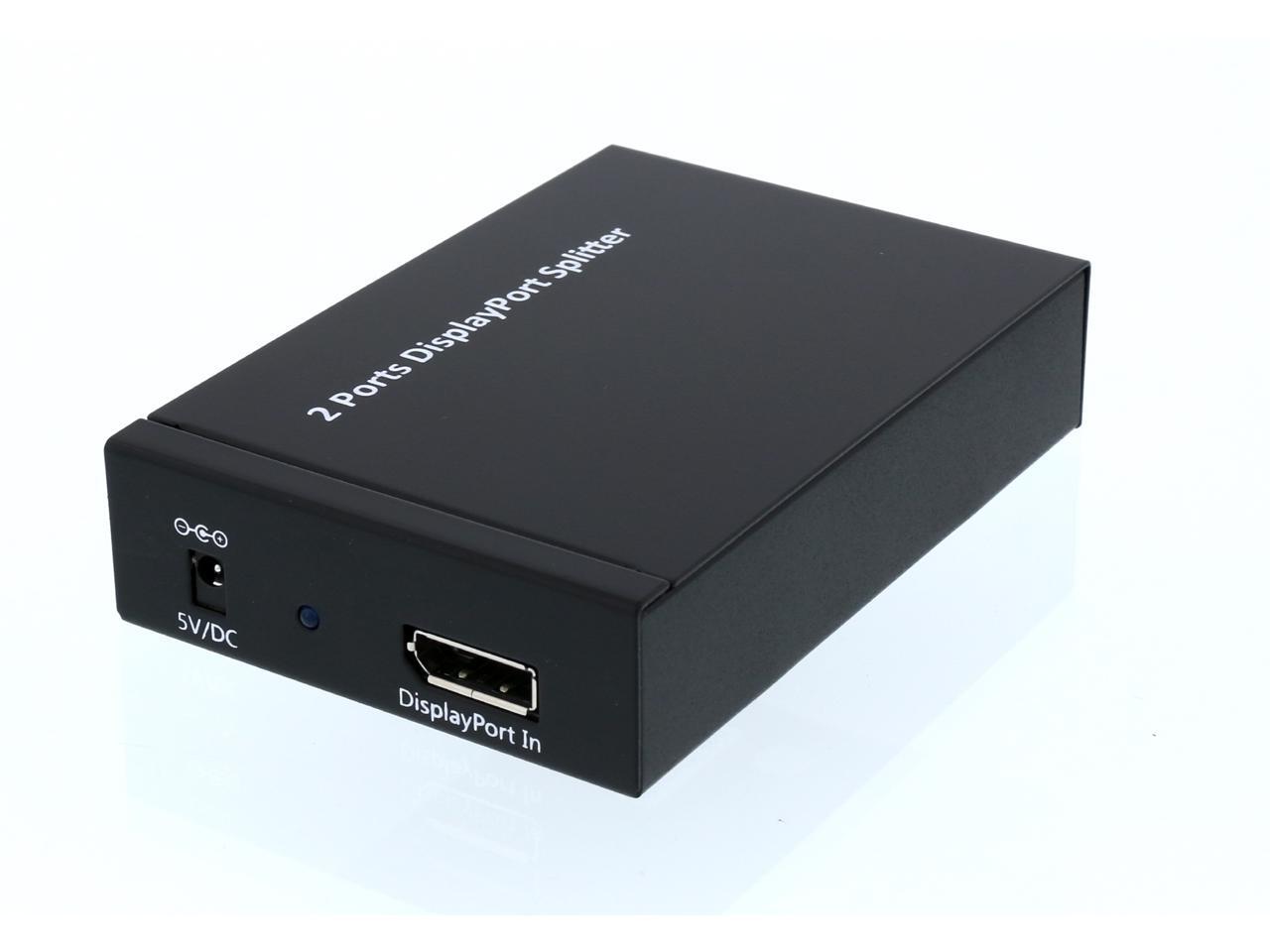

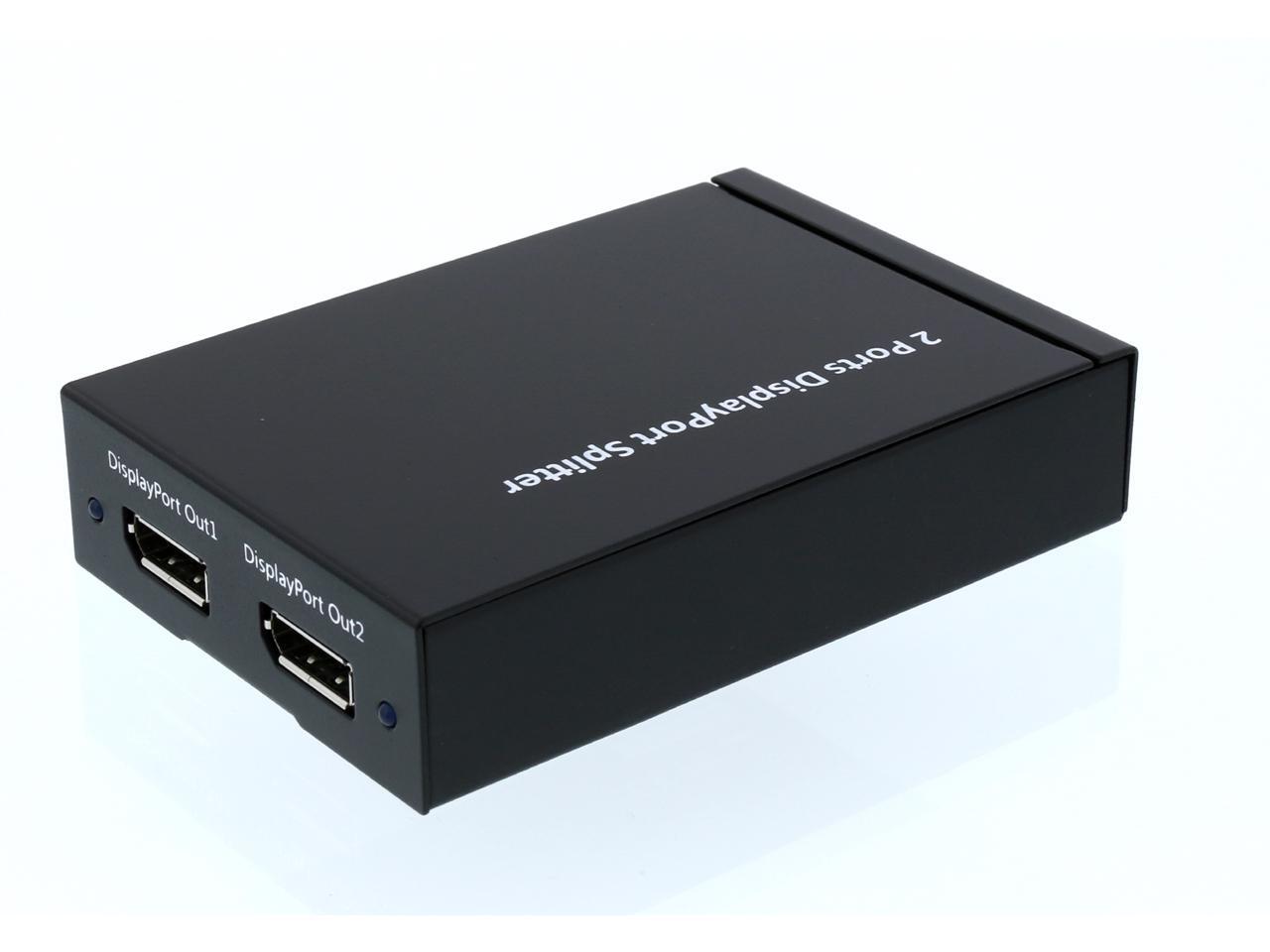

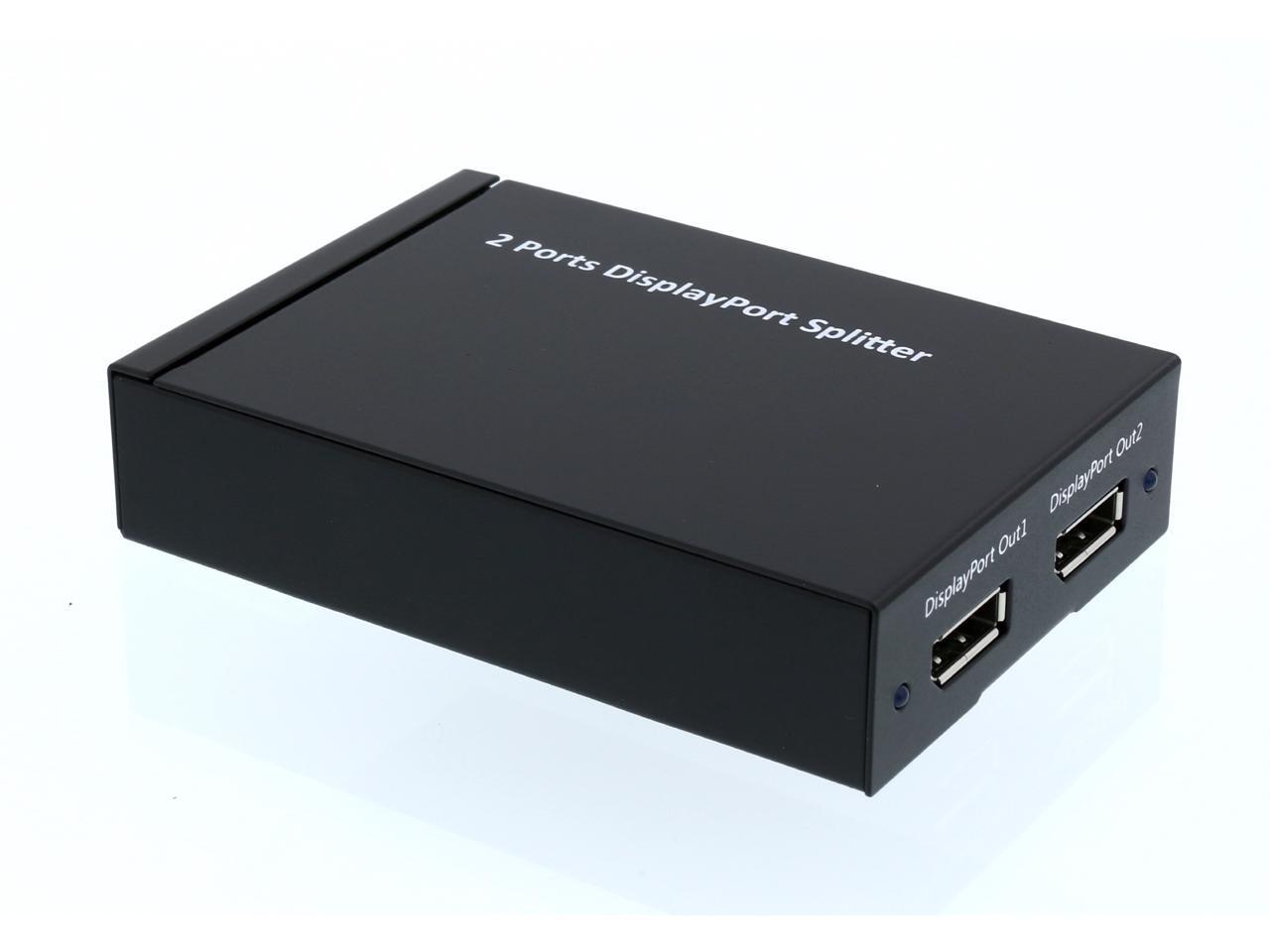

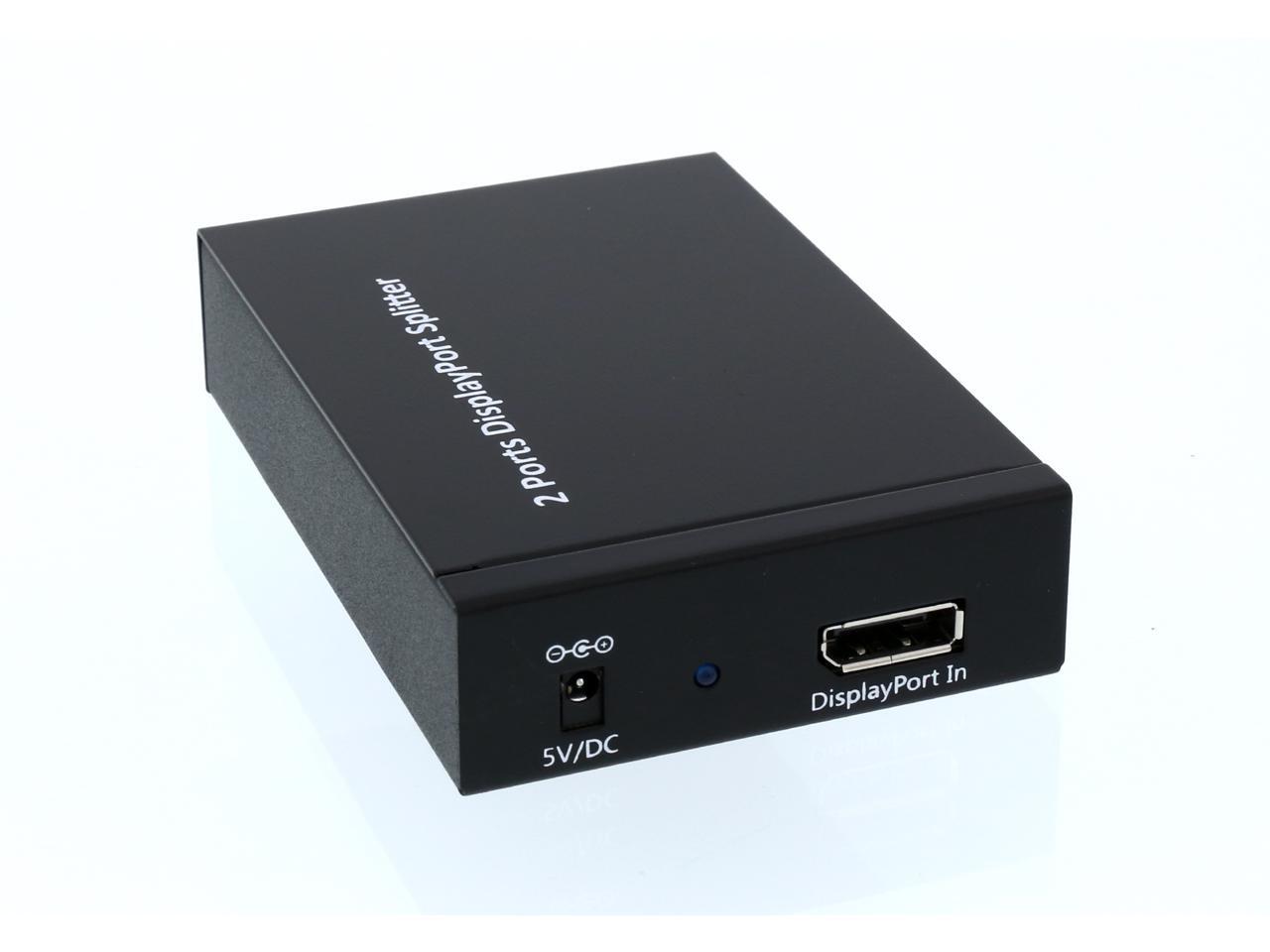

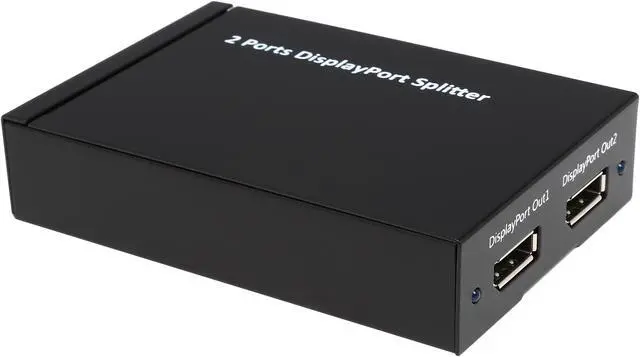

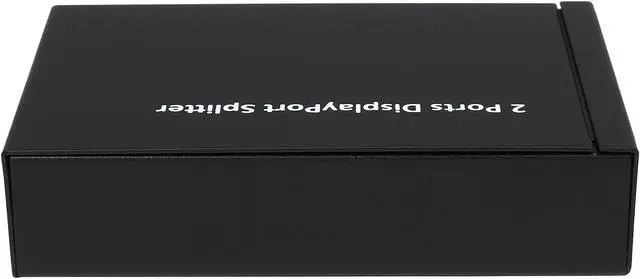

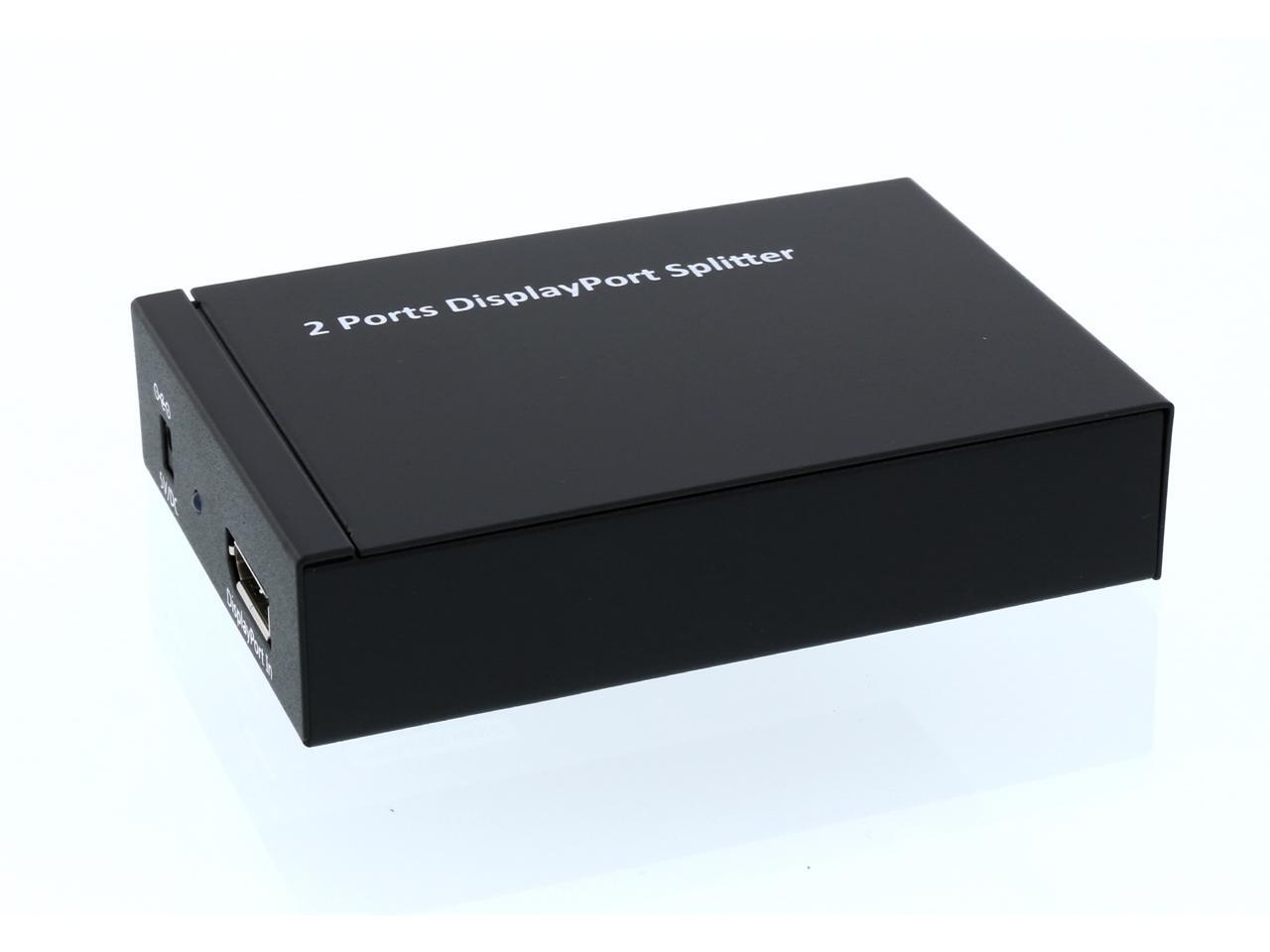

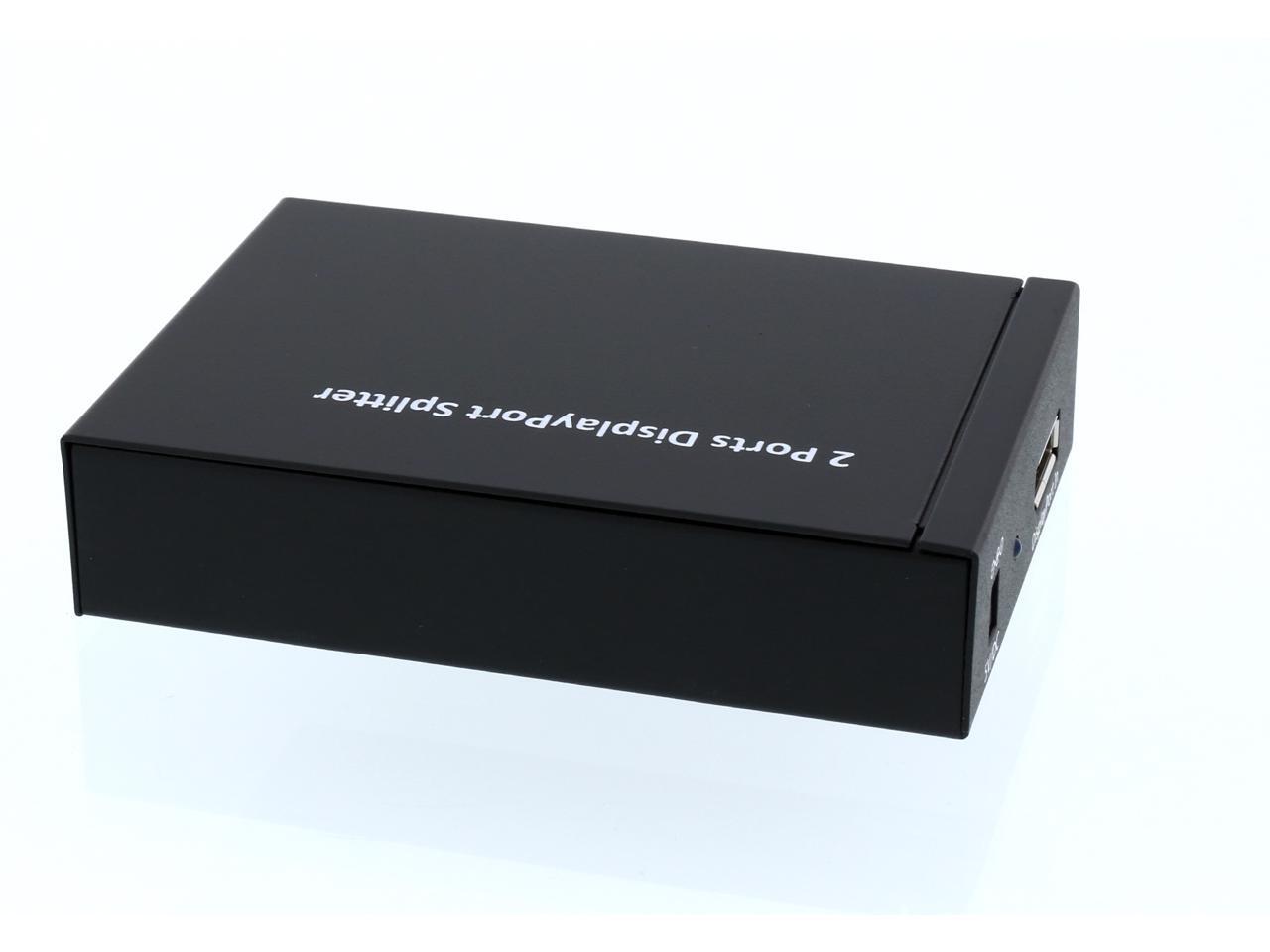

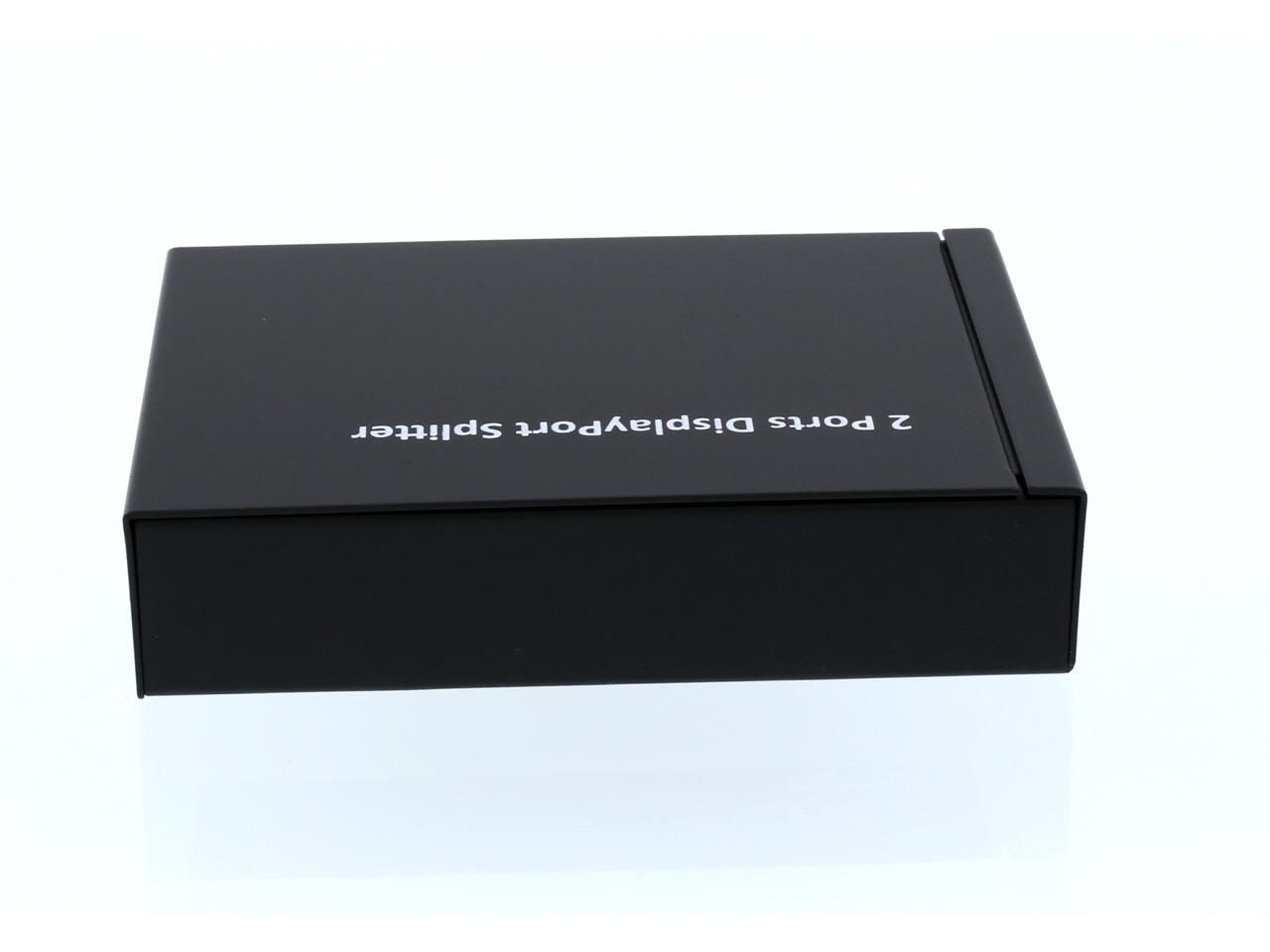

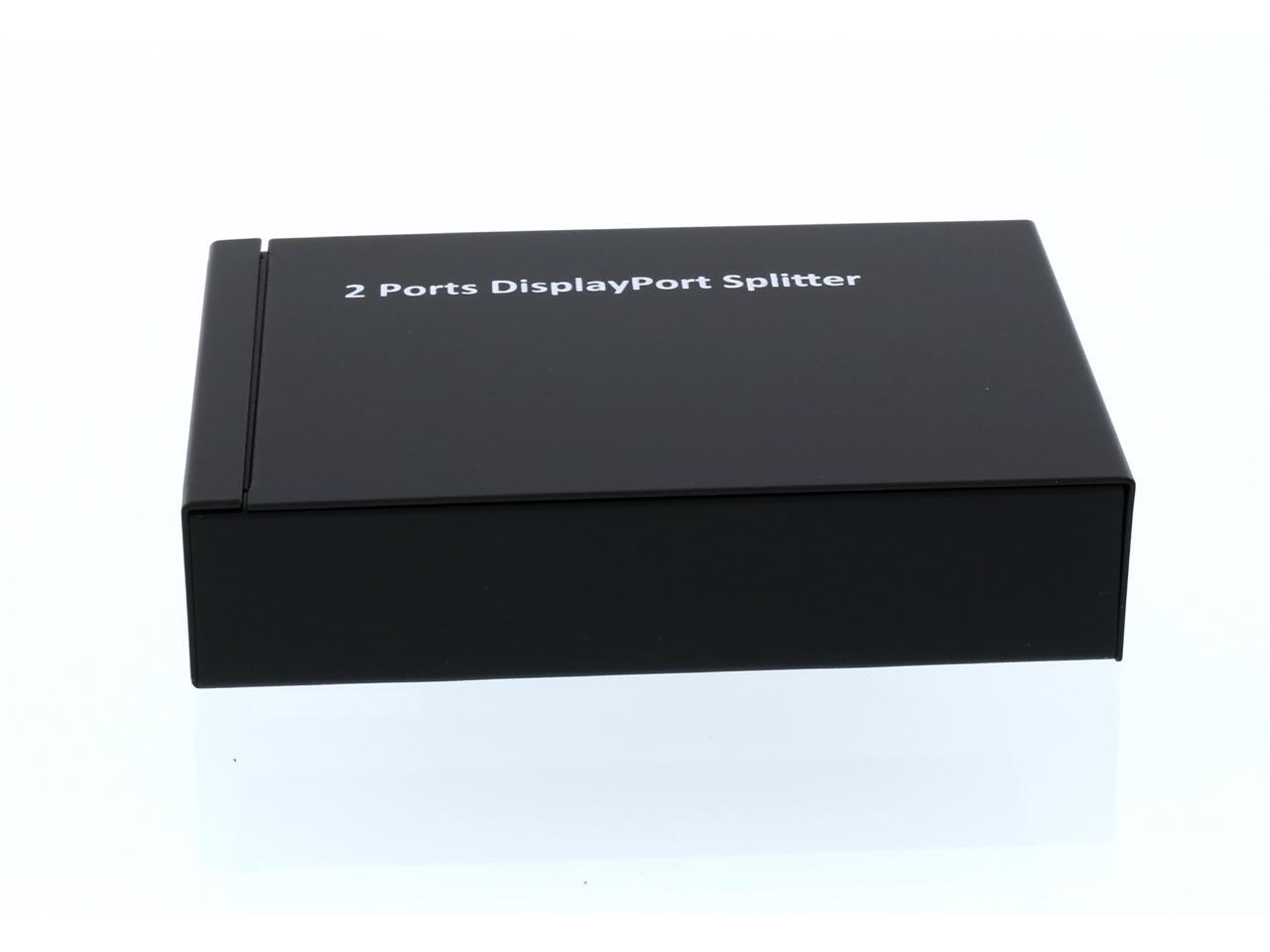

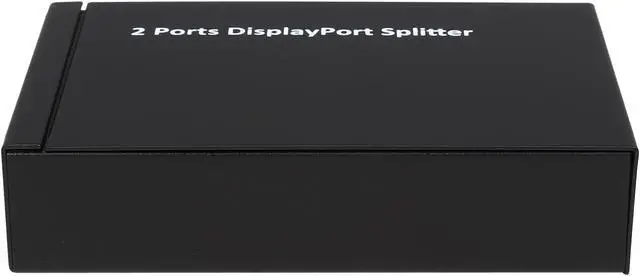

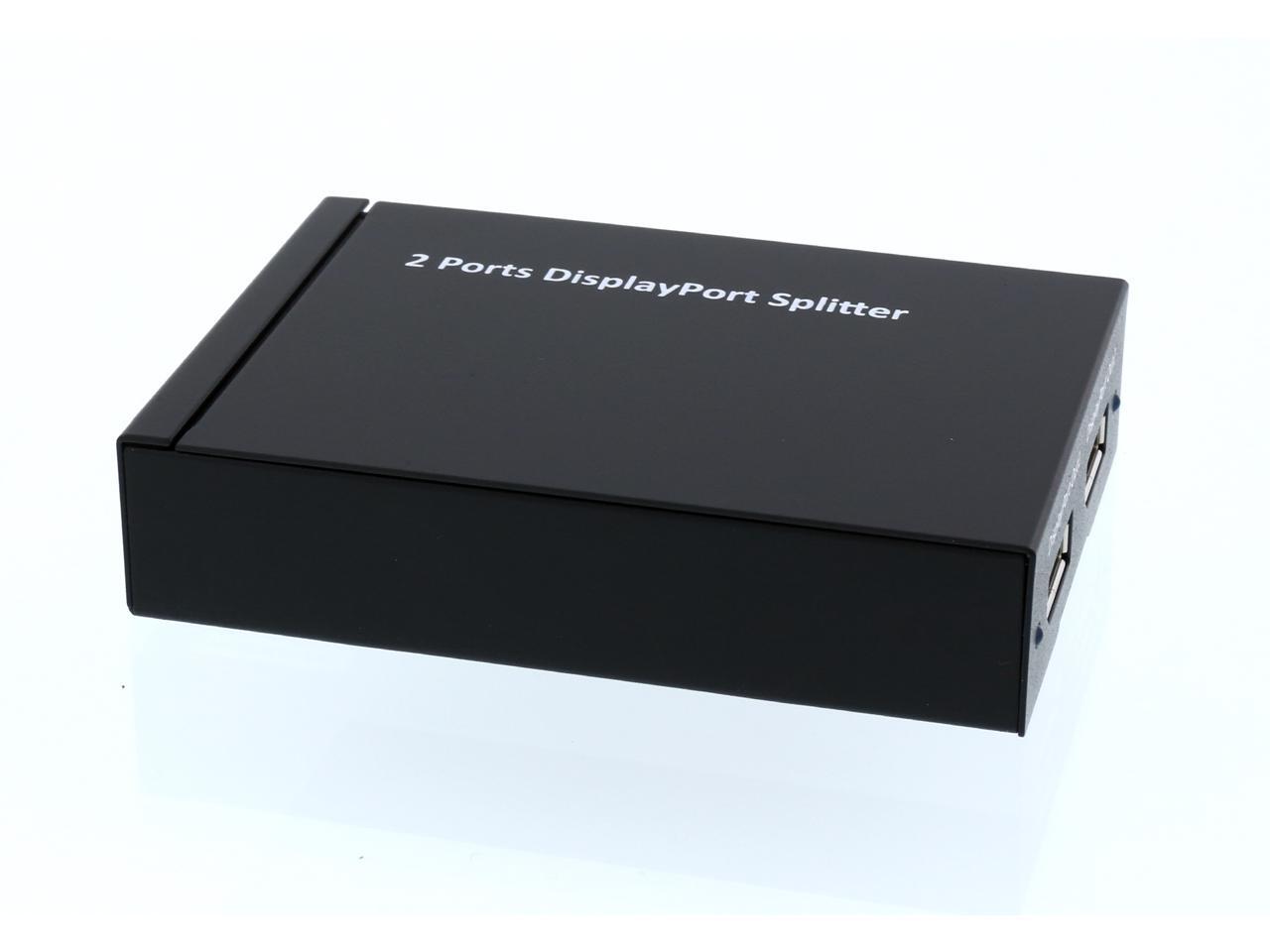

BYTECC DPSP102 1X2 DisplayPort Splitter Support 4K 2K 3D Formats

(2) Write a Review
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the BYTECC INC DPSP102

Model
Brand BYTECC
Model DPSP102
Details
Color Black
Specifications Audio Sampling Rate: 192kHz

Power Supply: 5V DC

Operating Temperature: 0°C~40°C / 32°F ~ 104°F

Storage temperature: -20°C~60°C / -4°F ~ 140°F

Relative Humidity: 20~90% RH (non-condensing)
Connectors

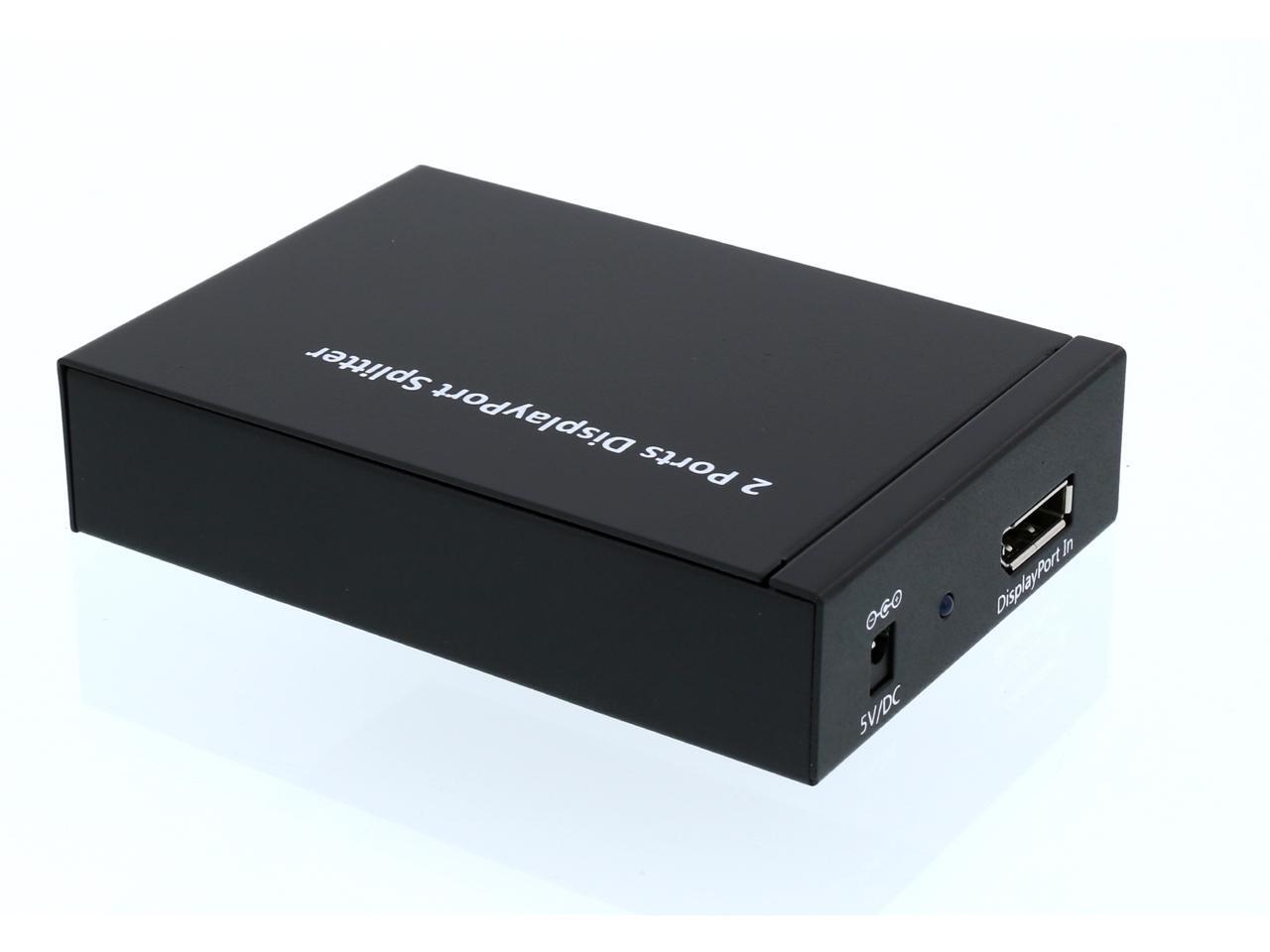

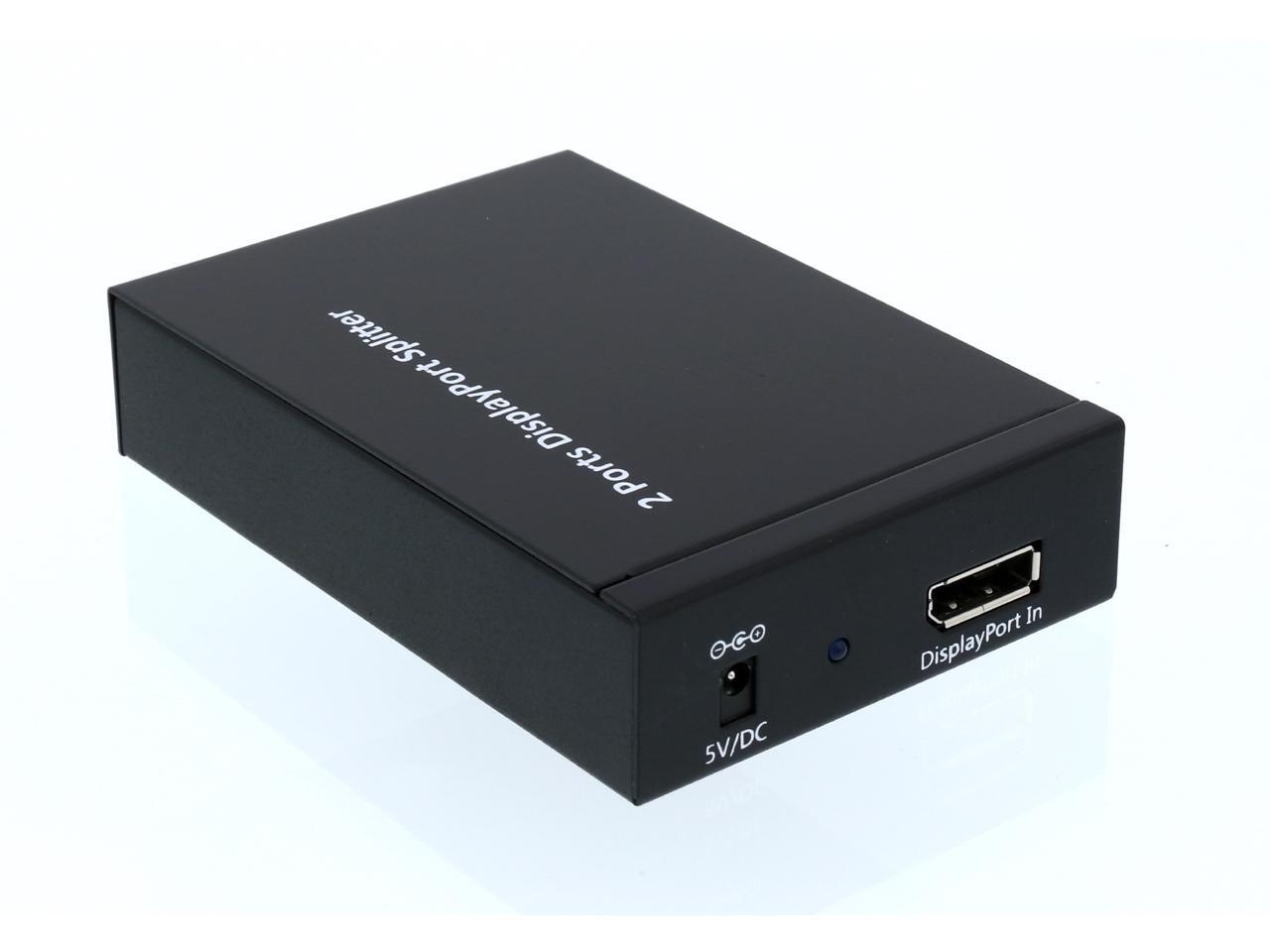

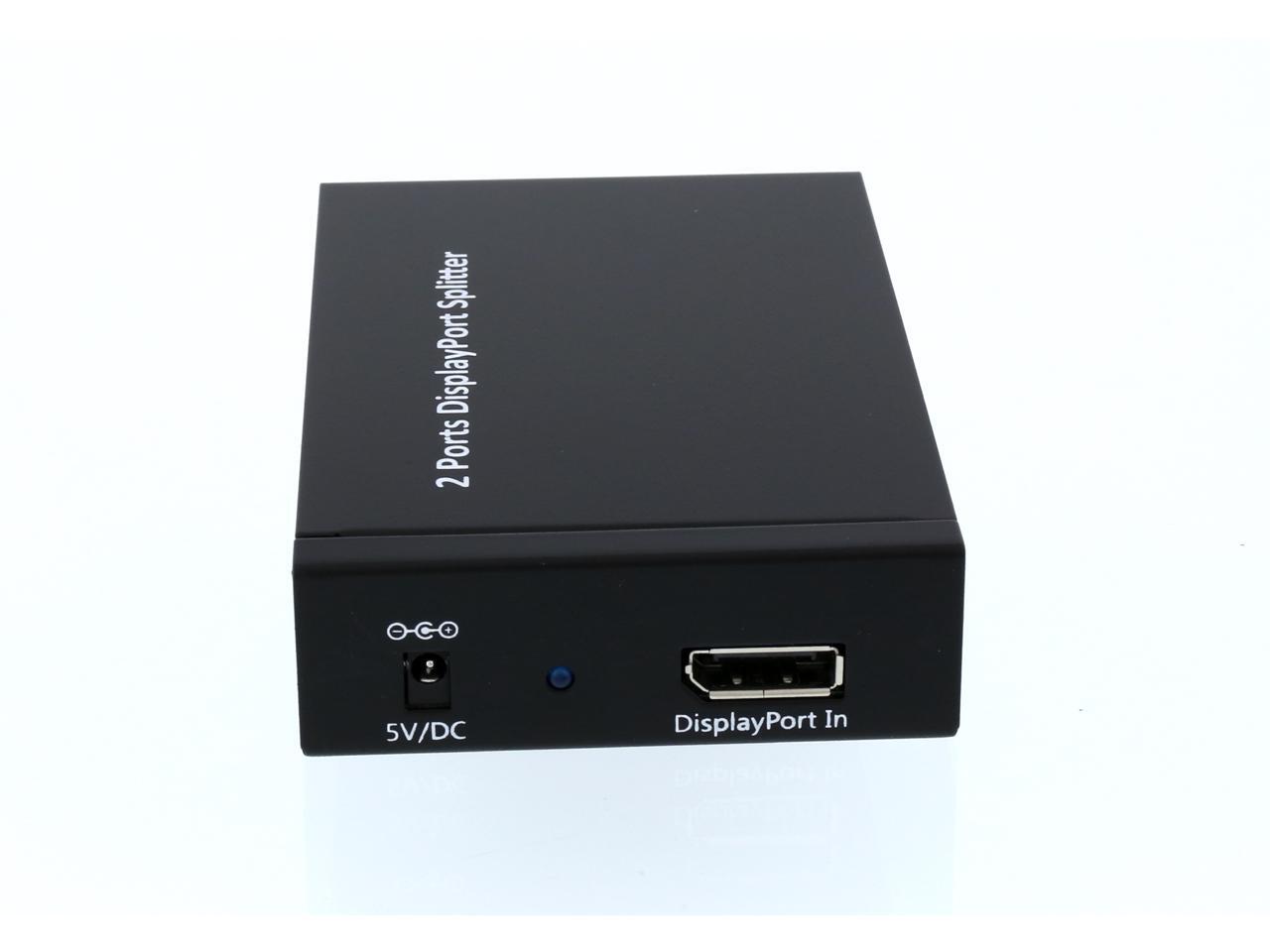

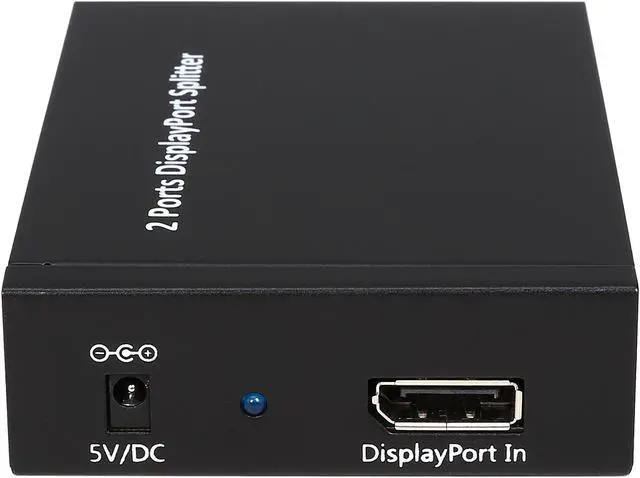

Input Connector 1 x Displayport

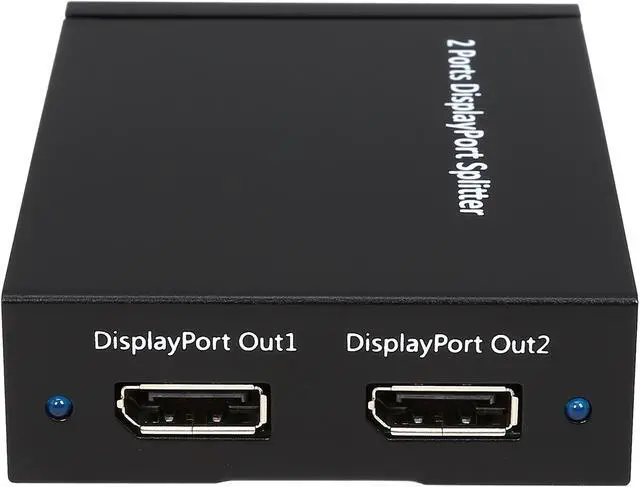

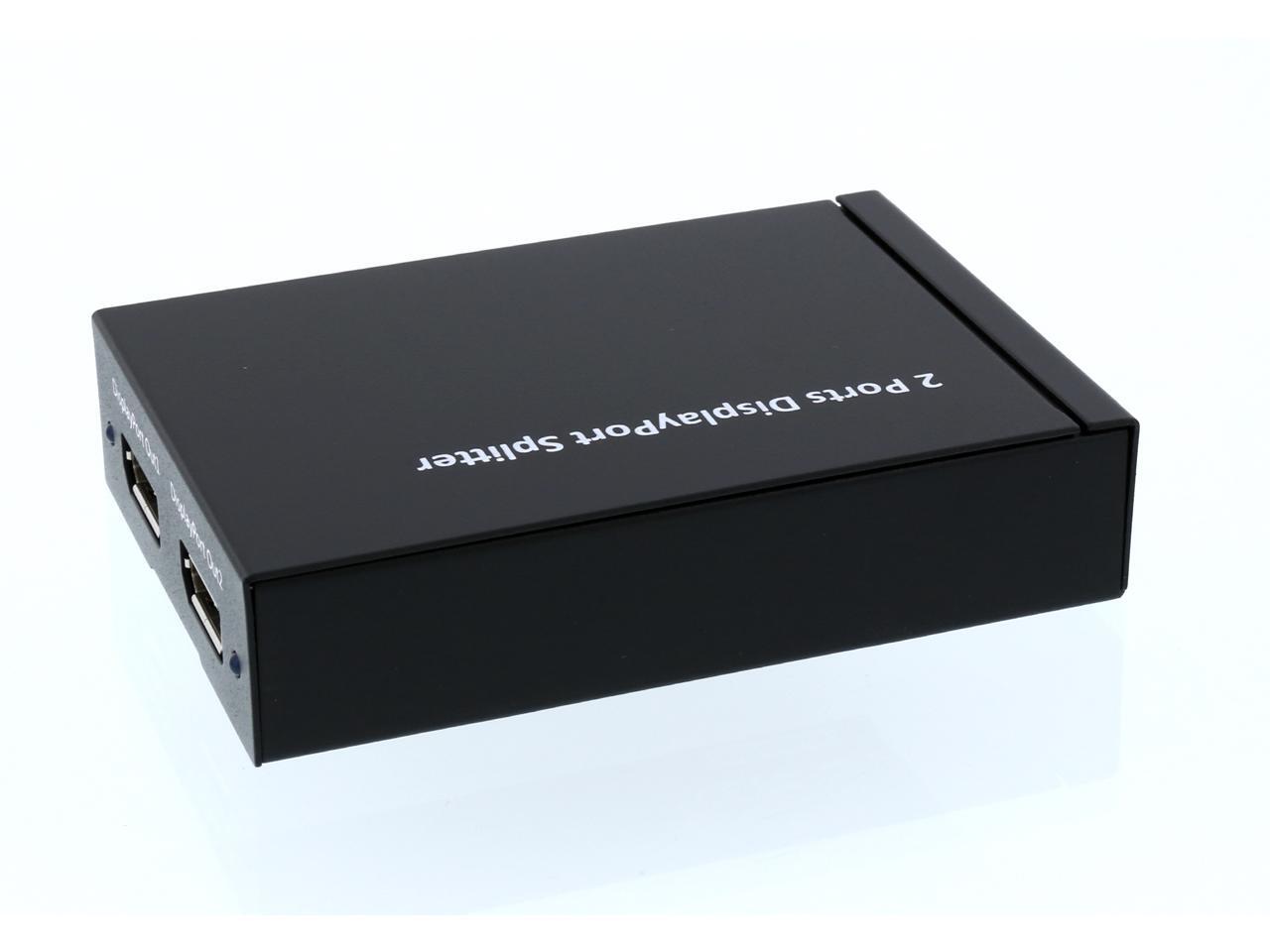

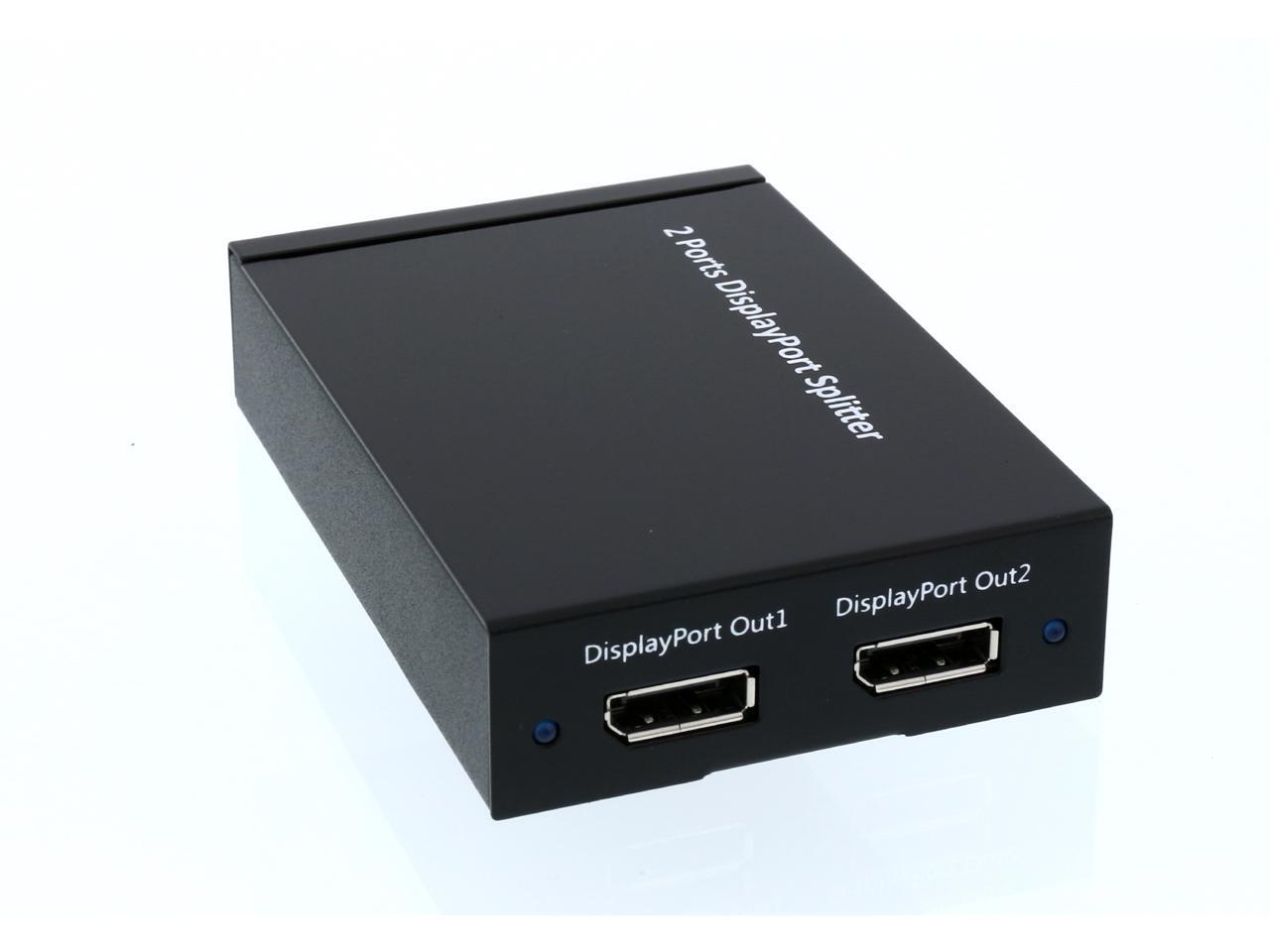

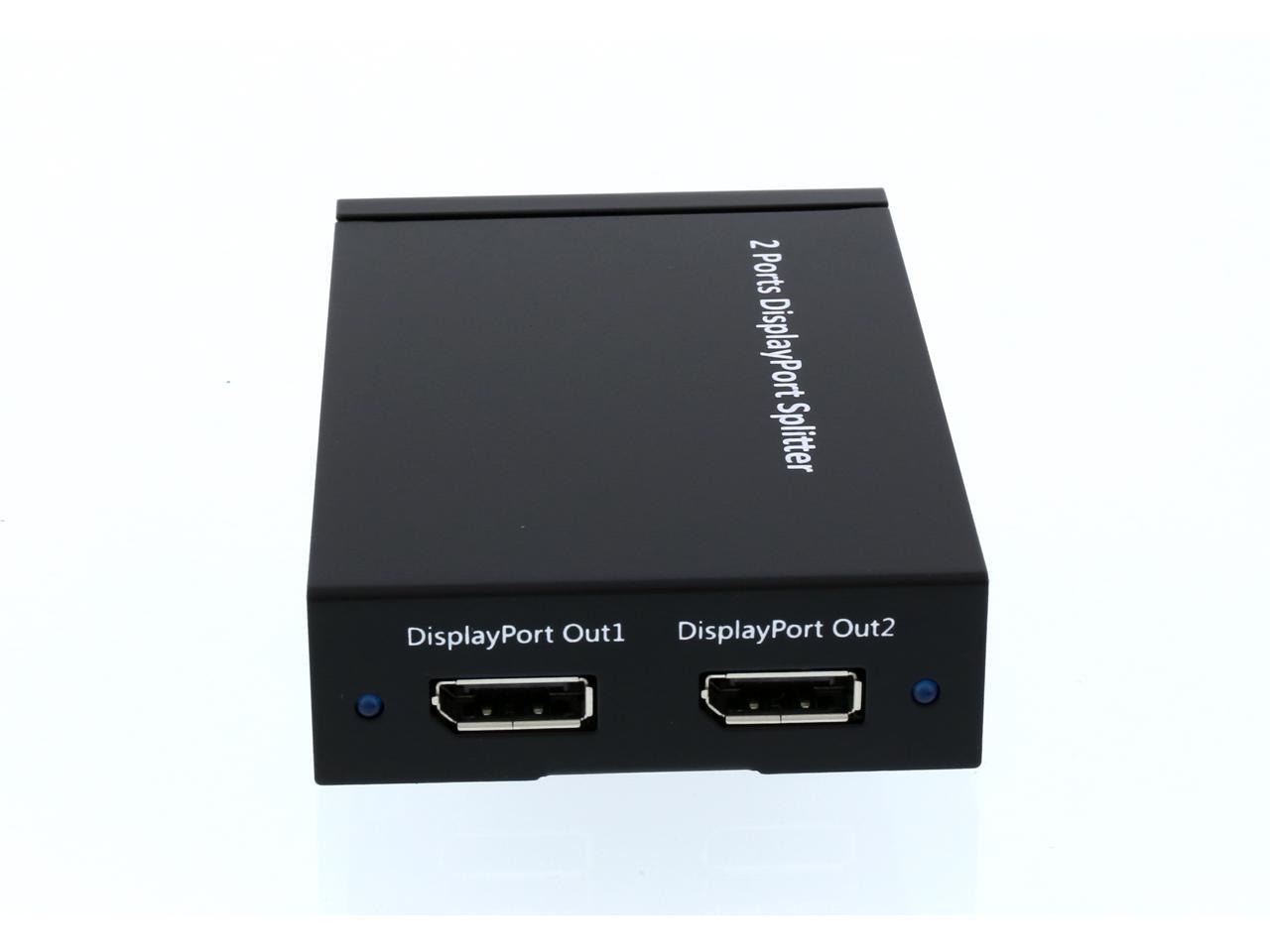

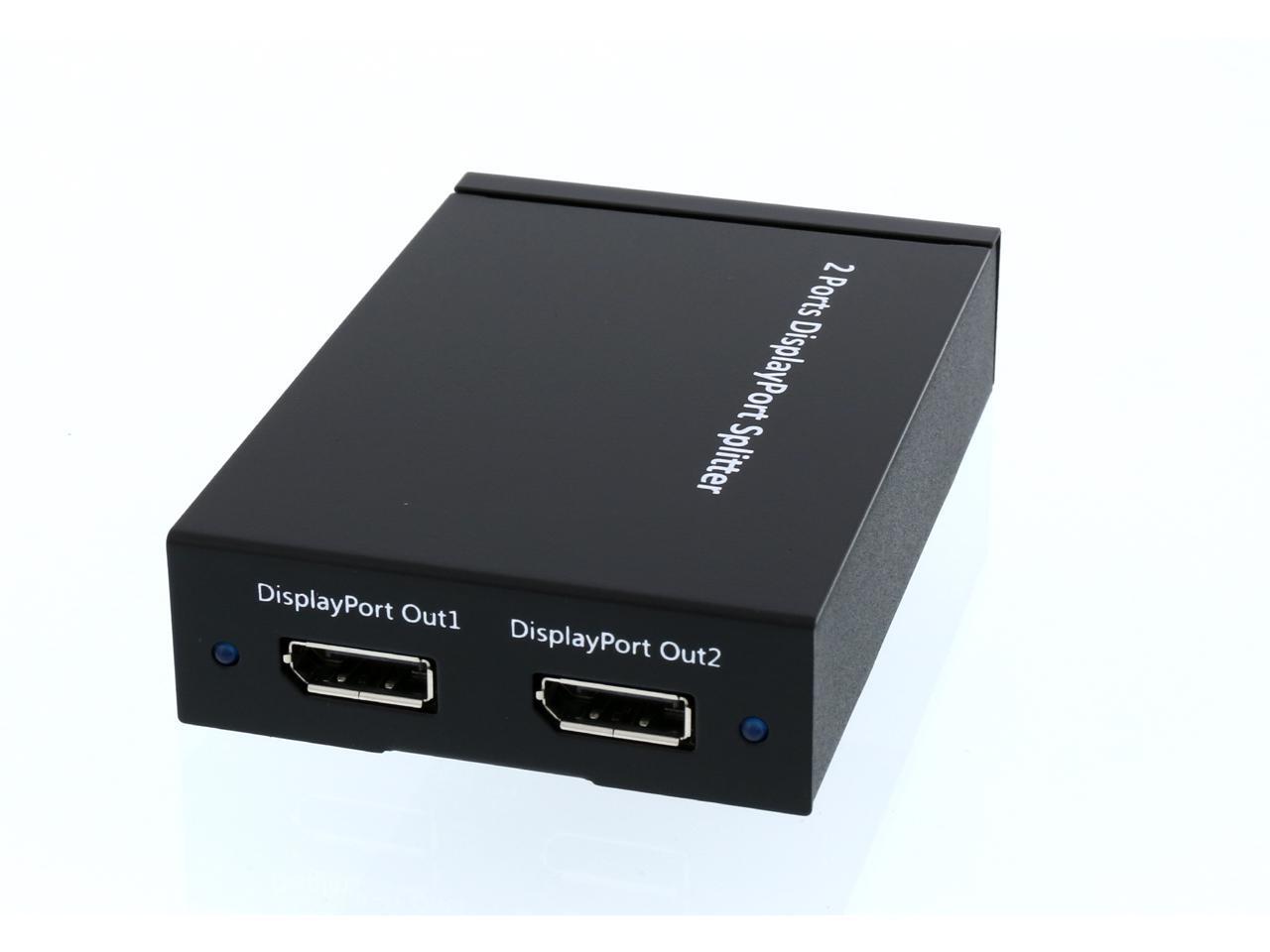

Output Connector 2 x DisplayPort
Performance
Bandwidth 10.8Gbps (4lanes at 2.7Gbps)
Features
Features Supports DisplayPort specification V1.2a, one dual mode input port and two dual mode output ports.

Resolution supoort up to 4K2K@60Hz, HBR2/HBR/RBR link rate.

Supports 5.4Gbps per lane (4 lanes at 21.6Gbps) bandwidth, HDMI link rate:3.2Gbps data pair max, Supports audio up to PCM 7.1 (32-192kHz Fs sample rate).

Video Timing: 4K2K 60 Hz: 24 bits/pixel in DP 1.2a configuration. 1920 x 1080 (FHD) 240 Hz, 24 bits/pixel. All 3D formats defined in DP 1.2a and HDMI 1.4 standards. All standard CEA861 timing formats. Audio Timing: All audio formats as specified in DP 1.2a and HDMI 1.4 standards, SPDIF; 2-Ch LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192 kHz.

Support SST or MST
Dimensions & Weight
Dimensions 0.98" x 4.33" x 2.95" (H x W x D)
Package Contents

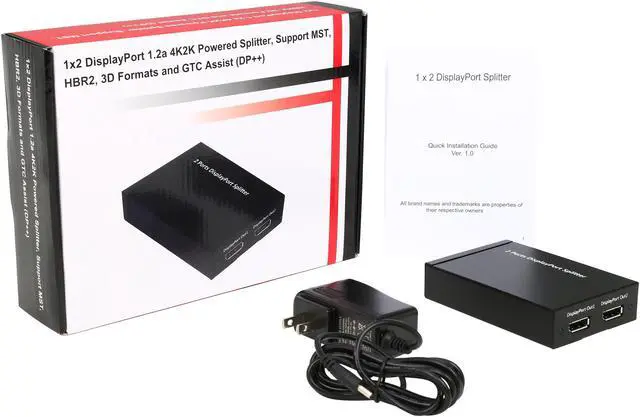

Package Contents DisplayPort 1x2 Splitter
Power adapter
Quick Installation guide
Additional Information
First Listed on Newegg November 14, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
