8K HDMI 2.1 eARC Audio to AV Receiver/Soundbar/Amplifier
HDR Pass-Through | High-Definition Audio | Audio De-Embedding | eARC/ARC to Soundbar
The BG-8K-AE is a high-performance 48Gbps eARC audio adapter engineered to extract audio from an HDMI source or a TV with ARC/eARC functionality and route it to an AV receiver, soundbar, or stereo system. It supports HDMI audio de-embedding to HDMI, digital S/PDIF, or analog L/R outputs, offering seamless audio distribution for modern AV setups.
Fully compliant with HDMI 2.1 and HDCP 2.3, this adapter supports data rates up to 48Gbps, with resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit. It also enables pass-through of advanced HDR formats - including HDR10, HDR10+, Dolby Vision, and HLG-as well as support for VRR, ALLM, QMS, QFT, and SBTM for enhanced video performance.
Designed for effortless integration, the BG-8K-AE includes advanced EDID management, cable equalization, and CEC control, allowing for volume and source control directly from the TV.
HDR Pass-Through
Compatible with HDR, HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG) formats
High-Definition Audio
Supports audio pass-through for LPCM 7.1-channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X formats
Audio De-Embedding
Extracts audio from HDMI sources and TV eARC/ARC to S/PDIF, stereo L/R analog, and HDMI audio outputs
eARC/ARC to Soundbar
De-embeds audio from HDMI sources to eARC/ARC soundbars, including SONOS ARC and Beam, supporting full Dolby Atmos/DTS:X audio
CEC Control & Volume Control
Enables CEC control from the TV to HDMI source devices; allows CEC-based volume control from the TV to any connected eARC audio system
HDCP Compliance
Fully compliant with HDCP 2.3 for secure content transmission
EDID Management
Features advanced EDID configuration for optimized compatibility and performance
High Bandwidth Support
Supports up to 48Gbps video bandwidth and resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), following HDMI 2.1 specifications

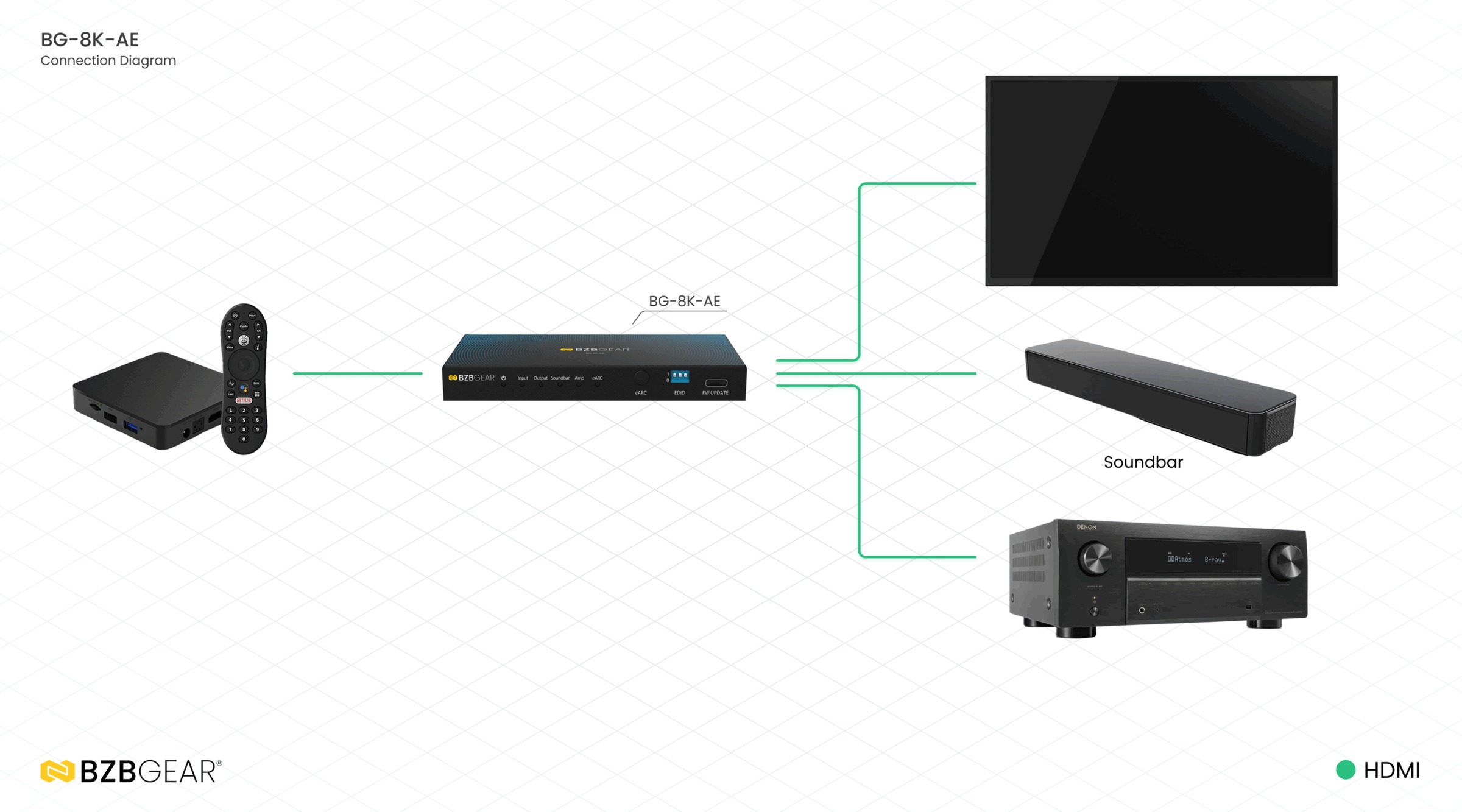

Connection Diagram
An HDMI source connects to the BG-8K-AE, which sends video to a TV and audio to a soundbar and an AV receiver over HDMI.

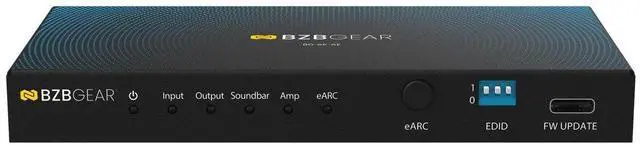

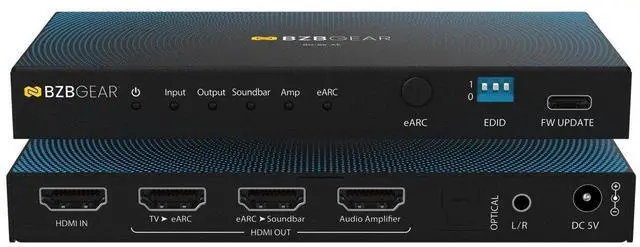

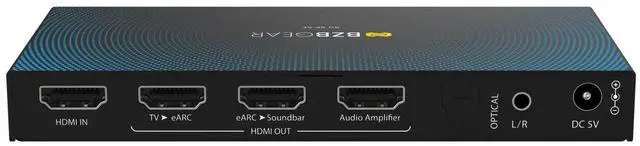

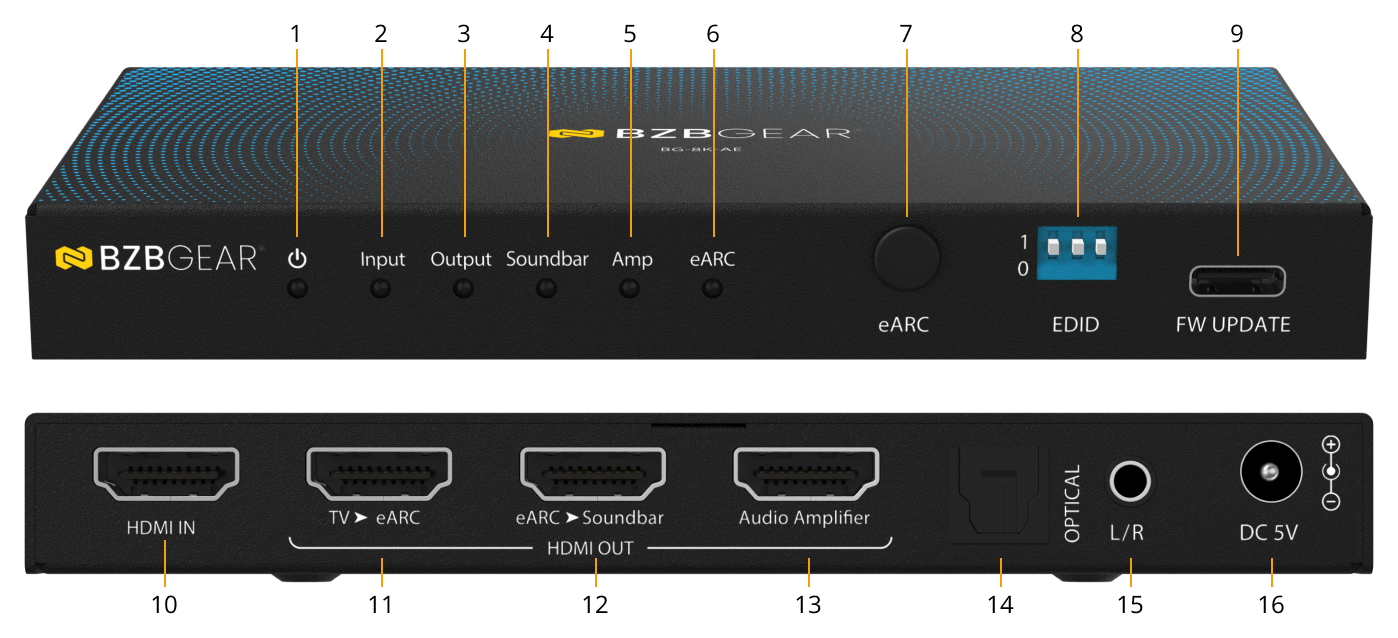

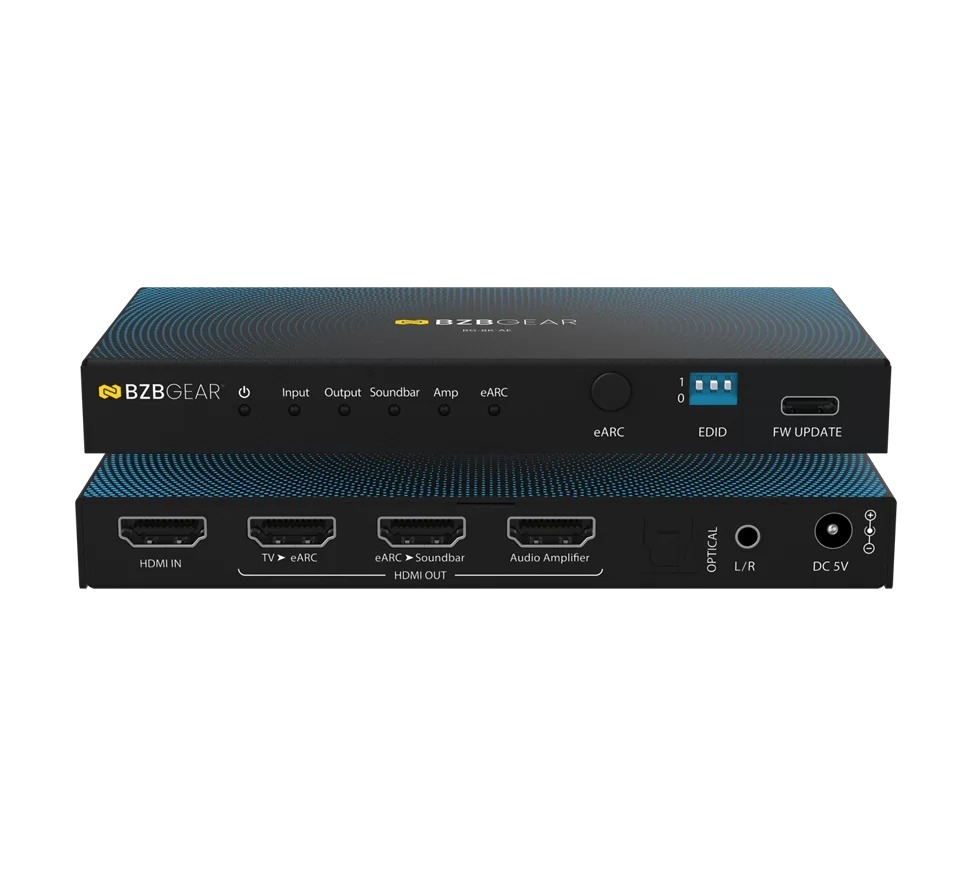

Front and Rear Panels
1. Power LED - The red LED is on when the device is working
2. IN LED - The green LED will be on when the input source signal is detected
3. OUT LED - Green when the HDMI OUT port connects a display and outputs signal
4. Soundbar LED - Green when a soundbar is connected properly
5. Amp LED - The green LED will be on when an amplifier is connected properly
6. eARC LED - On: The eARC/ARC mode is enabled
7. eARC Button - Press this button to enable or disable the eARC/ARC mode
8. EDID DIP Switch - Use the DIP switch to set EDID
9. SERVICE - Used for firmware update and serial commands control
10. Source IN - HDMI signal input port
11. TV(eARC) OUT - HDMI signal output port
12. Soundbar eARC OUT - HDMI audio output port
13. Amp AUDIO OUT - HDMI audio output port
14. OPTICAL - Optical fiber audio output port
15. L/R - Analog audio output port
16. DC 5V - DC 5V/2A Power input port
| HDMI Compliance | HDMI 2.1 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X; eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X; Amp AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X; Audio de-embedding output: Optical: PCM 2.0CH/Dolby/DTS 5.1CH; L/R: PCM 2.0CH |
| ESD Protection | IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Input | 1 x Source IN [HDMI Type A, 19-pin female] |
| Output | 1 x TV(eARC) OUT [HDMI Type A, 19-pin female]; 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female]; 1 x Amp AUDIO OUT [HDMI Type A, 19-pin female]; 1 x OPTICAL [S/PDIF]; 1 x L/R [3.5mm Stereo Mini-jack] |
| Control | 1 x SERVICE [USB Type C, Update port] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (WxDxH) | 5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm] |
| Weight | 0.58 lbs [262g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5.2W (Max) |
| Operation Temperature | 0 C ~ 40 C / 32 F ~ 104 F |
| Storage Temperature | -20 C ~ 60 C / -4 F ~ 140 F |
| Relative Humidity | 20~90% RH (non-condensing) |
| HDMI Cable Length (HDMI IN / OUT) - 8K | 3m/10ft (Ultra HDMI 2.1) |
| HDMI Cable Length (HDMI IN / OUT) - 4K60 | 8m/26ft |
| HDMI Cable Length (HDMI IN / OUT) - 4K24 | 12m/39ft |
| HDMI Cable Length (HDMI IN / OUT) - 1080P | 15m/49ft |
| Note | The use of "Premium High Speed HDMI" cable is highly recommended. |
| Package Contents | 1x 48Gbps eARC Audio Adapter; 1x 5V/2A Multinational Power Supply; 1x User Manual |
