BG-AVTPG-4K and BG-AVTPG-MINI-G2 Installer Kit
4K Support | 18Gbps | 8K Support | Supports 4K120 | HDCP Test Capability | Battery-Powered Portability

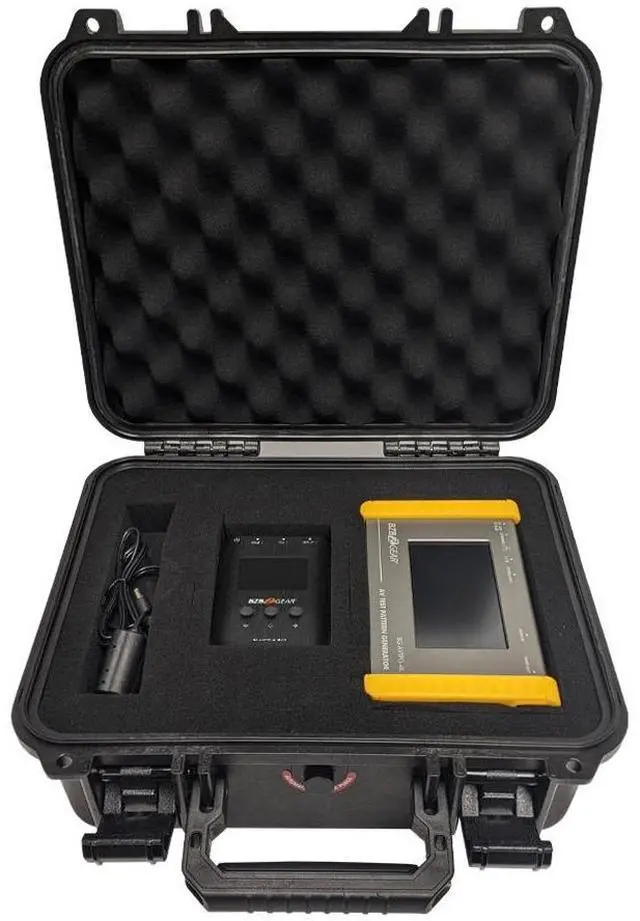

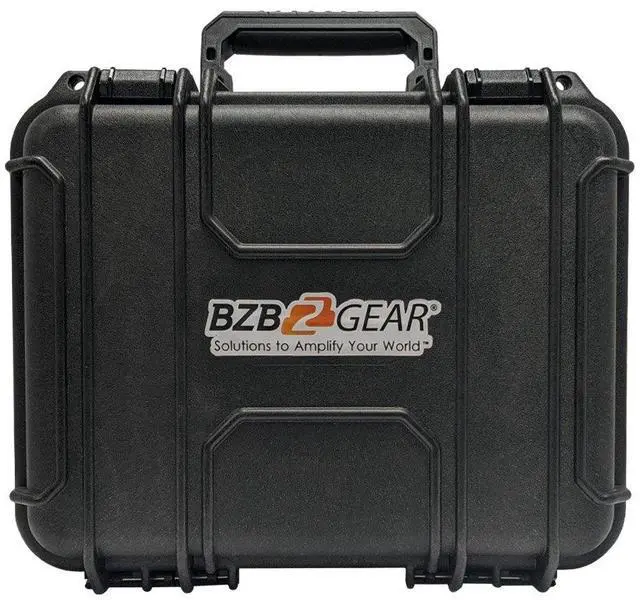

The BG-AVTPG2-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer's arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI-G2 in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.
4K Support
4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit HDR pattern generator
USB 2.0
Supports mouse control
Audio Support
8ch LPCM with selectable sampling rate up to 192kHz
3.5 mm Output
Allows for testing of analog audio equipment
Durable Chassis
Designed to hold up to the demands of field work
18Gbps
BG-AVTPG-4K: High-bandwidth HDMI
Ethernet and Mouse Control
Supports user control of the device through Ethernet; supports mouse control
Embedded Linux System
Embedded Linux kernel system with limitless extension
HDMI Loop-Through
Supports HDMI loop through function
Battery Powered, Short Charging
BG-AVTPG-4K: Battery powered for portability, with operation time at full load up to 4 hours; rechargeable battery design with short charging time of about 2 hours
4.3 Touch Panel
4.3 Touch Panel
USB Firmware Update
Firmware update through USB flash drive
Scrambler Support
Scrambler supported for video output over 340MHz
HDCP Test
HDCP test allows you to verify HDCP of an HDMI source and transmit HDCP-encrypted video
User-Defined Patterns
Supports user-defined patterns up to 2GB
Loop Test
Loop test capability to provide statistics analysis for connection stability
Physical Layer Performance
Qualified physical layer performance to ensure the best compatibility
8K Video Output Support
It supports diverse resolutions and color formats, like 8K60 4:2:0 and 8K30 4:4:4, ensuring an accurate display of details and colors; video resolution outputs up to 8K60 10bit/12bit 4:2:0, 8K30 4:4:4, 4K2K 120Hz
Future-Proof, Supports 4K120
Embracing a spectrum of resolutions, from the stunningly detailed 8K60 and 4K120 to the widely used 4K60 and 1080p; provides smoother gameplay, reduced input lag, better visual clarity, and high-quality broadcasting for Esports
HDCP Test and Protection
Validates secure content transmission; HDCP 1.4 & 2.3 compliant
Battery-Powered Portability
BG-AVTPG-MINI-G2: Facilitates convenient on-the-go testing and field calibration for optimal performance; rechargeable battery powered for portability
HDR
HDR 4K2K@60 4:2:0 10bit/12bit
Built-in Video Patterns
Built-in 4 video patterns
HDMI 2.1 Input and Output
Both HDMI input and output support up to HDMI 2.1
HDMI Feature Analysis
Fundamental HDMI feature analysis up to 8K@60/4K@60 4:4:4/4:2:0 12bit/10bit/8bit HDMI 2.1 input
Input and Output Video Bandwidth
BG-AVTPG-MINI-G2: Input video bandwidth: 48G; output video bandwidth: 48G
Hand-Held Pocket Size
Hand-Held Pocket Size
Operation Time
BG-AVTPG-MINI-G2: Operation time with a full charge up to 3 hours
Connection Diagram
The BG-AVTPG-4K is shown connected over HDMI to a BG-ADAMO-4K camera and a 4K monitor, over 3.5 mm L/R audio to an audio system with speakers, and over USB 2.0 to a keyboard and mouse. The BG-AVTPG-MINI-G2 is shown connected over HDMI to a BG-ADAMO-4K camera and a 4K monitor.

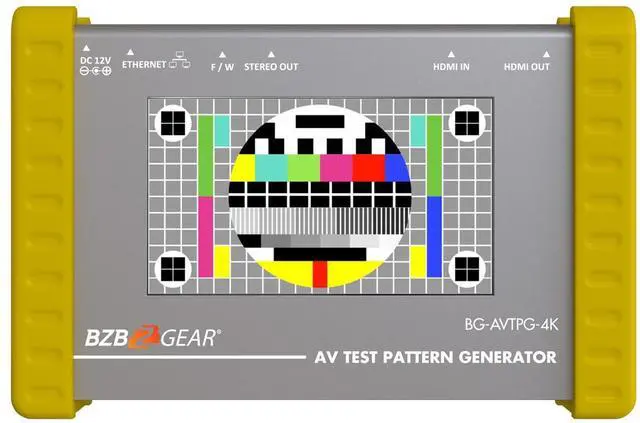

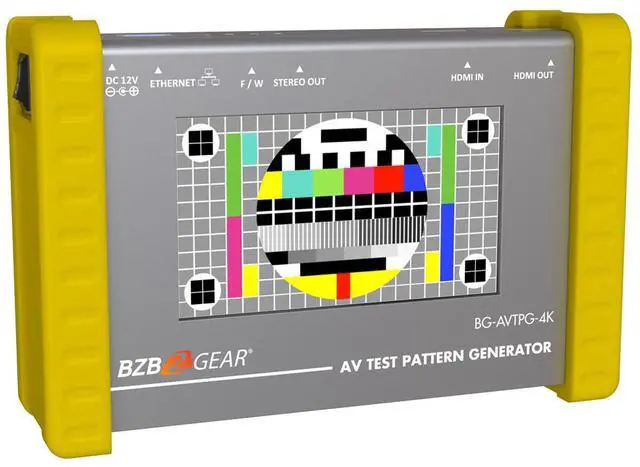

BG-AVTPG-4K Interfaces
1. OUTPUT - HDMI output
2. INPUT - HDMI input
3. Stereo Out - Analog audio output
4. USB - Connect to a USB device for control or firmware update
5. Ethernet - Check if a connection can issue an IP address using DHCP
6. +12V DC - 12 V 5A DC power jack
7. Power Switch - Power ON/OFF
8. Touch screen Display - Control device and displays information

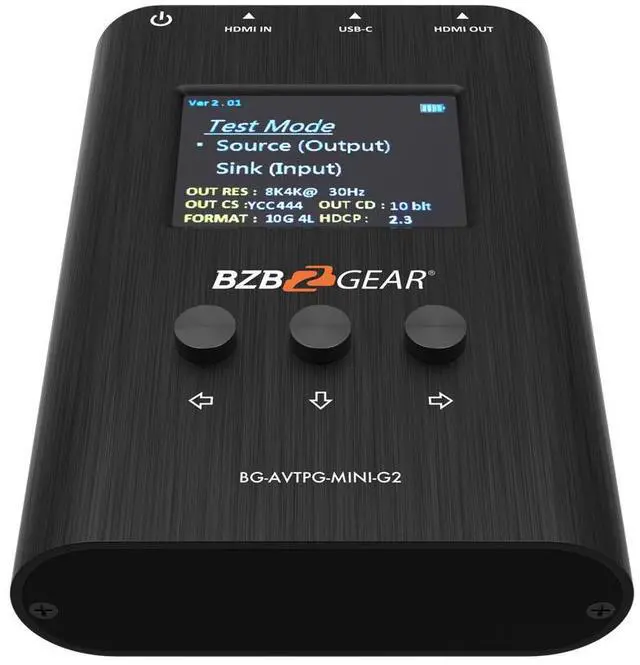

BG-AVTPG-MINI-G2 Interfaces
1. LCD Display - the measured data is shown here
2. Button (left) - Back button
3. Button (down) - Select button
4. Button (right) - Enter button
5. OUTPUT - HDMI output
6. USB-C - Firmware update / Recharge
7. INPUT - HDMI input
8. Power Switch - Power ON/OFF Switch
| Model | BG-AVTPG-4K |
|---|---|
| Role of usage | Generator / Analyzer |
| Video bandwidth | Single link 600MHz (18Gbps) |
| HDMI compliance | HDMI 2.0 and below |
| HDCP compliance | HDCP 2.2 and below |
| Video Support | Up to 4K2K@60 4:4:4 8bit, 4K2K@60 4:2:0 16bit (HDR) |
| Video Format Support | HDMI |
| Audio support | 8ch LPCM up to 192K |
| Control | USB mouse / touch panel / Ethernet |
| ESD protection | Human body model +/-15kV [air-gap discharge] & +/-8kV [contact discharge] |
| Input | 1x HDMI + 1x USB + 1x RJ-45(Ethernet) |
| Output | 1x HDMI + 1x 3.5mm (Stereo) |
| USB Support | USB 2.0 |
| HDMI connector | Type A (19-pin female) |
| USB Connector | Type A |
| RJ-45 connector | WE/SS 8P8C with 2 LED indicators |
| Housing | Metal enclosure |
| Dimensions (L x W x H) (Model) | 4.1" x 6.6" x 1.7" [105 x 166 x 42mm] |
| Dimensions (L x W x H) (Package) | 1'5" x 6.7" x 3" [371 x 170 x 77mm] |
| Carton | 1'3" x 1'4" x 1'5" [410 x 368 x 393mm] |
| Weight (Model) | 27 oz [765g] |
| Weight (Package) | 2.8 lbs [1294g] |
| Power supply | 12V 5A DC / Battery |
| Power Consumption | 15 Watts |
| Operation temperature | 32~104 F / 0~40 C |
| Storage temperature | -4~140 F / -20~60 C |
| Relative humidity | 20-90% RH [no condensation] |
| Model | BG-AVTPG-MINI-G2 |
| Usage | HDMI 2.1 Signal Generator and Analyzer |
| Video bandwidth | Input up to FRL 5 (48G); Output up to FRL 6 (48G) |
| HDMI compliance | HDMI 2.1 and below |
| HDCP compliance | HDCP 2.3 and below |
| Video Support | Up to 8K60 4:2:0 10bit, 8K30 4:4:4, & 4K2K 120Hz |
| Video Format Support | HDMI |
| Control | Push Button |
| ESD protection | Human body model - +/-15kV [air-gap discharge] & +/-8kV [contact discharge] |
| Input | 1x HDMI |
| Output | 1x HDMI |
| USB Support | Firmware update / Recharge |
| HDMI connector | Type A [19-pin female] |
| USB Connector | USB-C |
| Housing | Metal Enclosure |
| Dimensions [L x W x H] (Model) | 5.1" x 3.5" x 0.6" [130 x 89 x 14mm] |
| Dimensions [L x W x H] (Package) | 7.8" x 5.4" x 2.9" [198 x 137 x 74mm] |
| Weight (Model) | 10.4 oz |
| Weight (Package) | 16 oz |
| Power Supply | USB-C / Battery |
| Operation Temperature | 32~104 F / 0~40 C |
| Storage Temperature | -4~140 F / -20~60 C |
| Relative Humidity | 20~90% RH [no condensation] |
| Package Contents | 1x BG-AVTPG-4K Video Test Pattern Generator/Tester & Analyzer; 1x BG-AVTPG-MINI-G2 Portable Signal Test Generator and Analyzer; 1x Power Supply; 1x Case; 1x User Manual |
