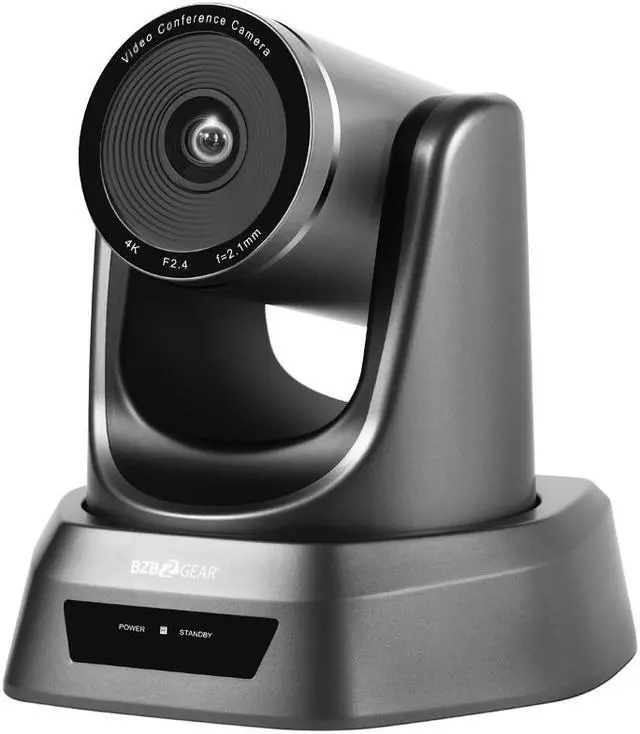

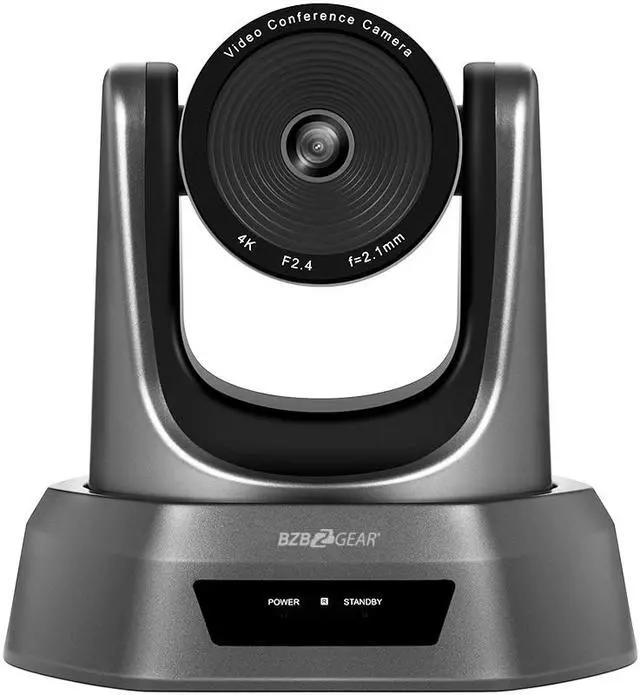

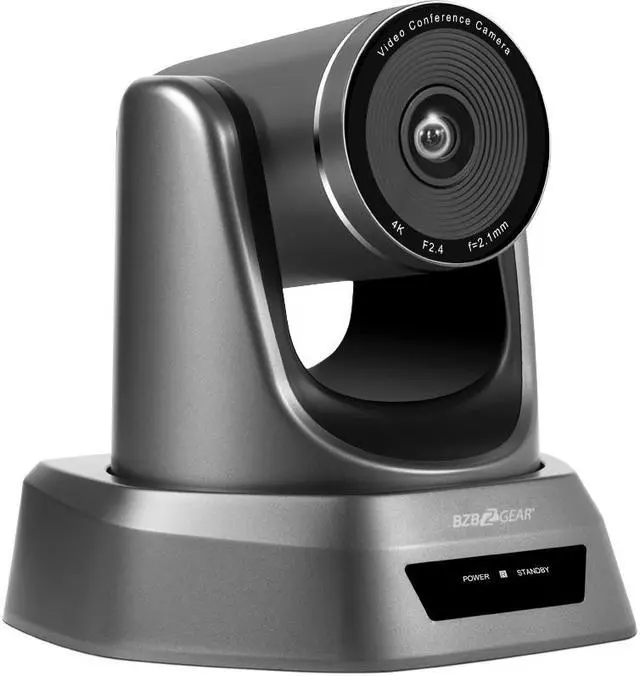

This super wide-angle Pan, Tilt, and fixed zoom camera has a field of view of 138 deg with no video distortion. With an eight-megapixel full glass fixed lens, the BG-CAM-USB4K can achieve resolutions up to 4K@30Hz. With superior imaging and simple controls, the BG-CAM-USB4K offers a great deal of performance. With its outstanding viewing angle this camera is able to capture an entire meeting space in crystal clear 4K detail. Flexible control options make this device a great choice for any installation.
IR and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
Latest auto focusing algorithms resulting in quick, accurate, and stable focus
4K30Hz max resolution
Can be mounted to wall, ceiling, or tripod
Fast and Simple setup; plug & play USB connectivity
Step drive motor mechanism and precision motor drive controller ensure PT works smoothly with no noise; smooth and silent PT movement
9 presets via IR remote (255 via RS232)
138 deg wide FOV with no video distortion
1/2.1" high quality, 8.29MP CMOS

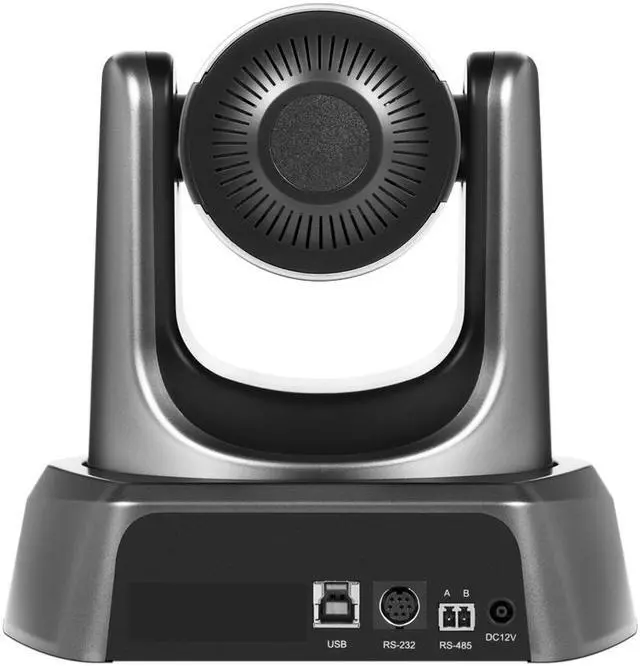

The BG-CAM-USB4K connects to a laptop or desktop computer over USB 3.0, and can be controlled with a BG-CJ-RS joystick controller over RS-232.
1. USB - Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom, supporting resolution up to 4K@30Hz
2. RS-232, RS-485 - Connect RS-232 or RS-485 to control the camera with a joystick controller or control software
3. Power - Connect supplied 12V power adapter
| Image Sensor | 1/2.1" HD Color CMOS |
|---|---|
| Effective pixel | 8.29MP (16:9) |
| Horizontal Resolution | 4K (3840x2160), 2K (2560x1080), 1080p (1920x1080) |
| Signal standard | NTSC/PAL |
| Zoom | Fixed focus |
| Minimum luminance | 0.5Lux at F2.0 |
| Focal length | F=2.1mm |
| Horizontal Angle | 138 deg |
| Gain control | Auto |
| Focus | Auto |
| White balance | Auto |
| SNR ratio | >=50dB |
| Shutter speed | 8 to 1/10000s (auto) |
| Preset position | IR remote control supports 9 presets, PELCO Protocol supports 256 presets |
| Pan/Tilt movement range | Pan: +/-175 deg (max speed 100 deg /S), Tilt: -35 deg ~+55 deg (max speed 80 deg /S) |
| Control terminal | USB, RS-232, RS485 |
| Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
| Video output | USB 3.0 |
| Video Compression Format | YUV, MJPG, H.264 |
| Noise Reduction | 2D/3D |
| Work temperature | 14 F ~ 122 F / -10 C ~ 50 C |
| Storage temperature | -4 F ~ 140 F / -20 C ~ 60 C |
| Baud rate | 38400/9600bps |
| Decoder | Built-in |
| Address set | 1~256 |
| Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
| Power supply | DC12V/2A |
| Power consumption | 12W |
| Net weight/Gross weight | 3.3lbs / 6.3lbs [1.5kg / 2.85kg] |
| Dimension (LxWxH) | 10.2 x 6.9 x 7.1in / 12 x 10 x 8.6in; 260 x 175 x 180mm / 296 x 255 x 218mm (before / after packing) |
| Working Environment | Indoor Only |
| Package Contents | 1x BG-CAM-USB4K Camera; 1x DC 12V Power Adaptor; 1x IR Remote Control; 1x USB 3.0 Cable; 1x User Manual |
