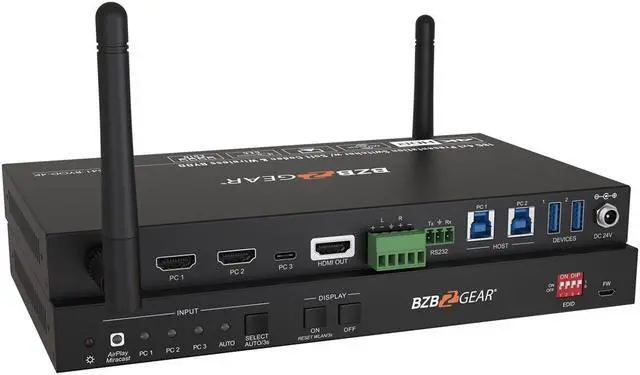

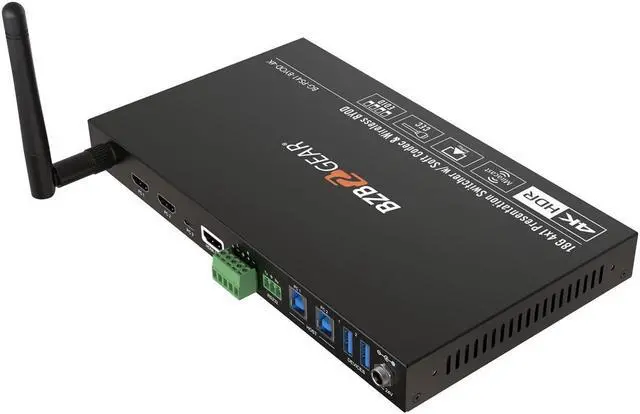

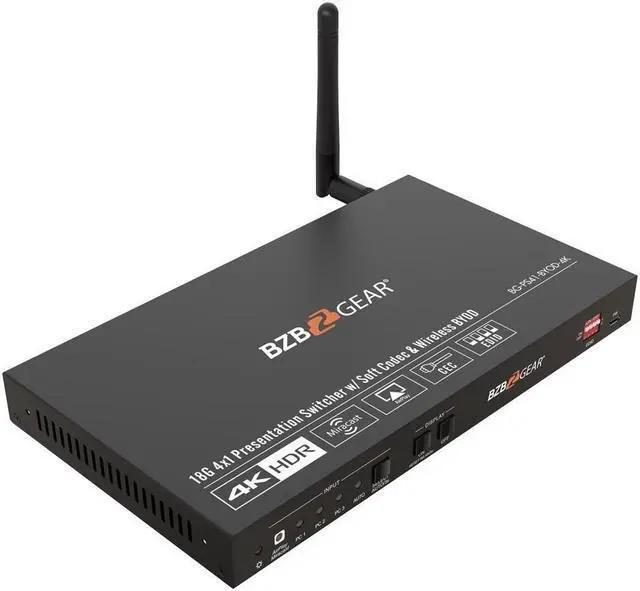

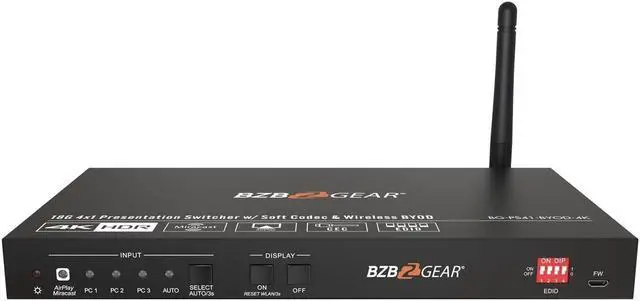

BZBGEAR 4-Port 4K UHD Conference Room Wireless Presentation Switcher with HDMI/USB-C/Soft Codec

The BG-PS41-BYOD-4K is a powerhouse, enabling users to connect several devices to one display with 4K@30Hz 4:4:4 resolution. This 4x1 presentation switcher is the perfect fit for small businesses and private conference rooms thanks to its wireless Bring Your Own Device (BYOD) features - removing the need for a dedicated device for this presentation switcher. It also has four wired inputs including two HDMI, one USB-C, and one HDMI output. Wireless connectivity provides support for both Airplay and Miracast, making it easier than ever to quickly connect multiple devices for a conference, meeting, or presentation.

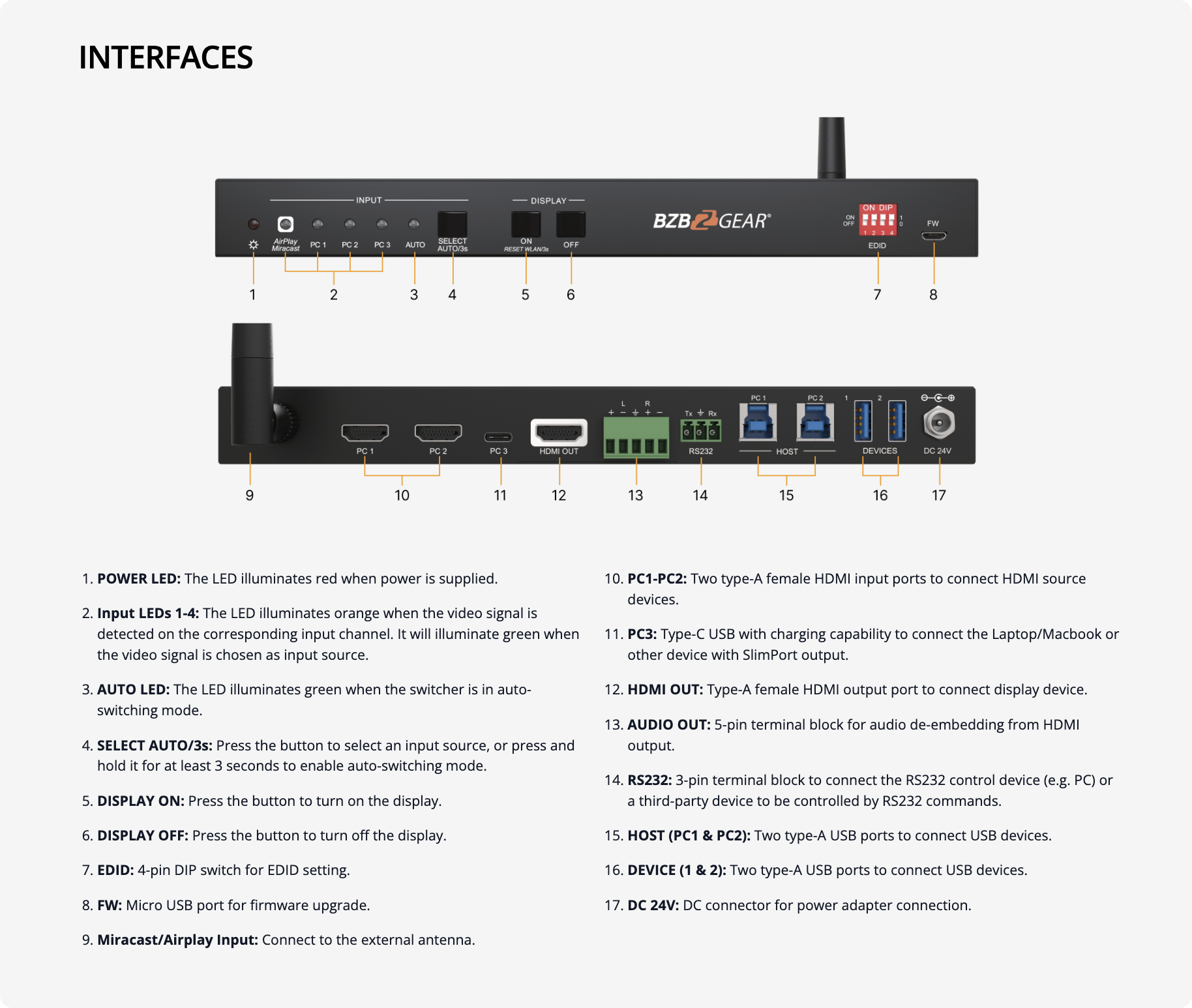

Connectivity & Control

The BG-PS41-BYOD-4K is a smart presentation switcher that’s able to automatically switch inputs. This is done based on signal detection from connected devices. In addition to the wireless connectivity, two HDMI inputs, and one USB-C port, there are two USB type-A ports (USB 3.0/2.0). These enable peripherals to be connected to the switcher such as keyboards, mice, and webcams. These will be shared between the HDMI/host connections and the USB-C connection.

This switcher can also provide power to connected devices via USB-C, providing 60 watts of charging ability to ensure that your devices stay online.

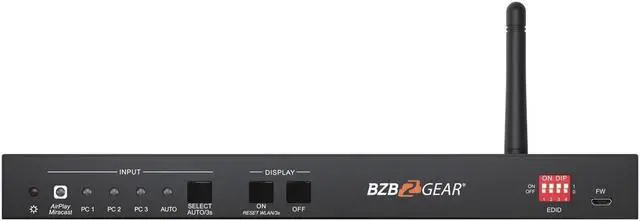

To control the unit, users can use the buttons on the front panel, CEC control, or RS-232. This presentation switcher also has a four-pin DIP switch for managing EDID settings.

Image Quality

This presentation switcher supports a maximum signal quality of 4K@30Hz 4:4:4. When connected through the HDMI port, the BG-PS41-BYOD-4K can support HDR10 and Dolby Vision with 4K@30Hz 4:4:4. If using USB-C, resolutions up to 4Kx2K@30Hz can be achieved. Miracast/Airplay input resolution is a maximum of 4K@30Hz 4:4:4.

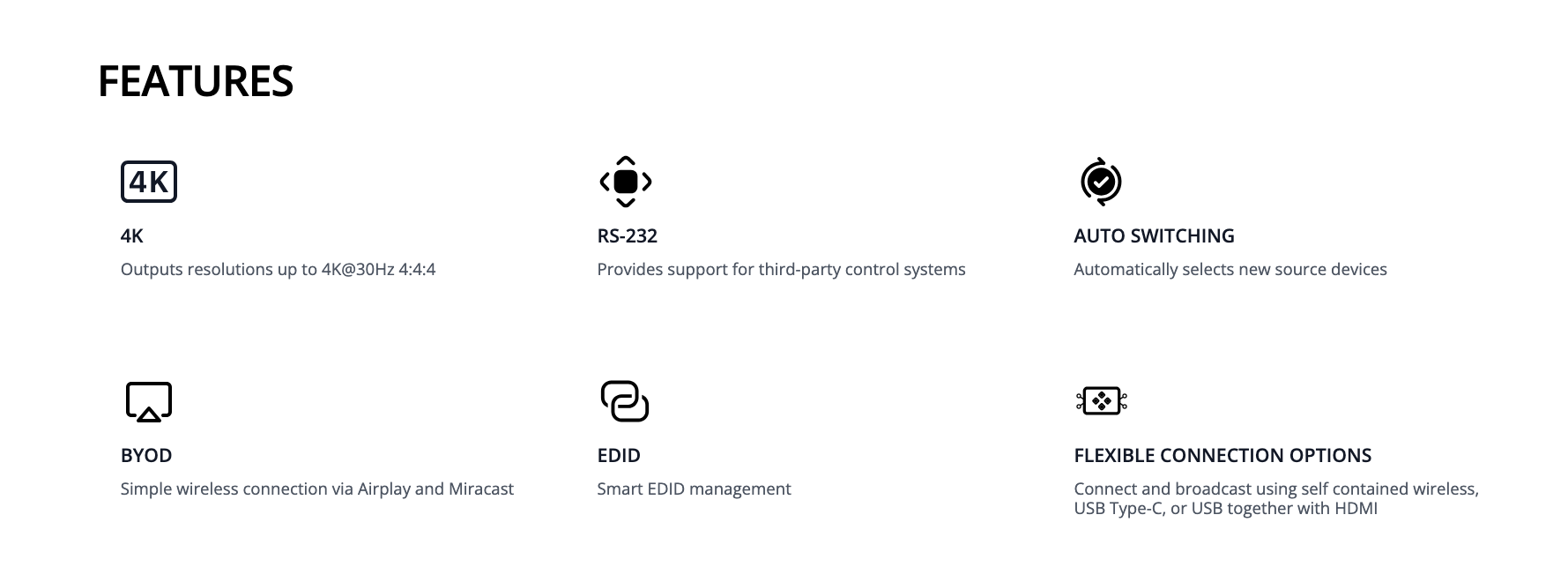

Features:

• 4K - Outputs resolutions up to 4K@30Hz 4:4:4
• RS-232 - Provides support for third-party control systems
• Auto switching - Automatically selects new source devices
• BYOD - Simple wireless connection via Airplay and Miracast
• EDID - Smart EDID management
• Flexible Connection Options - Connect and broadcast using self contained wireless, USB Type-C, or USB together with HDMI

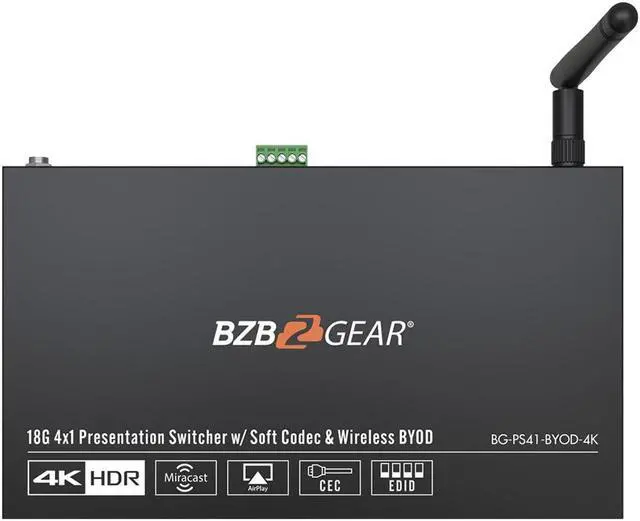

• 18G 4x1 presentation switcher with wireless BYOD
• Supports HDMI 2.0b, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.2
• Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast
• Provide up to 60w charging, USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
• HDMI output audio can be de-embedded out via balanced analog audio port
• Front panel buttons trigger both CEC and RS232 commands for display control
