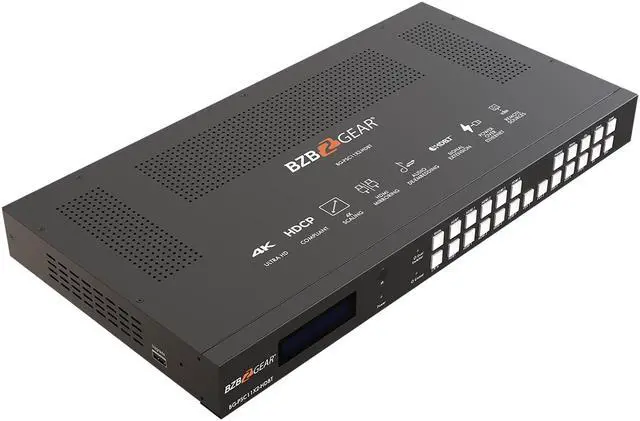

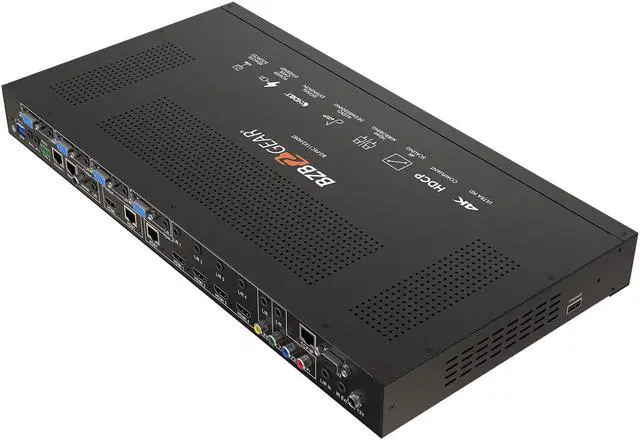

BZBGEAR 11x2 4K UHD Presentation Scaler Switcher with VGA/HDMI/YPbPr/CV/HDBaseT Input and Output

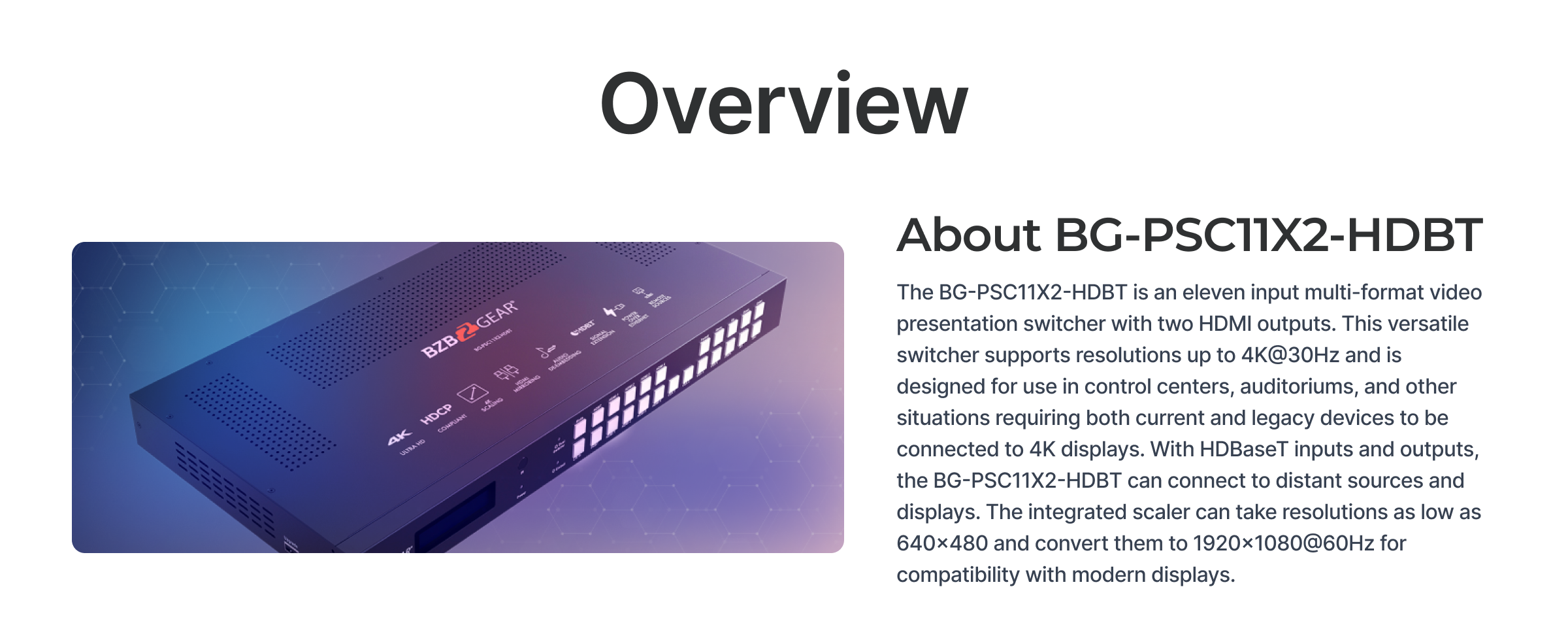

The BG-PSC11X2-HDBT is an eleven input multi-format video presentation switcher with two HDMI outputs. This versatile switcher supports resolutions up to 4K@30Hz and is designed for use in control centers, auditoriums, and other situations requiring both current and legacy devices to be connected to 4K displays.

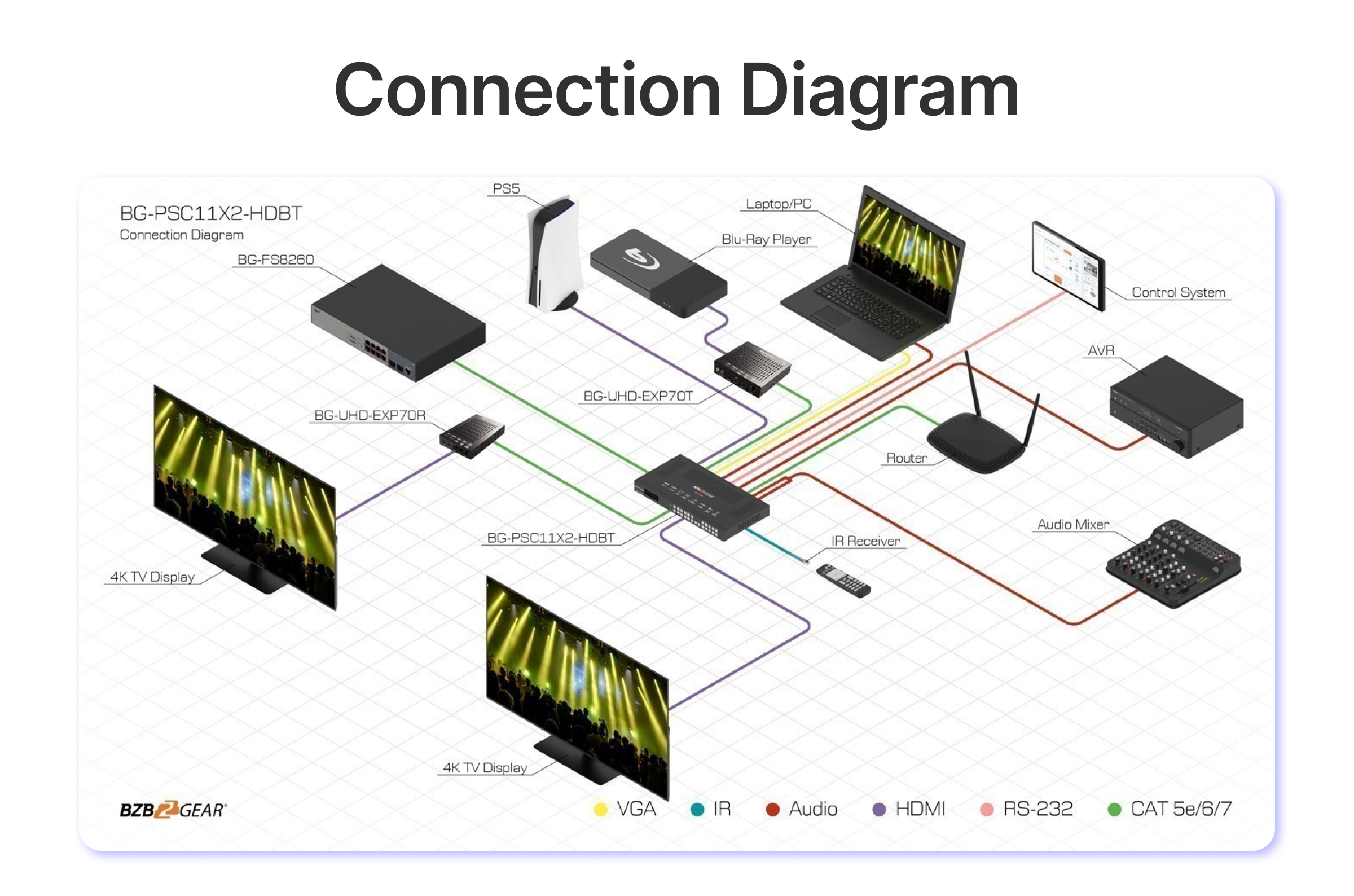

With HDBaseT inputs and outputs, the BG-PSC11X2-HDBT can connect to distant sources and displays. The integrated scaler can take resolutions as low as 640x480 and convert them to 1920x1080@60Hz for compatibility with modern displays.

Connectivity

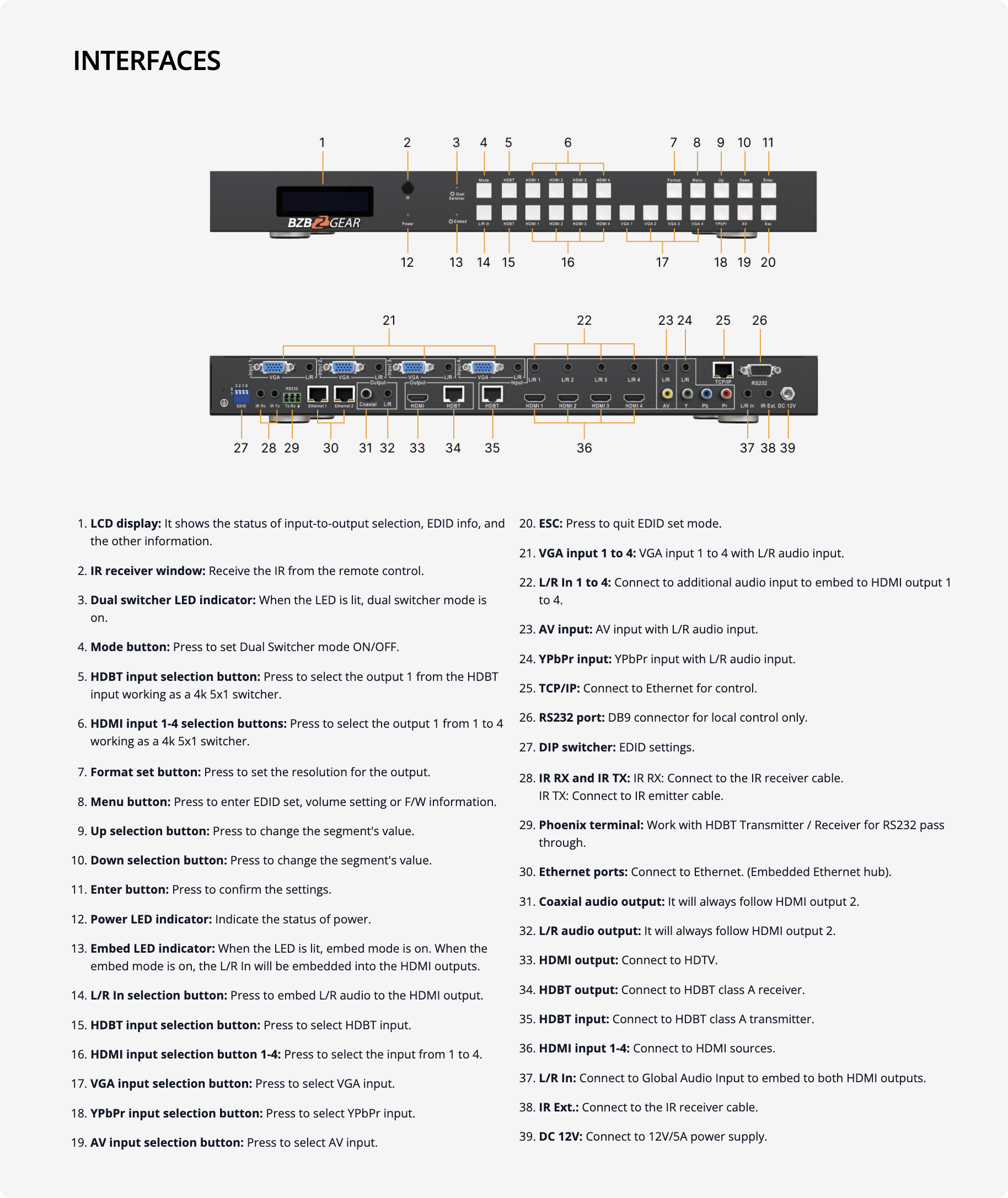

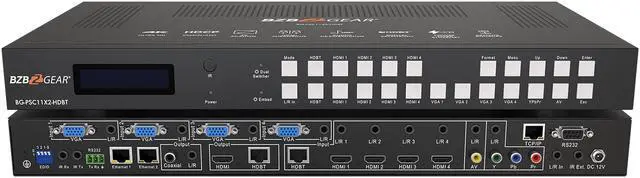

The BG-PSC11X2-HDBT has eleven video inputs, including four HDMI, one HDBaseT, four VGA, one component (YPbPr), and one composite AV. All inputs are paired with 3.5mm stereo audio inputs. Outputs include one HDMI, one HDBaseT, one digital coax, and one 3.5mm stereo audio.

With its switchable digital bypass output, the BG-PSC11X2-HDBT provides support for 4K@60Hz sources. The HDBaseT input and output allow devices to be connected at distances up to 330 feet. Audio embedding is available via the multiple 3.5mm inputs and outputs, and extraction is supported via the digital coax and 3.5mm audio outputs. Dual LAN connections provide an additional connection point for networked devices.

The BG-PSC11X2-HDBT can be used in both standard and dual switcher modes. This allows it to function as an 11:1x2 multi-output switcher or as a combination 5x1 HDMI switcher and 11x1 HDBaseT switcher, offering an unparalleled degree of flexibility.

Control

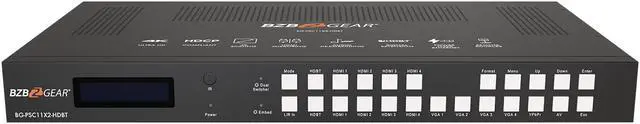

Control options for the BG-PSC11X2-HDBT include the front panel buttons, included IR remote, RS-232, and IP commands. IR passthrough provides enhanced connectivity with IR distribution and third-party control systems. The integrated EDID management dip switches to provide stable HDMI connectivity and reliable switching.

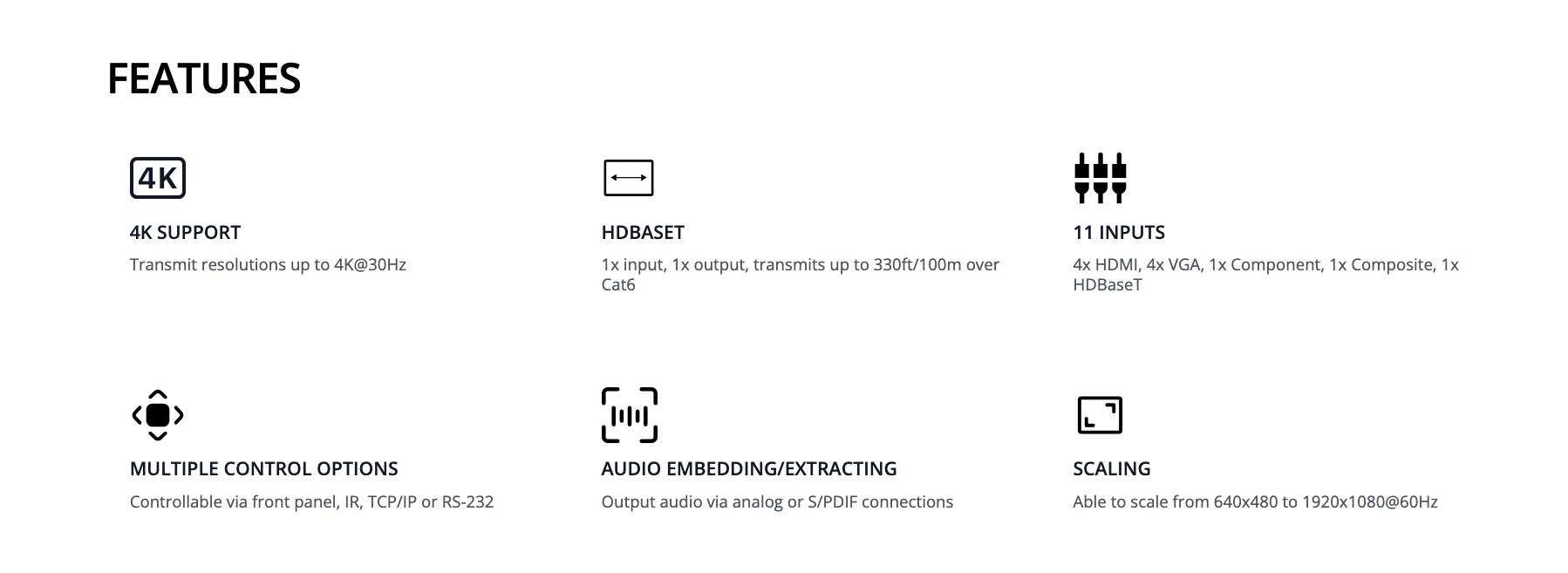

Features:

• 4K Support - Transmit resolutions up to 4K@30Hz
• HDBaseT - 1x input, 1x output, transmits up to 330ft/100m over Cat6
• 11 Inputs - 4x HDMI, 4x VGA, 1x Component, 1x Composite, 1x HDBaseT
• Multiple Control Options - Controllable via front panel, IR, TCP/IP or RS-232
• Audio Embedding/Extracting - Output audio via analog or S/PDIF connections
• Scaling - Able to scale from 640x480 to 1920x1080@60Hz
• Switch & Scale 11-inputs to 2 HD/UHD displays
• 2 simultaneous outputs (1x HDMI, 1x HDBaseT), bypass and scaled formatted output selectable
• Dual mode selectable (1x2 Splitter Mode and 5x1 & 11x1 Dual Switcher Mode)
• Built in Ethernet Hub
• HDCP 1.4 compliant
• Front-panel LCD display for status feedback
