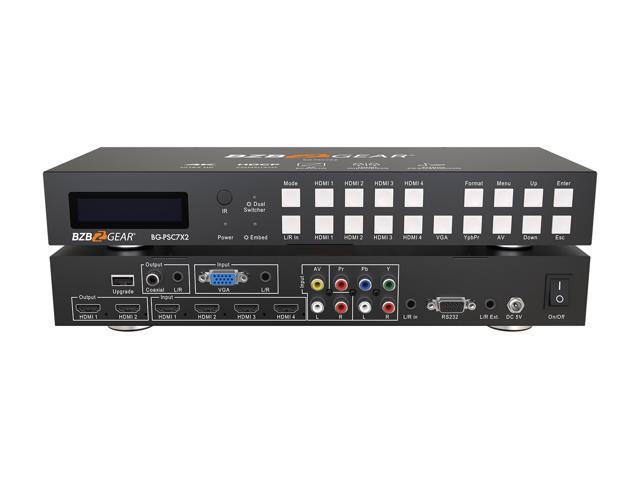

BZBGEAR 7x2 4K UHD Presentation Switcher Scaler with HDMI/VGA/Component/Composite Video & Audio

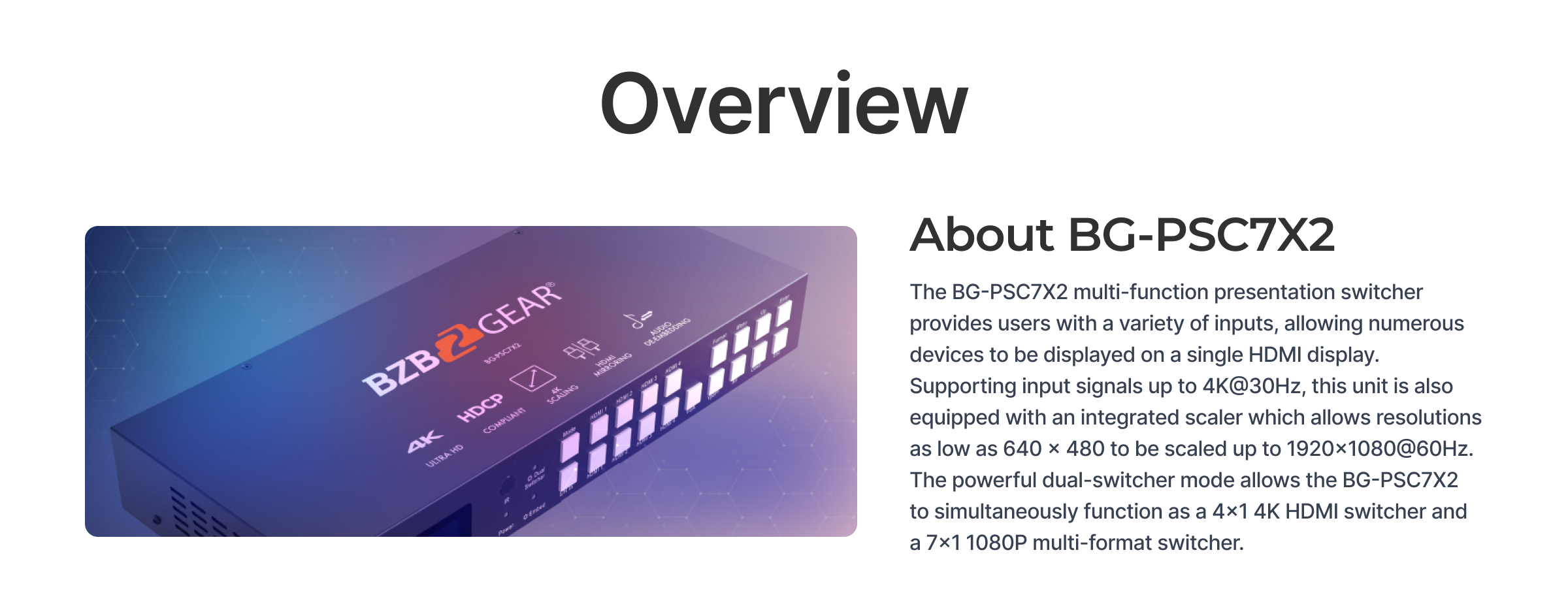

The BG-PSC7X2 multi-function presentation switcher provides users with a variety of inputs, allowing numerous devices to be displayed on a single HDMI display. Supporting input signals up to 4K@30Hz, this unit is also equipped with an integrated scaler which allows resolutions as low as 640 x 480 to be scaled up to 1920x1080@60Hz.

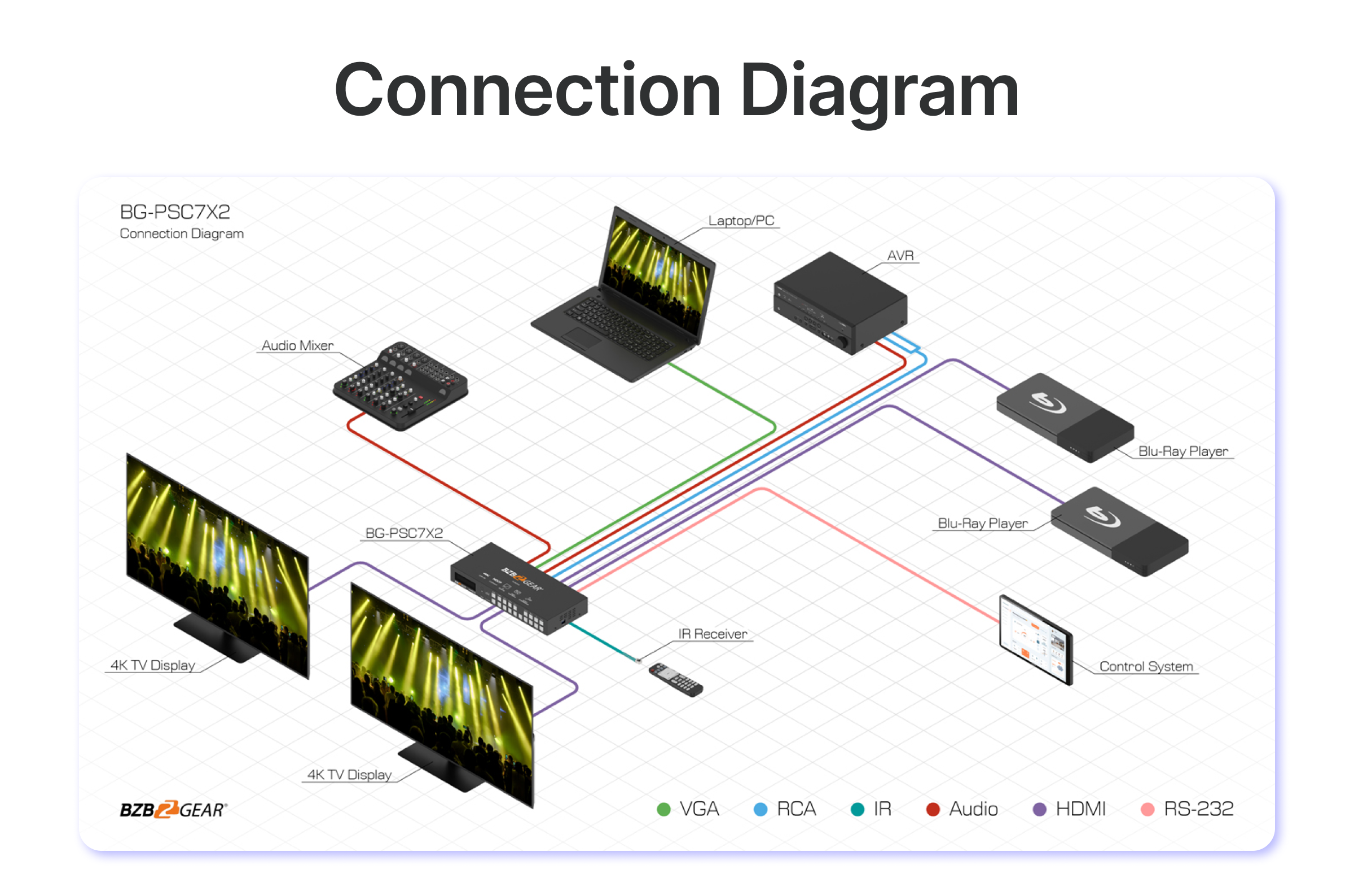

The powerful dual-switcher mode allows the BG-PSC7X2 to simultaneously function as a 4x1 4K HDMI switcher and a 7x1 1080P multi-format switcher. Featuring audio embedding, de-embedding, and supporting variety of input connections, this unit is an effective solution for use in auditoriums, classrooms, and conference rooms.

Connectivity

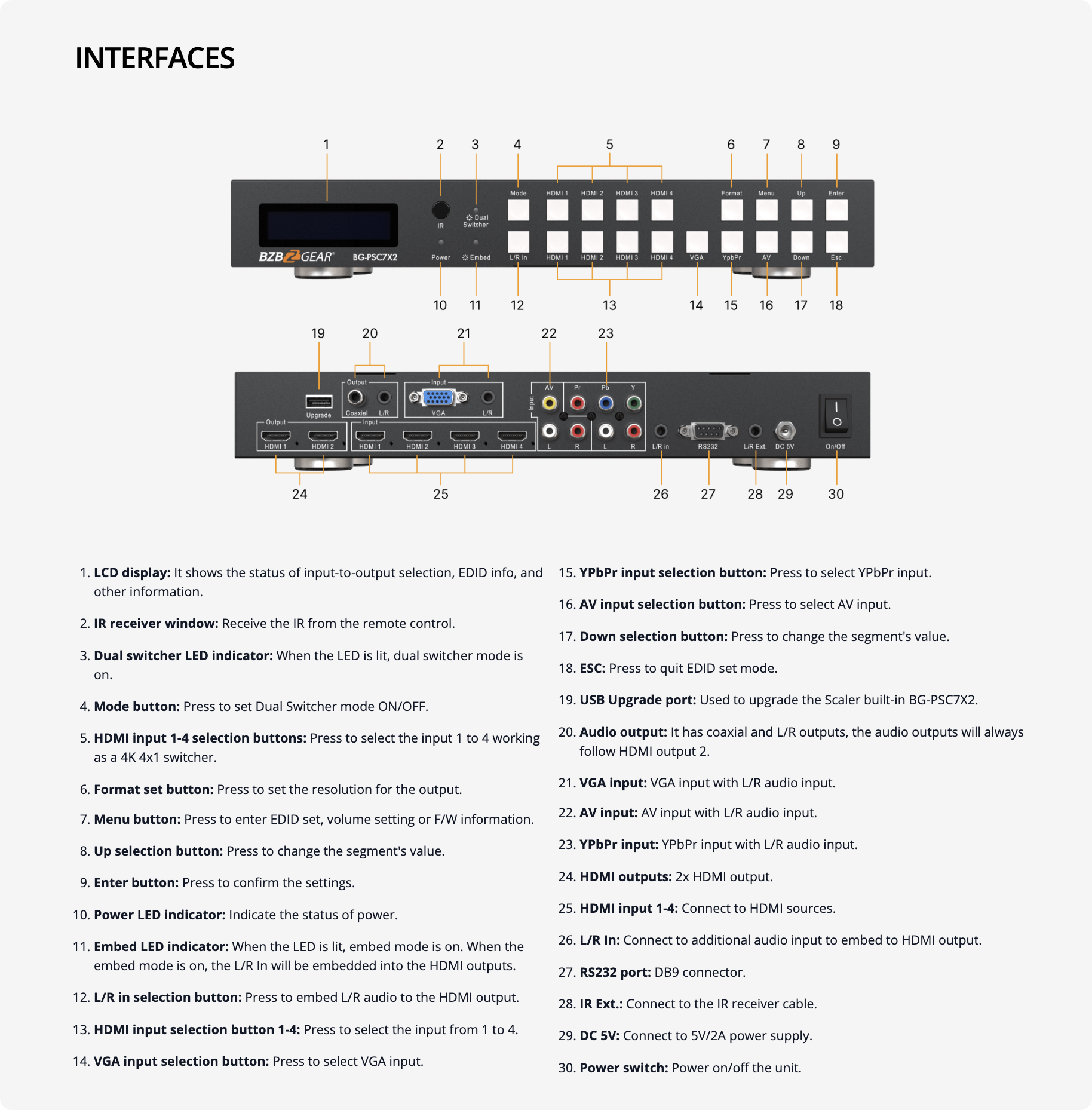

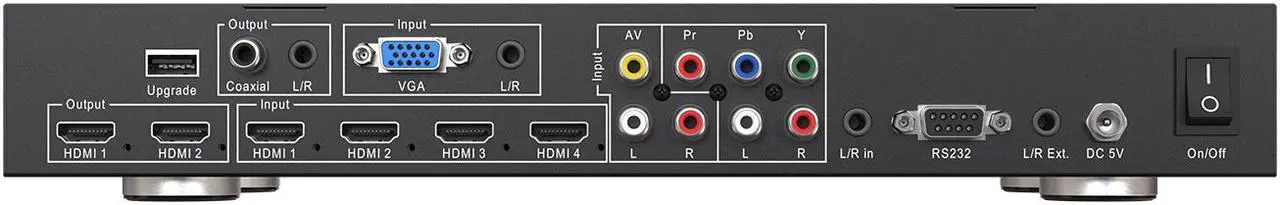

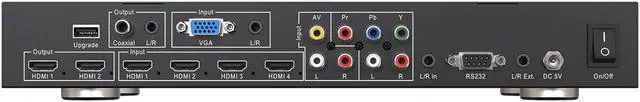

The BG-PSC7X2 is equipped with seven inputs including four HDMI, one VGA, one component (YPbPr), and one composite A/V. The VGA input is paired with a 3.5mm audio input. Two mirrored HDMI outputs provide connections for dual displays. Equipped with one digital coax and one RCA line output, the BG-PSC7X2 provides audio de-embedding for connection to external audio systems. The digital bypass circuit allows 4K@30Hz 4:4:4 sources to be displayed.

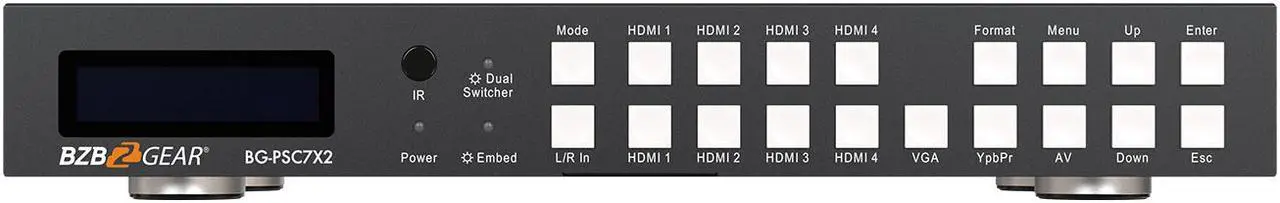

Control

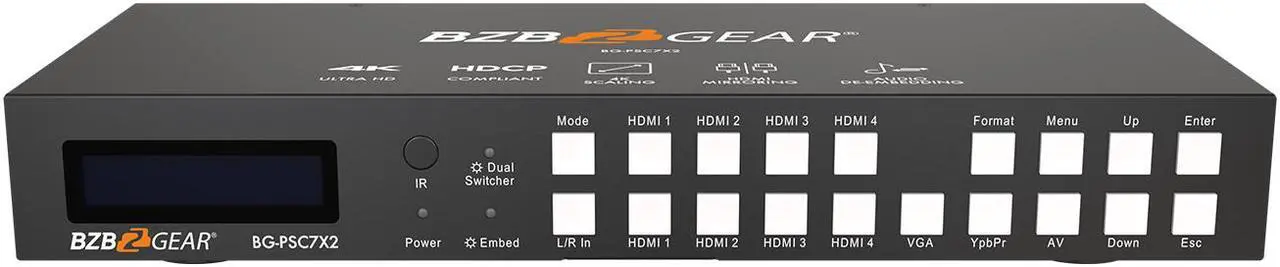

The BG-PSC7X2 can be operated via the front panel buttons, included IR remote, or RS-232, commands. The LCD menu display provides access to EDID management settings to ensure stable signals and reliable switching. Scaler settings and audio format settings can also be adjusted, providing a high degree of flexibility for installation. An IR input port allows integration with IR distribution and third-party control systems.

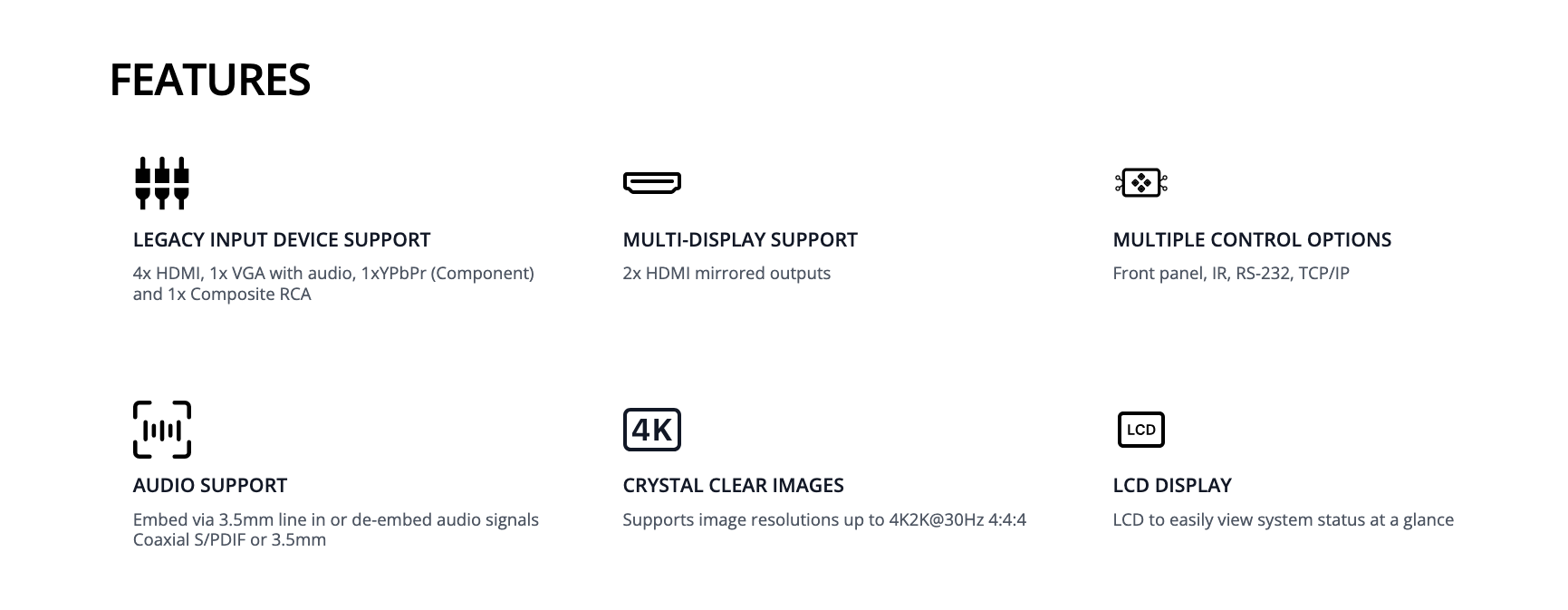

Features:

• Legacy Input Device Support - 4x HDMI, 1x VGA with audio, 1xYPbPr (Component) and 1x Composite RCA
• Multi-Display Support - 2x HDMI mirrored outputs
• Multiple Control Options - Front panel, IR, RS-232, TCP/IP
• Audio Support - Embed via 3.5mm line in or de-embed audio signals Coaxial S/PDIF or 3.5mm
• Crystal Clear Images - Supports image resolutions up to 4K2K@30Hz 4:4:4
• LCD Display - LCD to easily view system status at a glance
• Auto-Scaling - Accepts input resolutions up to 4K@30, outputs scale to 1080P
• Multiple Control Options - Front panel, IR, RS-232, TCP/IP
• Audio Support - Embed or De-Embed audio signals
