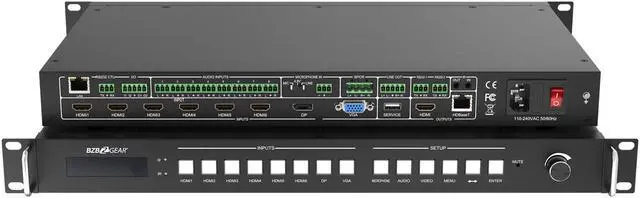

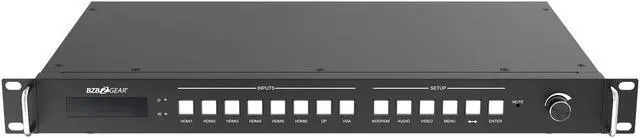

BZBGEAR 8x2 4K UHD Seamless Presentation Switcher with HDBaseT

The BG-PSC8X2HDB is an 18Gbps 8x2 seamless 4K presentation switcher. Equipped with 8 video inputs including 6 HDMI ports, 1 Display Port, and 1 VGA port, this HDMI 2.0, HDCP 2.2 and DP 1.2 compliant unit supports multi-format signal processing for seamless switching between all sources. It features automatic input scaling at resolutions up to 4K@60Hz 4:4:4.

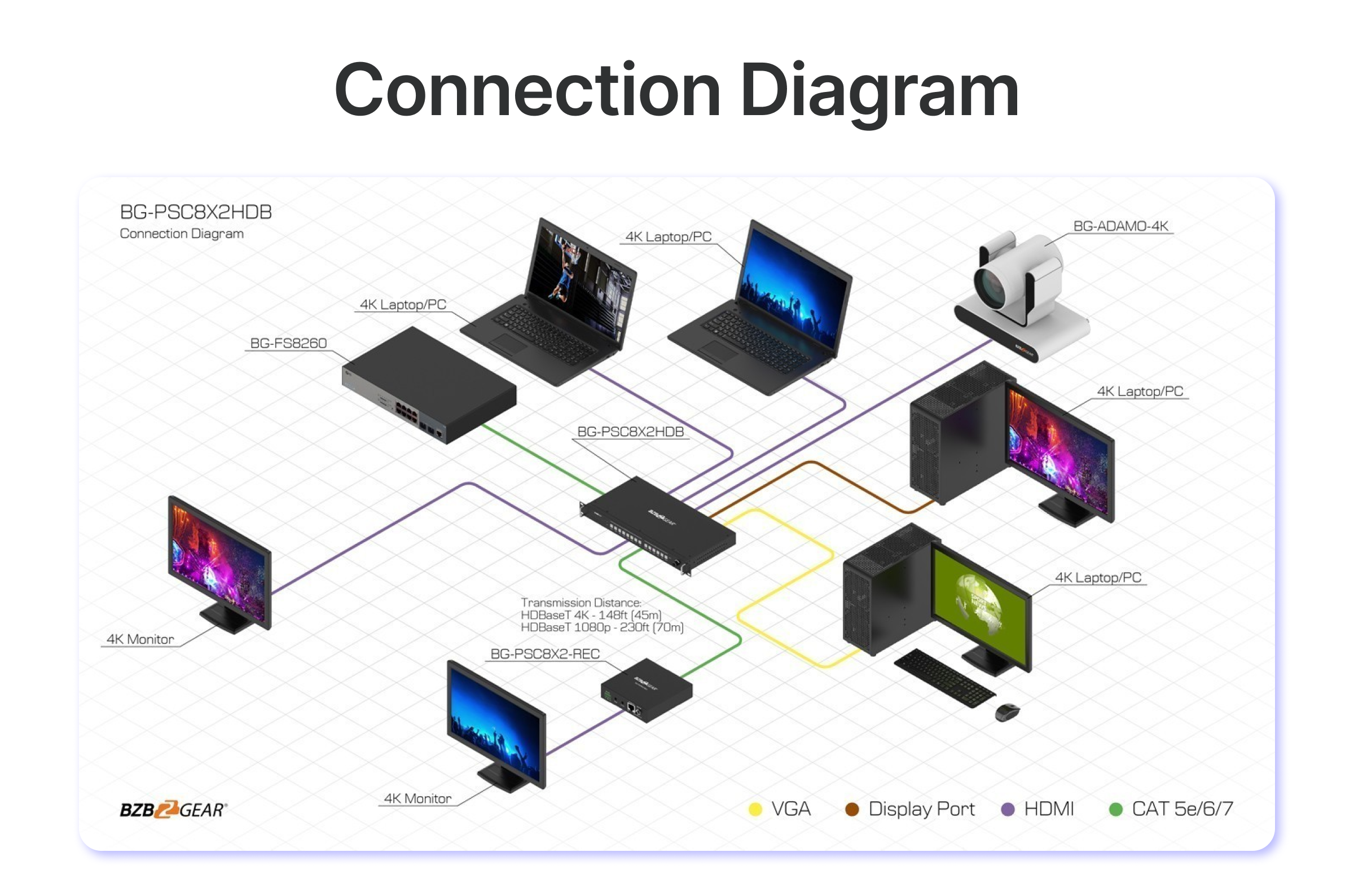

Video output is available via simultaneous HDMI and HDBaseT ports. The HDBaseT output extends signal up to 70 meters at 1080P, or 45 meters at 4K.

Third-party control is supported with bi-directional IR and RS-232 connections and the equipped EDID management helps eliminate video compatibility issues.

Easily embed audio with any of the 8 stereo inputs. The integrated microphone mixer supports adjustable trim and 48V phantom power. Extract audio from the balanced output or power 2 speakers with the 20W stereo output.

Features:

• Crystal Clear Images - Stunning image quality in 4K@60 4:4:4
• Integrated Microphone Mixer - Features adjustable trim and 48V Phantom Power
• HDBaseT Output - Extend signal up to 70 meters at 1080P, or 45 meters at 4K
• Integrated Audio Amplifier - Power 2 speakers via 20W stereo outputs
• EDID Management - Eliminates video compatibility issues
• Multiple Control Options - Bi-Directional IR, RS232, and IP Control
• HDMI 2.0, HDCP 2.2 and DP 1.2 compliant
• Support 18 Gbps video bandwidth
• Mirrored output with HDMI and HDBaseT output ports
• Support seamless switching
• 8 video inputs: 6 HDMI ports, 1 DP port, 1 VGA port
• 9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input
