BZBGEAR 1x4 4K UHD HDMI HDBaset Splitter/Distribution Amplifier Kit with 4 Receivers and IR/RS-232/Audio De-embedding up to 390ft Over Category Cable

The BG-UDA-E14 is a 1x4 4K HDBaseT splitter/extender kit. Supporting resolutions up to 4K@60Hz, users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at 1080P@60Hz with the included HDBaseT extenders. With the ability to connect to one local and four remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.

Connectivity and Features

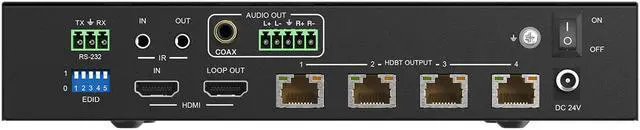

The BG-UDA-E14 supports a maximum resolution of 4K@60Hz 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

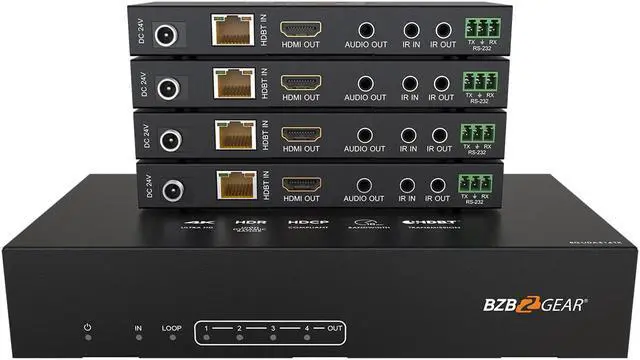

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.

Features:

• 4K @ 60 4:4:4 Support - Ultra HD refers to a TV resolution of 3840 x 2160 pixels
• Multi-Channel Audio - Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master
• Power over Cable - Receivers need no power supply
• Long-Distance - Transmit signal up to 120 meters (390 feet)
• Compact Design - Slim components make a clean installation easy
• EDID Control - Multiple selectable EDID modes ensure reliable connectivity
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• Support 18Gbps video bandwidth
• Support HDR, HDR10+, HLG and Dolby vision
• Support digital and analog audio de-embedded output
• Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs
• IR, RS-232 routed to HDBaseT output
